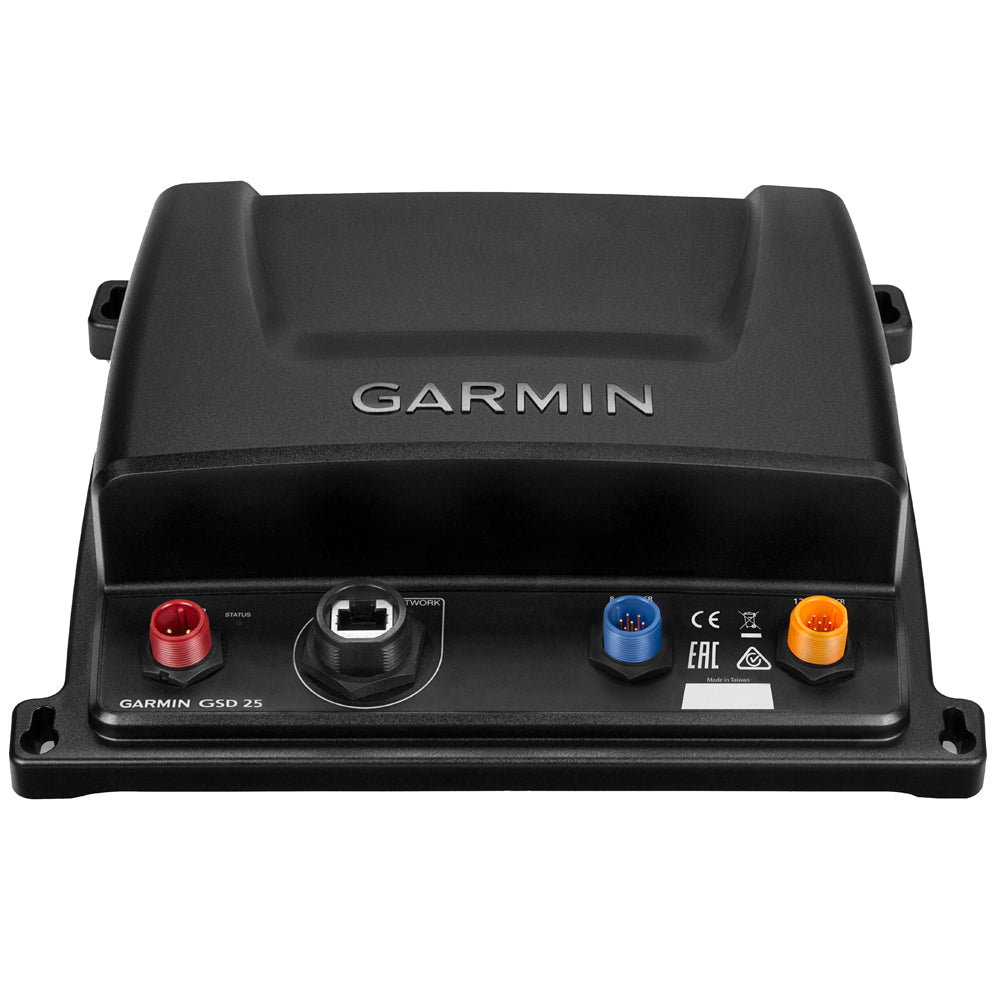

Garmin GSD 25 Premium Sonar Module with Dual-Channel 1kW CHIRP and SideV/DownV Scanning

GSD 25 Premium Sonar Module

The GSD 25 premium sonar module is a remote network solution that provides outstanding fishfinding and bottom tracking capabilities. It offers dual-channel 1 kW CHIRP, plus Garmin CHIRP DownV and SideV sonar scanning for the clearest scanning images on the water. The images sent to your compatible Garmin chartplotter have target details so clear and precise, you can actually distinguish between small and closely spaced fish at key fishing depths all the way down to 5,000 feet.For the serious offshore sportfisherman, this "one-box" remote network sonar solution provides outstanding fishfinding and depth sounder capabilities for vessels with networked MFD installations.

True Dual-Channel 1kW CHIRP

CHIRP is the most sophisticated sonar technology available for use by the fishing and boating public. CHIRP is an acronym for Compressed High-Intensity Radiated Pulse. What it means to you is much better target resolution, clarity and crispness than any other sonar system. Having Garmin true dual 1 kW CHIRP as your traditional sonar allows you to adjust CHIRP frequencies to low/medium, low/high, medium/high to further optimize your sonar performance. Transducer sold separately.

Clearest Scanning Sonar Images on the Water

Adding CHIRP technology to DownV resolution, target separation and clarity of the sonar images of fish and structure that pass below and to the sides of your boat. Built-in to our new GPSMAP xsv combos and GSD 25 Premium Sonar Module, it uses 1 transducer for traditional CHIRP HD-ID sonar and CHIRP DownV and SideV scanning sonar. Transducer sold separately.

Choose a Garmin Transducer

This sonar is so unique Garmin has developed their own proprietary transducers that are specially designed to work with the sonar to provide the very best performance.

Features:

• Offers dual-channel 1kW CHIRP
• SideV and DownV sonar scanning for the clearest images on the water
• Target detail so precise you can actually distinguish between small and closely spaced fish at key fishing depths
• Depth capability to 5,000 feet

Compatible Devices:

• GPSMAP 8000 Glass Helm Series
• GPSMAP 7400/7600 Series Displays

In The Box

• GSD 25
• Right-angle power cable (6 feet)
• Right-angle network cable (6 feet)
• Mounting hardware
• Documentation

Connections

• Transducer pin numbers: 8 Pin and 12 Pin

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Garmin GSD 25 Premium Sonar Module is a high-performance, remote network solution designed for serious anglers and offshore sportfishermen. It delivers outstanding fishfinding and bottom tracking capabilities, utilizing dual-channel 1 kW CHIRP technology combined with Garmin’s proprietary SideV and DownV sonar scanning. This advanced sonar system provides crystal-clear images of fish and underwater structures, enabling users to distinguish between small and closely spaced fish at depths reaching up to 5,000 feet. The GSD 25 seamlessly integrates with compatible Garmin GPSMAP series chartplotters, offering precise target separation and detailed underwater views that help improve fishing success and situational awareness. Its compact “one-box” design makes it ideal for vessels equipped with networked multifunction displays, consolidating essential sonar functions into a single, reliable unit.

Features:

• Offers dual-channel 1kW CHIRP for enhanced target resolution and clarity

• SideV and DownV sonar scanning for comprehensive underwater imaging

• Target detail so precise you can distinguish small and closely spaced fish at key fishing depths

• Depth capability to 5,000 feet for deep-water fishing applications
