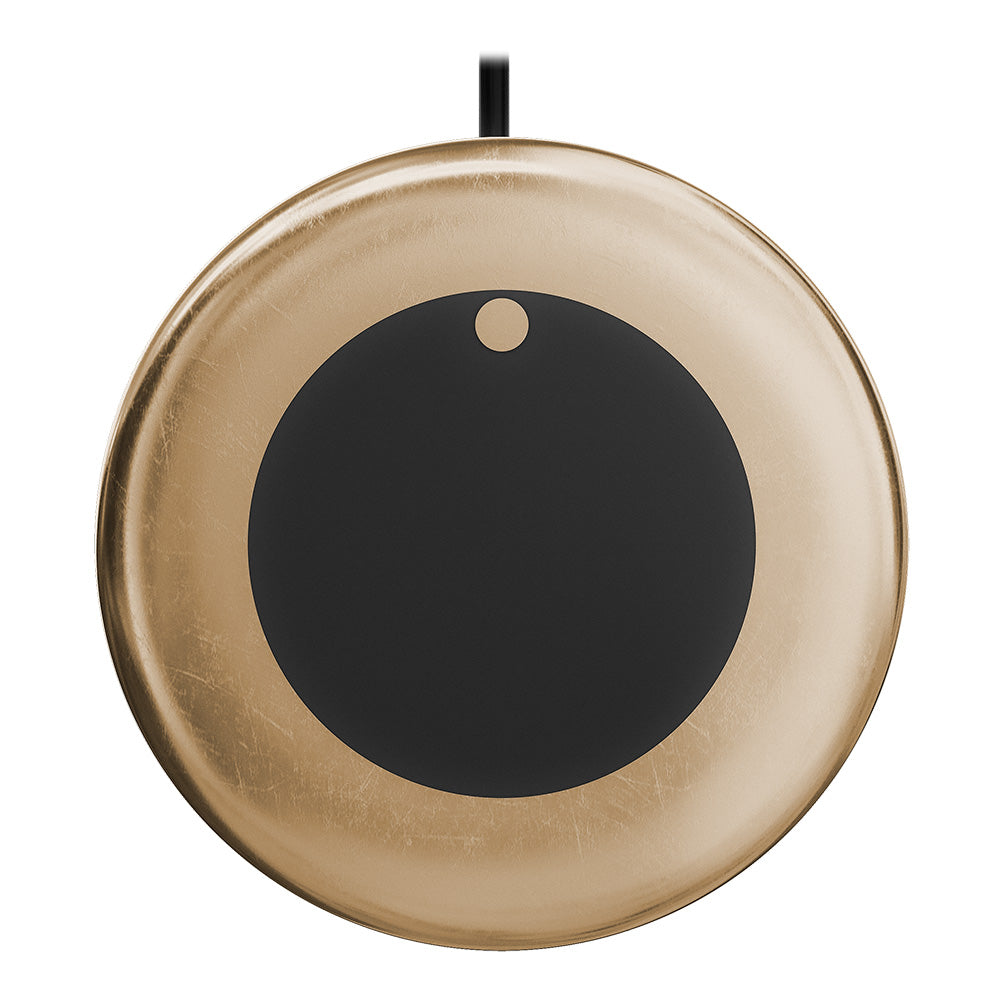

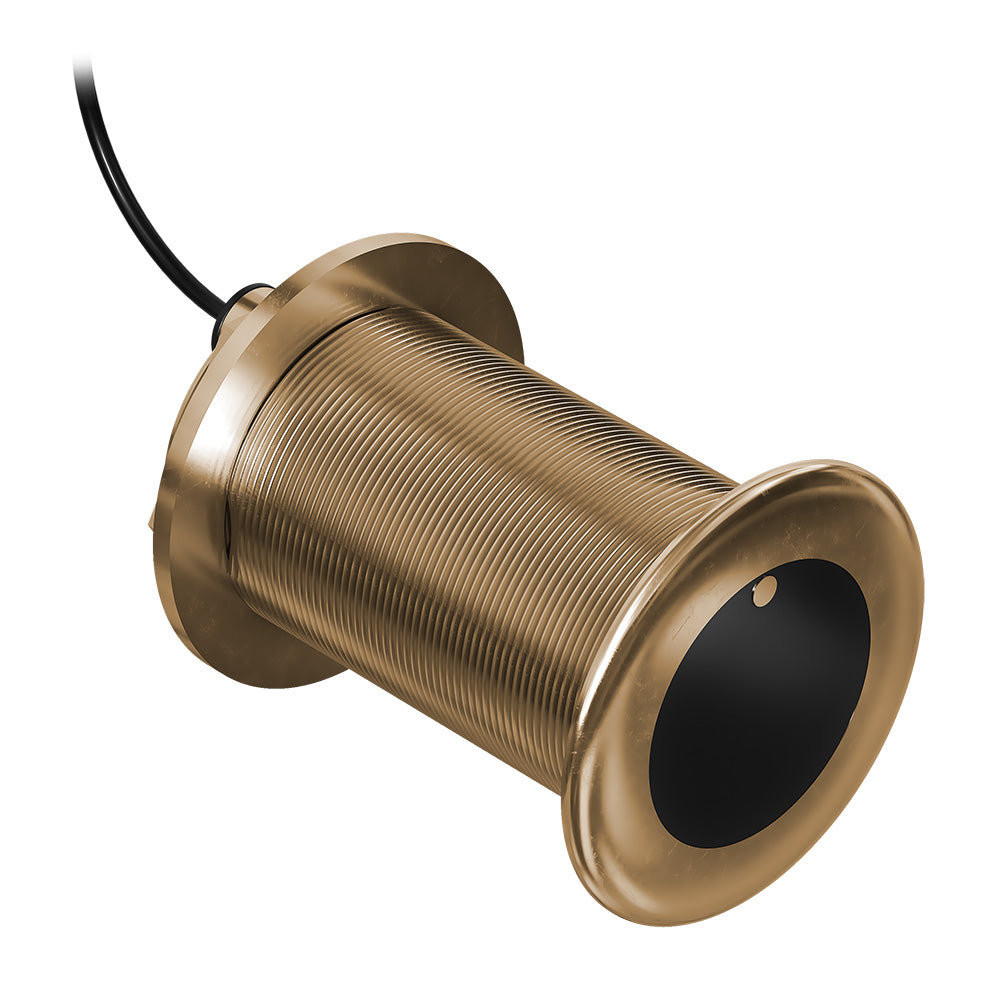

Garmin GT12M Bronze Thru-Hull Transducer - 350W, 12 Degree, Mid-Band CHIRP for Clear Fish and Structure Detection

GT12M Bronze Thru-Hull - 350W - 12 Degree

Designed for reduced drag and optimum sonar performance on midsize fishing and cruising boats, this flush-mounted, 350-watt mid-band CHIRP transducer clearly defines fish arches, structure, and bottom depth returns on your display.

Midband Chirp Traditional Sonar

This 8-pin, 350-watt bronze thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 800 in saltwater and 1,200 in freshwater.

Broad Frequency Range

Use the perfect frequency for the waters youre fishing. Covering the medium frequency range, this transducer pulses from 85165 kHz, displaying a wide coverage area, crisp fish arches, and accurate depth readings.

Optimum Ping Sensitivity

Offering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on your compatible chartplotter display.

Thru-Hull Installation

A durable bronze housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.

Auto-ID Technology

Enjoy simple plug-and-play operation with Garmin auto-identification technology which enables the sonar to automatically configure itself to the transducer being used.

Fits Various Hull Types

Configurable for a wide variety of boat hull materials, including fiberglass, composite, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 020 without a fairing block.

In the Box:

• GT12M-THF transducer
• Jam nut
• Washer
• Documentation

Specifications:

• Transducer Frequency: Medium band CHIRP (85-165 kHz)
• Transducer Power: 350 W
• Transducer Beamwidth: 24 -16
• Transducer Maximum Depth: 800 ft saltwater / 1200 ft freshwater
• Transducer Cable Length: 50 ft
• Transducer Depth/Speed/Temperature: Depth, temperature
• Transducer Number of Pins: 8-pin
• Housing Material: Bronze
• Transducer Supported Deadrise/Transom Angles: 12 supports hull deadrise angles from 8 to 15

The Garmin GT12M Bronze Thru-Hull Transducer is designed for anglers and boaters seeking precise sonar imaging with minimal drag. Ideal for midsize fishing and cruising boats, this 350-watt, flush-mounted transducer delivers high-definition mid-band CHIRP sonar, providing sharp images of fish arches, underwater structures, and bottom contours. Its robust bronze housing ensures durability and reliable performance in saltwater and freshwater environments. With the ability to clearly define targets up to 800 feet in saltwater and 1,200 feet in freshwater, this transducer enhances your fishing experience by offering accurate depth readings and detailed underwater imagery. The broad frequency range (85-165 kHz) allows you to select the optimal frequency based on your fishing conditions, ensuring crisp images and effective target separation. The transducer's auto-ID technology simplifies installation and configuration, automatically recognizing the device and adjusting settings for seamless operation. Its versatile design supports various hull types, including fiberglass, composite, and wood, with tilt options to accommodate deadrise angles from 8 to 15 degrees. The package includes the transducer, jam nut, washer, and documentation, making setup straightforward and hassle-free. Whether you're targeting fish, structure, or bottom detail, the Garmin GT12M provides reliable, high-quality sonar performance to improve your fishing and boating adventures.
