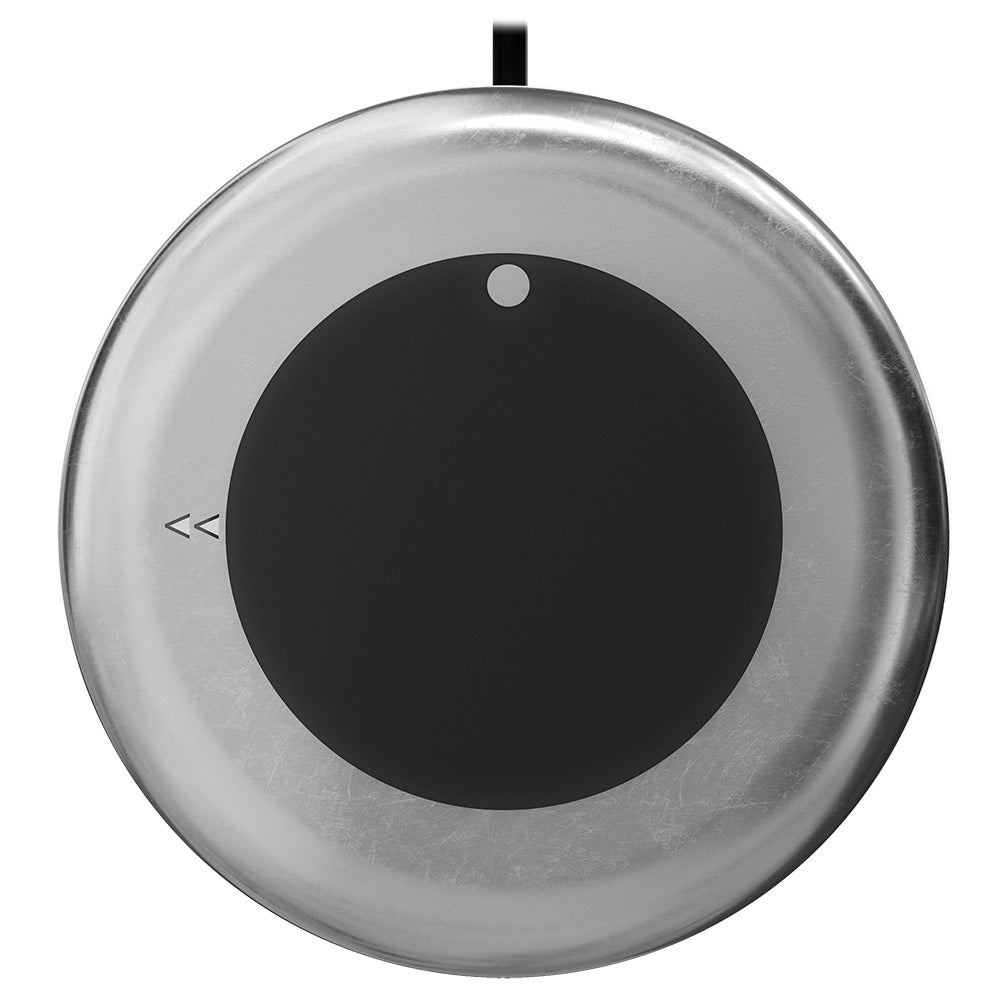

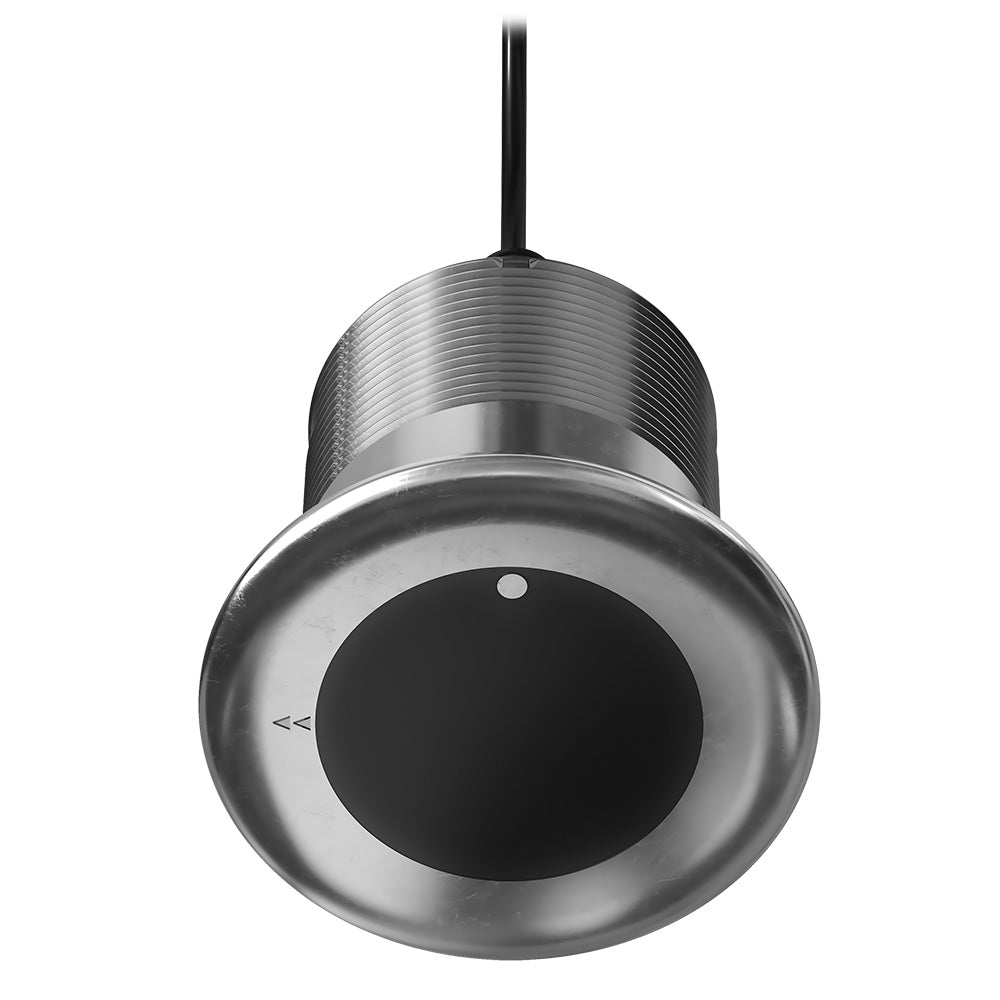

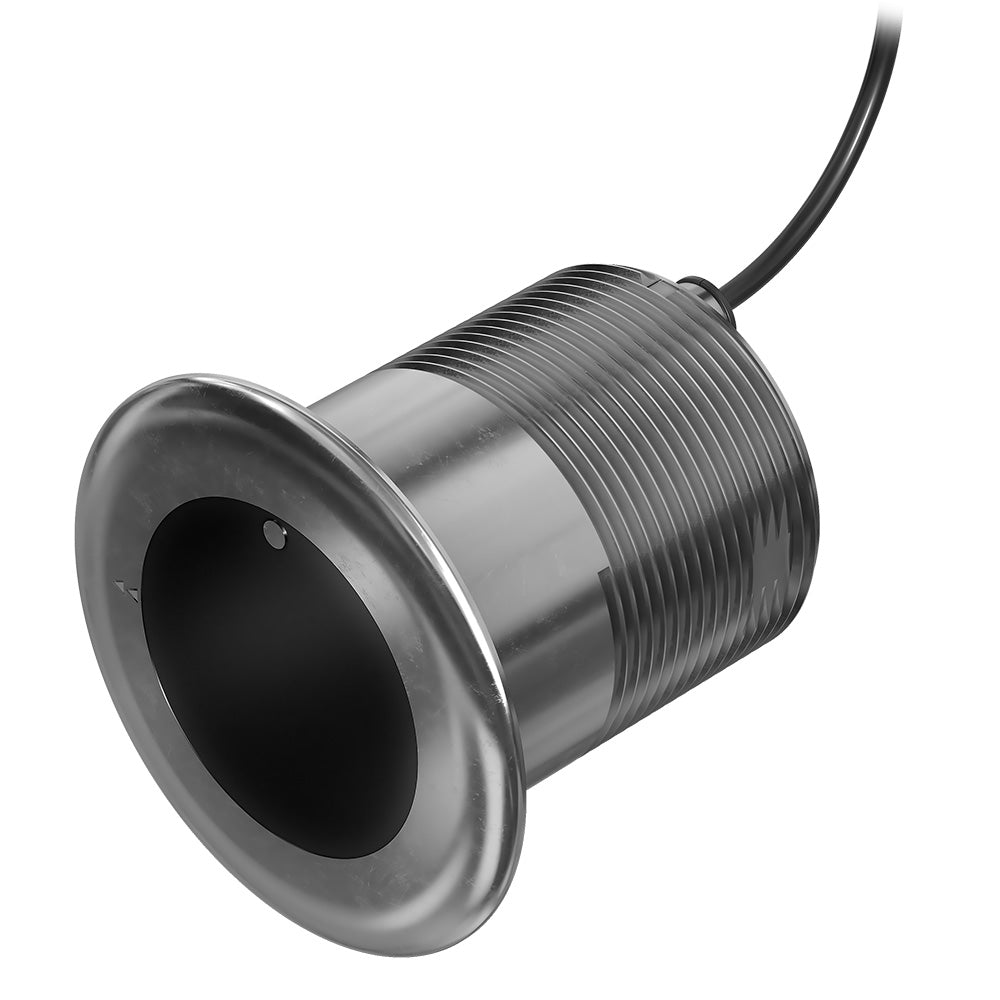

Garmin GT17M-THF SS Mid Band CHIRP Transducer – 12° Flush Mount, 1kW, 8-Pin for Saltwater & Freshwater Fishing and Cruising Boats

GT17M-THF SS Mid Band Chirp Transducer - 12 - 1kW - 8-Pin

Designed for reduced drag and optimum sonar performance on fishing and cruising boats, this flush-mounted 1 kW mid-band CHIRP (80165 kHz) transducer clearly defines fish arches, structure, and bottom depth returns on the display.

Features:

• See maximum depth performance to 2,400 in freshwater
• Access CHIRP sonar frequency range from 80165 kHz
• Search with beamwidths of 918 degrees
• Count on fast-response water temperature sensing
• The thru-hull design offers flush installation with a 12-degree tilt
• Auto-ID enables simple plug-and-play operation

Midband Chirp Traditional Sonar

This 8-pin 1 kW stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,800 in saltwater and 2,400 in freshwater.

Broad Frequency Range

Use the perfect frequency for the waters in which users are fishing. Covering the medium frequency range, this transducer pulses from 80165 kHz, displaying a wide coverage area, clear fish arches, and accurate depth readings.

Optimum Ping Sensitivity

Offering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on the compatible chartplotter display.

Thru-Hull Installation

A durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.

Auto-ID Technology

Enjoy simple plug-and-play operation with Garmin auto-identification technology, which enables the sonar to automatically configure itself to the transducer being used.

Fits Various Hull Types

Configurable for a wide variety of boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 024 degrees without a fairing block.

In the Box:

• GT17M-THF transducer
• Jam nut
• Spacer
• 2 washers
• 2 set screws
• Thread isolator
• Hull isolator
• Documentation

Specifications:

• Transducer Frequency: Medium band CHIRP (80-165 kHz)
• Transducer Power: 1 kW
• Transducer Beamwidth: 9-18
• Transducer Maximum Depth: 1800 ft saltwater; 2400 ft freshwater
• RapidReturn Sonar Compatible: Yes
• Transducer Cable Length: 50 ft
• Transducer Depth/Speed/Temperature: Depth, temperature
• Transducer Number of PINs: 8-pin
• Transducer Supported Deadrise/Transom Angles: 12 supports hull deadrise angles from 8 to 15
• Housing Material: Stainless steel

The Garmin GT17M-THF SS Mid Band CHIRP Transducer is an essential tool for serious anglers and boaters seeking precise sonar imaging and reliable depth readings. Designed for efficient performance on a variety of vessel hulls, this 1 kW transducer offers clear, high-definition sonar that defines fish targets, structure, and bottom contours with exceptional accuracy. Its flush-mounted stainless steel housing minimizes drag, making it ideal for both fishing and cruising applications. The transducer’s broad frequency range (80-165 kHz) allows users to select the optimal pulse for different water conditions, whether in saltwater or freshwater environments. With maximum depth capabilities of up to 2,400 feet in freshwater, it provides dependable performance for deep-water fishing, structure scanning, and navigation. The auto-ID feature simplifies installation by automatically configuring the transducer with compatible Garmin chartplotters, enabling quick and straightforward setup. Its versatile design supports various hull materials—including fiberglass, composite, steel, aluminum, and wood—and accommodates deadrise angles from 8 to 15 degrees, ensuring a seamless fit for many vessel types. The transducer includes all necessary mounting hardware and accessories, such as a jam nut, spacer, washers, set screws, and isolators, for a secure, professional installation. Whether you’re seeking detailed fish arches, accurate depth readings, or structure identification, the Garmin GT17M-THF SS Mid Band CHIRP Transducer delivers high-resolution sonar performance with minimal noise, enhancing your fishing and cruising experience. Its durable stainless steel construction and 50-foot cable ensure long-lasting reliability in demanding marine environments. This transducer is compatible with Garmin RapidReturn sonar systems, providing fast and accurate returns for confident decision-making on the water.
