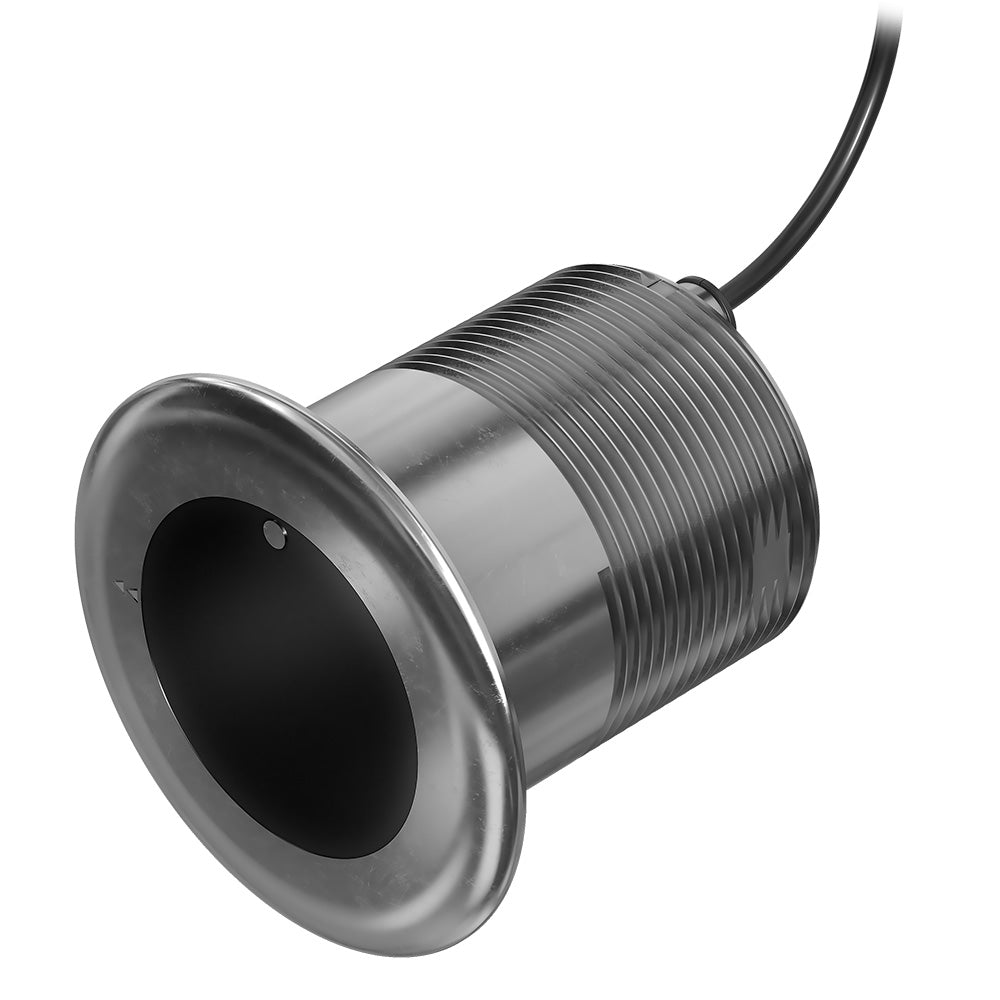

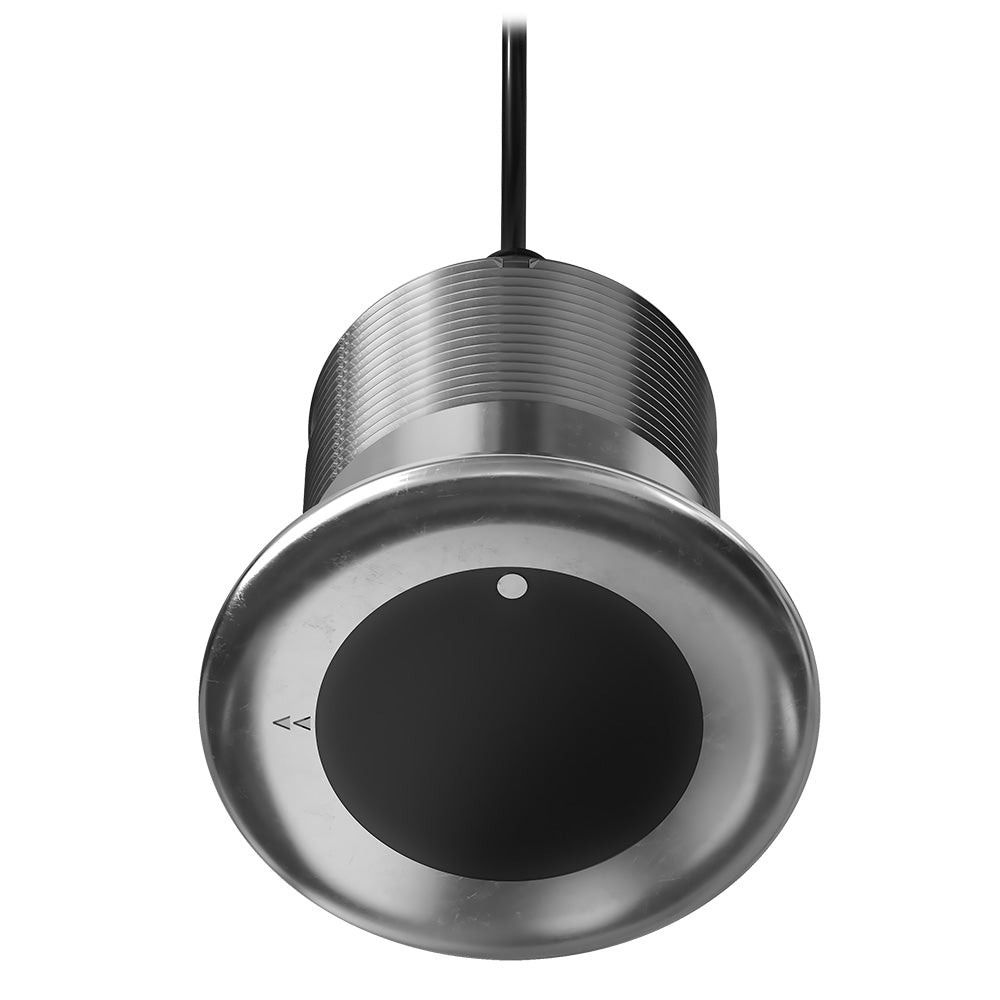

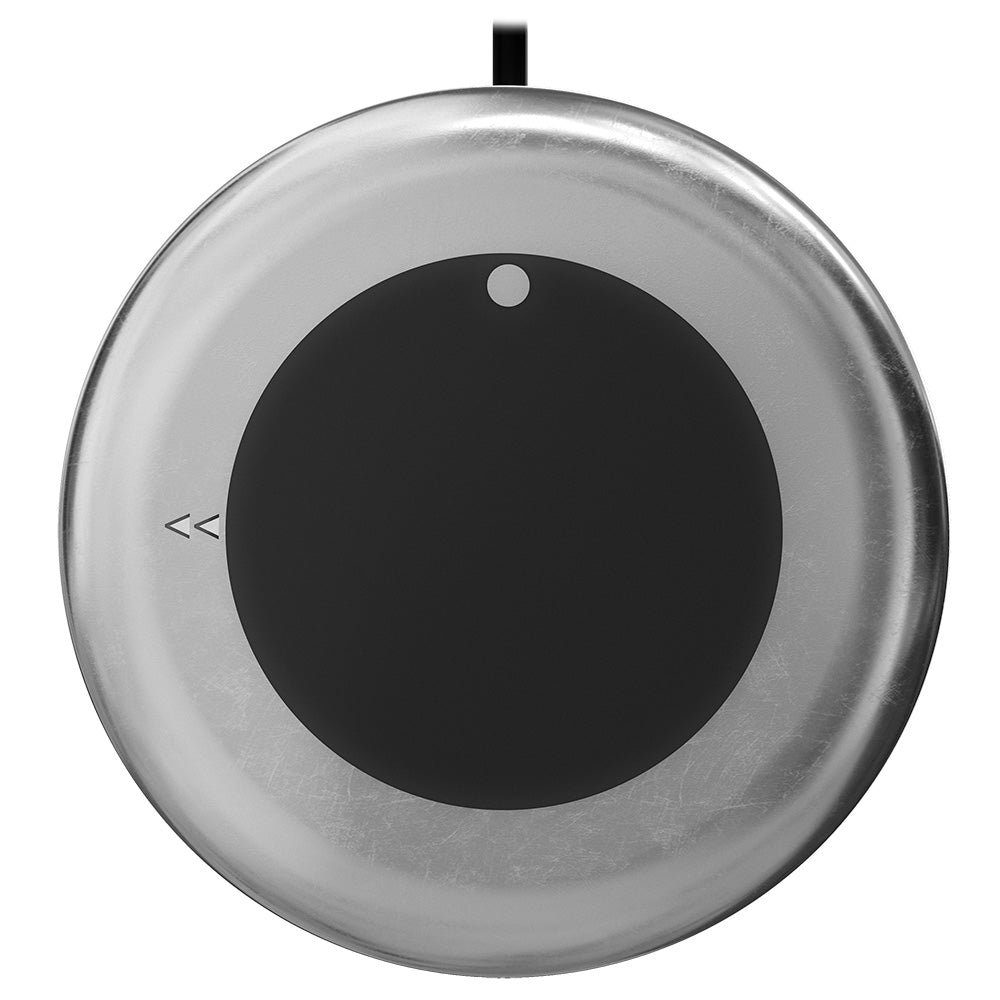

Garmin GT17M-THF Stainless Steel Mid-Band CHIRP Transducer - 0-1kW, 8-Pin for Clear Fish and Structure Detection

GT17M-THF SS Mid Band Chirp Transducer - 0 - 1kW - 8-Pin

Designed for reduced drag and optimum sonar performance on fishing and cruising boats, this flush-mounted 1 kW mid-band CHIRP (80165 kHz) transducer clearly defines fish arches, structure, and bottom depth returns on the display.

Features:

• See maximum depth performance to 2,400 in freshwater
• Access CHIRP sonar frequency range from 80165 kHz
• Search with beamwidths of 918 degrees
• Count on fast-response water temperature sensing
• The thru-hull design offers flush installation with a 0-degree tilt
• Auto-ID enables simple plug-and-play operation

Midband Chirp Traditional Sonar

This 8-pin 1 kW stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,800 in saltwater and 2,400 in freshwater.

Broad Frequency Range

Use the perfect frequency for the waters in which users are fishing. Covering the medium frequency range, this transducer pulses from 80165 kHz, displaying a wide coverage area, clear fish arches, and accurate depth readings.

Optimum Ping Sensitivity

Offering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on the compatible chartplotter display.

Thru-Hull Installation

A durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.

Auto-ID Technology

Enjoy simple plug-and-play operation with Garmin auto-identification technology, which enables the sonar to automatically configure itself to the transducer being used.

Fits Various Hull Types

Configurable for a wide variety of boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 024 degrees without a fairing block.

In the Box:

• GT17M-THF transducer
• Jam nut
• Spacer
• 2 washers
• 2 set screws
• Thread isolator
• Hull isolator
• Documentation

Specifications:

• Transducer Frequency: Medium band CHIRP (80-165 kHz)
• Transducer Power: 1 kW
• Transducer Beamwidth: 9-18
• Transducer Maximum Depth: 1800 ft saltwater; 2400 ft freshwater
• RapidReturn Sonar Compatible: Yes
• Transducer Cable Length: 50 ft
• Transducer Depth/Speed/Temperature: Depth, temperature
• Transducer Number of PINs: 8-pin
• Transducer Supported Deadrise/Transom Angles: 0 supports hull deadrise angles from 0 to 7
• Housing Material: Stainless steel

The Garmin GT17M-THF SS Mid Band Chirp Transducer is designed for anglers and boaters seeking precise sonar imaging and reliable fish targeting. Ideal for both fishing and cruising boats, this flush-mounted 1 kW transducer offers high-definition CHIRP sonar that excels in defining fish arches, structures, and bottom contours with exceptional clarity. Its broad frequency range, from 80 to 165 kHz, allows users to customize their sonar views for various water conditions, providing optimal coverage and target separation. Whether fishing in saltwater or freshwater, this transducer performs reliably, with maximum depth capabilities reaching 2,400 feet in freshwater and 1,800 feet in saltwater, ensuring you can explore deep waters confidently. Its durable stainless steel housing and precise thru-hull design minimize drag while maintaining optimal beam orientation for clear, detailed sonar returns. The auto-ID feature simplifies installation by automatically configuring the transducer with compatible Garmin chartplotters, enabling users to quickly set up and start fishing. Designed for versatility, the transducer supports hull types including fiberglass, composite, steel, aluminum, and wood, with multiple tilt options to accommodate deadrise angles from 0 to 24 degrees without the need for a fairing block. This robust, easy-to-install transducer is perfect for serious anglers and boat owners who demand high performance and straightforward operation on their vessels. The package includes all necessary mounting hardware, a 50-foot cable, and comprehensive documentation, ensuring a hassle-free setup. Suitable for a wide range of boat configurations, the Garmin GT17M-THF delivers sharp, reliable sonar images for successful fishing trips and safe cruising. Trust Garmin’s engineering for your sonar needs to enhance your boating experience and improve your catch rate with clear, detailed underwater visuals.
