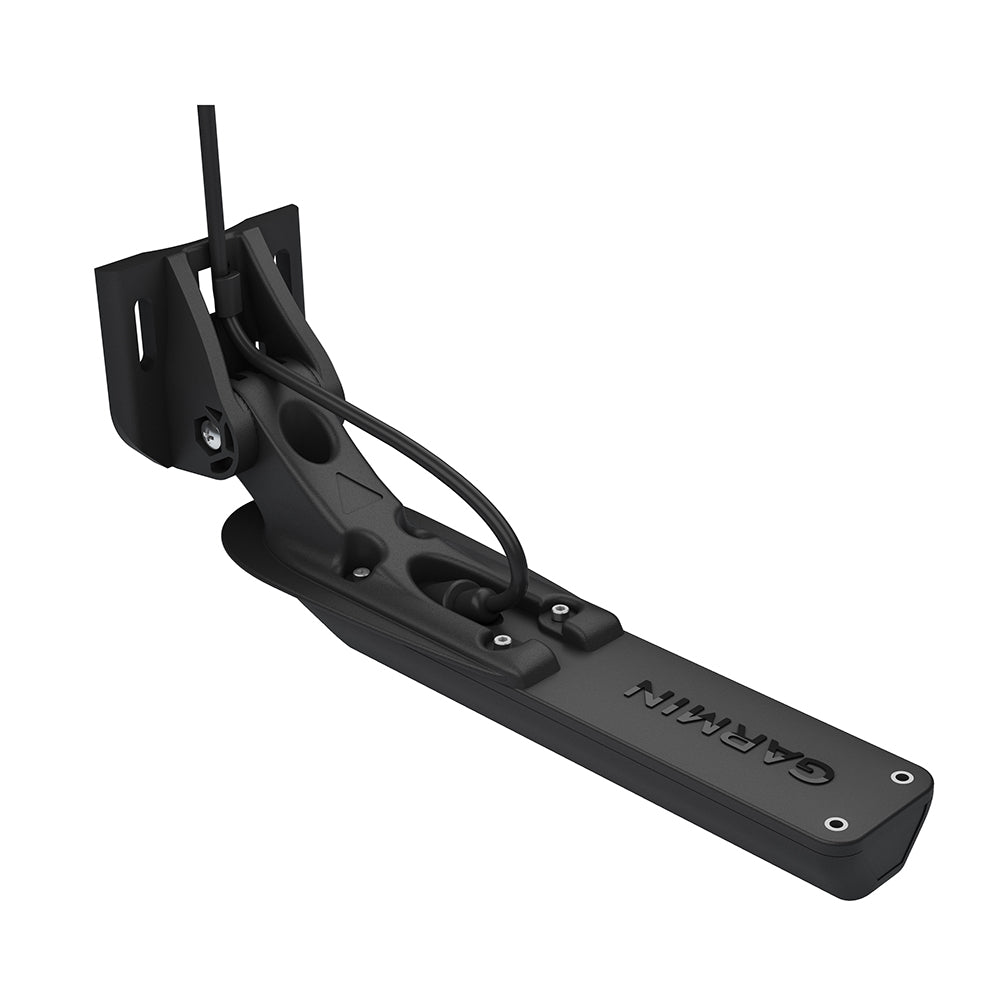

Garmin GT34UHD-TM Ultra HD Transom Mount Transducer for ClearV and SideV Sonar Imaging

GT34UHD-TM Ultra HD Transom Mount Transducer

Ultra High-Definition Sonar System Transom Mount Transducer
Add stunningly clear Ultra High-Definition ClearV and Ultra High-Definition SideV scanning sonar images to your compatible chartplotter via the GCV 20 sonar module. It includes 3 arrays, including a downward-facing element, with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz).

Ultra High-Definition ClearV Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

Ultra High-Definition SideV Scanning
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Specifications:

• Frequency:

• Ultra High-Definition ClearV: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
• Ultra High-Definition SideV: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz

• Power: 500W
• Beamwidth:

• Ultra High-Defintion ClearV: 0.74 x 46
• Ultra High-Defintion SideV: 0.44 x 55

• Maximum depth

• Ultra High-Defintion ClearV: 200' down
• Ultra High-Defintion SideV: 125' sides, 250' total

• Depth/Speed/Temperature: Depth and Temperature
• Number of pins: 12-pin
• Cable length: 20'
• Supported deadrise/Transom angles: 0-70 degree transom

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Enhance your marine navigation and fishing experience with the Garmin GT34UHD-TM Ultra HD Transom Mount Transducer. Designed for compatibility with Garmin chartplotters and the GCV 20 sonar module, this transducer delivers ultra high-definition sonar imaging that provides crystal-clear visuals of underwater structures and fish targets. Its dual scanning modes, including Ultra High-Definition ClearV and SideV, enable anglers and boaters to scan below and to the sides of the vessel with remarkable clarity, making it easier to locate fish and understand underwater terrain in real-time. The transducer's advanced design incorporates three arrays, including a downward-facing element, to optimize power delivery and image quality at depths reaching up to 200 feet, along with side scans extending up to 125 feet on each side. With a power output of 500 watts and frequencies ranging from 0.8 MHz to 1.2 MHz, it provides detailed images that help users make informed decisions while navigating or fishing. The transducer features a 12-pin connector, a 20-foot cable length for flexible installation, and supports transom angles from 0 to 70 degrees, making it suitable for a wide variety of vessel configurations. Whether you're scouting new fishing spots or navigating challenging waters, the Garmin GT34UHD-TM ensures you have a clear view beneath and around your boat, with detailed imaging that enhances safety and success on the water. Please note, this product contains chemicals known to the State of California to cause cancer and reproductive harm, as per Prop 65 warnings. For more information, visit P65Warnings.ca.gov.

Features:

• Ultra High-Definition ClearV scanning: Provides detailed images of underwater structures and fish below your boat at depths up to 200 feet.

• Ultra High-Definition SideV scanning: Offers crystal-clear side imaging up to 125 feet on each side, ideal for scouting and fishing.

• Frequency range: 0.8 MHz (ClearV) and 1.2 MHz (SideV) with CHIRP spectrum for superior target separation and clarity.

• Power output: 500W ensures strong signal strength for deep and detailed sonar imaging.

• Flexible transom mounting: Supports transom angles from 0 to 70 degrees with a 20-foot cable for versatile installation options.
