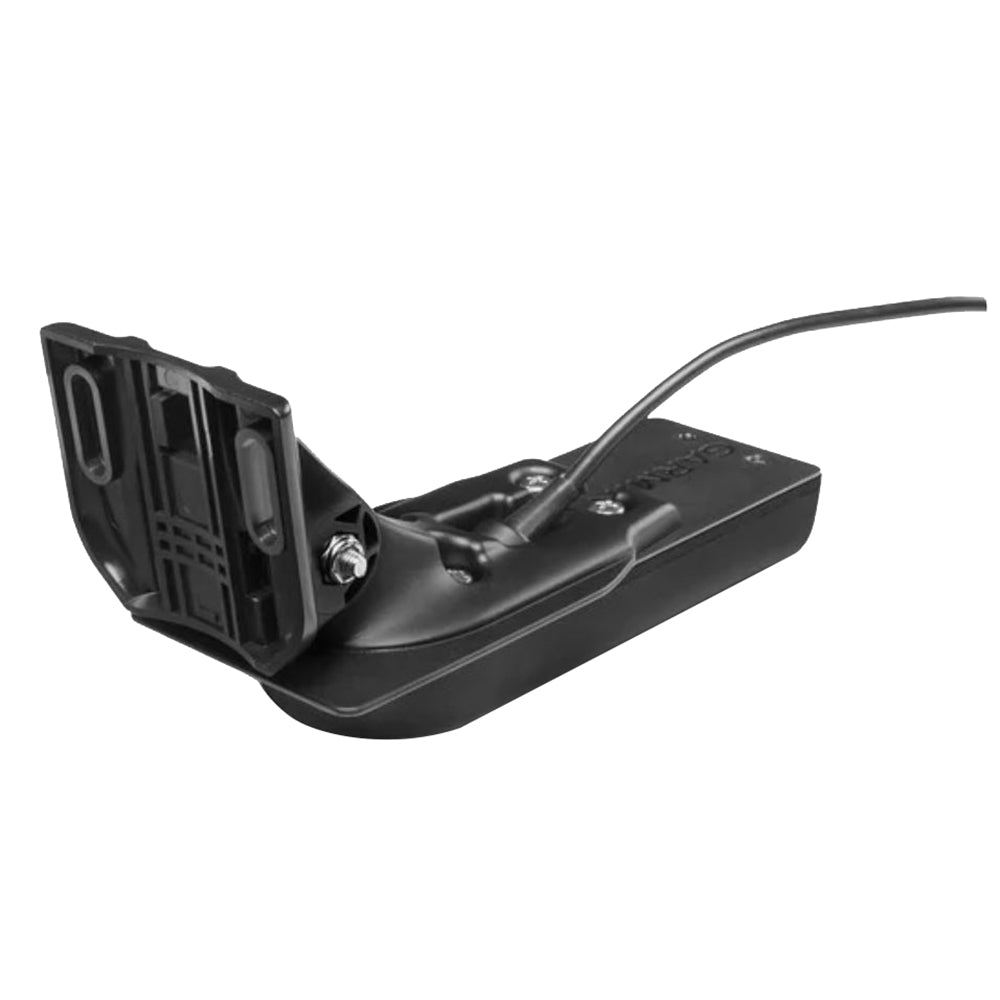

Garmin GT52HW-TM Transducer for Trolling Motor | High Wide CHIRP, DownV & SideV Sonar | 12-Pin, 500W

GT52HW-TM Plastic, TM or Trolling Motor Transducer, High Wide CHIRP/CHIRP DownV/SideV - 455/800kHz, 500W, 12-Pin

GT52HW-TM transducer is perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP DownV and CHIRP SideV scanning sonar. This transom mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below and to the side of the boat.

The 12-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. The CHIRP DownV and SideV (455/800 kHz) elements have a power rating of 500 W each (1,500 W total).

GT52HW-TM is ideal for mounting to a trolling motor due to its compact size. For installation, follow the included instructions carefully to avoid damaging your boat.

Features:

• Frequency: CHIRP High Wide (150-240 kHz); ClearV CHIRP 455 kHz (425-485 kHz) 800 kHz (790-850 kHz)
• Power: Traditional 250 W; ClearV/SideVu 350 W
• Beamwidth: Traditional (24-16); ClearV/SideV (2.0x50 @ 455 kHz) (1.0x30 @ 800 kHz)
• Maximum depth: Traditional: 800 ft.; ClearV: 500 ft.; SideV: 500 ft.
• Depth/Speed/Temperature: Depth and Temperature
• Number of pins: 12-pin
• Cable length: 20 ft.
• Supported deadrise/Transom angles: 0-70 degree transom

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Garmin GT52HW-TM transducer is engineered for freshwater anglers seeking advanced sonar capabilities on their trolling motor. Featuring High Wide CHIRP traditional sonar alongside CHIRP DownV and SideV scanning sonar, this transducer delivers exceptionally clear fish arches and detailed underwater imaging. Its compact design makes it ideal for mounting on a trolling motor, providing reliable performance without sacrificing space or ease of installation. With a power rating of 250W for traditional sonar and 500W for DownV and SideV, the GT52HW-TM ensures you can scan to impressive depths and gain precise target separation. This transducer supports a frequency range of 150-240 kHz for traditional sonar, with 455 kHz and 800 kHz for DownV and SideV modes, making it versatile for various fishing conditions. Its beamwidth varies from 24 to 16 degrees in traditional mode and offers narrow, high-resolution imaging in SideV and DownV modes, facilitating detailed views of structure and fish targets. The transducer is compatible with transom angles from 0 to 70 degrees and supports depth readings up to 800 feet for traditional sonar and 500 feet for DownV and SideV, providing extensive coverage below and to the sides of your boat. Designed with durability and ease of use in mind, the Garmin GT52HW-TM includes a 20-foot cable for flexible installation and a 12-pin connector for seamless integration with compatible Garmin fish finders. Please follow the included installation instructions carefully to ensure optimal performance and to avoid damage during setup. This product is Prop 65 compliant, and additional installation and operational information can be found in the provided manual link. Elevate your fishing experience with Garmin’s reliable, high-performance transducer designed specifically for trolling motor mounting and superior sonar imaging.

Features:

• Frequency: CHIRP High Wide (150-240 kHz); 455 kHz and 800 kHz for ClearV and SideV modes

• Power: Traditional sonar rated at 250W; DownV and SideV sonar rated at 500W each

• Beamwidth: Traditional 24-16 degrees; ClearV/SideV 2.0 x 50 degrees at 455 kHz, 1.0 x 30 degrees at 800 kHz

• Maximum depth: Up to 800 feet with traditional sonar; 500 feet with CHIRP DownV and SideV

• Supported features: Depth, temperature, and speed measurements

• Connector: 12-pin configuration

• Cable length: 20 feet for flexible installation

• Supported transom angles: 0 to 70 degrees for versatile mounting
