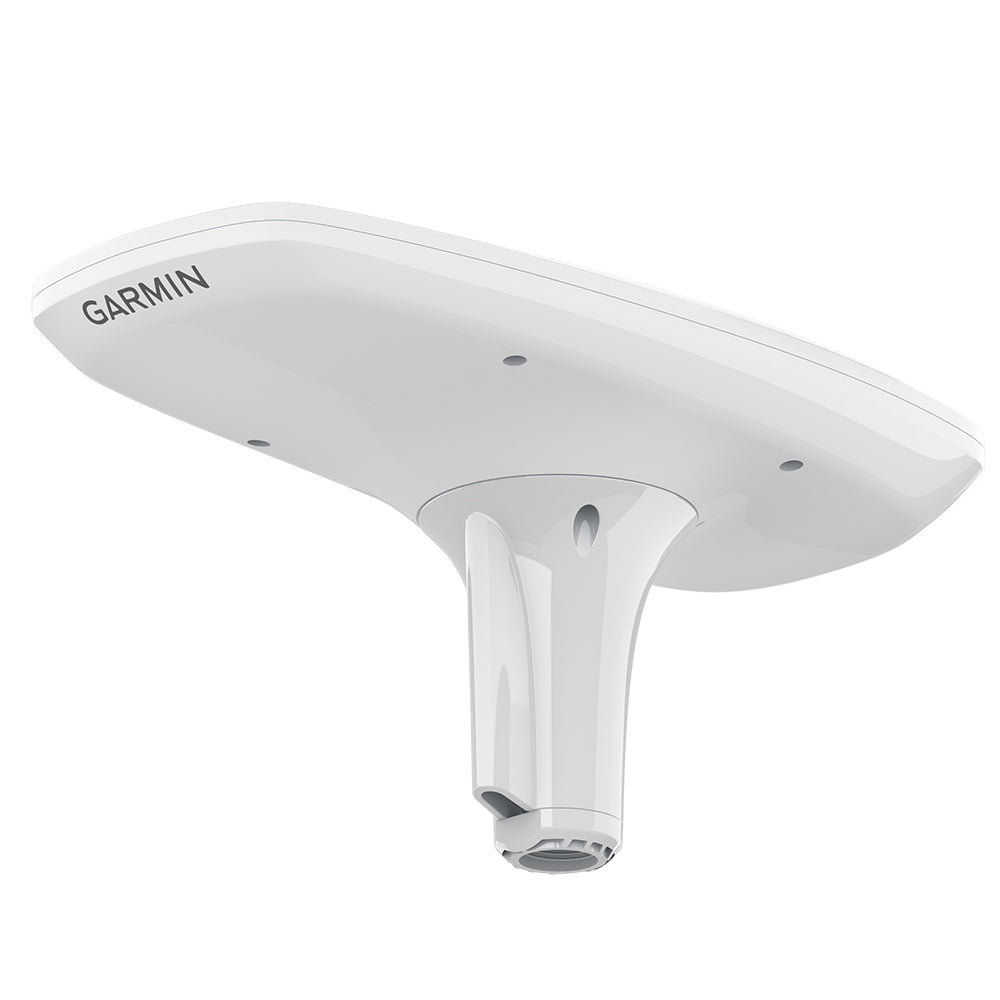

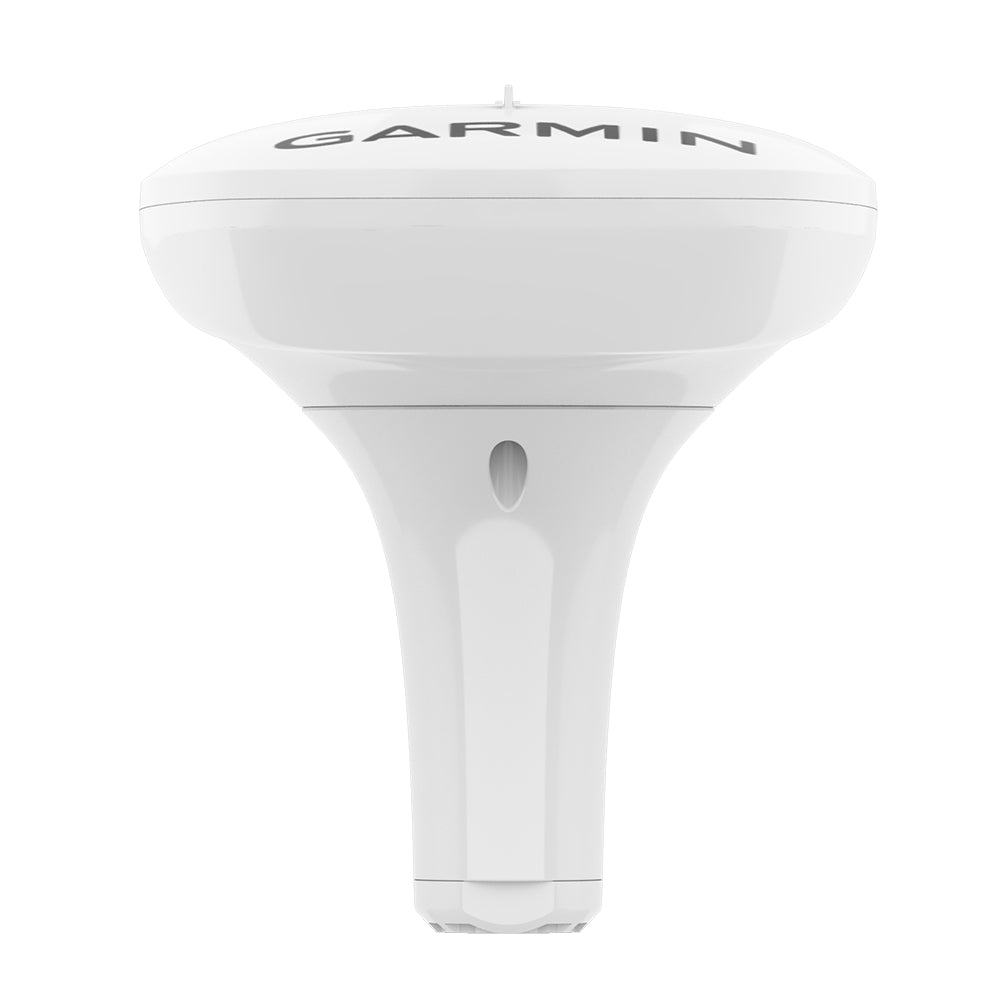

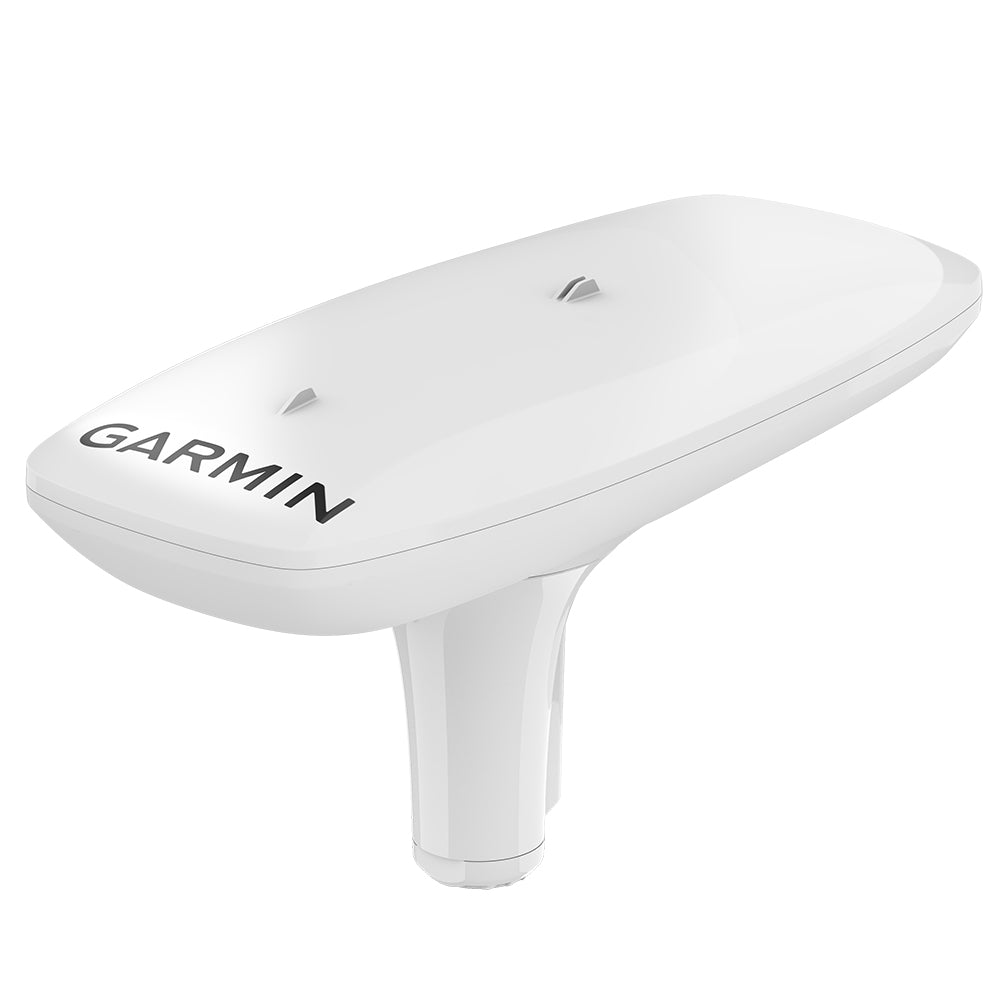

Garmin MSC 10 Marine Satellite Compass - Accurate GPS Heading with Multi-Constellation Support

MSC 10 Marine Satellite Compass

KNOW EXACTLY WHERE YOU'RE HEADED

Get reliable, accurate heading information with the easy-to-install GPS-based MSC 10 marine satellite compass.

Features:

• Accuracy comes easy when youve got a multi-band GNSS receiver on board.
• Faster updates. More detailed tracking.
• Rough waters got you worried MSC 10 delivers pitch, roll, and heave info, too.
• If other onboard systems need a heading sensor, weve got you covered.

MULTI-BAND GNSS AND MULTI-CONSTELLATION

The multi-band GNSS (L1 and L5 GPS) and multi-constellation (GPS, Galileo¹, GLONASS, and BeiDou1) receiver deliver precise positioning².

BOAT HEAVE AND MORE

Get reliable, accurate boat heave, pitch, and roll information even in rough waters.

BUILT-IN ATTITUDE HEADING REFERENCE SYSTEM (AHRS)

With a fully integrated attitude and heading reference system for better GPS heading at all speeds, including pitching in rough seas, taking sharp turns, or standing still.

ACCURATE HEADING DATA

Multiple receivers deliver heading accuracy within 2 degrees. Because it uses satellite signals, you dont have to worry about magnetic interference.

PRIMARY SENSOR ACROSS MULTIPLE SYSTEMS

You can use MSC 10 as the primary sensor for autopilots and other onboard systems that need accurate heading information.

NMEA 2000 NETWORK COMPATIBLE

Get heading, pitch, roll, and heave information delivered straight to your compatible Garmin chartplotter via the NMEA 2000 network.

EASY TO INSTALL

This compact device is simple to install and easily integrates into your Garmin marine ecosystem.

10 HZ UPDATE RATE

Get better, more detailed tracking information, thanks to the 10 Hz position update rate.

BACKUP HEADING SENSOR

In the extremely rare case that you lose a satellite signal, MSC 10 will seamlessly transition from GPS-based to magnetometer-based heading³.

What's In The Box

• MSC-10 Marine Satellite Compass
• Pole mount
• Mounting hardware
• NMEA 2000backbone/drop cable (6 meters)
• NMEA 2000 T-connector
• Documentation

¹Supported when available

²< 1 meter CEP, < 3 meters 95%

³ Magnetometer calibration required for backup magnetic heading support

The Garmin MSC 10 Marine Satellite Compass is a high-precision navigation device designed for reliable heading and positioning information at sea. Featuring a multi-band GNSS receiver supporting L1 and L5 GPS signals, along with multiple satellite constellations including GPS, Galileo, GLONASS, and BeiDou, this compass ensures exceptional accuracy even in challenging environments. Its advanced multi-constellation technology delivers position accuracy within 1 meter CEP, providing confidence in your navigation data. The MSC 10 is easy to install, compact, and seamlessly integrates into the Garmin marine ecosystem, making it ideal for both recreational and commercial boats. Its 10 Hz update rate offers smooth, detailed tracking, vital for precise maneuvers and autopilot systems. Designed with versatility in mind, it provides pitch, roll, and heave information, even in rough waters, helping you stay informed of your vessel's attitude in adverse conditions. The built-in attitude and heading reference system (AHRS) enhances GPS heading accuracy at all speeds, including sharp turns or when stationary, ensuring dependable data during critical navigation moments. The device also features a backup magnetometer-based heading sensor that activates seamlessly if satellite signals are lost, maintaining continuous heading data. Compatible with NMEA 2000 networks, the MSC 10 transmits heading, pitch, roll, and heave information directly to compatible Garmin chartplotters and onboard systems, simplifying integration across your vessel's electronics. Installation is straightforward, with a pole mount, mounting hardware, and a 6-meter NMEA 2000 backbone/drop cable included. Whether used as a primary heading sensor or a supplementary device, the Garmin MSC 10 provides consistent, accurate data crucial for safe and confident navigation in all marine conditions. Prop 65 compliant, it adheres to safety standards for marine electronics, ensuring reliable performance and peace of mind for boaters seeking advanced navigational tools.

Features:

• Multi-band GNSS receiver supports L1 and L5 GPS signals for precise positioning

• Multi-constellation support includes GPS, Galileo, GLONASS, and BeiDou for enhanced accuracy

• Attitude and heading reference system (AHRS) improves GPS heading at all vessel speeds

• Provides pitch, roll, and heave data for navigating rough waters

• 10 Hz update rate delivers detailed, real-time tracking information

• Backup magnetometer-based heading sensor ensures continuous heading data if satellite signals are lost

• Compatible with NMEA 2000 networks for seamless integration with Garmin chartplotters

• Compact, easy-to-install design with mounting hardware included
