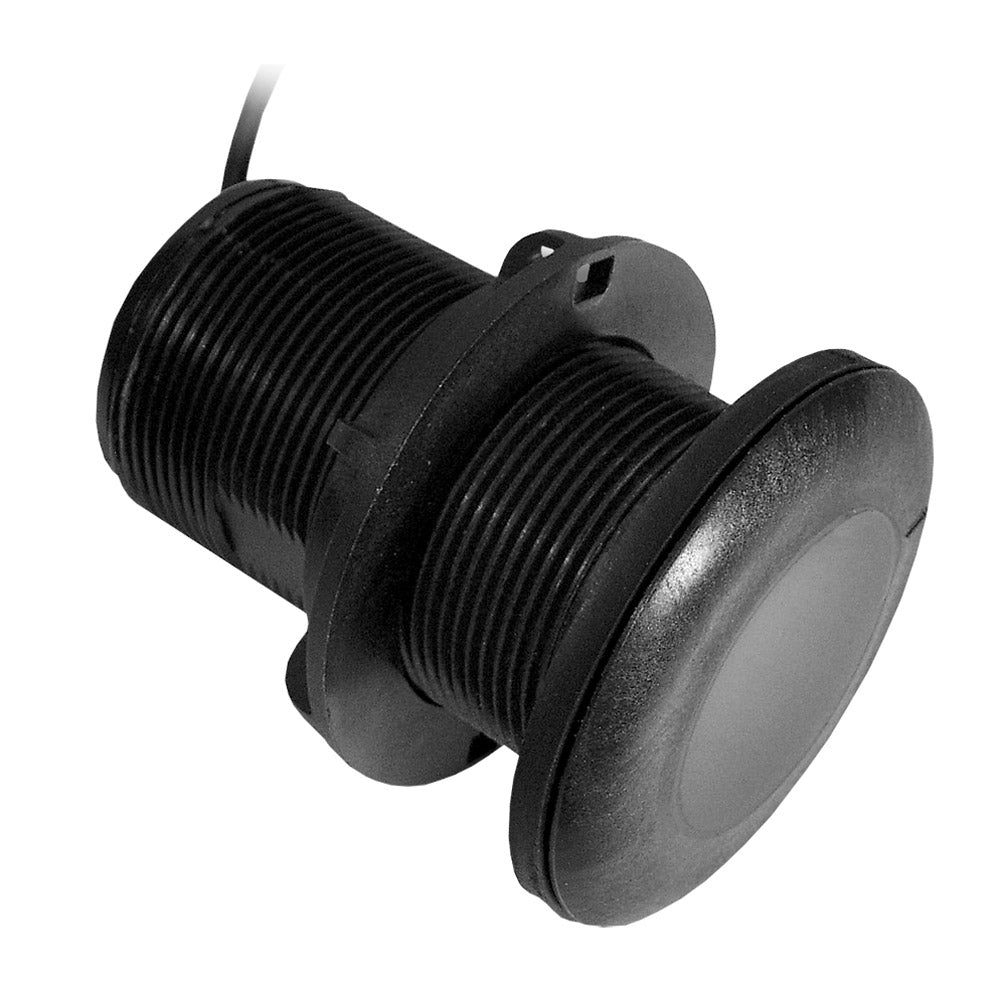

Garmin P19 Nylon 20 Degree Tilt Transducer with 8-Pin Connector for Marine Depth and Temperature

P19 20 Degree Tilted Element Thru-Hull with 8 pin Connector for Garmin

Minimize Your Drag

The P19 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echo sounding up to 206M (700). These nearly flush units minimize drag as only 5mm (2/10) of the housing extends outside of the hull. The plastic P19 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings.

Applications

• Cruising powerboats and sailboats
• Sailboats

Features

• Depth and temperature
• Fixed 20 tilted versions for 16 to 24 hull deadrise
• Right angle cable exit offers low headroom and protection when transducer is stepped on
• Included rubber washer allows tightening of the hull nut to irregular hull surfaces
• Housings are ABYC H-27 compliant
• Optional temperature sensor
• Plastic housing
• Boat Size: Up to 9M (30)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Garmin P19 Nylon 20 Degree Tilt Transducer, Part Number 010-10218-22, is designed for precise depth and temperature readings on cruising powerboats and sailboats up to 30 feet. Its low-profile, nearly flush design minimizes drag, with only 0.2 inches of housing extending outside the hull, making it ideal for vessels where hydrodynamic efficiency is critical. The large, sensitive ceramic element allows for deep echo sounding up to 700 feet, ensuring accurate readings even in challenging conditions. The internal tilt compensates for deadrise, providing a vertical beam that delivers superior echo returns for reliable depth measurements across varying hull angles. The fixed 20-degree tilt makes it suitable for hull deadrise angles ranging from 16 to 24 degrees, enhancing versatility across different boat types and designs.

Features:

• Depth and temperature measurement for comprehensive navigation data

• Fixed 20-degree tilt design for hull deadrise compatibility from 16 to 24 degrees

• Right-angle cable exit reduces headroom needs and safeguards cable from stepping

• Included rubber washer enables secure mounting on irregular hull surfaces

• Constructed with ABYC H-27 compliant plastic housing for marine-grade durability

• Optional temperature sensor for additional environmental data

• Suitable for boats up to 30 feet in length
