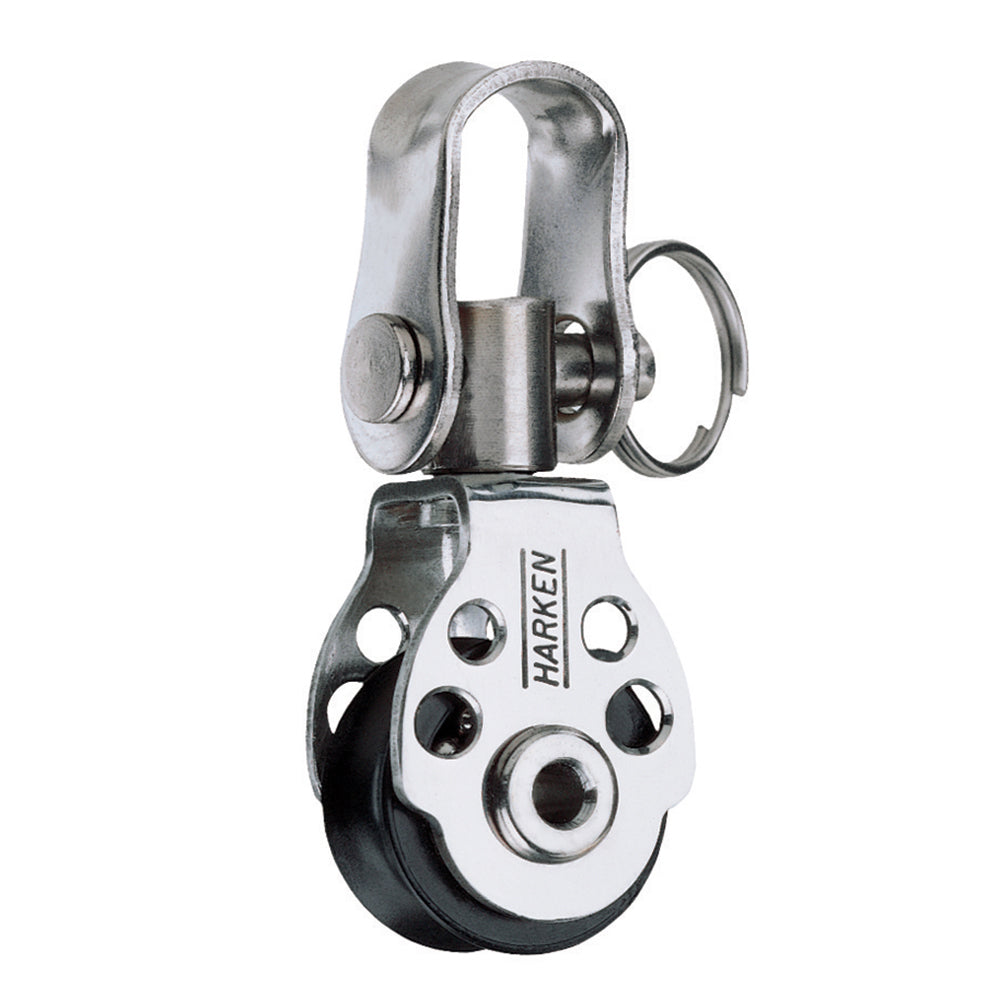

16mm Block with Swivel

The 16 mm is Harkens smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load.


Specifications:

  • Sheave: 16mm / 5/8in.
  • Length: 46mm / 1-13/16in.
  • Weight: 18g / .63oz
  • Shackle pin: 4mm / 5/32in
  • Maximum line: 5mm / 7/32
  • Maximum working load: 113kg/ 250lb
  • Breaking load: 339kg / 750lb

Harken 16mm Block with Swivel is a compact, lightweight sailing block designed for small synthetic control lines on high-tech dinghies. Its small-format design and swiveling attachment make it suitable for applications where space, weight, and smooth line handling matter.

The patented bearing system uses stainless steel balls in a captive grooved race to support efficient line movement. With a maximum working load of 250 pounds and a breaking load of 750 pounds, this Harken block provides clearly defined load capacity for compatible dinghy control-line applications. The block accepts line up to 5/32 inch and features a 4mm shackle pin.

Key Features:

  • Compact 16mm sheave: Designed for small synthetic control lines commonly used on high-tech dinghies.
  • Swivel configuration: Allows the block to pivot for flexible line routing and control-line handling.
  • Patented bearing system: Stainless steel balls run in a captive grooved race for smooth operation.
  • 250-pound maximum working load: Provides a defined load rating for compatible sailing applications.
  • Lightweight construction: Weighs approximately 0.63 ounces, helping support weight-conscious rigging setups.

Product Details:

  • Brand: Harken
  • Part number: 417
  • Product type: 16mm block with swivel
  • Sheave: 16mm (5/8 inch)
  • Length: 1-13/16 inches
  • Weight: 0.63 ounces
  • Shackle pin: 4mm (5/32 inch)
  • Maximum line size: 5/32 inch
  • Maximum working load: 250 pounds
  • Breaking load: 750 pounds

Choose the Harken 16mm Block with Swivel, Part Number 417, for compact dinghy control-line systems that require a small, lightweight block with a defined load capacity.
