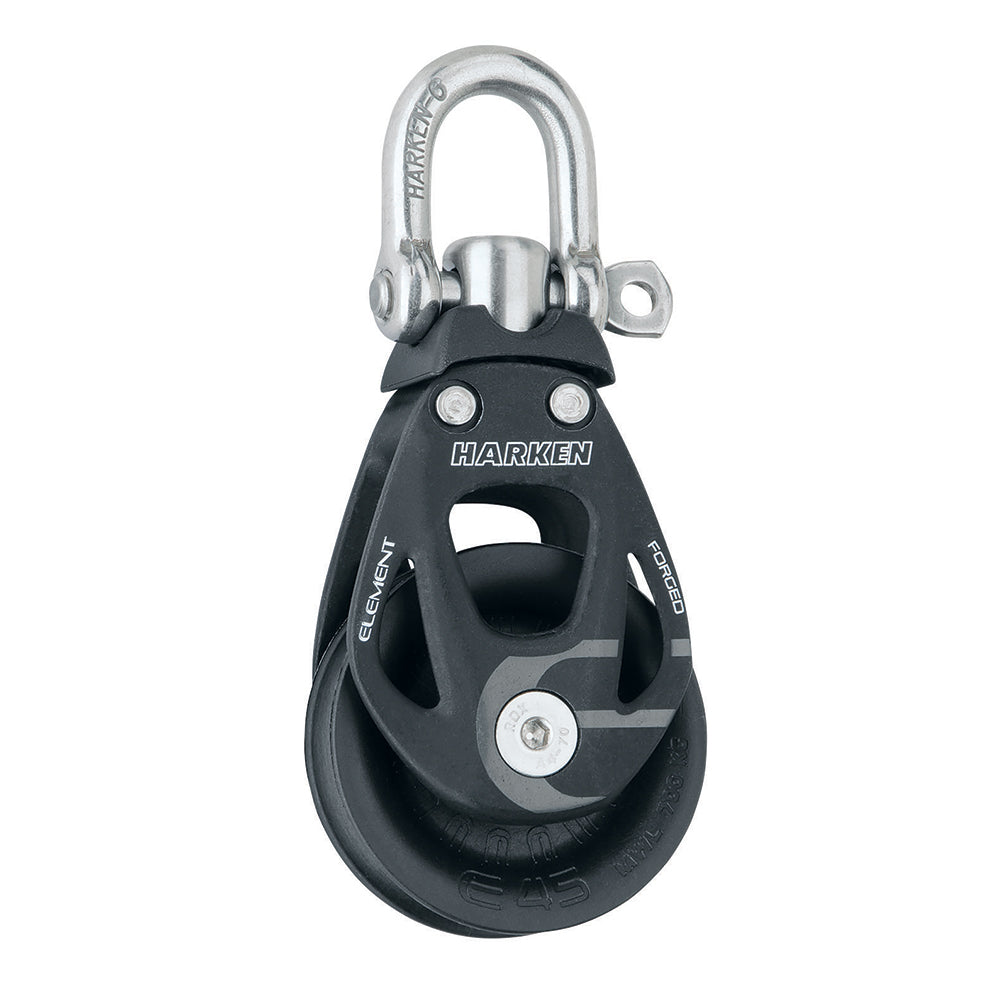

Harken 45mm Single Element Block with Swivel, Part 6230

45mm Single Element Block with Swivel

Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Elements design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.

Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.

Specifications:

• Sheave: 45mm / 1-3/4in
• Length: 102mm / 4in
• Weight: 103g / 3.6oz
• Shackle pin: 6mm / 1/4in
• Maximum line: 12mm / 1/2in
• Maximum working load: 700kg / 1543lb
• Breaking load: 1400kg / 3086lb

The Harken 45mm Single Element Block with Swivel is a compact, corrosion-resistant sailing block designed for marine rigging applications that require dependable line handling and a high working load. Part 6230 combines a forged aluminum sideplate design with a tough composite bearing sheave, providing a robust solution for sailors, riggers, and boat owners who need durable performance in a small-block format.

Element blocks use sideplates with compound curves and only the necessary amount of metal to protect the sheave. This construction helps keep the block strong while offering a lower-cost alternative within the Harken block range. The swivel configuration allows the block to align with changing line direction, making it useful for a variety of sailboat control-line and deck hardware applications. Hardcoat-anodized sideplates resist corrosion, while the composite bearing sheave is designed for long service life in marine environments.

Key Features:

• Forged aluminum sideplates: Provide a strong, robust block structure with compound curves.
• Hardcoat-anodized finish: Helps the sideplates resist corrosion in marine use.
• Tough composite bearing sheave: Resists corrosion and supports long service life.
• Swivel design: Helps the block align with changing line direction during rigging operation.
• High load capacity: Supports a maximum working load of 1,543 pounds and a breaking load of 3,086 pounds.

Product Details:

• Brand: Harken
• Part number: 6230
• Block type: Single element block with swivel
• Sheave diameter: 1-3/4 inches
• Maximum line size: 1/2 inch
• Shackle pin: 1/4 inch
• Maximum working load: 1,543 pounds
• Breaking load: 3,086 pounds
• Weight: 3.6 ounces

Choose the Harken 45mm Single Element Block with Swivel, Part 6230, for a durable and corrosion-resistant component in marine rigging systems where compact size and reliable load handling matter.
