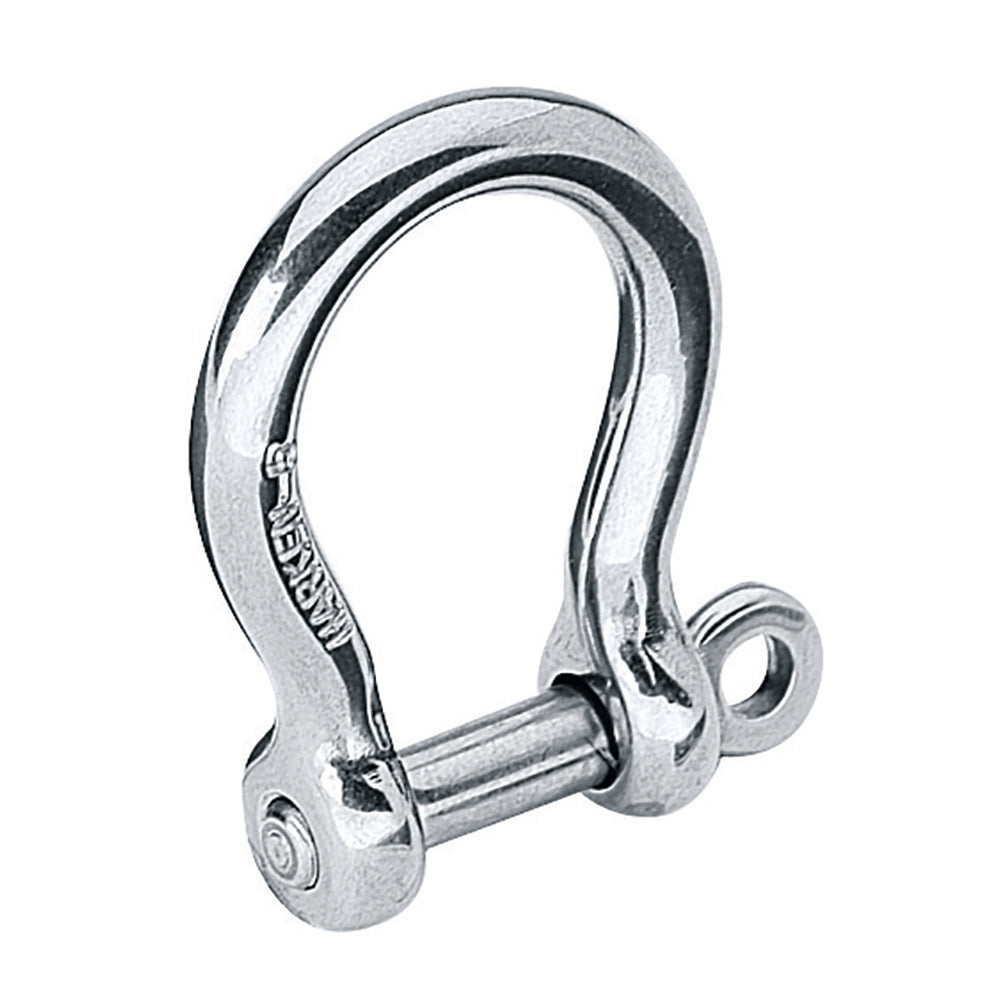

Harken 5mm Bow Shackle, Part Number 2103, Forged Stainless Steel

5mm Bow Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

Bow shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.

Specifications:

• Shackle pin: 5mm / 3/16in
• Weight: 18g / 0.64oz
• Maximum working load: 540kg / 1190lb
• Breaking load: 1080kg / 2380lb

Harken 5mm Bow Shackle is a forged stainless steel marine shackle designed for multidirectional loads and applications requiring smooth articulation. Part Number 2103 features a polished finish and a large interior opening that provides room for movement, especially when connected to a round bail. The screw pin diameter is clearly stamped on the shackle for quick identification.

Built for practical rigging use, this Harken bow shackle supports loads from multiple directions without restricting movement. Its forged stainless steel construction and polished high-luster finish make it a functional choice for marine hardware applications where dependable load handling and easy identification are important. The screw pin design allows the shackle to be secured and removed as needed for compatible setups.

With a 5mm screw pin, a maximum working load of 1,190 pounds, and a breaking load of 2,380 pounds, this compact shackle is suited to rigging configurations that require a multidirectional connection. The large bow profile is particularly useful when additional articulation is needed around a round bail.

Key Features:

• Forged stainless steel construction: Provides a durable marine hardware design with a polished high-luster finish.
• Bow shackle profile: Supports multidirectional loads and allows articulation through its large interior opening.
• 5mm screw pin: The pin diameter is stamped on the shackle for convenient identification.
• High load capacity: Rated for a maximum working load of 1,190 pounds and a breaking load of 2,380 pounds.
• Compact, lightweight design: Weighs 0.64 ounce for applications where low hardware weight is beneficial.

Product Details:

• Brand: Harken
• Part Number: 2103
• Product type: Bow shackle
• Material: Forged stainless steel
• Shackle pin: 5mm (3/16 inch)
• Maximum working load: 1,190 pounds
• Breaking load: 2,380 pounds
• Weight: 0.64 ounce

Choose the Harken 5mm Bow Shackle for a polished, clearly identified connection designed for multidirectional marine rigging loads.
