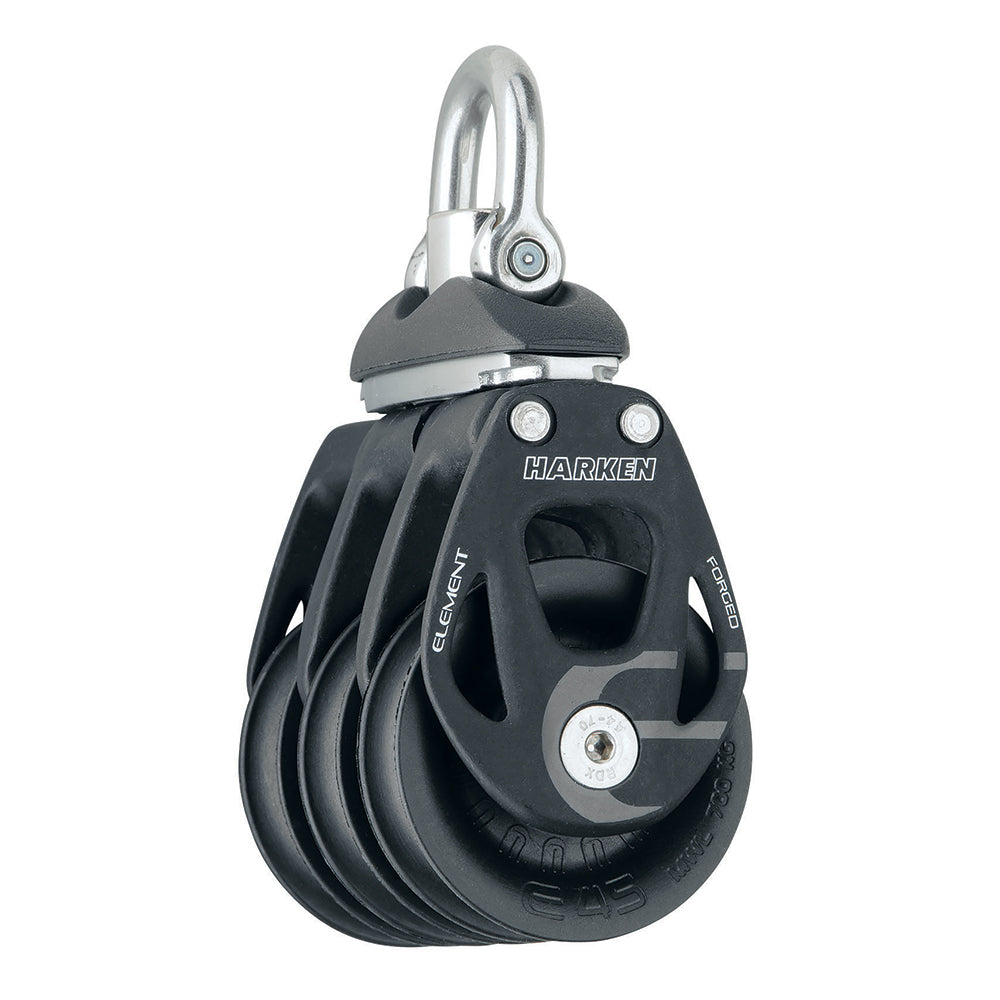

Harken 6240 45mm Triple Element Block with Swivel

45mm Triple Element Block with Swivel

Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Elements design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.

Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.

Specifications:

• Sheave: 45mm / 1-3/4in
• Length: 108mm / 4-1/4in
• Weight: 265g / 9.3oz
• Shackle pin: 6mm / 1/4in
• Maximum line: 12mm / 1/2in
• Maximum working load: 1050kg / 2315lb
• Breaking load: 2100kg / 4630lb

The Harken 6240 45mm Triple Element Block with Swivel is designed for sailing and marine rigging applications that require dependable line handling in a compact block. Its triple-sheave configuration supports multiple purchase arrangements, while the swivel connection helps the block align with changing line direction during use. With corrosion-resistant construction and a proven journal bearing, this Harken Element block delivers practical performance for sailors, riggers, and boat owners.

The Element design combines forged aluminum sideplates with compound curves to provide strength while using only the metal needed to protect the sheave. Hardcoat-anodized sideplates help resist corrosion, making the block suitable for marine environments. The composite bearing sheave also resists corrosion and is designed for long service life. With a maximum line capacity of 1/2 inch and a maximum working load of 2,315 pounds, the Harken 6240 is a versatile choice for compatible sailboat and marine rigging systems.

Key Features:

• Feature: Triple 45mm sheave configuration supports multiple-line purchase systems and compact rigging layouts.
• Feature: Swivel connection allows the block to align with changing line direction during operation.
• Feature: Forged aluminum sideplates with compound curves provide a strong, streamlined block structure.
• Feature: Hardcoat-anodized sideplates and a composite bearing sheave help resist corrosion in marine use.
• Feature: Supports line up to 1/2 inch with a maximum working load of 2,315 pounds.

Product Details:

• Brand: Harken
• Part Number: 6240
• Product Type: 45mm triple Element block with swivel
• Sheave Size: 1-3/4 inches
• Block Length: 4-1/4 inches
• Weight: 9.3 ounces
• Shackle Pin: 1/4 inch
• Maximum Line: 1/2 inch
• Maximum Working Load: 2,315 pounds
• Breaking Load: 4,630 pounds

Choose the Harken 6240 45mm Triple Element Block with Swivel for a corrosion-resistant, space-conscious solution for compatible marine and sailing rigging applications.
