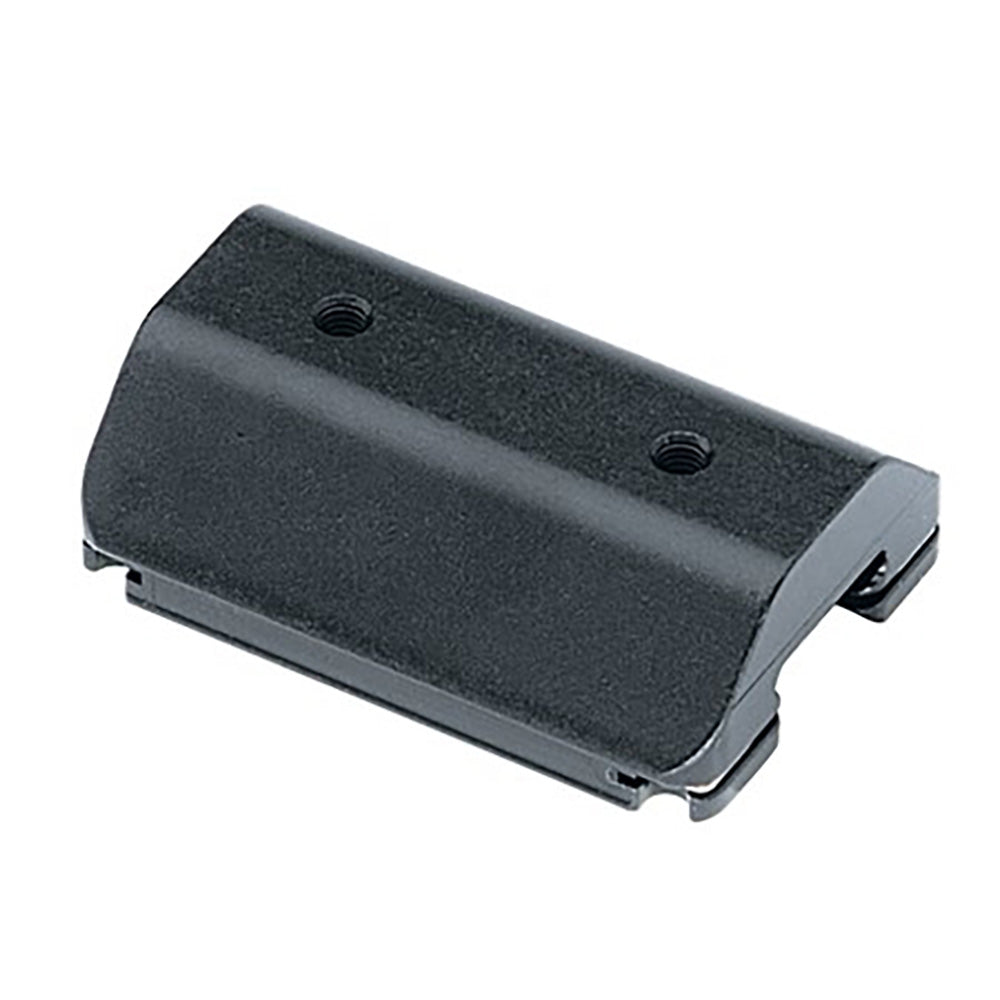

Harken IN6707.HL 13mm High-Load Trolley with Two M4 Tapped Holes

13mm High-Load Trolley with 2X M4 Tapped Holes

This trolley features recirculating ball bearings housed in strong, lightweight, corrosion-resistant aluminum for dependable, low-friction linear travel. Use for moving loads and equipment, hoisting, and moving stage equipment, and architectural solutions.

Features:

• High-load trolley with two M4-tapped holes on top
• Torlon ball bearings handle high loads, reducing friction so the trolley moves smoothly along the rail
• Retaining clips keep ball bearings captive when the trolleys are removed for maintenance

Specifications:

• Length (mm): 56 mm
• Length (in): 2-3/16 in
• Width (mm): 40 mm
• Width (in): 1-9/16 in
• Weight (g): 57 g
• Maximum Rated Load (kN): 1.4 kN
• Height (mm): 19 mm
• Height (in): 3/4 in
• Weight (oz): 2.01 oz
• Breaking Load (kN): 6.7 kN

Harken IN6707.HL 13mm High-Load Trolley is designed for smooth, low-friction linear travel when moving loads, equipment, stage components, and architectural systems along a compatible rail. Its recirculating Torlon ball bearings support dependable operation under demanding loads, while the lightweight aluminum housing provides corrosion-resistant construction for practical use in a variety of installations.

Two M4 tapped holes on the top of the trolley provide mounting points for compatible equipment or hardware. The trolley’s high-load design supports a maximum rated load of 1.4 kN, making it suitable for applications that require controlled movement and reliable load handling. Torlon ball bearings reduce friction to help the trolley travel smoothly along the rail, while retaining clips keep the bearings captive when the trolley is removed for maintenance.

Key Features:

• High-load trolley: Supports a maximum rated load of 1.4 kN for load-moving and equipment-handling applications.
• Two M4 tapped holes: Provides top-mounted connection points for compatible equipment and hardware.
• Torlon ball bearings: Reduce friction to support smooth movement along the rail.
• Retaining clips: Help keep the ball bearings captive when the trolley is removed for maintenance.
• Aluminum housing: Combines lightweight construction with corrosion-resistant material.

Product Details:

• Brand: Harken
• Part number: IN6707.HL
• Product type: 13mm high-load trolley
• Length: 2-3/16 inches
• Width: 1-9/16 inches
• Height: 3/4 inch
• Weight: 2.01 ounces
• Maximum rated load: 1.4 kN
• Breaking load: 6.7 kN
• Intended uses: Moving loads and equipment, hoisting, stage equipment, and architectural solutions

Choose the Harken IN6707.HL for smooth, controlled rail travel and dependable high-load performance in equipment-moving and architectural applications.
