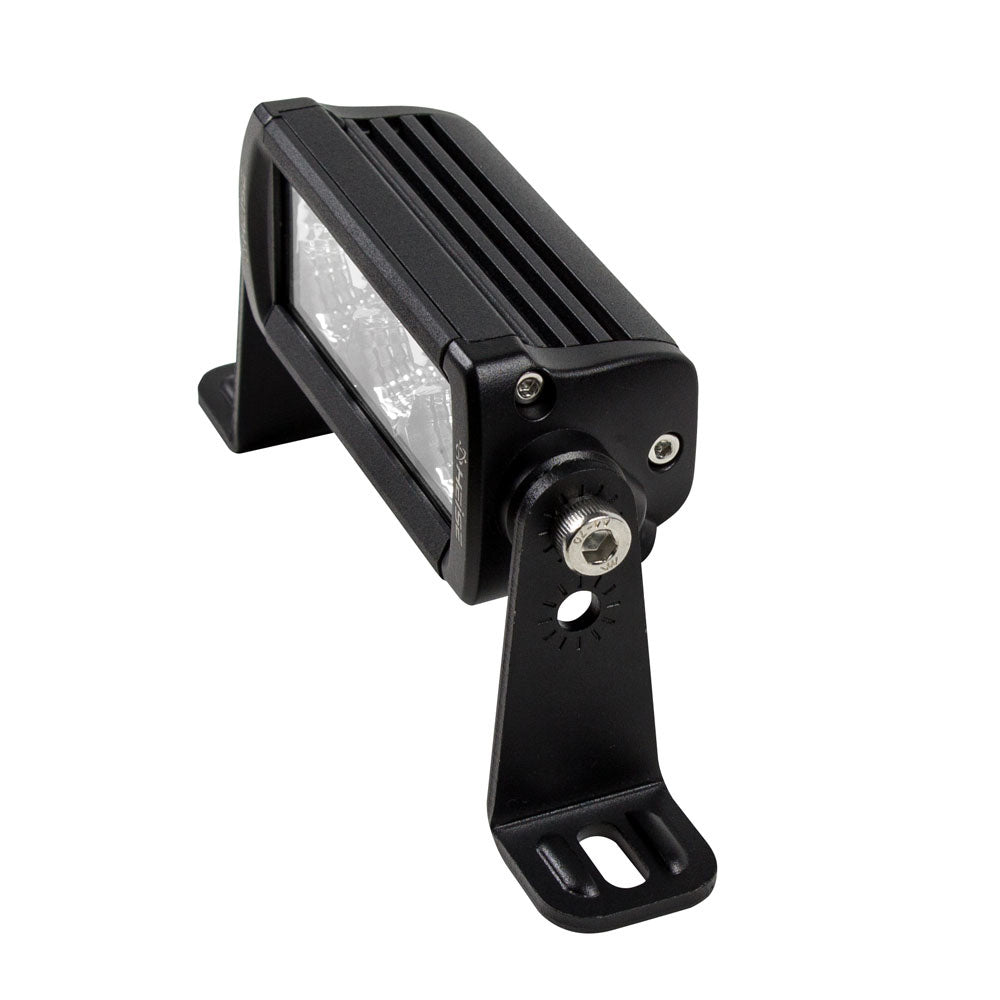

HEISE Single Row Slimline LED Light Bar - 5-1/2"

HEISE Single Row Slimline LED Light Bar - 5-1/2"

$152.99 USD
$152.99 USD
Sale Sold out
Shipping calculated at checkout.

Installment options at checkout are provided by Shop Pay and its partners and are subject to eligibility. Options depend on your purchase amount and may require a credit check by the financing partner. Terms, rates, and eligibility are determined by the financing partner. For details, see the Shop Pay Installments terms during checkout.

Single Row Slimline LED Light Bar - 5-1/2"

SPECS

  • Input Voltage: 10–30V DC
  • Wattage: 9W (3–3W OSRAM LEDs)
  • Raw Lumens: 720
  • LUX @ 10M: 10
  • Color Temperature: 6000K
  • Beam Pattern: 90° Flood

CONSTRUCTION

  • Housing Material: Powder Coated Aluminum
  • Housing Color: Black
  • Membrane: Gore™
  • Lens Material: PC
  • Mounting Bracket: Die–cast Aluminum
  • Mounting: Side and Bottom
  • Hole Dimensions:
  • Brackets turned inward – 5.25"
  • Brackets turned outward – 7.25"
  • Mounting Bolt Drill – .25"
  • Height of Light Bar Itself: 2"
  • Depth of Light Bar Itself: 2"
  • Electronics: Integrated–Epoxy Encapsulated
  • Hardware: Stainless 316

OPERATION

  • Operating Temperature: –40°C to +60°C
  • Current Consumption: .4 amps @ 13.8 volts
  • IP Rating: IP67
  • Protections: Reverse Polarity
