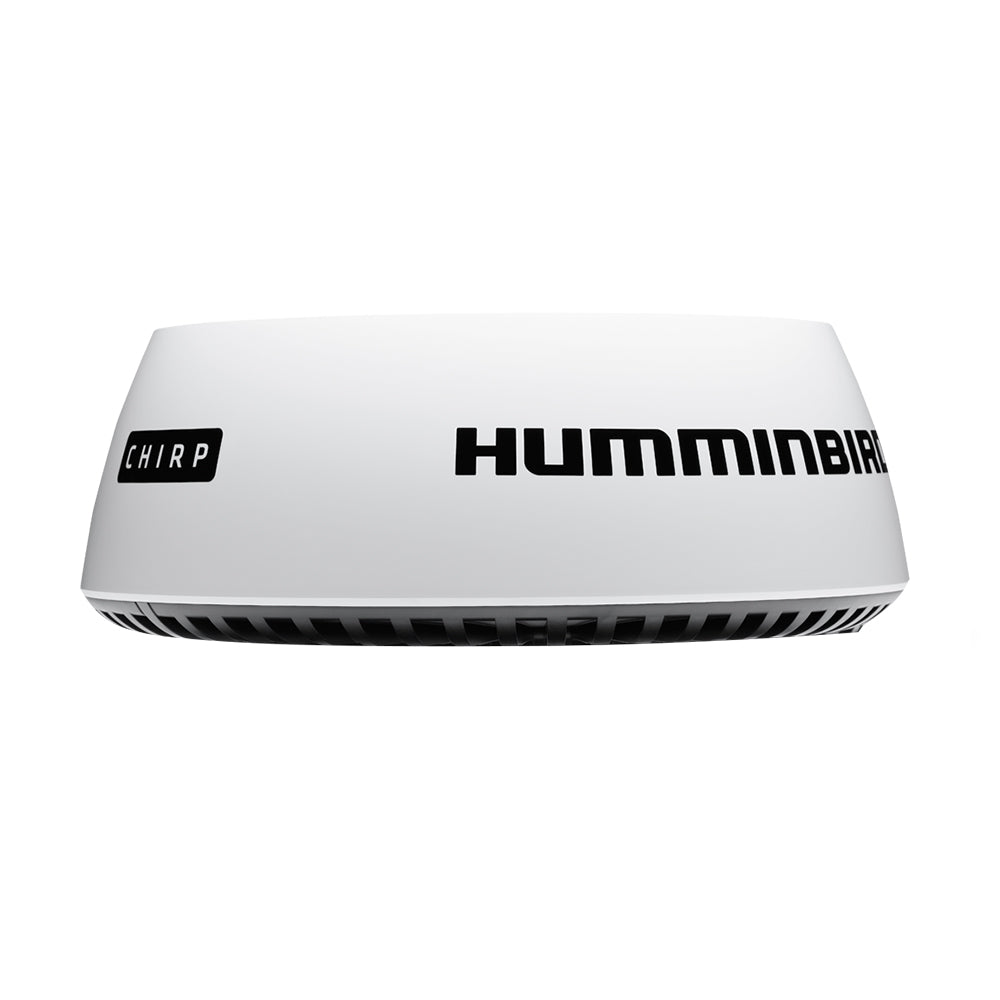

Humminbird HB2124 CHIRP Radar - Compact 21-Inch Enclosed Dome, Long-Range Marine Radar with Ethernet Connectivity

HB2124 CHIRP Radar

Compatible with select networking HELIX models and ONIX, Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar. It delivers superior RADAR imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definiton.

Features:

• Antenna Dimension - 21" Enclosed Dome

• Antenna Type - Patch Array

• Peak Power Output - 20W

• Transmit Frequency - 9354 to 9446 MHz

• Beam width (nominal) - 4.9 Horizontal and 20 Vertical

• Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts, Maximum - 31.2 Volts)

• Networking - Ethernet

• Maximum Range Scale - from 1/16 to 24 nautical miles

• Power Consumption - Transmit mode - 17W; Standby Mode - 7W; Sleep Mode - 2W

• Duplexer - Circulator

• Pulse Widths @ 3 dB - 40 ns to 14.7s

• CHIRP Lengths - 400 ns to 20s

• CHIRP Bandwidth - Up to 32 MHz

• IF Bandwidth - 26 MHz

• Noise - Less than 4 dB

• Polarization - Horizontal

• Waterproofing - IPX6

• Weight - 12.3 lbs (5.6 kg)

• Compatibility Networking HELIX models and all ONIX models

The Humminbird HB2124 CHIRP Radar is a high-performance marine radar designed to enhance navigation and situational awareness on the water. Compatible with select HELIX and ONIX network models, this radar features advanced CHIRP pulse compression technology, setting new standards for compact solid-state radar systems. With its 21-inch enclosed dome and patch array antenna, the HB2124 delivers superior imaging at both long and short ranges, providing clear detection of obstacles, floating debris, and weather formations in low-visibility conditions. This improved detection capability helps boaters and anglers identify gamefish, birds, and potential hazards, ensuring safer and more successful outings. Its ability to track weather and vessels with high definition makes it an invaluable tool for navigating challenging environments and avoiding potential dangers. The radar's peak power output of 20W and its transmit frequency range of 9354 to 9446 MHz ensure reliable performance across various conditions. The beam width of approximately 4.9 degrees horizontally provides precise targeting, while the vertical beam width of 20 degrees offers broad coverage. Designed for ease of use, the HB2124 supports Ethernet networking, allowing seamless integration with compatible Humminbird units. The maximum range scale extends from 1/16 to 24 nautical miles, making it suitable for both nearshore and offshore applications. Its power consumption varies from 2W in sleep mode to 17W in transmit mode, optimizing energy efficiency during operation. Waterproof to IPX6 standards, the radar is built to withstand harsh marine environments. Weighing approximately 12.3 lbs, it is designed for easy installation and durability. Whether you're navigating busy waterways or exploring open waters, the Humminbird HB2124 CHIRP Radar provides reliable, high-definition radar imaging to improve safety, situational awareness, and fishing success on your vessel.

Features:

• Antenna Dimension: 21-inch enclosed dome with patch array design

• Peak Power Output: 20W for strong signal transmission

• Transmit Frequency: 9354 to 9446 MHz for enhanced detection

• Beam Width: 4.9° horizontal and 20° vertical for precise imaging

• Networking: Ethernet connectivity for seamless integration with compatible Humminbird units

• Maximum Range Scale: from 1/16 to 24 nautical miles for versatile navigation

• Power Consumption: 17W in transmit mode, 7W in standby, 2W in sleep mode for energy efficiency

• Waterproof Rating: IPX6 for reliable operation in harsh marine conditions

• Compatibility: Designed for use with select HELIX and all ONIX models

• Designed for durability and ease of installation, providing high-definition radar imaging for safer, more informed boating and fishing experiences
