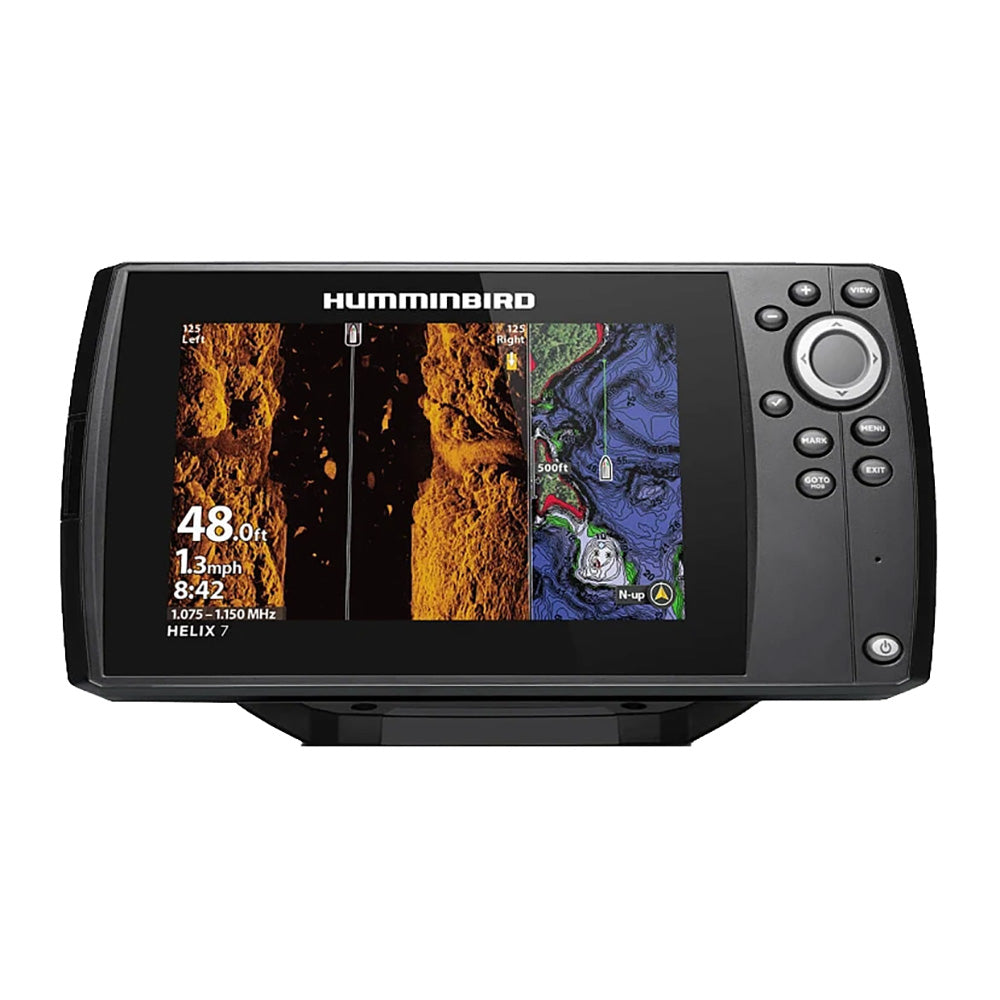

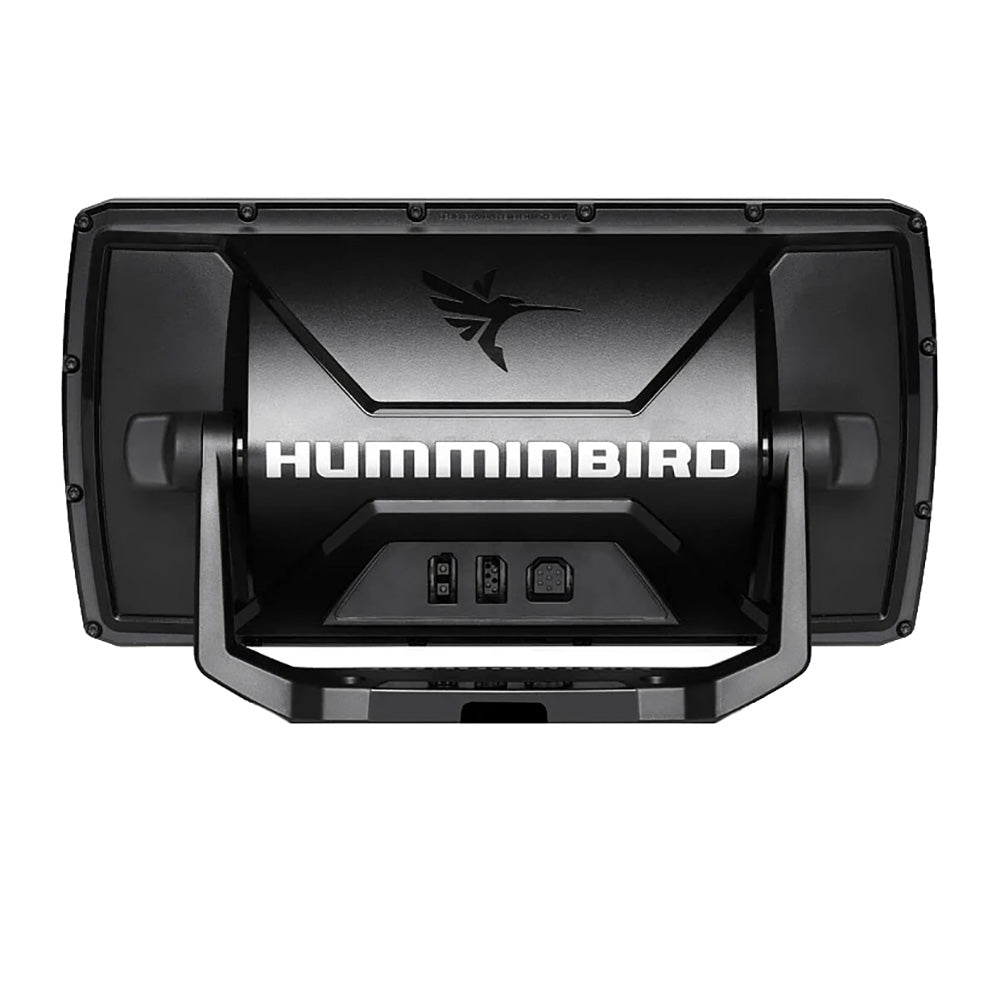

Humminbird HELIX 7 GPS CHIRP MSI G4 Fish Finder with MEGA Imaging, Built-In GPS, and AutoChart Live

HELIX 7 GPS CHIRP MSI G4

The HELIX 7 MEGA SI GPS G4 fish finder features MEGA Side Imaging, MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS, and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options, so users never miss a fish.

Features:

• Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any condition.
• MEGA Side Imaging: See the world below like never before with crystal-clear viewing out to 125 feet on either side of the boat. Users unlock new details with up to 3X more detail than standard Side Imaging sonar.
• MEGA Down Imaging: Get unprecedented underwater clarity with coverage down to 125 feet below your boat. Unlock new details with up to 3X more detail than standard Down Imaging sonar.
• Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
• Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
• Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster and CoastMaster products, as well as your choice of compatible Navionics charts.
• AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.
• Includes control head, transom-mount transducer, power cable, gimbal mounting bracket, and mounting hardware.
• 1-Year Limited Warranty

Specifications:

• Display Size - Diagonal: 7"
• Display Pixel Matrix: 1024H x 600V
• Transducer Included: XNT 9 HW MSI 150 T
• Compatible With: Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, AIS, AutoPilot
• Features: Down Imaging, Built-In GPS, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging
• Memory Card Slot: Single Micro SD
• Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging, MEGA Side Imaging
• Sonar-Coverage: 20, 42, 60 (2) 86 @ -10dB
• Sonar-Optional: 53 kHz, 50/Low Airmar CHIRP
• CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), 83/200 (75-155/130-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
• Sonar-Frequencies Supported: 50/83/200/455/800 kHz 1.2 MHz
• Depth-Sonar: 3,500' (optional 50 kHz), 1,200 ft (standard transducer)
• CHIRP - Imaging Frequencies Supported: 455 kHz (440-500 kHz), MEGA SI (1075-1150 kHz), MEGA DI (1075-1150 kHz)
• Depth-Down Imaging: 75 ft (MEGA), 400 ft (455 kHz)
• Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 250 ft (MEGA)
• Interface: Keypad Control
• Power Draw: 800 mA
• Power Input: 10.8-20 VDC
• Power Output Peak-to-Peak: 4000 Watts
• Power Output RMS: 500 Watts
• Screen Snap Shot: Included
• Sonar Recording: Included
• Mount-Standard: Gimbal
• Mount-Standard Size: 10.54 in W x 5.8 in H x 3.68 in D
• Mount-Optional: In-Dash Mounting Kit
• Mount-Optional Size: 10.54 in W x 5.44 in H x 1.13 in D
• Transducer Mount Location: Transom
• GPS Chartplotting: Included
• GPS Receiver: Internal
• GPS Trackplotting: Included
• Waypoints, Routes, Tracks/Points: 2,750, 47, 50/20,000
• 360 Imaging Compatibility: No
• MEGA Live Compatibility: No
• Humminbird Basemap: Included
• LakeMaster Compatibility: Yes
• CoastMaster Compatibility: Yes
• Navionics Gold/HotMaps Compatibility: Yes
• Navionics Platinum+ Compatibility: Yes
• Platinum Compatibility: Yes
• Minn Kota i-Pilot Link Compatibility: No
• Minn Kota Talon Shallow Water Anchor Compatibility: No
• Radar Compatibility: No
• 5-Port Ethernet Switch Compatibility: No
• AIS Compatibility: Optional
• Autopilot Compatibility: Yes
• Heading Sensor GPS Compatibility: Yes
• Target Separation: 2.5"
• Interference Rejection: 6 Modes
• Noise Rejection: 10 Steps
• Upgradable Software: Yes
• View Preset Keys: No
• X-Press Menu System: Yes
• Custom Digital Readout: Yes
• Custom View Selections: No
• Display Colors Grayscale: 16-Bit
• Display Type: Color TFT
• Speed: Included
• Temperature: Built In
• Temperature Alarm: Yes
• Temperature Graph: Yes
• HDMI Compatible: No
• Warranty: One-Year Warranty

Experience advanced fish finding technology with the Humminbird HELIX 7 GPS CHIRP MSI G4. Featuring a high-definition 7-inch color TFT display, this fish finder offers crystal-clear visualization with MEGA Side Imaging and MEGA Down Imaging, providing unprecedented underwater detail out to 125 feet on either side and below your boat. The dual spectrum CHIRP sonar delivers highly detailed images of fish arches and structure, with options for wide or narrow coverage, ensuring you can locate fish with confidence in any environment. The intuitive keypad control ensures reliable operation in all conditions, allowing quick access to pre-loaded split-screen views and menu options for seamless navigation.

Built-in GPS, Humminbird Basemap, and AutoChart Live functionalities empower anglers to create real-time maps of fishing spots, mark waypoints, and navigate with precision. The internal GPS and detailed charts of over 10,000 lakes, plus coastal coverage of the U.S., help you identify hazards, marinas, depth contours, and points of interest. Compatibility with premium charts from LakeMaster, CoastMaster, and Navionics enhances your mapping options for comprehensive underwater exploration.

The device includes a transom-mount transducer, power cable, gimbal mounting hardware, and supports optional in-dash mounting. Its robust design features a 4000-watt peak-to-peak power output, ensuring maximum sonar clarity and depth penetration up to 1,200 feet with standard transducers. With 2,750 waypoints capacity, 47 routes, and 50 tracks, this fish finder is ideal for serious anglers seeking reliable performance and advanced features. Backed by a one-year warranty, the Humminbird HELIX 7 GPS CHIRP MSI G4 is the ultimate tool for enhancing your fishing experience and increasing your catch rate.

Please note that this product is Prop 65 compliant, ensuring safety and quality standards are met for peace of mind during use.

Features:

• Keypad control: Easy access to views and settings with softkey controls for reliable operation in any condition

• MEGA Side Imaging: Visualize underwater terrain and fish up to 125 feet on each side with three times more detail than standard sonar

• MEGA Down Imaging: Achieve crystal-clear images down to 125 feet below your boat with enhanced detail

• Dual Spectrum CHIRP sonar: Provides detailed fish arches and structure with Wide and Narrow modes for versatile searching

• Internal GPS and Humminbird Basemap: Navigate confidently with detailed maps of over 10,000 lakes and coastal US waters, plus marinas, hazards, and contours

• AutoChart Live: Create real-time custom maps of your fishing spots, including depth, bottom hardness, and vegetation, with up to 8 hours of recording

• Compatibility with premium charts: Supports LakeMaster, CoastMaster, Navionics, and more for comprehensive mapping options

• Includes transom-mount transducer, power cable, gimbal mounting bracket, and hardware for easy installation

• Powerful 4000-watt peak-to-peak output with 1,200-foot depth capability

• Supports up to 2,750 waypoints, 47 routes, and 50 tracks for detailed navigation and fishing planning
