Humminbird XM 9 HW MDI T Transom Mount Transducer with MEGA Imaging+ and Dual Spectrum CHIRP

XM 9 HW MDI T Transom Mount Transducer

MEGA Down Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, impact-release mounting bracket and 20' cable.

Features:

• This accessory is compatible with the following Humminbird products: HELIX 8 G3N Series MEGA DI+ and MEGA SI+, HELIX 9 G3N Series MEGA DI+ and MEGA SI+, HELIX 10 G3N Series MEGA DI+ and MEGA SI+, HELIX 12 G3N Series MEGA DI+ and MEGA SI+.
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)
• Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
• 1-Year Limited Warranty

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Enhance your fish-finding capabilities with the Humminbird XM 9 HW MDI T Transom Mount Transducer, designed to deliver crystal-clear imaging and precise sonar readings. Compatible with select Humminbird HELIX series models, including the 8, 9, 10, and 12 G3N series, this transducer supports advanced MEGA Down Imaging+ and Dual Spectrum CHIRP sonar technologies. Featuring a rugged composite construction, impact-release mounting bracket, and a 20-foot cable, it is built for durability and ease of installation in various boating environments. The built-in temperature sensor provides additional data to help locate fish more accurately and understand underwater conditions. The transducer's dual spectrum CHIRP operates across multiple frequencies, including full-range (150-220 kHz), narrow (180-240 kHz), and wide (140-200 kHz), enabling anglers to target specific depths and improve sonar resolution. With a maximum depth capability of up to 1200 feet, it ensures reliable performance in both shallow and deep waters. The MEGA Imaging+ technology supports high-frequency imaging up to 1150 kHz, capturing detailed underwater structures at depths up to 200 feet. This versatile transducer is ideal for serious anglers seeking precise fish locations and underwater insights, making it an essential accessory for enhancing your Humminbird fishfinder system. Please note the Prop 65 warning regarding chemicals such as lead, which is included per manufacturer specifications. For installation details and user guidance, refer to the official manual linked in the product information.

Features:

• Compatible with Humminbird HELIX 8, 9, 10, and 12 G3N Series models with MEGA DI+ and SI+

• Supports MEGA Down Imaging+ and Dual Spectrum CHIRP sonar technologies

• Dual Spectrum CHIRP Frequencies: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz

• Maximum Depth for Dual Spectrum CHIRP: 1200 feet

• Down Imaging Frequencies: 455kHz (440-500 kHz, up to 400 ft), 800kHz (790-850 kHz, up to 125 ft), MEGA DI+ (1075-1150 kHz, up to 200 ft)

• Built-in temperature sensor for underwater temperature monitoring

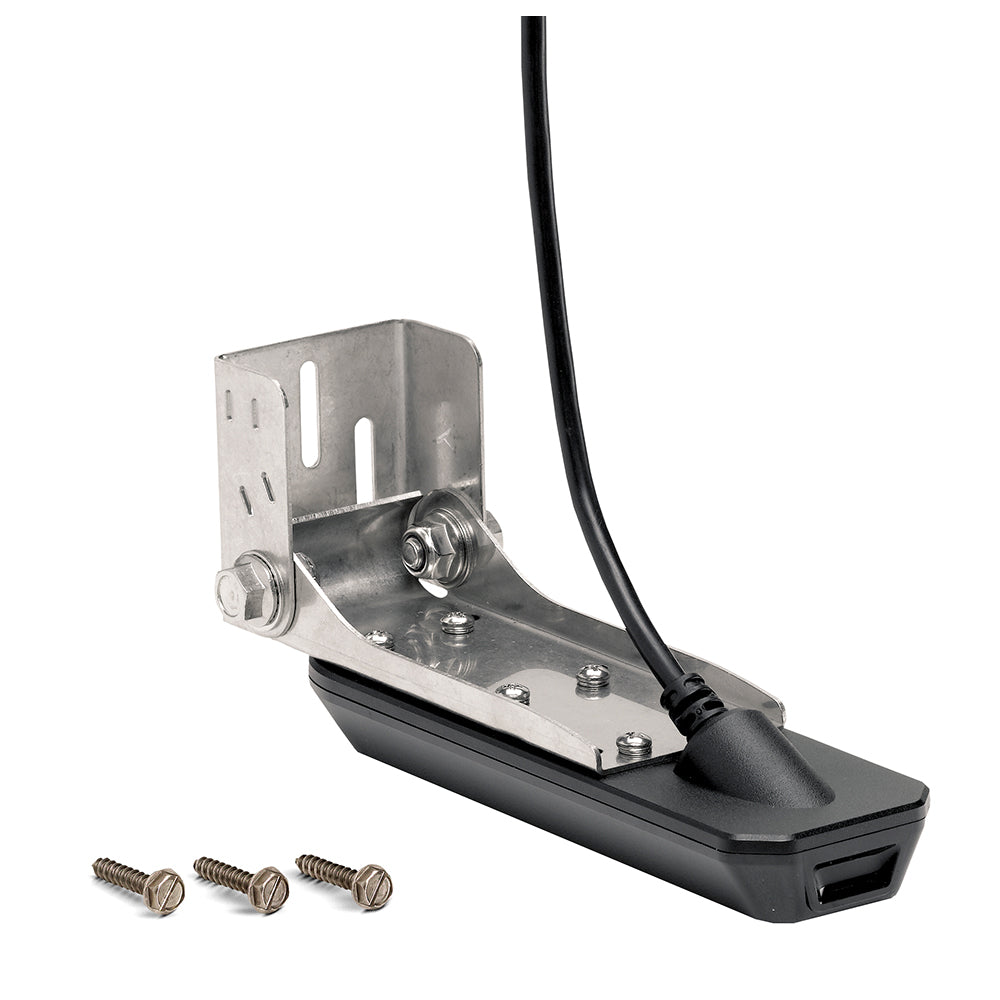

• Rugged composite design with impact-release mounting bracket for durability and easy installation

• Includes 20-foot cable for flexible mounting options
