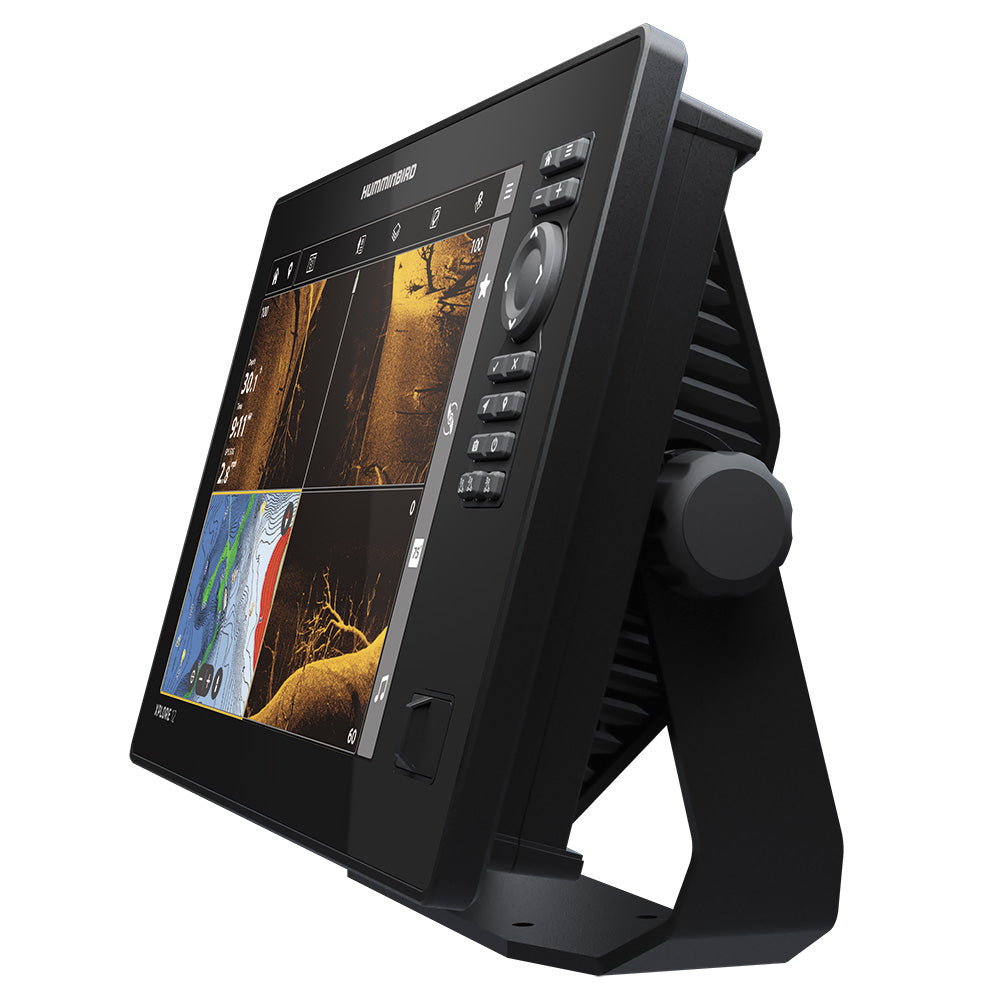

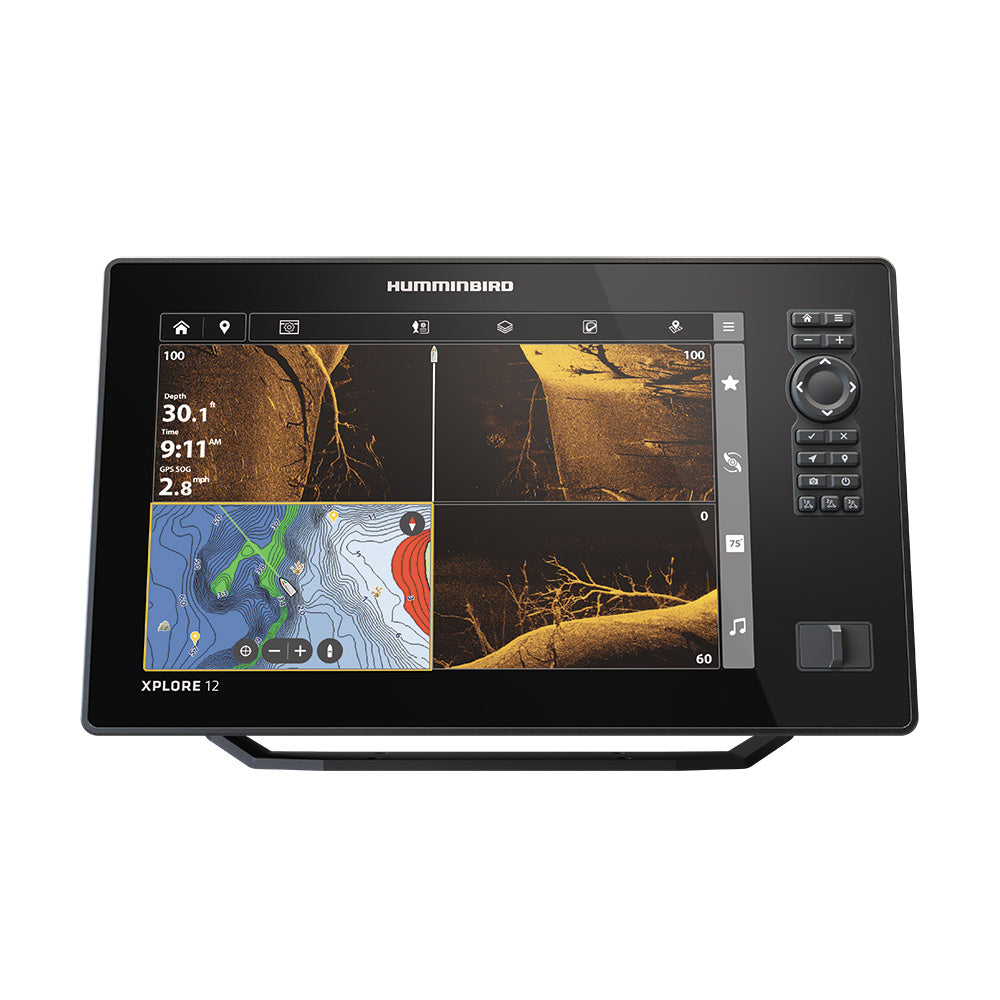

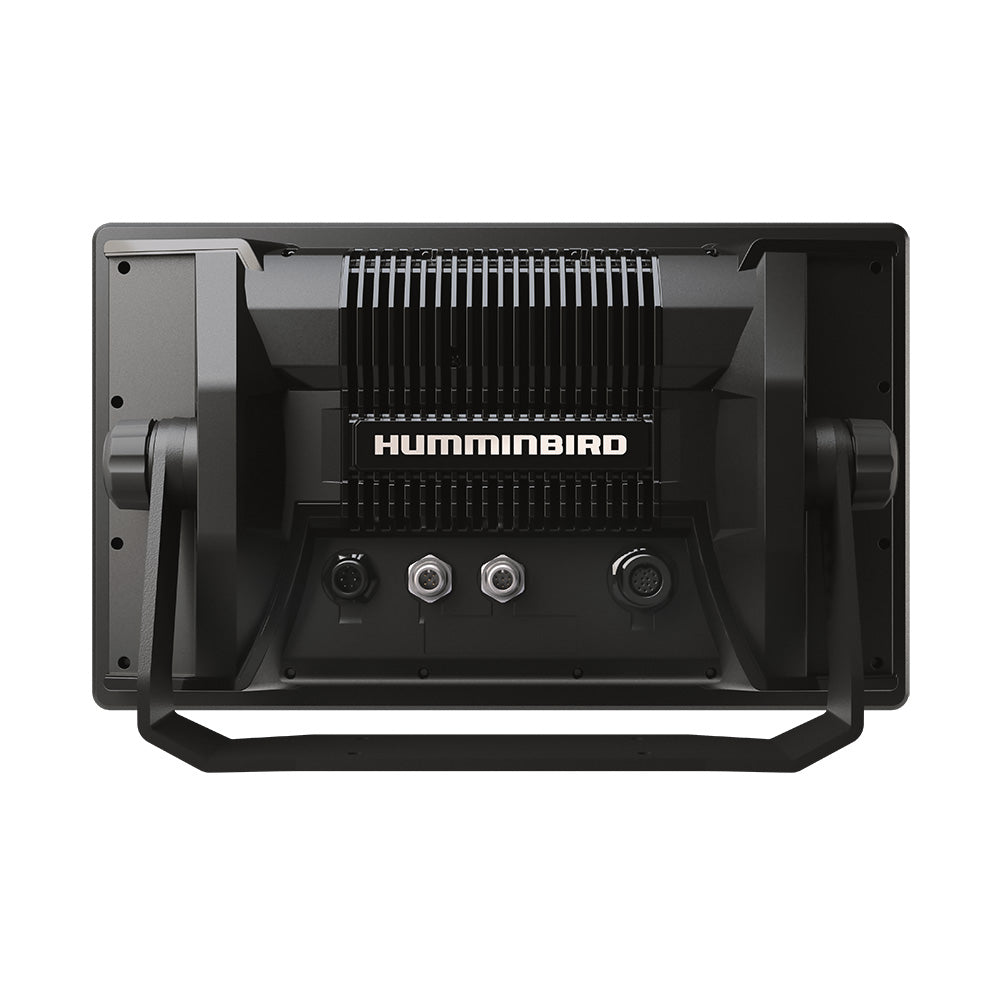

Humminbird XPLORE 12 CMSI+ Fish Finder with 12-Inch Full HD Touchscreen, Mega Imaging+, CHIRP Sonar, Internal GPS & LakeMaster Maps

XPLORE 12 CMSI+

THE XPLORE 12 CMSI+ features a 12 ultra-clear display with intuitive Cross Touch, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar, and internal GPS with Humminbird Basemap. Unique to the XPLORE Series is the inclusion of Humminbird LakeMaster and CoastMaster map cards with 13 regions in the United States and Canada. This XPLORE 12 CMSI+ model includes Wi-Fi, NMEA 2000, Bluetooth, and Ethernet networking for compatibility with the One-Boat Network family of Humminbird, Minn Kota, and Cannon products.

Features:

Full-HD Display with Cross Touch interface:

• XPLORE delivers eye-popping detail with a 1280H x 800V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypadits up to you.

Dual Spectrum CHIRP Sonar:

• Before you cast, know whats down there thanks to highly-detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.

MEGA Side Imaging+:

• See the world below like never before with crystal-clear Side Imaging viewing out to 200 feet on either side of your boat. Youll unlock more fish and structure with 20% more detail and 60% more range capability than MEGA Side Imaging sonar.

MEGA Down Imaging+:

• Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. Youll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.

Industry-leading Humminbird Sonar:

• Equipped with MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250 under and out to either side of your boat and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.

Internal GPS and Humminbird Basemap:

• Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.

Premium Chart Compatible:

• Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbirds LakeMaster and CoastMaster products, as well as your choice of compatible Navionics charts. Includes LakeMaster and CoastMaster mapping cards with North American standard data.

AutoChart Live:

• Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.

One-Boat Network Compatible:

• Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.

Ethernet Networking:

• High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.

Bluetooth:

• Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird One-Boat App and a display of smartphone notifications on your Humminbird.

NMEA 2000 Networking Built-in:

• Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.

Warranty:

• 2-Year Limited Warranty

Includes:

• Control head
• Power adapter
• Unit cover
• Mounting bracket
• Transducer

Compatible With

Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network

Specifications:

• Memory Card Slot: Dual Micro SD
• Sonar-Standard: Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+
• Sonar-Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
• CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
• Sonar-Frequencies Supported: 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA
• Depth-Sonar: 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
• CHIRP - Imaging Frequencies Supported: 455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz)
• Depth-Down Imaging: 200 ft (MEGA), 400 ft (455 kHz)
• Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 250 ft (MEGA)
• Interface: Touch Screen, Keypad Control
• Power Input: 10.8-20 VDC
• Power Output Peak-to-Peak: 8000 Watts
• Power Output RMS: 1000 Watts
• Screen Snap Shot: Included
• Sonar Recording: Included
• Mount-Standard: Gimbal
• Mount-Standard Size: 14.145 in W x 8.911 in H x 3.989 in D
• Mount-Optional: In-Dash Mounting Kit
• Mount-Optional Size: 14.145 in W x 8.911 in H x 3.989 in D
• Transducer Mount Location: Transom
• GPS Chartplotting: Included
• GPS Receiver: Internal
• GPS Trackplotting: Not Supported
• Waypoints, Routes, Tracks/Points: 10,000, 50, 50/20,000
• 360 Imaging Compatibility: Yes
• MEGA Live Compatibility: Yes
• Humminbird Basemap: Included
• LakeMaster Compatibility: Yes
• CoastMaster Compatibility: Yes
• Navionics Gold/HotMaps Compatibility: Yes
• Navionics Platinum+ Compatibility: Yes
• Platinum Compatibility: Yes
• Minn Kota Advanced GPS Navigation Compatibility: Yes
• Minn Kota i-Pilot Link Compatibility: Yes
• Minn Kota Talon Shallow Water Anchor Compatibility: Yes
• Radar Compatibility: Yes
• 5-Port Ethernet Switch Compatibility: Yes
• AIS Compatibility: Not Supported
• Autopilot Compatibility: No
• Heading Sensor GPS Compatibility: No
• Heading Sensor GPS (NMEA 2000) Compatibility: Yes
• NMEA2000: Included
• Target Separation: 2.5 in
• Upgradable Software: Yes
• View Preset Keys: Yes
• X-Press Menu System: Yes
• Custom Digital Readout: Yes
• Custom View Selections: Yes
• Display Colors Grayscale: 24-Bit
• Display Type: Color TFT
• Speed: Included
• Temperature: Built In
• Temperature Alarm: Yes
• Temperature Graph: Yes
• HDMI Compatible: No
• Warranty: Two-Year Warranty

Experience the ultimate in fishing technology with the Humminbird XPLORE 12 CMSI+ fish finder, designed to elevate your angling success. Featuring a vibrant 12-inch Full HD color TFT display with a Cross Touch interface, this device offers crystal-clear visuals of sonar images and detailed charts, allowing you to identify fish and underwater structures with unprecedented clarity. The intuitive touchscreen combined with keypad controls provides seamless navigation, making it easy to access advanced features even in challenging conditions. Whether you're a seasoned angler or a weekend fisherman, the XPLORE 12 CMSI+ is built to deliver precise, real-time information that helps you make informed decisions on the water. It supports a range of premium charts including Humminbird LakeMaster and CoastMaster, covering over 13 regions across the U.S. and Canada, ensuring you always have the right maps at your fingertips. The device also includes AutoChart Live functionality, enabling you to create detailed, real-time maps of your favorite fishing spots, complete with contours, bottom hardness, and vegetation data. This feature is perfect for anglers who want to understand their local waters better and plan their fishing strategies accordingly. With built-in Wi-Fi, Bluetooth, and Ethernet networking, the Humminbird XPLORE 12 CMSI+ seamlessly integrates with other marine electronics and accessories, including Minn Kota and Cannon products, through the One-Boat Network. This connectivity allows for remote control of anchors, downriggers, and additional sonar modules, providing a comprehensive and connected fishing experience. The internal GPS, combined with Humminbird Basemap, offers detailed underwater terrain and navigation data, ensuring you can find your way and stay oriented in unfamiliar waters. The device's Dual Spectrum CHIRP Sonar, MEGA Side Imaging+, and MEGA Down Imaging+ provide detailed views of fish and structures both below and around your boat, supporting depths up to 1,200 feet and range out to 250 feet on either side. Designed for durability and versatility, it includes a sturdy transom mount and is compatible with various optional in-dash mounts. With a 2-year limited warranty, the Humminbird XPLORE 12 CMSI+ is a reliable choice for serious anglers seeking advanced imaging, precise mapping, and seamless integration on the water. This powerful fish finder is the perfect tool to maximize your fishing trips and explore new waters with confidence.

Features:

• Full-HD 12-inch color TFT display with Cross Touch interface for easy control and sharp visuals

• Dual Spectrum CHIRP Sonar: Wide and Narrow modes for comprehensive underwater scanning

• MEGA Side Imaging+ with 200-foot range on each side for detailed side views

• MEGA Down Imaging+ with 200-foot depth coverage for underwater clarity

• Industry-leading MEGA Imaging+ views up to 250 feet beneath and to the sides of your boat

• Internal GPS with Humminbird Basemap featuring over 10,000 lakes and coastal coverage

• Supports premium charts including LakeMaster, CoastMaster, Navionics Gold/HotMaps, and Platinum+

• AutoChart Live for real-time mapping of contours, bottom hardness, and vegetation

• Seamless integration with One-Boat Network, Minn Kota, and Cannon accessories via Ethernet and Bluetooth

• Built-in Wi-Fi and Bluetooth for wireless updates, control, and notifications

• NMEA 2000 network compatibility for enhanced boat data and performance insights

• Multiple connectivity options including Ethernet, Bluetooth, and NMEA 2000

• Supports up to 10,000 waypoints, 50 routes, and 20,000 track points

• Durable design with standard transom mount and optional in-dash mounting kit

• Includes transducer, power adapter, control head, unit cover, and mounting bracket

• Two-year limited warranty for peace of mind
