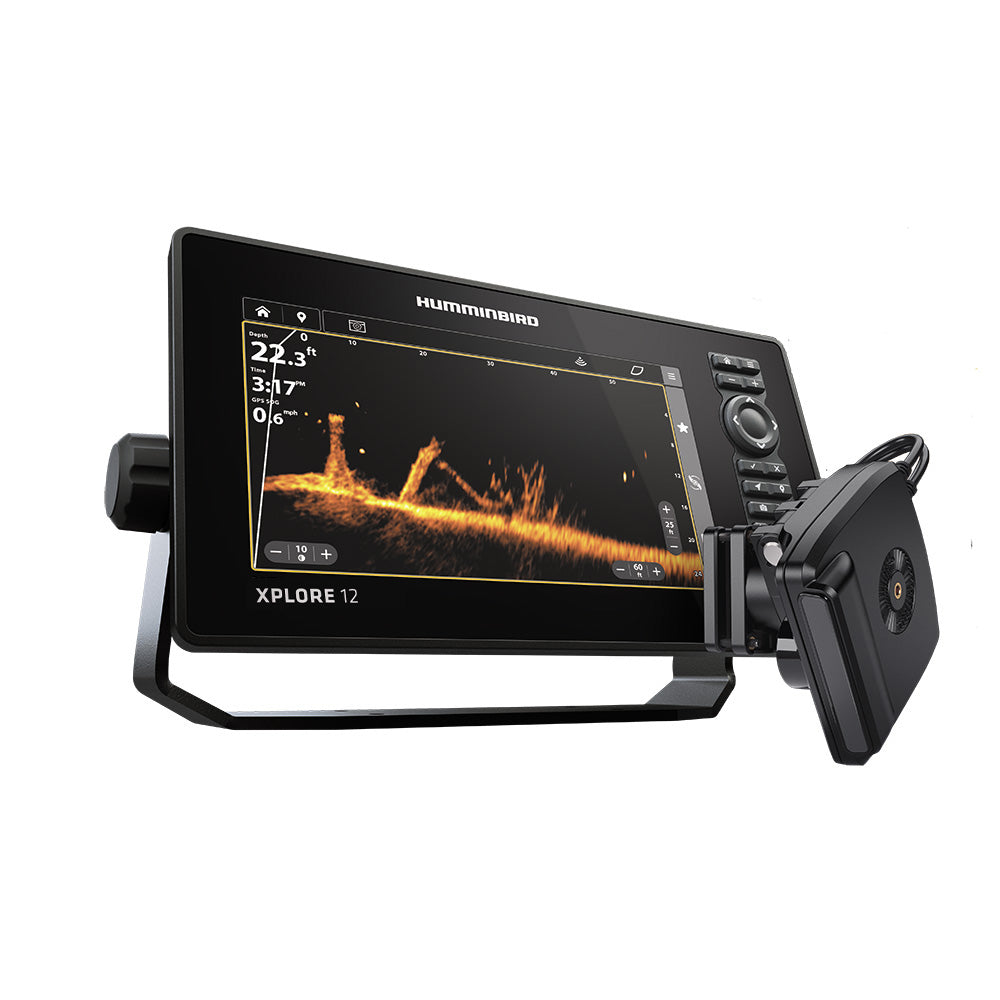

Humminbird XPLORE 12 CMSI+ Mega Live 2 Bundle with Transom Mount Transducer

XPLORE 12 CMSI+ Mega Live 2 Bundle with Transom Mount Transducer

THE XPLORE 12 CMSI+ features a 12 ultra-clear display with intuitive Cross Touch, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar, and internal GPS with Humminbird Basemap. Unique to the XPLORE Series is the inclusion of Humminbird LakeMaster and CoastMaster map cards with 13 regions in the United States and Canada. This XPLORE 12 CMSI+ model includes Wi-Fi, NMEA 2000, Bluetooth, and Ethernet networking for compatibility with the One-Boat Network family of Humminbird, Minn Kota, and Cannon products.

Features:

Full-HD Display with Cross Touch interface:

• XPLORE delivers eye-popping detail with a 1280H x 800V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypadits up to you.

Mega Live 2

• MEGA Live 2 is a live sonar transducer that features enhanced and vivid clarity of fish and structures. It mounts to a trolling motor shaft and delivers three viewing modes: forward, down, and landscape. It is compatible with all Humminbird APEX, SOLIX G3, and XPLORE models and Minn Kota trolling motors. See fish and structure in real-time. With no gaps in sonar coverage, powered by the unmatched detail and clarity of MEGA Imaging throughout the entire sonar view. To view everything down, out, and around your boat with live sonar. Choose from multiple viewing modes: Forward, Down, and Landscape.

Dual Spectrum CHIRP Sonar:

• Before you cast, know whats down there thanks to highly detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search: Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.

MEGA Side Imaging+:

• See the world below like never before with crystal-clear Side Imaging viewing out to 200 feet on either side of your boat. Youll unlock more fish and structure with 20% more detail and 60% more range capability than MEGA Side Imaging sonar.

MEGA Down Imaging+:

• Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. Youll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.

Industry-leading Humminbird Sonar:

• Equipped with MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250 under and out to either side of your boat, and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.

Internal GPS and Humminbird Basemap:

• Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.

Premium Chart Compatible:

• Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbirds LakeMaster and CoastMaster products, as well as your choice of compatible Navionics charts. Includes LakeMaster and CoastMaster mapping cards with North American standard data.

AutoChart Live:

• Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.

One-Boat Network Compatible:

• Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.

Ethernet Networking:

• High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.

Bluetooth:

• Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird One-Boat App and a display of smartphone notifications on your Humminbird.

NMEA 2000 Networking Built-in:

• Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.

Warranty:

• 2-Year Limited Warranty

Includes:

• Control head
• Power adapter
• Unit cover
• Mounting bracket
• Transducer

Compatible With

Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network

Specifications:

• Memory Card Slot: Dual Micro SD
• Sonar-Standard: Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+
• Sonar-Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
• CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
• Sonar-Frequencies Supported: 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA
• Depth-Sonar: 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
• CHIRP - Imaging Frequencies Supported: 455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz)
• Depth-Down Imaging: 200 ft (MEGA), 400 ft (455 kHz)
• Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 250 ft (MEGA)
• Interface: Touch Screen, Keypad Control
• Power Input: 10.8-20 VDC
• Power Output Peak-to-Peak: 8000 Watts
• Power Output RMS: 1000 Watts
• Screen Snapshot: Included
• Sonar Recording: Included
• Mount-Standard: Gimbal
• Mount-Standard Size: 14.145 in W x 8.911 in H x 3.989 in D
• Mount-Optional: In-Dash Mounting Kit
• Mount-Optional Size: 14.145 in W x 8.911 in H x 3.989 in D
• Transducer Mount Location: Transom
• GPS Chartplotting: Included
• GPS Receiver: Internal
• GPS Trackplotting: Not Supported
• Waypoints, Routes, Tracks/Points: 10,000, 50, 50/20,000
• 360 Imaging Compatibility: Yes
• MEGA Live Compatibility: Yes
• Humminbird Basemap: Included
• LakeMaster Compatibility: Yes
• CoastMaster Compatibility: Yes
• Navionics Gold/HotMaps Compatibility: Yes
• Navionics Platinum+ Compatibility: Yes
• Platinum Compatibility: Yes
• Minn Kota Advanced GPS Navigation Compatibility: Yes
• Minn Kota i-Pilot Link Compatibility: Yes
• Minn Kota Talon Shallow Water Anchor Compatibility: Yes
• Radar Compatibility: Yes
• 5-Port Ethernet Switch Compatibility: Yes
• AIS Compatibility: Not Supported
• Autopilot Compatibility: No
• Heading Sensor GPS Compatibility: No
• Heading Sensor GPS (NMEA 2000) Compatibility: Yes
• NMEA2000: Included
• Target Separation: 2.5 in
• Upgradable Software: Yes
• View Preset Keys: Yes
• X-Press Menu System: Yes
• Custom Digital Readout: Yes
• Custom View Selections: Yes
• Display Colors Grayscale: 24-Bit
• Display Type: Color TFT
• Speed: Included
• Temperature: Built In
• Temperature Alarm: Yes
• Temperature Graph: Yes
• HDMI Compatible: No
• Warranty: Two-Year Warranty

The Humminbird XPLORE 12 CMSI+ Mega Live 2 Bundle offers a comprehensive fishing and navigation solution designed for serious anglers. Featuring a bright 12-inch Full-HD color touchscreen with Cross Touch control, this unit provides crystal-clear sonar imaging and detailed mapping capabilities. The high-resolution display ensures you see every detail of underwater structures, fish, and terrain, giving you a competitive edge on the water. The intuitive interface allows seamless navigation between sonar views, charts, and settings, making your fishing experience more efficient and enjoyable.

One of the standout features of this bundle is the advanced MEGA Live 2 transducer, mounted on your trolling motor shaft, which delivers real-time, vivid sonar images. With forward, down, and landscape viewing modes, you can scan your surroundings in real-time, spotting fish and structures without gaps in coverage. Complemented by dual spectrum CHIRP sonar, the system offers detailed target separation and a clear view of fish-holding structures, whether you're in wide coverage mode or focusing on specific details.

The unit’s MEGA Side Imaging+ and MEGA Down Imaging+ provide unprecedented underwater clarity, reaching depths of up to 200 feet below your boat and extending Side Imaging out to 200 feet on either side. This allows anglers to identify underwater features and fish hotspots with 20% more detail and 60% more range than previous models. Built-in internal GPS with Humminbird Basemap, LakeMaster, and CoastMaster mapping gives you a comprehensive view of over 10,000 lakes and coastal areas across the U.S., enabling precise navigation and waypoint management.

Connectivity options such as Wi-Fi, Bluetooth, Ethernet, and NMEA 2000 make this system highly versatile. You can connect to compatible Minn Kota trolling motors, Cannon downriggers, and other marine electronics, creating a robust, integrated fishing system. Wireless updates, smartphone notifications, and control of shallow water anchors like Talon and Raptor are all possible with this advanced network-ready system. Backed by a two-year warranty, the Humminbird XPLORE 12 CMSI+ Mega Live 2 Bundle is built for durability and high performance, ensuring that your investment enhances your fishing adventures for years to come.

Features:

• Full-HD 12-inch color display with Cross Touch interface for easy control and navigation

• Mega Live 2 transducer provides real-time fish and structure imaging in forward, down, and landscape modes

• Dual Spectrum CHIRP Sonar offers detailed target separation with wide and narrow search modes

• Mega Side Imaging+ extends visibility to 200 feet on either side of your boat with 20% more detail and 60% more range

• Mega Down Imaging+ provides clear images up to 200 feet below for comprehensive underwater views

• Built-in internal GPS with Humminbird Basemap, LakeMaster, and CoastMaster charts covering over 10,000 lakes and coastal regions

• Supports optional premium mapping charts including Navionics Gold, HotMaps, and Platinum+

• AutoChart Live allows you to create real-time maps with depth contours, bottom hardness, and vegetation

• Seamless integration with Humminbird, Minn Kota, and Cannon products via One-Boat Network and Ethernet connectivity

• Wireless Bluetooth features enable control of shallow water anchors and downriggers, plus software updates and notifications
