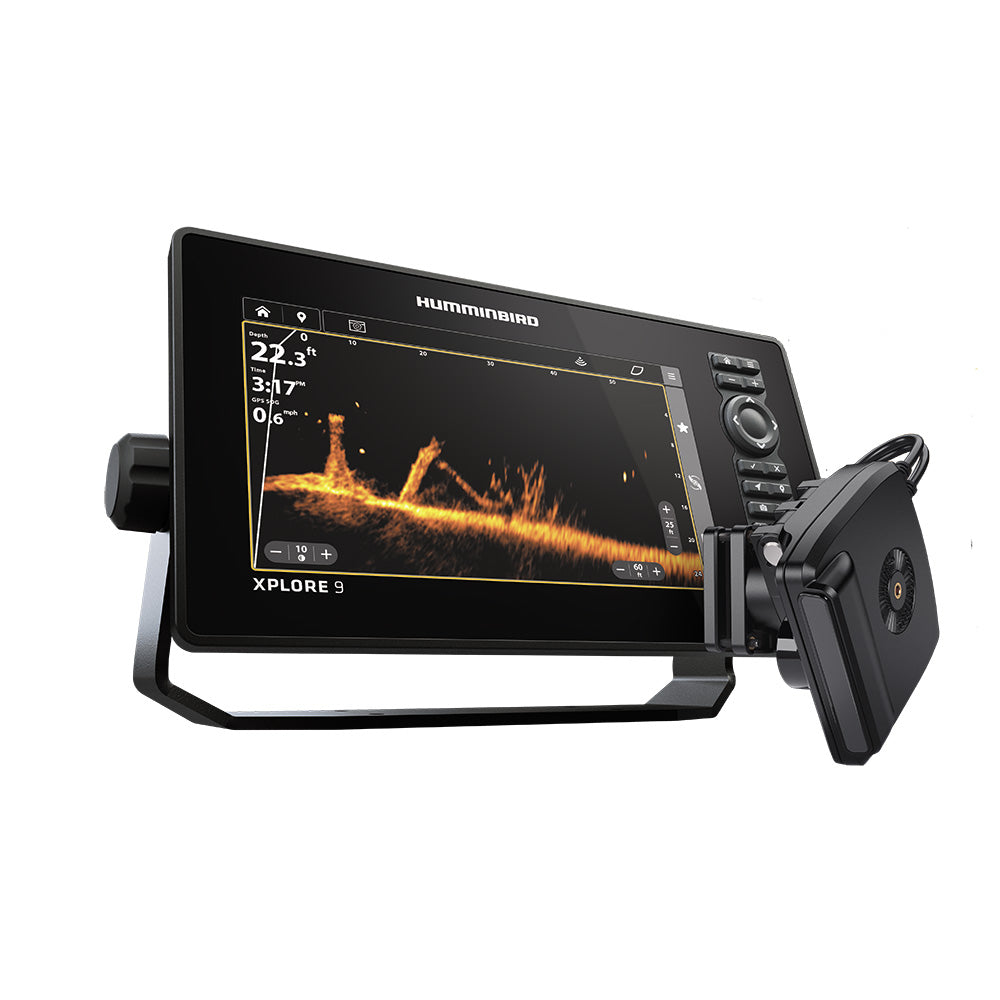

Humminbird XPLORE 9 CMSI+ Mega Live 2 Bundle with Transom Mount Transducer

XPLORE 9 CMSI+ Mega Live 2 Bundle with Transom Mount Transducer

THE XPLORE 9 CMSI+ features a 9 ultra-clear display with intuitive Cross Touch, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar, and internal GPS with Humminbird Basemap. Unique to the XPLORE Series is the inclusion of Humminbird LakeMaster and CoastMaster map cards with 13 regions in the United States and Canada. This XPLORE 9 CMSI+ model includes Wi-Fi, NMEA 2000, Bluetooth, and Ethernet networking for compatibility with the One-Boat Network family of Humminbird, Minn Kota, and Cannon products.

Features:

Mega Live 2

• MEGA Live 2 is a live sonar transducer that features enhanced and vivid clarity of fish and structures. It mounts to a trolling motor shaft and delivers three viewing modes: forward, down, and landscape. It is compatible with all Humminbird APEX, SOLIX G3, and XPLORE models and Minn Kota trolling motors. See fish and structure in real-time. With no gaps in sonar coverage, powered by the unmatched detail and clarity of MEGA Imaging throughout the entire sonar view. To view everything down, out, and around your boat with live sonar. Choose from multiple viewing modes: Forward, Down, and Landscape.

Full-HD Display with Cross Touch interface:

• XPLORE delivers eye-popping detail with a 1280H x 720V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypadits up to you.

Dual Spectrum CHIRP Sonar

• Before you cast, know whats down there thanks to highly detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search: Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.

MEGA Side Imaging+

• See the world below like never before with crystal-clear Side Imaging viewing out to 200 feet on either side of your boat. Youll unlock more fish and structure with 20% more detail and 60% more range capability than MEGA Side Imaging sonar.

MEGA Down Imaging+

• Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. Youll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.

Industry-leading Humminbird Sonar:

• Equipped with MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250 under and out to either side of your boat, and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.

Internal GPS and Humminbird Basemap:

• Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.

Premium Chart Compatible:

• Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbirds LakeMaster and CoastMaster products, as well as your choice of compatible Navionics charts. Includes LakeMaster and CoastMaster mapping cards with North American standard data.

AutoChart Live:

• Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.

One-Boat Network Compatible:

• Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.

Ethernet Networking:

• High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.

Bluetooth:

• Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird One-Boat App and a display of smartphone notifications on your Humminbird.

NMEA 2000 Networking Built-in:

• Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.

Warranty:

• 2-Year Limited Warranty

Includes:

• Control head
• Power adapter
• Unit cover
• Mounting bracket
• Transducer

Compatible With

Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network

Specifications:

• Memory Card Slot: Dual Micro SD
• Sonar-Standard: Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+
• Sonar-Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
• CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
• Sonar-Frequencies Supported: 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA
• Depth-Sonar: 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
• CHIRP - Imaging Frequencies Supported: 455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz)
• Depth-Down Imaging: 200 ft (MEGA), 400 ft (455 kHz)
• Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 250 ft (MEGA)
• Interface: Touch Screen, Keypad Control
• Power Input: 10.8-20 VDC
• Power Output Peak-to-Peak: 8000 Watts
• Power Output RMS: 1000 Watts
• Screen Snapshot: Included
• Sonar Recording: Included
• Mount-Standard: Gimbal
• Mount-Standard Size: 11.690 in W x 6.569 in H x 3.884 in D
• Mount-Optional: In-Dash Mounting Kit
• Mount-Optional Size: 6.259 in W x 11.69 in H x 3.3 in D
• Transducer Mount Location: Transom
• GPS Chartplotting: Included
• GPS Receiver: Internal
• GPS Trackplotting: Not Supported
• Waypoints, Routes, Tracks/Points: 10,000, 50, 50/20,000
• 360 Imaging Compatibility: Yes
• MEGA Live Compatibility: Yes
• Humminbird Basemap: Included
• LakeMaster Compatibility: Yes
• CoastMaster Compatibility: Yes
• Navionics Gold/HotMaps Compatibility: Yes
• Navionics Platinum+ Compatibility: Yes
• Platinum Compatibility: Yes
• Minn Kota Advanced GPS Navigation Compatibility: Yes
• Minn Kota i-Pilot Link Compatibility: Yes
• Minn Kota Talon Shallow Water Anchor Compatibility: Yes
• Radar Compatibility: Yes
• 5-Port Ethernet Switch Compatibility: Yes
• AIS Compatibility: Not Supported
• Autopilot Compatibility: No
• Heading Sensor GPS Compatibility: No
• Heading Sensor GPS (NMEA 2000) Compatibility: Yes
• NMEA2000: Included
• Target Separation: 2.5 in
• Upgradable Software: Yes
• View Preset Keys: Yes
• X-Press Menu System: Yes
• Custom Digital Readout: Yes
• Custom View Selections: Yes
• Display Colors Grayscale: 24-Bit
• Display Type: Color TFT
• Speed: Included
• Temperature: Built In
• Temperature Alarm: Yes
• Temperature Graph: Yes
• HDMI Compatible: No
• Warranty: Two-Year Warranty

Experience unparalleled underwater insight with the Humminbird XPLORE 9 CMSI+ Mega Live 2 Bundle. Featuring a vibrant 9-inch color TFT display with a Cross Touch interface, this fish finder offers crystal-clear imaging and intuitive control for serious anglers. The device's advanced sonar suite includes Dual Spectrum CHIRP, MEGA Side Imaging+, and MEGA Down Imaging+, providing detailed views of fish, structures, and bottom contours up to 200 feet below your boat. With its industry-leading MEGA Imaging+ technology, you'll see out to 250 feet on either side and down to 200 feet with exceptional clarity, giving you the edge in locating fish and underwater features.

The Mega Live 2 transducer elevates your fishing game by delivering real-time, vivid sonar images in forward, down, and landscape modes. Mounted on your trolling motor shaft, it seamlessly integrates with compatible Humminbird APEX, SOLIX G3, and XPLORE models, as well as Minn Kota trolling motors. This live sonar capability ensures you can see fish and structures as they happen, with no gaps in coverage, allowing for precise bait placement and increased catch rates. The bundle also includes a transom mount transducer, making setup quick and straightforward.

Built for versatility, the XPLORE 9 CMSI+ includes internal GPS with Humminbird Basemap, offering detailed charts of over 10,000 lakes and coastal regions across the U.S. and Canada. Compatible with premium charts like LakeMaster and CoastMaster, it allows for customized mapping and auto-generated real-time maps with AutoChart Live. Ethernet networking enables connecting multiple units or adding accessories like radar and autopilot, while Bluetooth and NMEA 2000 support enhance connectivity and data sharing. The device's design emphasizes durability and ease of use, with a sturdy control head, mounting options, and comprehensive features that make it suitable for both freshwater and saltwater fishing.

With a 2-year limited warranty, the Humminbird XPLORE 9 CMSI+ Mega Live 2 Bundle is a comprehensive solution for anglers seeking advanced imaging, navigation, and connectivity features. Whether you're targeting bass, walleye, or saltwater species, this unit provides the tools to find and catch more fish. Its compatibility with Minn Kota and Cannon products, along with its networking capabilities, makes it a powerful addition to any fishing boat, ensuring you’re prepared for every trip with professional-grade technology.

Features:

• Mega Live 2: Live sonar transducer providing real-time images in forward, down, and landscape modes with vivid clarity

• Full-HD Display with Cross Touch interface: 9-inch color TFT screen delivering detailed sonar and chart images, controllable via touchscreen or keypad

• Dual Spectrum CHIRP Sonar: Offers wide and narrow modes for detailed fish arches and structure views

• Mega Side Imaging+: Crystal-clear images out to 200 feet on each side, with 20% more detail and 60% more range than previous models

• Mega Down Imaging+: Underwater clarity down to 200 feet, revealing more fish and structures with enhanced detail

• Industry-leading Humminbird Sonar: Combines MEGA Imaging+ and Dual Spectrum CHIRP for superior target separation and fish detection

• Internal GPS and Humminbird Basemap: Precise underwater terrain mapping and navigation with over 10,000 lakes and coastal coverage

• Premium Chart Compatibility: Supports LakeMaster, CoastMaster, Navionics Gold/HotMaps, and Platinum+ charts for customized mapping

• AutoChart Live: Real-time mapping of fishing spots with depth, bottom hardness, and vegetation data

• One-Boat Network Compatibility: Seamless integration with Minn Kota and Cannon products for advanced boat control and fishing features

• Ethernet Networking: Connect multiple units or add accessories like radar and autopilot for a comprehensive fishing system

• Bluetooth: Wireless control of shallow water anchors, downriggers, and software updates, plus smartphone notifications

• NMEA 2000 Networking: Connects external sensors and accessories, providing additional data on boat performance and conditions

• Durable and versatile design with multiple mounting options, suitable for various boat types

• Includes control head, power adapter, unit cover, mounting bracket, and transducer, ready for installation

• Warranty: 2-year limited coverage for peace of mind
