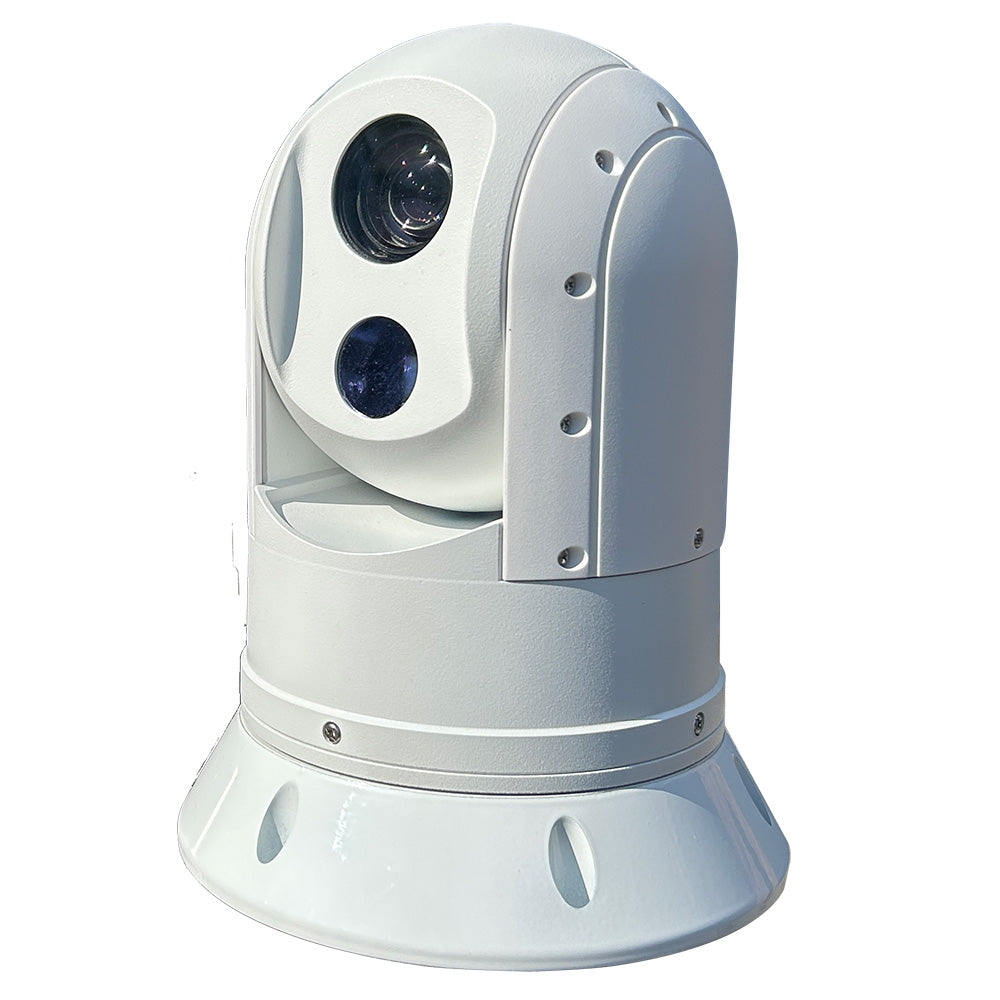

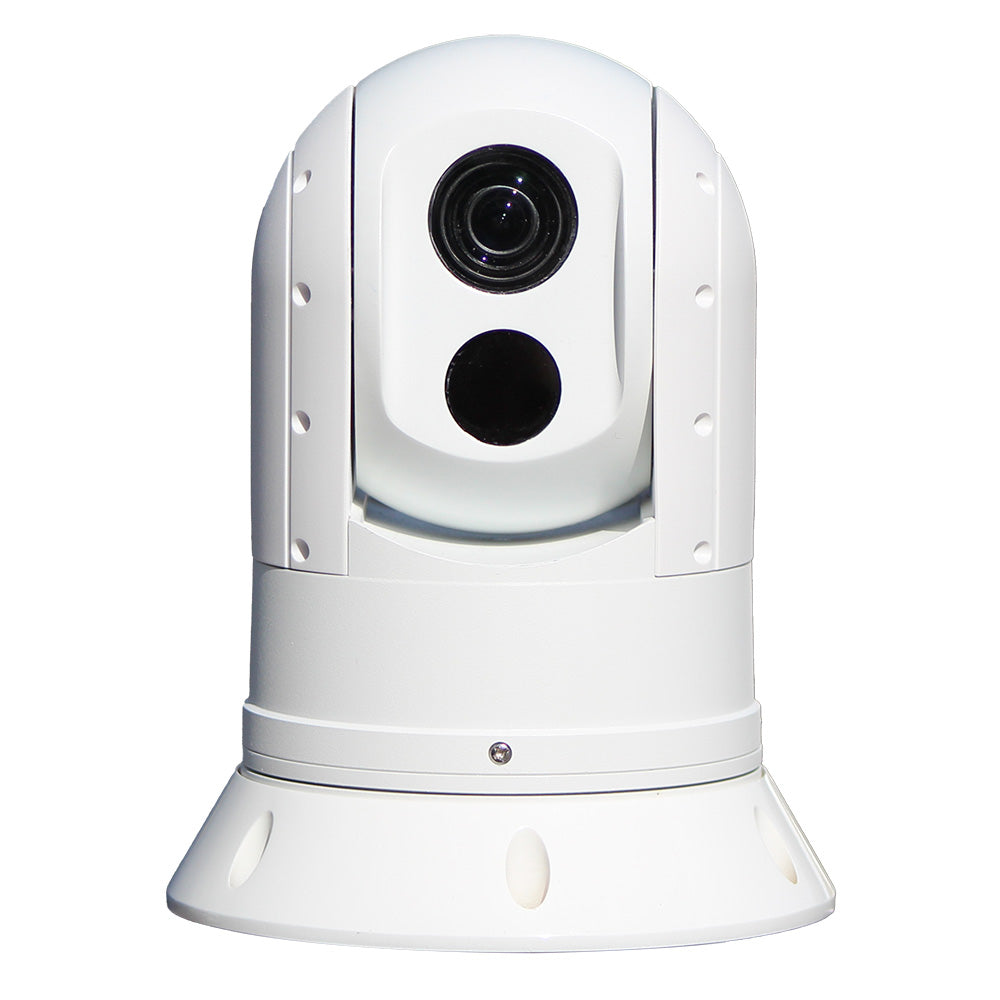

Iris Innovations A295 Dual Payload Thermal and 1080P Visible Spectrum IP PTZ Camera

Iris Innovations A295 Dual Payload Thermal and 1080P Visible Spectrum IP PTZ Camera

SKU:105971

Regular price $3,955.97 USD
Regular price Sale price $3,955.97 USD
Sale Sold out

Low stock: 2 left

  • 30-Day Returns
  • Secure Checkout
  • Shipping Options at Checkout

Shipping & Delivery

Available shipping options, rates, and estimated delivery windows are shown at checkout. Tracking is emailed when available.

Returns & Refunds

Eligible items may be returned within 30 days of delivery. Items must be new, unused, uninstalled, and in original packaging. An RMA is required.

Installment options at checkout are provided by Shop Pay and its partners and are subject to eligibility. Options depend on your purchase amount and may require a credit check by the financing partner. Terms, rates, and eligibility are determined by the financing partner. For details, see the Shop Pay Installments terms during checkout.

A295 Dual Payload 384x288 Thermal + 1080P (10x Zoom) Visible Spectrum IP PTZ Camera

The IRIS-A295 Low-Cost Dual Payload Night Vision PTZ From Iris Innovations.

With an industry-leading 400300 thermal resolution, the cameras also feature a 2MP high-definition visible spectrum camera core with excellent low light performance, super sharp footage, and 10x optical zoom capabilities.

Available with side entry or base entry cable options, the cameras are built into a robust yet compact waterproof case, designed to protect the unit from the harshest environmental conditions.

Each sensor has its IP address meaning the cameras can be configured, controlled, and switched independently, and are compatible with many leading marine chart plotters via our range of CMAC camera management interfaces. An RS485 Serial Data connection is also provided to maximize control options so Atom cameras can be controlled using suitable joystick control devices and NVRs. With its rugged, compact footprint and extremely competitive pricing, our ATOM range of IP PTZ cameras is the perfect solution for vessels of all types and sizes and our industry-leading thermal imaging technology opens up a world of boating at night in safety. Standing only 8 high, ATOM cameras blend into the vessels aesthetic without standing out, and because they are so small they are the perfect camera solution for RIBs, center consoles, and sports fishing boats.

To maximize compatibility, the ATOM-A295 is both ONVIF compliant and as the camera is also NDAA compliant, can be used for government, military, and other security-sensitive applications.

Features:

  • Dual Spectrum Cameras - Thermal Visible Spectrum
  • Visible Spectrum Camera 2MP HD Resolution 10x Optical Zoom
  • 384x288 (A295) thermal core resolution - 4x Digital Zoom
  • Miniature - Lightweight Compact Form Factor
  • Dimensions 206mm x 160mm / 2Kg Weight
  • Available with single IP address or dual IP addresses
  • Side mount or Rear mount Waterproof Cable Connector
  • Push Lock Quick Connector - IP66
  • 17m Pixel Pitch
  • Features IP and RS485 Serial Data Control
  • 750mA @ +12VDC Power / 8.4W
  • IP66 Environmental Rating

Technical Specifications:

  • Thermal Camera Resolution - 384x288
  • Thermal Camera Lens - 19mm
  • Pixel Pitch - 17m
  • Refresh Rate - 25/30Hz
  • Color Pallets - White Hot / Black Hot / Fulgurite / Iron Red / Hot Iron / Medical / Arctic / Rainbow 1 / Rainbow 2 / Tint
  • Image Enhancement - ICE Image Contrast Enhancement - 7 Levels
  • Zoom - x4 Smooth Digital Zoom - Continuous
  • Visible Spectrum Camera - 1/2.8 High-Performance Low Illumination SONY CMOS Sensor IMX327
  • Resolution - 1920 x 1080 25/30 frames/sec
  • Focal Length / Iris / Zoom - F = 4.7mm 94mm / F1.6 F3.5 / 20x Optical Zoom
  • Compression - H.264 / H.265
  • Bit Rate - 32Kbps 16Mbps
  • Frame Rate - 1-25fps(50Hz) / 1-30fps(60Hz)
  • Streams - Supports dual stream, main stream (1080P; 960P; 720P), Sub Stream (D1; VGA; CIF)
  • Cellular/WiFi/GPS - Optional
  • Protocols - Network Protocols: ONVIF Profile S / Others TBC Serial Data: RS485 / Pelco D
  • Power Requirements - +12vDC / 750mA / 8.4W
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

The Iris Innovations A295 Dual Payload IP PTZ Camera offers advanced thermal and high-definition visible spectrum imaging, making it ideal for maritime, security, and surveillance applications. Designed for vessels, security teams, and outdoor environments, this compact camera combines industry-leading thermal resolution with sharp 1080P HD footage and 10x optical zoom, providing clear images even in low-light and challenging conditions. Its rugged waterproof case ensures durability and reliable performance in harsh environments, while its dual sensor system allows independent configuration and control, enhancing flexibility and operational efficiency. Compatible with leading marine chart plotters and supporting ONVIF and NDAA standards, the A295 is suitable for both commercial and government use, including military and security-sensitive operations. Its small footprint, lightweight design, and versatile mounting options make it a perfect fit for RIBs, sports boats, and other vessel types, enabling safe night-time navigation and surveillance with ease.
