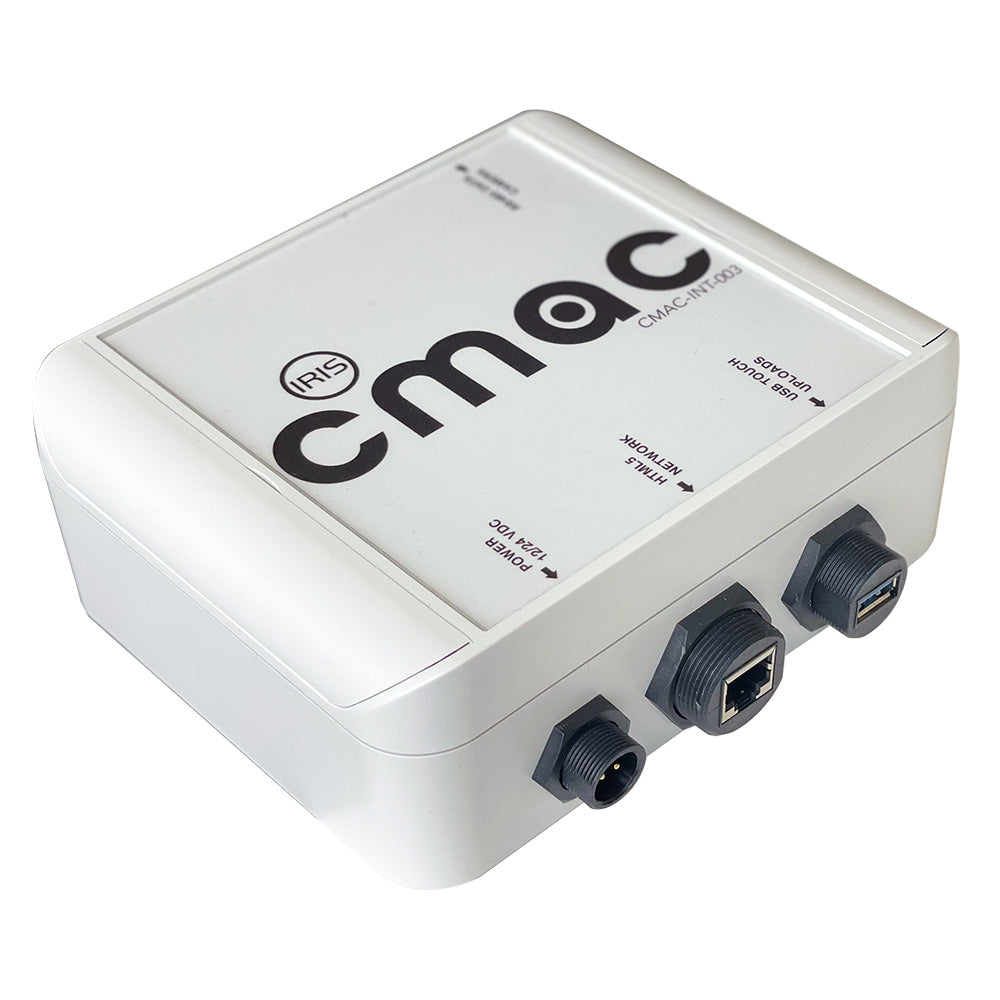

The CMAC-INT003 is a small and compact interface box that sits in line between your MFD and Camera to provide full control and converts the video to high-definition HDMI.

The perfect solution for smaller vessels such as center console boats, fishing boats, RIBs, vehicles, or any application where perhaps a single IP PTZ camera (such as our A418, A295, or A395 models) is installed, the CMAC-INT003 interface converts the cameras IP stream to high definition HDMI video whilst also hosting our IrisControl App for HTML5 platforms such as Garmins OneHelm, Raymarine LightHouse Apps, Simrad / B G Apps and Furuno TZT Apps. Plug your camera into the INT003, hook up to your MFDs network and HDMI input, and seamlessly control your camera from the MFD.

For chartplotters that support our IP cameras video stream directly, as well as hosting our IrisControl App, the CMAC-INT003 converts control data from the App to RS485 serial data to drive the camera.

For chartplotters that do not support the cameras video stream directly or do not feature HDMI video inputs, simply combine the CMACINT003 with our HDMI2IP encoder to view your device (compatible with Raymarine, Simrad, B G, and Furuno).

Features:

• Converts IP Video Stream to HDMI Video
• Hosts IrisControl App for Control via Chart Plotter
• Provides RS485 Serial Data to PTZ Cameras
• Designed to Interface IP Cameras with Chart Plotters such as Garmin, Raymarine, Simrad, B G, and Furuno
• Supported PTZ Cameras - Iris ATOM-A418, A295, A395, AX295, AX395, AX1280HD
• USB Touch - Compatible with Garmin 8xxx / 9xxx series MFDs
• Upload Unlimited Deck Plans to IrisControl App
• Drag and Drop Configuration
• Plug Play Installation
• Small Compact Form Factor

Technical Specifications:

• System Processor - Novatek NT98323
• Video Codec - H.264, H.264+, H.265
• Network Camera Capacity - Up to 32 Cameras via Camera Network RJ45 10/100 Connection
• Network Camera Resolution - Up to 4k Max
• Video Output - 1 x HDMI High Definition
• Serial Data Port - RS485 Serial Data / PTZ Control (Pelco D - Iris Variant)
• Power - +12VDC 24VDC / During Boot-up Peak at 1.5A, 400mA Nominal
• Operating Temperature - -10 - 55C (14 - 131F)

Chartplotter Compatibility:

• Garmin 7xxx: Requires HDMI to CVBS Converter (USB Touch not available)
• Garmin 8xxx 9xxx - All Features
• NVR Version Compatible with MFDs via HDMI/CVBS port and used in conjunction with IRIS595, IRIS599, or TE01 Control interface
• IrisControl for Garmin OneHelm, Raymarine LightHouse Apps, Furuno Apps, and Navico Apps
• NSO = HDMI
• NSS = Iris HDMI to IP Encoder or HDMI to CVBS Converter

The Iris Innovations CMAC-INT003A is a compact and versatile interface box designed to streamline the integration of IP cameras with multi-function displays (MFDs) on smaller vessels such as center console boats, fishing boats, and RIBs. This device acts as a bridge between your IP PTZ camera and your MFD, converting the camera's IP video stream into high-definition HDMI output for seamless viewing. Its plug-and-play design ensures quick installation and reliable performance, making it ideal for boaters seeking enhanced control and video quality from their cameras.

Equipped with advanced features, the CMAC-INT003A hosts the IrisControl App, compatible with HTML5 platforms such as Garmin OneHelm, Raymarine LightHouse, Simrad, and Furuno apps. This allows users to control PTZ cameras directly from the MFD, providing a unified interface for monitoring and navigation. The device also supports RS485 serial data communication, enabling control of PTZ cameras like the Iris ATOM-A418, A295, A395, AX295, AX395, and AX1280HD, ensuring flexibility across various camera models.

Designed for ease of use, the CMAC-INT003A supports up to 32 cameras with resolutions up to 4K, delivering crisp, detailed video streams. Its small form factor makes it suitable for installation in tight spaces onboard vessels. The device supports multiple video codecs including H.264, H.264+, and H.265, ensuring compatibility with a broad range of cameras and network configurations. Additionally, it features USB touch compatibility for Garmin 8xxx and 9xxx series MFDs, and allows uploading unlimited deck plans to the IrisControl App for enhanced navigation and situational awareness.

The device's technical specifications include a robust Novatek NT98323 processor, a single HDMI output, and power options of +12VDC or 24VDC, with a peak current of 1.5A during startup. It operates reliably in temperatures ranging from -10°C to 55°C, making it suitable for various marine environments. The CMAC-INT003A is compatible with a variety of chartplotters, including Garmin, Raymarine, Simrad, B&G, and Furuno, either directly or via HDMI to CVBS converters. This product is designed to enhance your vessel's video and camera control capabilities, providing a reliable, high-quality solution for marine surveillance and monitoring.

Features:

• Converts IP camera video streams to high-definition HDMI output

• Hosts IrisControl App for seamless camera control via MFD interface

• Supports RS485 serial data for PTZ camera control

• Compatible with Garmin, Raymarine, Simrad, B&G, and Furuno chartplotters

• Supports up to 32 cameras with 4K resolution

• Includes USB touch compatibility with Garmin 8xxx/9xxx series MFDs

• Allows unlimited deck plan uploads to IrisControl App

• Drag-and-drop configuration for ease of setup

• Plug-and-play installation for quick deployment

• Compact design suitable for small vessel installations

• Supports multiple video codecs: H.264, H.264+, H.265

• Operates reliably in marine environments from -10°C to 55°C
