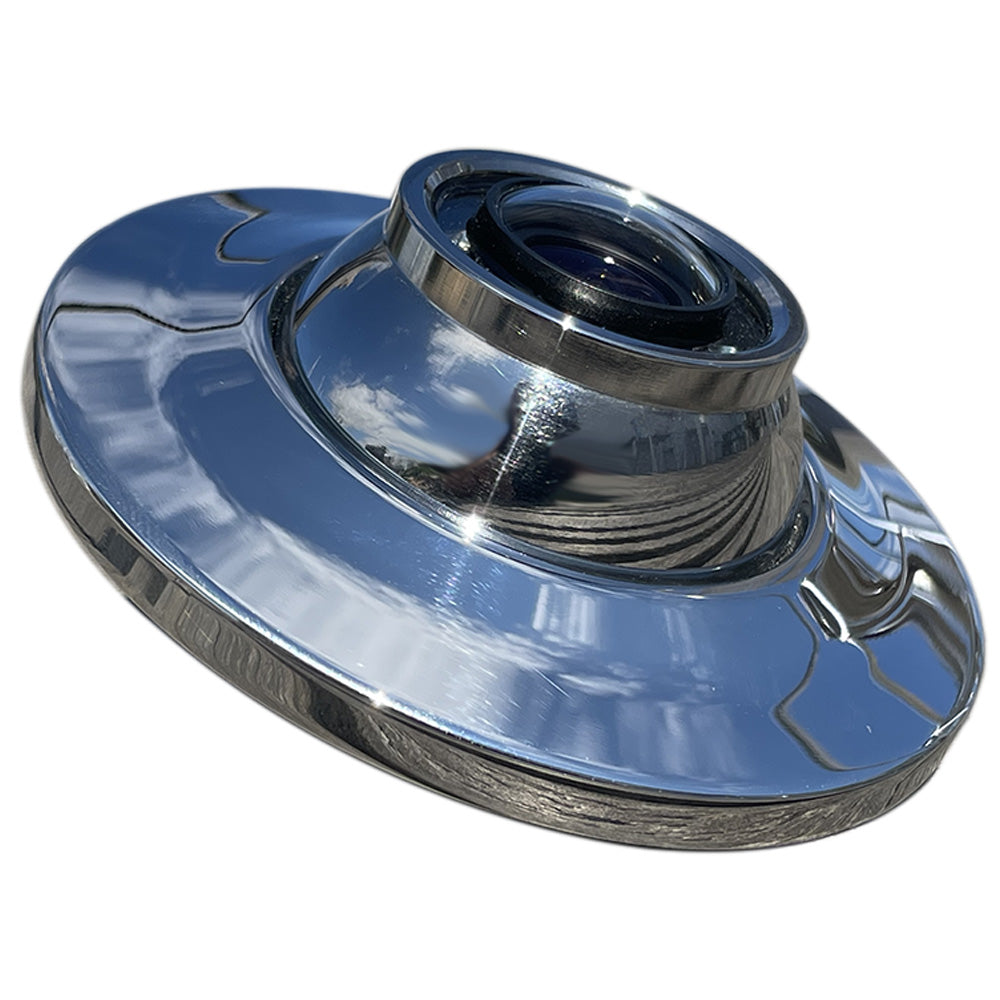

Iris Innovations IRIS-S076 Marine-Grade 316L Stainless Steel 4-In-1 Flush Vertical Surface Mount Dome Camera

4-In-1 Flush Vertical Surface Mount - 316L Marine Grade Stainless Steel - Recess Mount Dome

Iris Sx76 series camera is the first of its kind designed to be installed into a bulkhead or vertical surface. Its waterproof stainless steel case is machined from marine-grade 316L stainless steel, which means it will not corrode in harsh saltwater environments, making it a great option as a backup or docking camera for boats. By mounting the camera on the sides of your boat, it can even be used when mooring alongside jetties or pontoons.

During installation, the cameras inner ball can be adjusted and locked into position by tightening the outer bezel to achieve the desired view.

For analog or analog hi-def (such as TVI / CVI / AHD) systems, the S076 version features 1080P resolution. The camera also outputs a CVBS signal for legacy composite video systems.

As well as marine applications, the camera's tough case, and small footprint make it a perfect visibility aid for recreational vehicles, fire and rescue trucks, and other applications requiring a robust and reliable high-definition camera.

The camera is certified to EN60945, EN55032, EN55035, and EN60529 (IP66) and is ONVIF compliant. For marine applications, the camera is directly compatible with Raymarine LH2 and above, Simrad, Lowrance, and B G. For Garmin systems, use them in conjunction with Iris CMAC systems.

Features:

• 1.8mm standard lens (160-degree horizontal field of view)
• Corrosion-Proof 316L Marine Grade Stainless Steel
• Available in 4-in-1 (CVBS, TVI, CVI, AHD) IP formats
• Analogue Hi-Def resolutions up to 1920x1080P resolution
• IP Version - Max 3MP Hi-Def Resolution
• Super wide angle 160-degree lens
• IP version supports PoE and 12VDC - ultra-low power
• Built-in infrared LED illumination (10m range)
• EN60945, EN55032, EN55035, EN50529 (IP66) , FCC, CE
• Shock vibration proof
• Super rugged and easy to install

Applications:

• Perfect for extreme environments
• Workboats tug boats
• Fishing vessels
• Engine room monitoring
• Law enforcement military
• Wind farm vessels
• SUVs, RVs, work vehicles, and trucks
• Luxury vessels
• Passenger ferries cruise liners

Specifications:

• Lens (millimeter): 1.8mm
• Horizontal Field of View: 160-degree HFOV
• Sensor (inch): Sensor 1/4 CMOS Sensor
• Resolution: CVBS: 960H / AHD, HD-TVI. HD-CVI: 1920 x 1080
• Interface: OSD Menu via in-line Joystick in Cable Tail
• Video Processing: Analogue / Analogue HD
• Protocols/Video Format: 1VPP / 75 composite / AHD/TVI/CVI formats
• Onvif: NA
• Bitrate: NA
• Illumination: 6 x 850nm Infra-Red - 10-meter range
• Lens/Field of View: 1.8mm Standard (160-degree HFOV)
• Mirroring: Horizontal vertical configuration via the OSD
• Automatic Gain Control: Supported / multiple levels
• Compatibility: CVBS: All MFDs / Screens featuring composite video input AHD/TVI/CVI via interface or IRIS CMAC System
• Operating Temperature: -30 + 60-degrees C
• Connections: Video: Video - 75 BNC female / 2.1mm DC socket
• Material: Marine Grade 316L Stainless Steel (highly polished as a standard)
• Power: +12VDC (+10 +15VDC range) / 1W Nominal / 1.8W max. (LEDs on)
• Power Over Ethernet (PoE): NA
• Weight Dimensions: 88mm x 22.25mm above and below the mounting surface
• Environmental: EN60529 / IP66
• EMC: EN55032:2015/A11:2020 EN55035:2017/A11:2020 EN60945:2002 Sections 9 10 / FCC Part 15 A B
• RoHS: EN6300:2018

The Iris Innovations IRIS-S076 is a versatile, high-performance camera designed for demanding marine and industrial environments. Crafted from corrosion-proof 316L stainless steel, this camera is built to withstand harsh saltwater conditions, making it an ideal choice for boats, work vessels, and other outdoor applications where durability is essential. Its unique recess mount dome installation allows for seamless integration into bulkheads or vertical surfaces, providing a clean, unobtrusive appearance while maintaining reliable surveillance.

Equipped with a 1.8mm lens offering a wide 160-degree horizontal field of view, the IRIS-S076 captures crisp, detailed images in high-definition resolution up to 1080P for HD systems, and 960H for analog setups. Its multiple video output formats—including CVBS, TVI, CVI, and AHD—ensure compatibility with a wide range of legacy and modern systems. The built-in infrared LEDs provide effective night vision up to 10 meters, enhancing visibility in low-light conditions. This rugged camera is IP66 rated, shock, and vibration proof, making it suitable for extreme environments such as engine rooms, law enforcement, military, and rescue operations.

Installation is simplified with an adjustable inner ball joint that locks into place via the outer bezel, allowing precise viewing angles tailored to specific needs. The IRIS-S076 supports Power over Ethernet (PoE) and 12VDC power sources, ensuring flexible power options with low energy consumption. Certified to meet EN60945, EN55032, EN55035, and EN60529 standards, and compliant with RoHS, this camera adheres to strict safety and environmental regulations. Its robust construction and comprehensive technical features make it a reliable choice for marine vessels, recreational vehicles, and other demanding applications where durability and image clarity are paramount.

Features:

• 1.8mm standard lens with 160-degree horizontal field of view

• Corrosion-proof 316L marine-grade stainless steel construction

• Multiple video output formats: CVBS, TVI, CVI, AHD

• High-definition resolution up to 1920x1080P for HD systems

• Supports analog HD and composite video for legacy systems

• Built-in infrared LED illumination with a 10-meter range for night vision

• IP66 rated for waterproof and dustproof protection

• Shock and vibration resistant for extreme environments

• Adjustable inner ball joint for customizable viewing angles

• Supports Power over Ethernet (PoE) and 12VDC power supply

• Compact design with easy recess mount installation

• Certified to EN60945, EN55032, EN55035, and EN60529 standards

• Suitable for marine, industrial, law enforcement, and rescue applications
