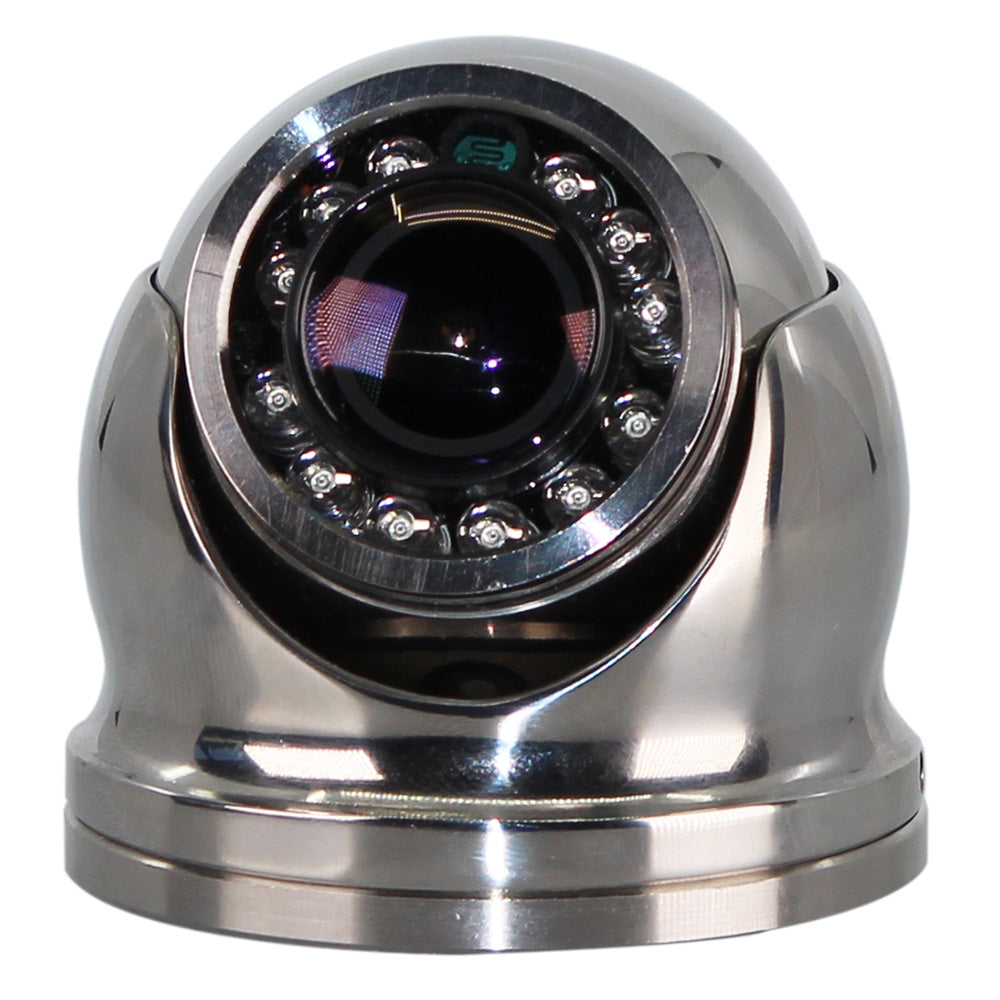

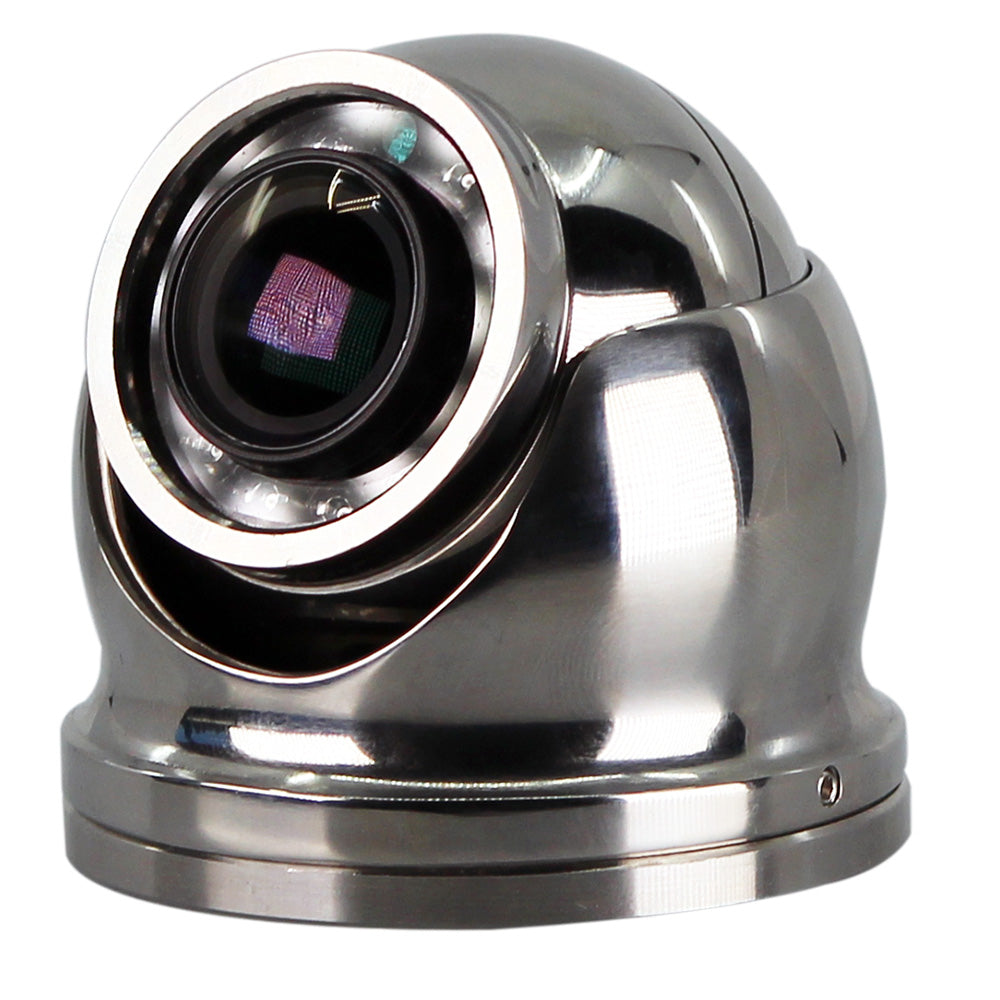

Iris Innovations IRIS-S460-28 Marine-Grade 3MP IP Mini Dome Camera with 120° HFOV and 2.8mm Lens

High Definition 3MP IP Mini Dome Camera - 2MP Resolution - 316 Stainless Steel 120-Degree Horizontal Field of View - 2.8mm Lens

Iriss SX60 range of miniature marine-grade stainless steel cameras is available in multiple formats and delivers the highest quality video to suit your application.

The IRIS-S460 is a high-definition 3MP IP camera that is directly compatible with Raymarine chart plotters (running LH2 / LH3 software), Navico MFDs (Simrad, Lowrance, B Gs), and Furuno Timezero software v4.1 and above. Compatible with Garmin via the CMAC series of switchers, interfaces, and recorders.

The IRIS-S460 features built-in Power over Ethernet (PoE) or 12VDC operation and is ONVIF compliant, supporting multiple streams, variable bitrates, and a host of image settings, including image mirror and flip, color, contrast, and brightness settings.

The S460s 316 stainless steel housing provides the ultimate protection in the harsh marine environment and is, therefore, the perfect solution for deck monitoring aboard workboats, fishing vessels, and passenger's vessels, while fitting in equally well with the high-end aesthetic of luxury vessels and mega yachts.

Measuring only 58mm high by 60mm in diameter, the S460 is small enough to provide unobtrusive surveillance and also for use in areas where space is tight, such as engine rooms or anchor wells. Built-in infrared LEDs operate automatically via a day/night filter to provide illumination up to 10 meters at night and in low-light conditions.

Whether you need a high-quality and rugged camera as part of your onboard surveillance system, for engine room, deck, and companionway monitoring, or as a robust and stylish docking or backup camera, the IRIS-SX60 range of cameras is the perfect solution.

Features:

• Marine Grade 316 Stainless Steel rugged corrosion-free case
• Compatible with Raymarine / Axiom chart plotters running LH2 and higher
• Compatible with Simrad, Lowrance B G
• Compatible with Furuno software running TZ4.1 and above
• Garmin Compatibility in conjunction with CMAC Systems
• High polish finish
• Built-in infra-red LED illumination (10m Range)
• PoE 12VDC connections
• Extremely low power consumption
• IP66 environmental protection

Specifications:

• Lens (millimeter): 2.8mm
• Horizontal Field of View: 120-degree HFOV
• Sensor (inch): 1/4 CMOS Sensor
• Resolution: Variable - 1920x1080P (2MP) max
• Interface: RJ45 10/100 base t ethernet
• Video Processing: H.264 Codec / dual stream
• Protocols/Video Format: TCP/UDP/HTTP/Multicast/UPnP/NTP/RTSP/ONVIF
• Onvif: Profile S v2.4
• Bitrate: VBR / CBR 32kbps 8Mbps
• Illumination: 6 x 850nm infra-red - 10-meter range
• Lens/Field of View: 2.8mm option
• Mirroring: Horizontal vertical - configure via browser
• Automatic Gain control: Supported / multiple levels
• Compatibility: Raymarine / Axiom (LH2 or higher), NAVICO MFDs inc SIMRAD / LOWRANCE, B G, Furuno Timezero v4.1 and higher. PC-based systems, MFDs with digital (HDMI / DVI) Input, MFDs via IRIS NVR/HVR, IE Browser, CMAC systems
• Operating Temperature: -30 +60
• Connections: Water-resistant RJ45 Socket / non-PoE with DC power socket
• Material: 316 Stainless Steel
• Power: PoE IEEE802.3af / 12VDC <200mA max.
• Weight Dimensions: 0.420Kg / 59.5mm x 52.93mm H
• Environmental: IP66

The Iris Innovations IRIS-S460-28 is a robust, high-definition 3MP IP mini dome camera designed specifically for demanding marine environments. Crafted from durable 316 stainless steel, this camera offers exceptional corrosion resistance, making it ideal for deck monitoring, engine rooms, and other challenging conditions aboard workboats, luxury yachts, and passenger vessels. Its sleek compact design ensures discreet surveillance, while the 120-degree horizontal field of view provides broad coverage to enhance security and operational oversight. The built-in infrared LEDs automatically activate in low-light conditions, delivering clear night vision up to 10 meters without additional illumination, ensuring your vessel remains monitored around the clock.

Compatibility is a key feature of the IRIS-S460-28, supporting integration with popular marine chart plotters and multifunction displays (MFDs). It works seamlessly with Raymarine Axiom systems running LH2 or higher, Navico MFDs including Simrad and Lowrance, Furuno Timezero software v4.1+, and Garmin systems via CMAC switchers and recorders. This versatility makes it suitable for a wide range of marine surveillance setups. The camera supports Power over Ethernet (PoE) or 12VDC power input, simplifying installation and reducing cable clutter. Its IP66 rating ensures protection against water, dust, and harsh weather conditions, making it suitable for outdoor use in the most demanding environments.

The IRIS-S460-28 features advanced video processing with H.264 codec support, dual streams, and multiple bitrates for optimal image quality and bandwidth management. Its adjustable mirror and flip functions, along with customizable image settings such as brightness, contrast, and color, enable fine-tuning to suit specific operational needs. The camera's low power consumption and compact size make it an unobtrusive yet reliable component of your vessel's surveillance system. Whether used for security, monitoring critical areas like anchor wells, or backup footage, this camera offers a perfect balance of durability, performance, and ease of integration. Trust the Iris Innovations IRIS-S460-28 for high-quality maritime surveillance that withstands the harshest conditions while providing clear, reliable video footage.

**Please note**: This product may not be returned to the original point of purchase. For any issues or concerns, contact the manufacturer directly for support.

Features:

• Marine Grade 316 Stainless Steel rugged corrosion-free case

• Compatible with Raymarine / Axiom chart plotters running LH2 and higher

• Compatible with Simrad, Lowrance B G

• Compatible with Furuno software running TZ4.1 and above

• Garmin Compatibility in conjunction with CMAC Systems

• High polish finish

• Built-in infra-red LED illumination (10m Range)

• PoE 12VDC connections

• Extremely low power consumption

• IP66 environmental protection
