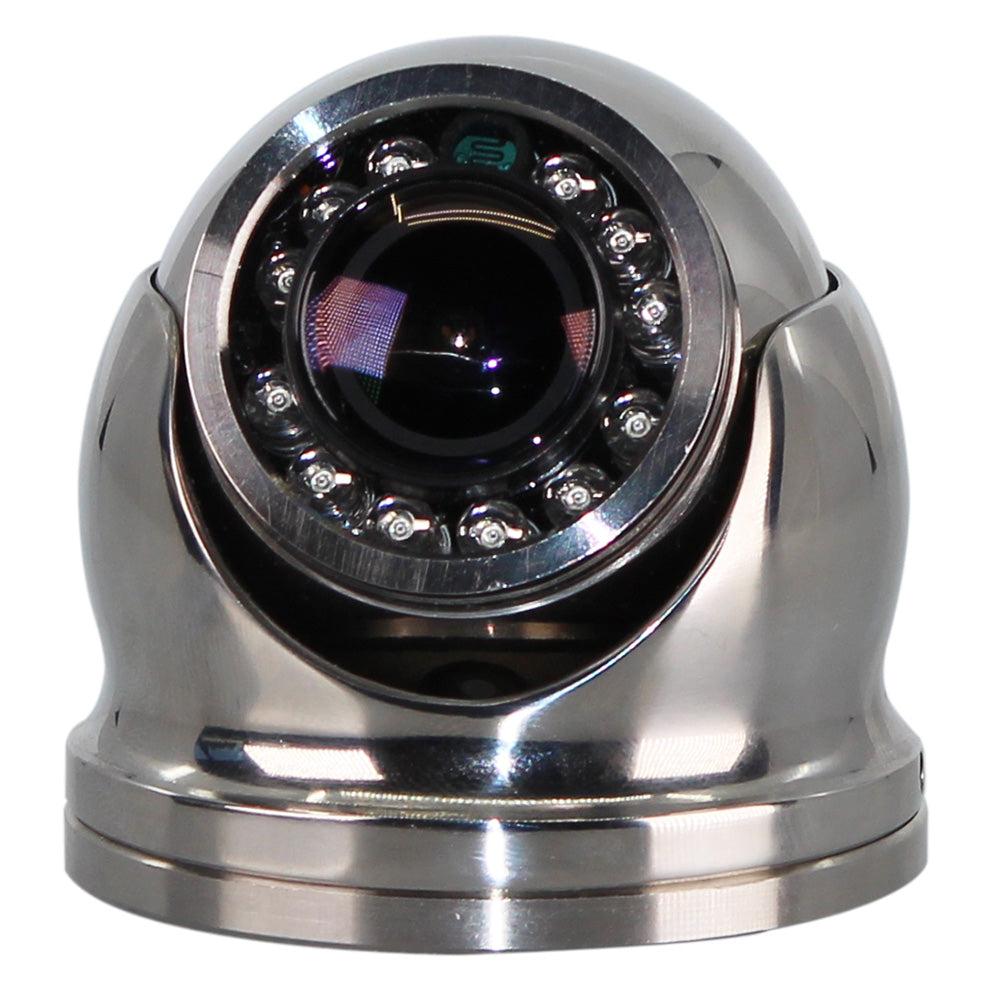

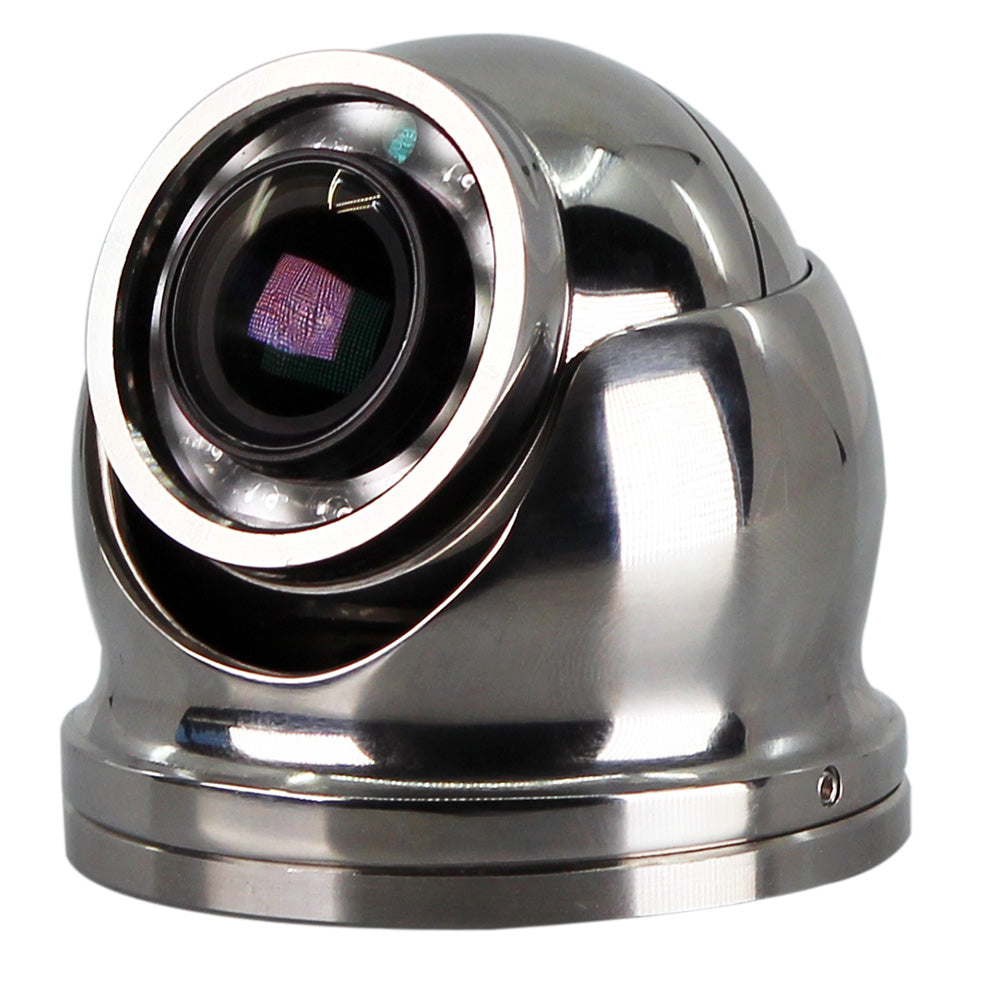

Iris Innovations IRIS-S460-36 Marine-Grade 3MP IP Mini Dome Camera with 80-Degree HFOV and 316 Stainless Steel Housing

High Definition 3MP IP Mini Dome Camera - 2MP Resolution - 316 Stainless Steel 80-Degree HFOV - 3.6mm Lens

Iriss SX60 range of miniature marine-grade stainless steel cameras is available in multiple formats and delivers the highest quality video to suit your application.

The IRIS-S460 is a high-definition 3MP IP camera that is directly compatible with Raymarine chart plotters (running LH2 / LH3 software), Navico MFDs (Simrad, Lowrance, B Gs), and Furuno Timezero software v4.1 and above. Compatible with Garmin via our CMAC series of switchers, interfaces, and recorders.

The IRIS-S460 features built-in Power over Ethernet (PoE) or 12VDC operation. It is ONVIF compliant, supporting multiple streams, variable bitrates, and a host of image settings, including image mirror and flip, color, contrast, and brightness settings.

The S460s 316 stainless steel housing provides the ultimate protection in the harsh marine environment and is, therefore, the perfect solution for deck monitoring aboard workboats, fishing vessels, and passenger's vessels, while fitting in equally well with the high-end aesthetic of luxury vessels and mega yachts.

Measuring only 58mm high by 60mm in diameter, the S460 is small enough to provide unobtrusive surveillance and also for use in areas where space is tight, such as engine rooms or anchor wells. Built-in infrared LEDs operate automatically via a day/night filter to provide illumination up to 10 meters at night and in low-light conditions.

Whether you need a high-quality and rugged camera for your onboard surveillance system, for engine room, deck, and companionway monitoring, or as a robust and stylish docking or backup camera, the IRIS-SX60 range of cameras is the perfect solution.

Features:

• Marine Grade 316 Stainless Steel rugged corrosion-free case
• Compatible with Raymarine / Axiom chart plotters running LH2 and higher
• Compatible with Simrad, Lowrance B G
• Compatible with Furuno software running TZ4.1 and above
• Garmin Compatibility in conjunction with CMAC Systems
• High polish finish
• Built-in infra-red LED illumination (10m Range)
• PoE 12VDC connections
• Deficient power consumption
• IP66 environmental protection

Specifications:

• Lens (millimeter): 3.6mm
• Horizontal Field of View: 80-degree HFOV
• Sensor (inch): 1/4 CMOS Sensor
• Resolution: Variable - 1920x1080P (2MP) max
• Interface: RJ45 10/100 base t ethernet
• Video Processing: H.264 Codec / dual stream
• Protocols/Video Format: TCP/UDP/HTTP/Multicast/UPnP/NTP/RTSP/ONVIF
• Onvif: Profile S v2.4
• Bitrate: VBR / CBR 32kbps 8Mbps
• Illumination: 6 x 850nm infra-red - 10-meter range
• Lens/Field of View: 1.8mm wide angle option
• Mirroring: Horizontal vertical - configure via browser
• Automatic Gain Control: Supported / multiple levels
• Compatibility: Raymarine / Axiom (LH2 or higher), NAVICO MFDs inc SIMRAD / LOWRANCE, B G, Furuno Timezero v4.1 and higher. PC-based systems, MFDs with digital (HDMI / DVI) Input, MFDs via IRIS NVR/HVR, IE Browser, CMAC systems
• Operating Temperature: -30 +60-degrees C
• Connections: Water-resistant RJ45 Socket / non-PoE with DC power socket
• Material: 316 Stainless Steel
• Power: PoE IEEE802.3af / 12VDC <200mA max.
• Weight Dimensions: 0.420Kg / 59.5mm x 52.93mm H
• Environmental: IP66

The Iris Innovations IRIS-S460-36 is a compact yet rugged high-definition 3MP IP mini dome camera designed specifically for demanding marine environments. Crafted from durable 316 stainless steel, this camera offers exceptional corrosion resistance, making it an ideal choice for deck monitoring aboard workboats, fishing vessels, passenger ships, and luxury yachts. Its sleek design ensures unobtrusive installation in tight spaces such as engine rooms, anchor wells, or other confined areas while maintaining high-quality surveillance capabilities. The IRIS-S460 supports multiple video streams with variable bitrates, and its ONVIF compliance ensures seamless integration with leading marine and navigation systems including Raymarine Axiom, Navico MFDs, Furuno Timezero, and Garmin via CMAC switchers and interfaces. Featuring built-in Power over Ethernet (PoE) or 12VDC operation, it simplifies power management and installation, reducing setup complexity. The camera’s infrared LEDs provide automatic illumination up to 10 meters, ensuring clear night vision and low-light performance. With a 3.6mm lens offering an 80-degree horizontal field of view, it captures broad scenes with detailed clarity. Its IP66-rated environmental protection ensures reliable operation in harsh marine conditions, resisting water, dust, and salt spray. Designed for versatility, the IRIS-S460 is suitable for surveillance of decks, engine rooms, anchor wells, docking areas, or as a backup camera. Its high-polish finish complements the aesthetic of luxury vessels, while its compact size and lightweight construction facilitate unobtrusive deployment. Whether you require a durable, high-quality camera for onboard security or vessel monitoring, the Iris Innovations IRIS-S460-36 delivers exceptional performance and reliability in marine environments. Please note, this product may not be returned to the original point of purchase; contact the manufacturer directly for support or warranty inquiries.

Features:

• Marine Grade 316 Stainless Steel rugged corrosion-free case

• Compatible with Raymarine Axiom chart plotters running LH2 and higher

• Compatible with Navico MFDs including Simrad and Lowrance

• Compatible with Furuno Timezero software v4.1 and above

• Garmin compatibility via CMAC systems

• High-polish finish for aesthetic appeal

• Built-in infrared LED illumination with 10-meter range

• Supports Power over Ethernet (PoE) and 12VDC power inputs

• Low power consumption design

• IP66 environmental protection for harsh marine conditions
