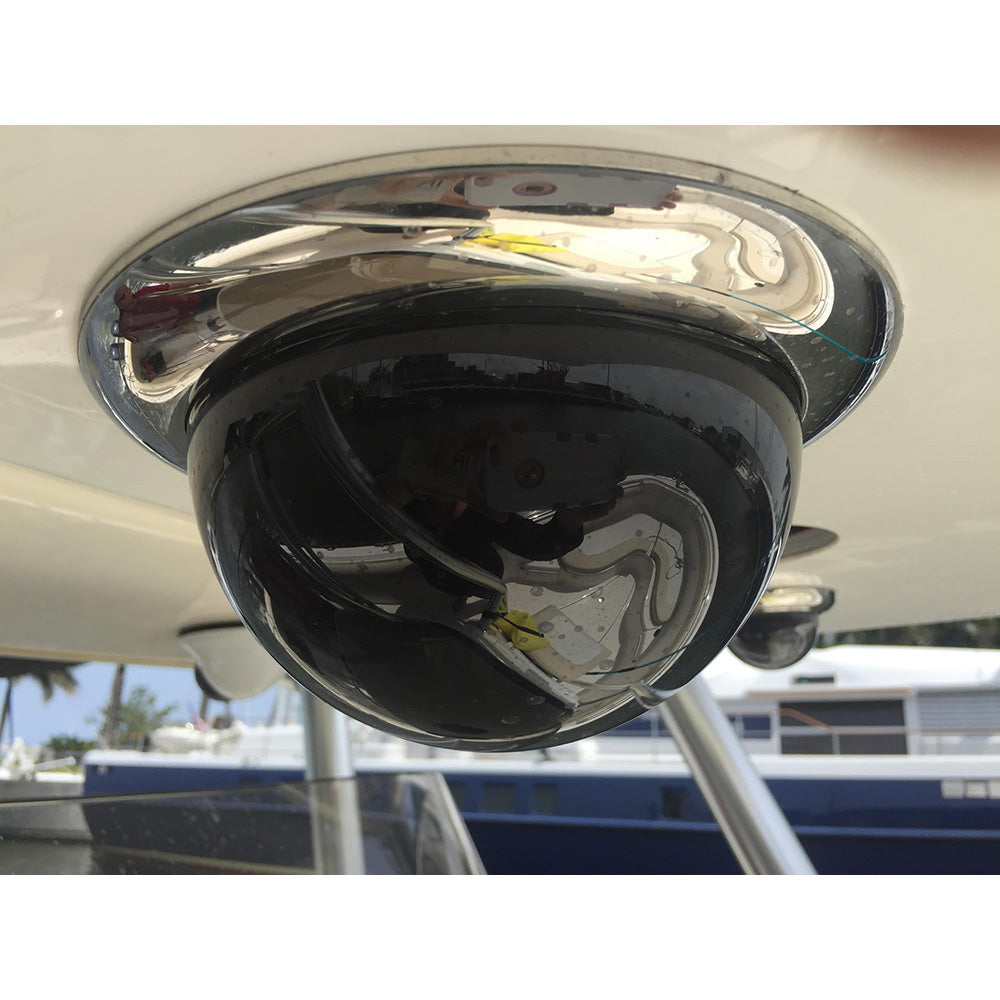

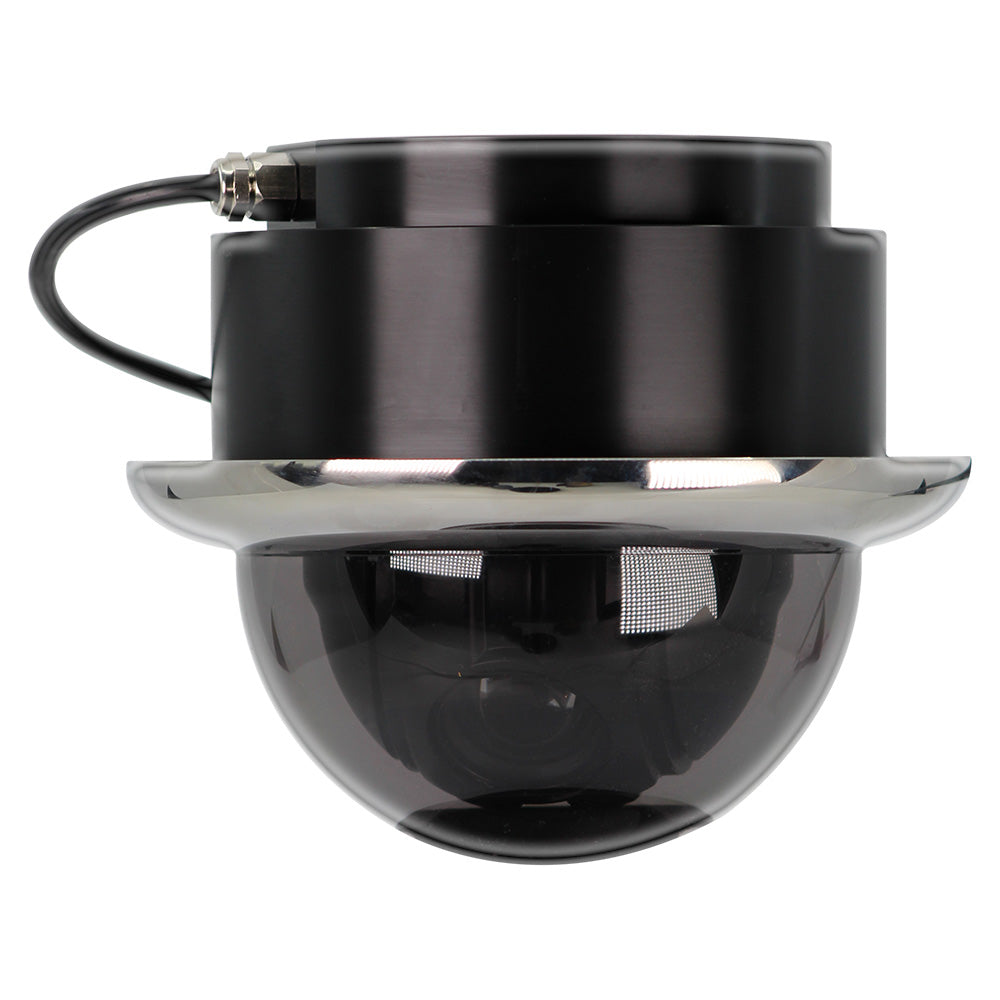

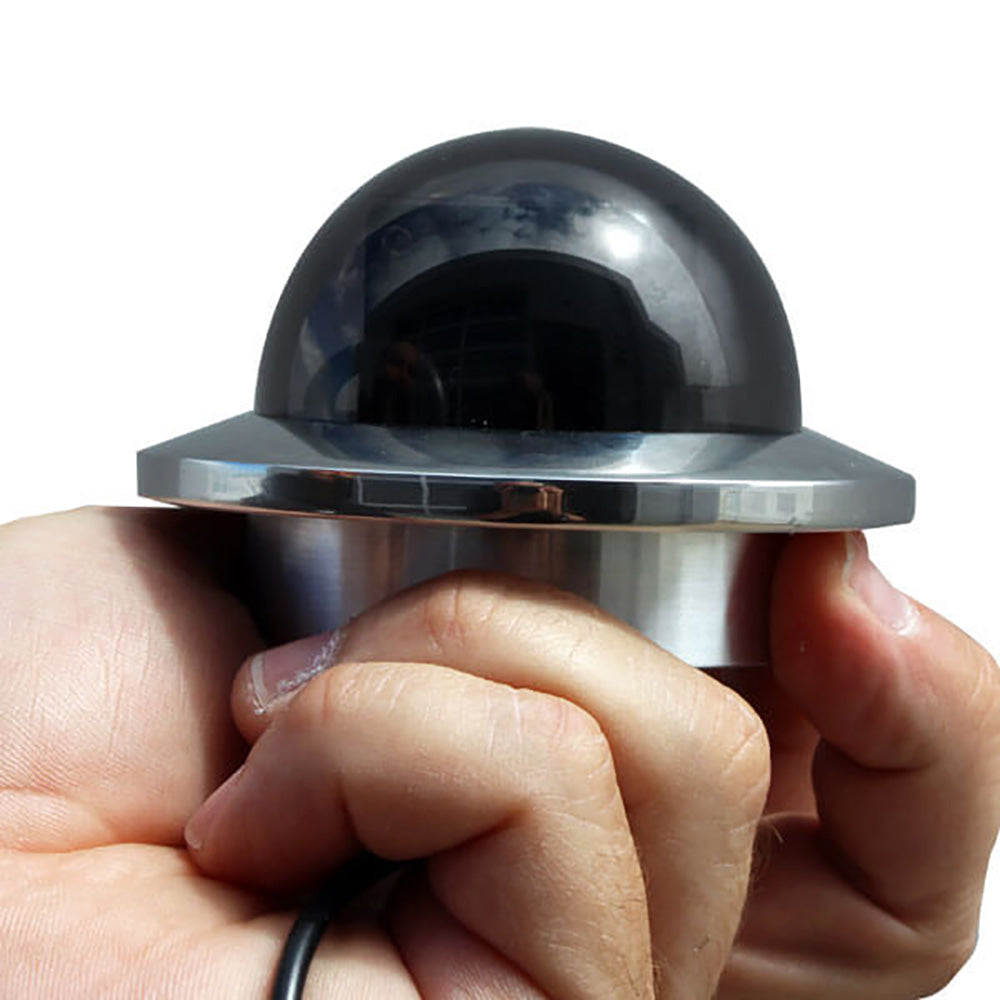

Iris Innovations IRIS4106 Miniature Marine PTZ Dome Camera with Stainless Bezel, 10x Optical Zoom, Hi-Def Ethernet IP, 4-in-1 Video Formats

Miniature Marine PTZ Dome Camera - Stainless Bezel - Hi-Def Ethernet IP - 10x Digital Zoom - 4 in 1 Video Format

The IRISx106 range of multi-format miniature, controllable cameras are the smallest marine PTZ cameras available on the market and provide fast, smooth variable speed control in a variety of formats to suit your requirements.

The IRIS106 features a high-resolution camera sensor that can be switched to output analog (CVBS), AHD, HD-TVI, and HD-CVI video formats depending on your requirement. In analog mode (default) the camera will connect directly to all MFDs that feature a composite video input to provide a crisp, clear video image. Set the camera to HD-TVI and connect via one of our Hybrid recorders or TVIHDMI encoders and you will achieve 1080P High Definition video in real-time compatible with MFDs that feature digital (HDMI / DVI) inputs.

The camera can be controlled by our IRIS595 joystick controller, TE01 rotary controller, or via an Iris HVR interface. Data communication to the camera is achieved via a two-wire RS485 serial data connection.

The camera housing is designed to be as small as possible, simplifying installation and fitting in discreetly with the boat's aesthetic, unlike other large, unsightly marine PTZ cameras. The body of the camera is made from lightweight but tough ABS plastic, and the dome is cast from smoke acrylic. The camera housing is finished off with a marine-grade stainless steel bezel available in high polish (standard). A surface mount bracket is also available for the camera (Part Number: BRK106), facilitating installation directly onto a bulkhead. This is often used when installing in engine rooms where it is not possible to recess mount the device.

Because of its small size and sleek design, the IRIS4106 can be used for deck, companionway, and tender monitoring, engine room monitoring, and as part of your onboard surveillance system. In summary, the 4106 is a very versatile, robust, and controllable marine PTZ camera.

Features:

• Marine Grade 316 Stainless Case
• The smallest PTZ dome available (86 mm)
• IP
• Huge compatibility
• Easy installation low power
• Stylish high-polished finish
• Fast, responsive pan, tilt, and zoom operation

Specifications:

• Lens (millimeter): F1.8 / F=4.9mm 49mm
• Image Sensor (inch): 1/4 Omnivision OV9712
• Image Processing: H.264 Video Codec, Dual Stream 1-30fps adjustable
• Effective Pixels: 921,600
• Resolution: 1080P/720P
• Min Illumination: 0.1 Lux (Colour) / 0.01 Lux (B/W)
• Illumination: NA
• IR Distance: 10m
• Day / Night: Auto / Day / Night
• S/N Ratio: >50dB
• Optical Zoom: 10x
• Digital Zoom: 10x
• Wide Dynamic Range: Supported
• BLC: Supported
• 3D DNR: Supported
• Mirroring: Horizontal Flip / Vertical Flip
• AGC: 0-32
• Pan Details: 360-degree Continuous Rotation / Speed 0.5300-degree sec
• Tilt Details: 0 90-degree / Speed 0.5300-degree sec
• Network: Ethernet RJ45 (10/100 Base-T)
• Protocol: TCP/UDP/HTTP/MULTICAST/UPnP/NTP/ RTSP/ONVIF-S 2.4
• Power over Ethernet: Supported
• P2P: Supported
• Smart Phone: Android / iOS
• Compatibility: PC-Based Systems. For the latest MFD compatibility please contact IRIS
• Max Users: 32 Users
• Power: +12VDC / PoE IEEE802.3aF
• Power Consumption: 1A Max
• Operating Temperature: -35-degrees C + 60-degrees C
• Dimensions (millimeter): Bezel OD = 154mm, Panel Cutout = 122mm, Depth Behind Panel = 58mm (For IRIS4106 model additional space should be allowed for RJ45 Connector), Draft = 73mm
• Ingress Protection: IP66
• Weight: 1.1Kg
• Material: 316L Stainless Steel Bezel, Polycarbonate Dome, ABS Plastic Housing

The Iris Innovations IRIS4106 is a compact and robust marine PTZ dome camera designed for versatile surveillance on boats and maritime environments. With its sleek stainless steel bezel and high-quality construction, this camera offers both durability and discreet installation, making it ideal for deck, engine room, and tender monitoring. Its small footprint, measuring just 86 mm in diameter, allows seamless integration into various vessel areas without compromising aesthetics or space. The IRIS4106 features a high-resolution 1/4 inch Omnivision OV9712 sensor capable of delivering crisp 1080P HD video, with an impressive 10x optical zoom and 10x digital zoom for detailed close-ups. The camera supports multiple video formats, including analog (CVBS), AHD, HD-TVI, and HD-CVI, enabling compatibility with a broad array of existing systems, from traditional monitors to modern digital displays. Whether connected via composite video, HDMI, or DVI, users can expect clear, real-time footage suitable for critical surveillance needs. Control options include our IRIS595 joystick, TE01 rotary controller, or an Iris HVR interface, with data transmitted through a two-wire RS485 serial connection for reliable operation. The camera's IP66-rated housing ensures protection against harsh marine conditions, including water, dust, and temperature extremes, while its lightweight ABS plastic housing and marine-grade stainless steel bezel offer both strength and corrosion resistance. The IRIS4106's advanced features such as auto day/night mode, wide dynamic range, BLC, 3D DNR, and IR illumination up to 10 meters make it a comprehensive solution for low-light and high-contrast environments. Power over Ethernet (PoE) support simplifies installation, and compatibility with smartphone apps for Android and iOS enhances remote monitoring capabilities. Designed for easy installation, the IRIS4106 can be surface-mounted with optional brackets or recessed, providing flexible deployment options across different vessel locations. Its high-polish stainless steel finish complements maritime aesthetics while delivering long-lasting performance. This camera is ideal for maritime security, engine room surveillance, tender monitoring, and onboard system integration, offering a robust, high-performance solution for demanding marine environments. Please note, this product may not be returned to the original point of purchase; contact Iris Innovations directly for support or warranty issues.

Features:

• Marine Grade 316 Stainless Steel Bezel for corrosion resistance

• Compact design measuring only 86 mm in diameter, ideal for discreet installation

• Supports multiple video formats: CVBS, AHD, HD-TVI, HD-CVI for broad compatibility

• High-definition 1080P video resolution with 10x optical zoom and 10x digital zoom

• IP66 waterproof and dustproof rating suitable for harsh marine conditions

• Auto day/night mode with IR illumination up to 10 meters for low-light environments

• Fast, responsive pan, tilt, and zoom with 360-degree continuous rotation

• Remote control via joystick, rotary controller, or network interface

• Supports Power over Ethernet (PoE) for simplified installation

• Compatible with smartphone apps for remote viewing on Android and iOS

• Lightweight yet durable construction with ABS plastic housing and smoke acrylic dome

• Easy surface or recessed mounting with optional bracket for flexible deployment
