Iris Innovations IRIS735 Mini Flush Mount Marine Camera – High-Resolution Through-Hull CCTV with Sony Starvis Sensor, 140° Wide-Angle, IP67 Waterproof, Multi-Format Video Output

Mini Flush Mount Hi-Resolution Through-Hull Camera - CVBS, TVI, CVI, AHD

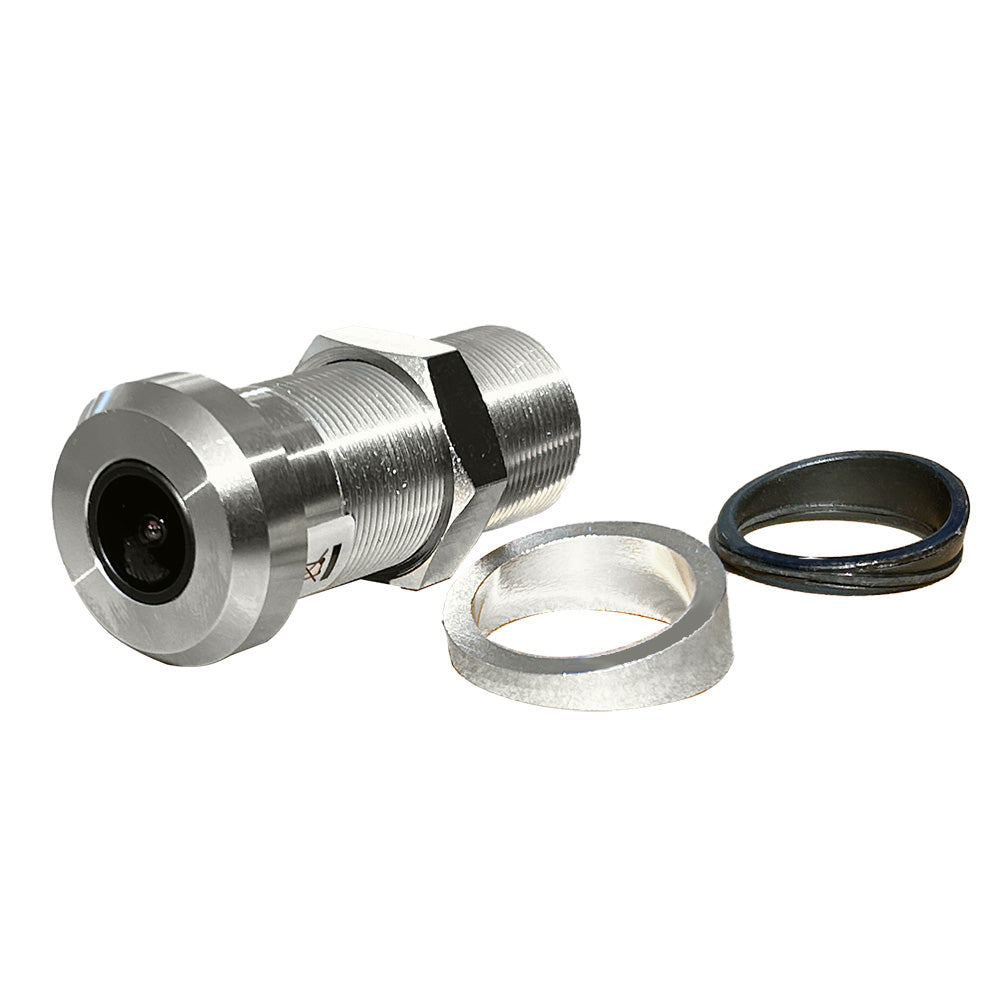

Introducing the world's smallest through hull camera, the IRIS735 machined from corrosion-resistant marine-grade 316L stainless steel and measuring only 28 mm by 59mm long.

The 735 has been designed to sit flush into the hull, superstructure, or transom of your vessel to provide all-around coverage without impacting the tines of your vessel, with a bezel height of only 8.5mm.

The camera module itself features a Sony Starlight sensor to provide excellent performance in low light and can be user-set to output composite (CVBS) or analog Hi-Def (TVI, CVI, AHD) video formats. When set to CVBS, the 735 is compatible with all chart plotter models that support composite video inputs. When set to TVI, the 735 will provide high-definition real-time video, which can be viewed on MFDs via our CMAC systems or fed to a TV via our IRIS995 TVI/HDMI convertor.

The camera has a 140-degree wide-angle field of view, which makes it great to position along the sides and transom of your vessel to provide all-around coverage whilst docking and is also a great solution for sports fishing applications.

If you are looking for a tiny, cost-effective docking camera, a sports fishing camera, or an unobtrusive camera to add to your onboard security setup, the IRIS735 is the perfect solution.

The IRIS735 is also a perfect choice for robust and reliable semi-covert cameras for emergency response and law enforcement vehicles.

Features:

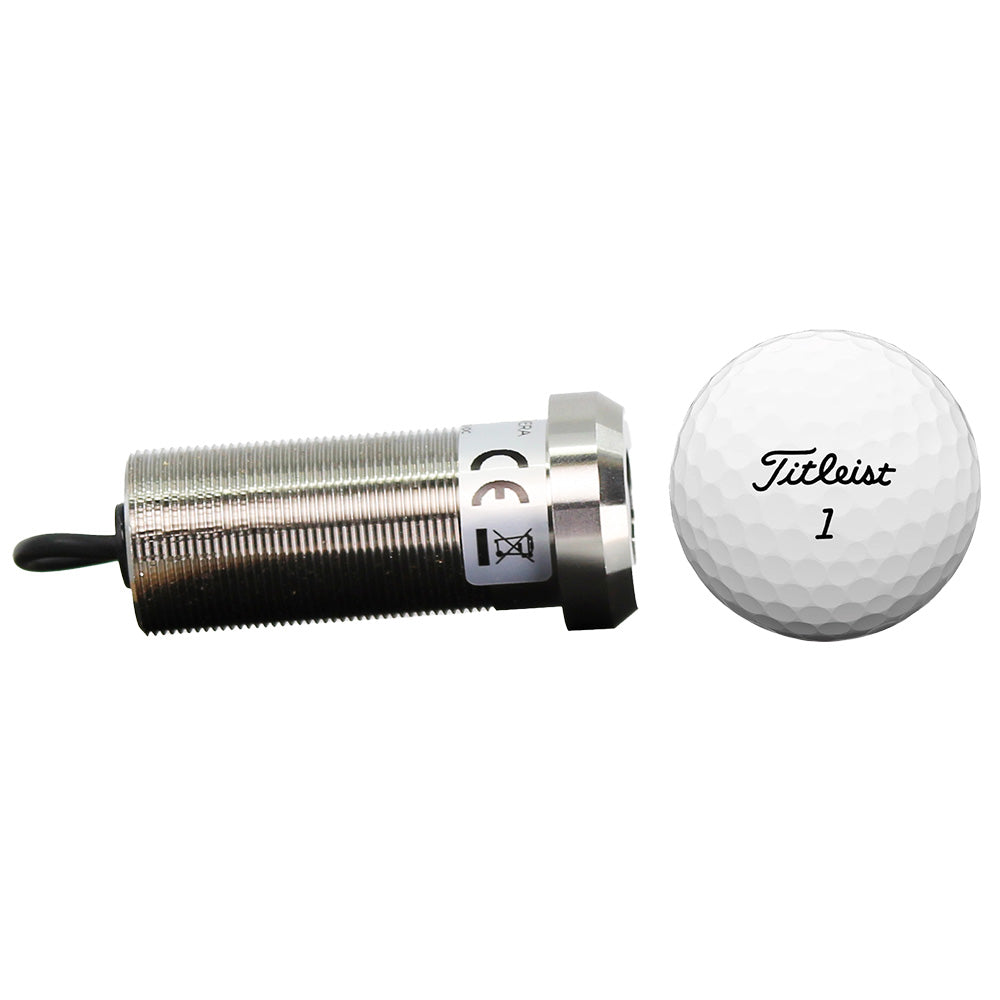

• Micro-Compact Form Factor 28MM X 36MM (8MM From Panel)
• 316L Marine Grade, Corrosion-Proof Stainless Steel Body
• 4-In-1 Video Format (User Selectable) CVBS, TVI, CVI, AHD
• 2.9MM Wide-Angle Lens
• Starlight Sensor for Superb Low Light Operation
• Compatible With All Chart Plotters Supporting Composite or Analog Video
• Compatible With CMAC and CMAC HVR Systems
• Set to TVI for HD TV Viewing with the IRIS995 Converter
• IP67 Environmental Rating
• Extremely Low Power Consumption
• Applications:
• Perfect for extreme environments
• Road traffic surveillance
• Monitoring dynamic digital signage
• Engine room monitoring
• Deck monitoring
• Fishing vessel monitoring surveillance
• Emergency vehicle camera applications
• Animal / Food processing applications

Specifications:

• Lens (millimeter): 2.9mm
• Horizontal Field of View: 140-degree HFOV
• Sensor (inch): 1/2.8 SONY STARVIS CMOS Sensor
• Resolution: CVBS: 1920 x 1080P @ 30fps (NTSC) / 25fps (PAL) / 906H in CVBS mode
• Minimum Resolution: 0.001 Lux (F-1.2)
• Day Night Operation: Auto / Colour / Monochrome / External
• Video Output Modes: Analogue HD Modes: HD-TVI, HD-CVI, AHD / Analogue: Composite Video (CVBS) NTSC / PAL
•

• Lens/Field of View: 2.9mm Standard (140-degree HFOV)
• Shutter Speed: Auto / Manual (1/50(60) - 1/50,000 sec)
• Defog: Off / Auto
• White Balance: ATW / AWC / INDOOR / OUTDOOR / MANUAL / AWB
• Back Light Compensation: OFF / BLC / HSBLC
• D-WDR: Off / 08
• SENS-UP: Off / x2 x30
• DNR: Off / Low / Middle / High
• Brightness: 0 - 100
• Motion Detection: Off / On
• Image Mirror: Off / Mirror / V-Flip / Rotate
• Sharpness: 0 10 Steps
• Material: 316L Marine Grade, Corrosion Resistant Stainless Steel
• Power: DC12V +/-10% / 125mA (1.5W)
• Weight: 0.1Kg
• Dimensions: 28mm-diameter x 58mm
• Environmental / EMC: EN60529 IP67 / EMC EN60945 (TBC)
• Operating Temperature: -10-degrees C + 50-degrees C / <90% Humidity

The Iris Innovations IRIS735 is the ultimate compact solution for marine surveillance, docking, and security applications, offering high-definition video in a minimal form factor. Crafted from durable, corrosion-resistant 316L stainless steel, this through-hull camera measures only 28mm by 59mm, ensuring a discreet installation that does not compromise vessel aesthetics or performance. Its flush-mount design with an bezel height of just 8.5mm allows seamless integration into hulls, superstructures, or transoms, providing all-around coverage with minimal obtrusion. Equipped with a Sony Starvis sensor, the IRIS735 delivers exceptional low-light performance, making it ideal for nighttime monitoring or challenging lighting conditions. This camera supports multiple video output formats—CVBS, TVI, CVI, and AHD—allowing flexible compatibility with a wide range of chart plotters, monitors, and recording systems. Users can select the preferred output setting via simple configuration, ensuring seamless integration with existing onboard or security systems. The 140-degree wide-angle lens offers extensive coverage, perfect for docking, sports fishing, or security surveillance on vessels and other tough environments. Its IP67 rating guarantees resistance to water, dust, and harsh weather, making it suitable for marine, roadside, or emergency response applications. The IRIS735's low power consumption enhances its deployment versatility, while its robust construction ensures reliable operation in extreme conditions. Whether used for vessel monitoring, law enforcement, or industrial inspections, this camera provides clear, real-time visuals in a compact and corrosion-proof package, backed by Prop 65 compliance for safety and reliability. Designed to meet the demanding needs of marine and security professionals, the IRIS735 delivers high-performance imaging with ease of installation and operation, making it a top choice for those seeking unobtrusive yet powerful surveillance solutions.

Features:

• Micro-Compact Form Factor: Measures only 28mm diameter and 59mm long, ideal for discreet mounting

• Corrosion-Resistant Body: Made from marine-grade 316L stainless steel for durability in harsh environments

• Multi-Format Video Output: Supports CVBS, TVI, CVI, and AHD, user-selectable for flexible compatibility

• Wide-Angle Lens: 2.9mm lens providing a 140-degree field of view for comprehensive coverage

• Exceptional Low-Light Performance: Sony Starvis sensor ensures clear images in near darkness

• Waterproof and Dustproof: IP67 rated for reliable operation in marine and outdoor environments

• Versatile Applications: Suitable for vessel hull monitoring, docking, law enforcement, emergency response, and industrial surveillance

• Low Power Consumption: Efficient operation ideal for extended use in remote or embedded setups
