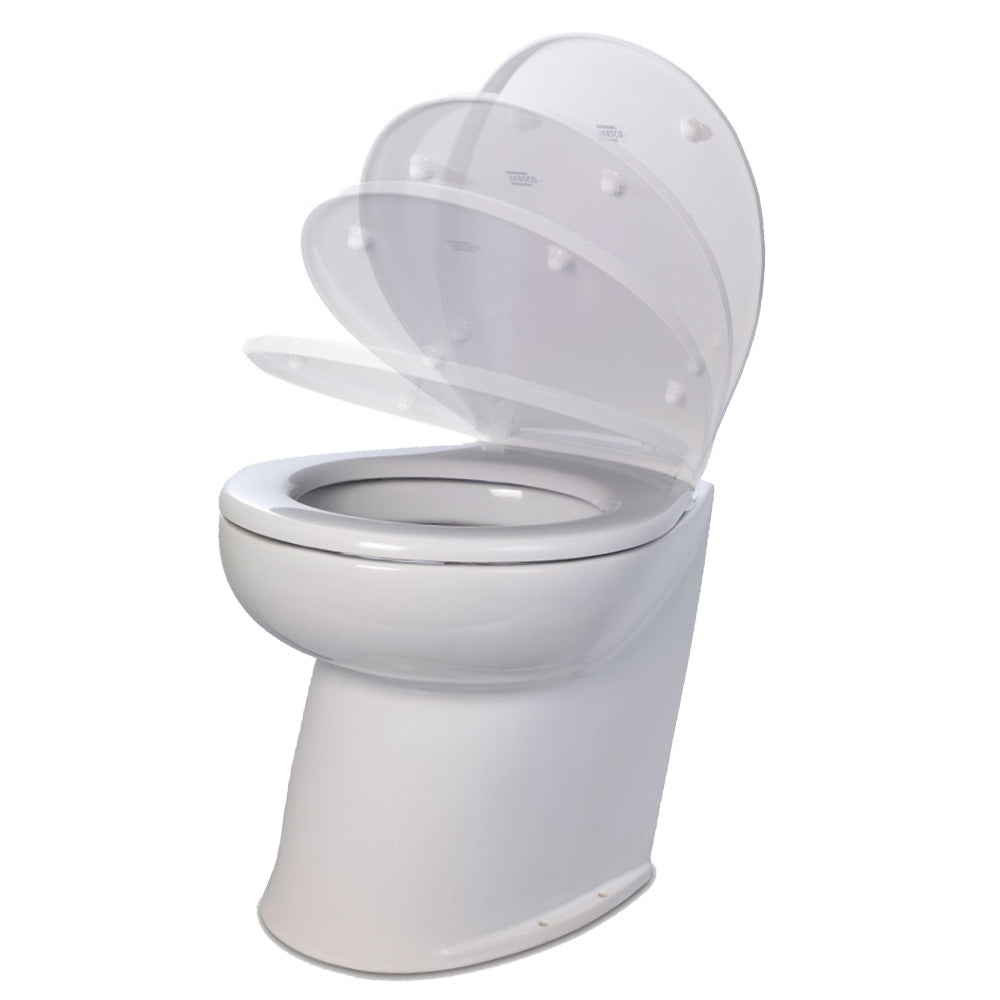

Jabsco Deluxe Flush 14-Inch Angled Back 12V Freshwater Electric Marine Toilet with Soft Close Lid and Solenoid Valve

Deluxe Flush 14" Angled Back 12V Freshwater Electric Marine Toilet with Solenoid Valve Soft Close Lid

You can experience all the comforts of home at sea with Jabsco Deluxe Flush electric marine toilet. Designed for the discerning owner looking for luxury and comfort, the Deluxe Flush portfolio features a space-saving, stylish design with minimal water usage and virtually silent operation.

Features:

• 14" Angled back
• Space-saving stylish design
• Household size soft closing seat
• Virtually silent operation
• Fresh water rinse model
• Powerful non-clogging large bore flush pump macerates waste

Specifications:

• Bowl Size: Domestic
• Lid: Soft close
• Rinse Type: Freshwater
• Rinse Pump/Solenoid Valve: Solenoid valve
• Voltage DC: 12V DC
• Recommended fuse Size (AMP): 25
• Flush control Switch: 4-Button Touch Panel
• Height: (inch) 14.4 / (mm) 366
• Width: (inch) 14.8 / (mm) 375
• Depth: (inch) 17.7" / (mm) 450
• Weight: (LBS) 59.5" / (kg) 27

One-Touch Control Pad:

All Deluxe Flush marine toilets come complete with a multi-function, one-touch control pad. The control pad is supplied with a standard surface mount unit with a clean white bezel.

The control pad offers four options: fill, quick flush, flush, or empty. In addition, the owner can set the control at any time so that the bowl is always left either dry or wet after flushing. The recommended dry setting minimizes total water usage. If water usage is not a concern, the wet location automatically fills the bowl after flushing, ready for the next user. Simultaneously holding down both the quick flush and flush buttons for 5 seconds switches between bowl always left dry and bowled always left wet modes.

Control Pad Options:

• Fill may be touched when the bowl is dry add 1 quart (1 liter) of water before use, if necessary
• Quick Flush first rinses and then empties the bowl after light use. On the dry setting, this uses less than 1 quart (1 liter) of water
• Flush rinses and empties the bowl twice after heavy use. If the bowl is dry, touching the fill before use is recommended. This uses just 2.5 quarts (2.5 liters) of water
• Empty does exactly what it says without adding any water, whenever desired. Even when the bowl appears to be dry, there is an anti-odor water lock in the pump housing

Rinse Options:

• Supplied with a solenoid valve assembly for connection to any existing pressurized water system capable of delivering 2.9 GPM (11 LPM) or more
• The solenoid valve features dual non-return valves to protect the freshwater system from possible black flow from the toilet into the water system

Experience the comfort of a home bathroom at sea with the Jabsco Deluxe Flush 14-inch Angled Back Marine Toilet. Engineered for boat owners who demand both luxury and practicality, this electric marine toilet combines a space-saving, stylish design with minimal water consumption and near-silent operation. Its 14-inch angled back allows for versatile installation in tight spaces, making it an ideal choice for modern marine environments. The household-sized soft-close seat adds a touch of comfort and quiet operation, enhancing the onboard experience for all users. Powered by a reliable 12V DC system, this toilet features a powerful, large-bore flush pump that macerates waste effectively, preventing clogs and ensuring smooth operation. The freshwater rinse model ensures hygienic flushing, while the integrated solenoid valve provides precise water control, compatible with pressurized water systems capable of delivering at least 2.9 gallons per minute. The toilet’s sleek design and quiet functionality make it a preferred choice for discerning boat owners seeking both luxury and efficiency. The included multi-function control pad offers four intuitive options: fill, quick flush, flush, and empty, allowing for customizable usage to conserve water or maximize flushing power. The control settings can be easily adjusted to leave the bowl either dry or wet after flushing, optimizing water use based on your needs. The flush system is complemented by dual non-return valves that protect the freshwater system from black flow, adhering to safety standards. The soft-close lid not only adds to the aesthetic appeal but also prevents slamming, reducing noise and wear over time. This marine toilet is designed for easy installation and maintenance, backed by a comprehensive manual available online for quick reference. Whether you're upgrading your vessel or outfitting a new one, the Jabsco Deluxe Flush combines innovation, comfort, and reliability to elevate your marine sanitation experience.

Features:

• 14-inch angled back design for versatile installation

• Space-saving and stylish appearance suitable for modern boats

• Soft-close lid for quiet, gentle operation

• Virtually silent flushing system for a peaceful onboard environment

• Freshwater rinse model ensures hygienic flushing

• Powerful non-clogging large bore flush pump with waste maceration

• Multi-function control pad with four intuitive options: fill, quick flush, flush, and empty

• Adjustable bowl wet/dry setting to optimize water conservation

• Supplied with a solenoid valve for pressurized water connection, featuring dual non-return valves for system protection

• Designed for easy installation and low maintenance, with comprehensive online manual
