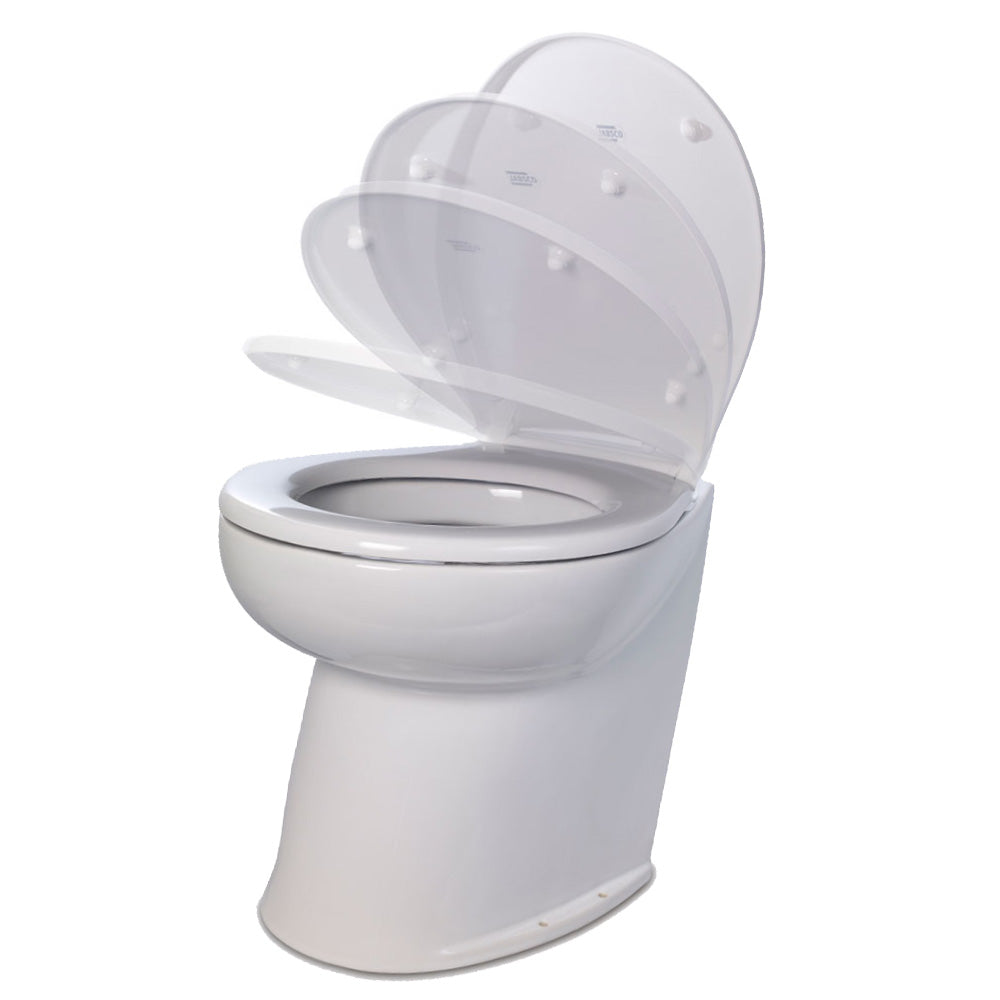

Jabsco Deluxe Flush 14-Inch Angled Back 12V Raw Water Electric Marine Toilet with Remote Rinse Pump and Soft Close Lid

Deluxe Flush 14" Angled Back 12V Raw Water Electric Marine Toilet with Remote Rinse Pump Soft Close Lid

You can experience all the comforts of home at sea with Jabsco Deluxe Flush electric marine toilet. Designed for the discerning owner looking for luxury and comfort, the Deluxe Flush portfolio features a space-saving, stylish design with minimal water usage and virtually silent operation.

Features:

• 14" Angled back
• Space-saving stylish design
• Household size soft closing seat
• Virtually silent operation
• Sea, river, or lake water rinse model
• Powerful non-clogging large bore flush pump macerates waste

Specifications:

• Bowl Size: Domestic
• Lid: Soft close
• Rinse Type: Raw water
• Rinse Pump/Solenoid Valve: Remote Rinse Pump
• Voltage DC: 12V DC
• Recommended fuse Size (AMP): 25
• Flush control Switch: 4-Button Touch Panel
• Height: (inch) 14.4 / (mm) 366
• Width: (inch) 14.8 / (mm) 375
• Depth: (inch) 17.7" / (mm) 450
• Weight: (LBS) 57.3" / (kg) 26

One-Touch Control Pad:

All Deluxe Flush marine toilets come complete with a multi-function, one-touch control pad. The control pad is supplied with a standard surface mount unit with a clean white bezel.

The control pad offers four options: fill, quick flush, flush, or empty. In addition, the owner can set the control at any time so that the bowl is always left either dry or wet after flushing. The recommended dry setting minimizes total water usage. If water usage is not a concern, the wet setting automatically fills the bowl after flushing, ready for the next user. Simultaneously holding down both the quick flush and flush buttons for 5 seconds switches between bowl always left dry and bowl always left wet modes.

Control Pad Options:

• Fill may be touched when the bowl is dry add 1 quart (1 liter) of water before use, if necessary
• Quick Flush first rinses and then empties the bowl after light use. On the dry setting, this uses less than 1 quart (1 liter) of water
• Flush rinses and empties the bowl twice after heavy use. If the bowl is dry, touching the fill before use is recommended. This uses just 2.5 quarts (2.5 liters) of water
• Empty does exactly what it says without adding any water, whenever desired. Even when the bowl appears to be dry, there is an anti-odor water lock in the pump housing

Rinse Options:

• Supplied with a remote-mounted, self-priming pump to bring in sea, river, or lake rinse water
• Complete with a Jabsco Pumpgard strainer

Experience the comfort of home at sea with the Jabsco Deluxe Flush electric marine toilet, designed for boat owners seeking luxury, efficiency, and reliability. Featuring a space-saving 14-inch angled back design, this marine toilet combines sleek aesthetics with practical functionality, making it an excellent choice for limited spaces on boats, yachts, or vessels. Its household-size soft-close seat ensures quiet, smooth operation, while the minimal water usage and virtually silent performance align with eco-friendly boating standards and user comfort. The toilet is suitable for use with sea, river, or lake water for rinsing, making it versatile for various aquatic environments. Equipped with a powerful, large-bore, non-clogging flush pump that macerates waste efficiently, the Jabsco Deluxe Flush ensures smooth operation even under heavy use. The remote-mounted, self-priming rinse pump and included strainer facilitate easy rinsing, maintaining hygiene and odor control. The sleek control panel offers four user-friendly options—fill, quick flush, flush, and empty—that can be customized to reduce water consumption or maximize convenience during use. The flush control features a four-button touch interface, allowing quick operation and easy adjustment of bowl moisture levels, with modes to keep the bowl either dry or wet after flushing. This flexibility helps conserve water or prepare the bowl for the next user, making the system highly adaptable. The unit's durable construction and thoughtful engineering ensure reliable, long-lasting performance in demanding marine environments. Its compact size, combined with a modern aesthetic, makes it a favorite among discerning boat owners who prioritize comfort, efficiency, and ease of maintenance. The Jabsco Deluxe Flush is fully compliant with marine standards, and its design includes an anti-odor water lock to prevent unpleasant smells, enhancing onboard hygiene and comfort. For detailed installation and operation instructions, refer to the owner's manual available online. Whether you’re cruising on open waters or docked at the marina, this marine toilet offers the convenience and luxury of a high-end bathroom, simplified for marine use and eco-conscious operation.

Features:

• 14-inch angled back design for space efficiency

• Space-saving, stylish appearance suitable for marine applications

• Household-size soft-close seat for quiet, comfortable use

• Virtually silent operation for onboard peace and quiet

• Compatible with sea, river, or lake water for rinsing

• Powerful, non-clogging large bore flush pump for reliable waste maceration

• Remote-mounted self-priming rinse pump with strainer for easy cleaning

• Multifunction 4-button touch control panel for customizable operation

• Options to keep bowl dry or wet after flushing to conserve water

• Anti-odor water lock prevents unpleasant smells

• Durable construction designed for demanding marine environments

• Includes detailed owner’s manual for installation and maintenance
