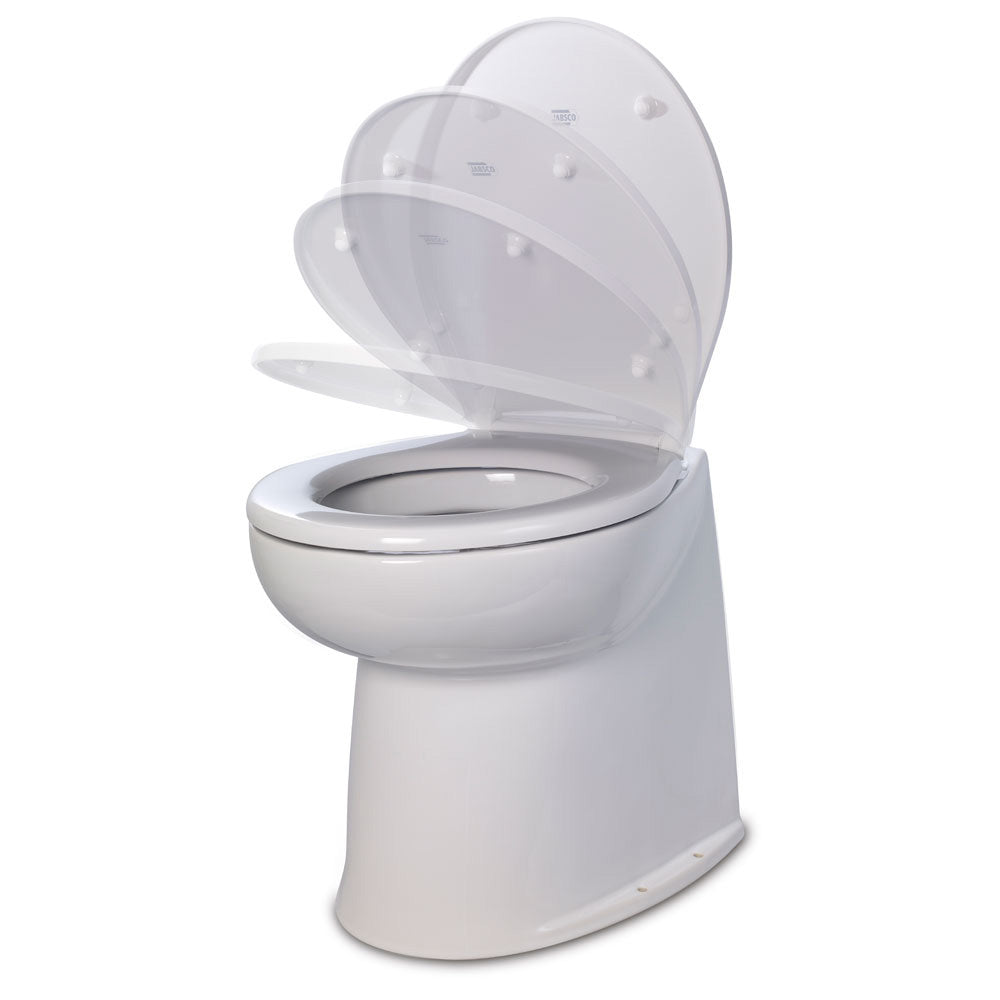

Jabsco Deluxe Flush 14-Inch Straight Back 12V Freshwater Electric Marine Toilet with Soft Close Lid and Solenoid Valve

Deluxe Flush 14" Straight Back 12V Freshwater Electric Marine Toilet with Solenoid Valve Soft Close Lid

You can experience all the comforts of home at sea with Jabsco Deluxe Flush electric marine toilet. Designed for the discerning owner looking for luxury and comfort, the Deluxe Flush portfolio features a space-saving, stylish design with minimal water usage and virtually silent operation.

Features:

• 14" Straight back
• Space-saving stylish design
• Household size soft closing seat
• Virtually silent operation
• Fresh water rinse model
• Powerful non-clogging large bore flush pump macerates waste

Specifications:

• Bowl Size: Domestic
• Lid: Soft close
• Rinse Type: Freshwater
• Rinse Pump/Solenoid Valve: Solenoid valve
• Voltage DC: 12V DC
• Recommended fuse Size (AMP): 25
• Flush control Switch: 4-Button Touch Panel
• Height: (inch) 14.4 / (mm) 366
• Width: (inch) 14.8 / (mm) 375
• Depth: (inch) 17.7" / (mm) 450
• Weight: (LBS) 55.1" / (kg) 25

One-Touch Control Pad:

All Deluxe Flush marine toilets come complete with a multi-function, one-touch control pad. The control pad is supplied with a standard surface mount unit with a clean white bezel.

The control pad offers four options: fill, quick flush, flush, or empty. In addition, the owner can set the control at any time so that the bowl is always left either dry or wet after flushing. The recommended dry setting minimizes total water usage. If water usage is not a concern, the wet setting automatically fills the bowl after flushing, ready for the next user. Simultaneously holding down both the quick flush and flush buttons for 5 seconds switches between bowl always left dry and bowled always left wet modes.

Control Pad Options:

• Fill may be touched when the bowl is dry add 1 quart (1 liter) of water before use, if necessary
• Quick Flush first rinses and then empties the bowl after light use. On the dry setting, this uses less than 1 quart (1 liter) of water
• Flush rinses and empties the bowl twice after heavy use. If the bowl is dry, touching the fill before use is recommended. This uses just 2.5 quarts (2.5 liters) of water
• Empty does exactly what it says without adding any water, whenever desired. Even when the bowl appears to be dry, there is an anti-odor water lock in the pump housing

Rinse Options:

• Supplied with a solenoid valve assembly for connection to any existing pressurized water system capable of delivering 2.9 GPM (11 LPM) or more
• The solenoid valve features dual non-return valves to protect the freshwater system from possible black flow from the toilet into the water system

Experience the comfort of a household toilet at sea with the Jabsco Deluxe Flush 14-Inch Straight Back Marine Toilet. Designed for boat owners seeking luxury and efficiency, this electric marine toilet combines a sleek, space-saving profile with minimal water consumption and nearly silent operation. The 14-inch straight back configuration ensures easy installation in various marine settings, while the stylish design enhances your vessel's interior aesthetic. Built with a household-size soft close seat, it offers a premium user experience with quiet, gentle lid closure and practical functionality for everyday use. The freshwater rinse system, powered by a robust non-clogging large bore flush pump, ensures effective waste removal and easy maintenance, making it ideal for discerning boat owners who demand reliability and comfort. The inclusion of a solenoid valve allows seamless connection to your existing pressurized water system, supporting water flow of 2.9 GPM or more, with dual non-return valves to prevent backflow and protect your freshwater supply. The unit features a user-friendly four-button touch control panel, enabling quick access to fill, flush, quick flush, or empty functions. The adjustable control allows you to set the bowl to always remain dry or wet after flushing, optimizing water usage and odor control. The dry setting minimizes water consumption to under 1 quart per flush, while the wet setting ensures the bowl is always filled, ready for the next user. The toilet's dimensions fit most marine installations, and its lightweight design simplifies installation without sacrificing durability or performance. Whether you are upgrading or installing a new system, the Jabsco Deluxe Flush marine toilet offers a luxurious, efficient, and reliable solution that enhances onboard comfort and convenience. For detailed installation and operation instructions, refer to the owner’s manual available online. Please note, this product complies with Prop 65 requirements, ensuring safety and quality standards are met for marine environments.

Features:

• 14-inch straight back design for easy installation in various marine spaces

• Space-saving, stylish profile to maximize interior space

• Household-size soft close lid for quiet operation and enhanced comfort

• Virtually silent operation to minimize noise onboard

• Fresh water rinse system for effective waste removal and hygiene

• Powerful non-clogging large bore flush pump with macerator for reliable performance

• Includes a four-button touch control panel for easy operation

• Adjustable bowl moisture setting for water conservation or preparedness

• Connection-ready for pressurized water systems with dual non-return valves for backflow prevention

• Lightweight and durable construction designed for marine use
