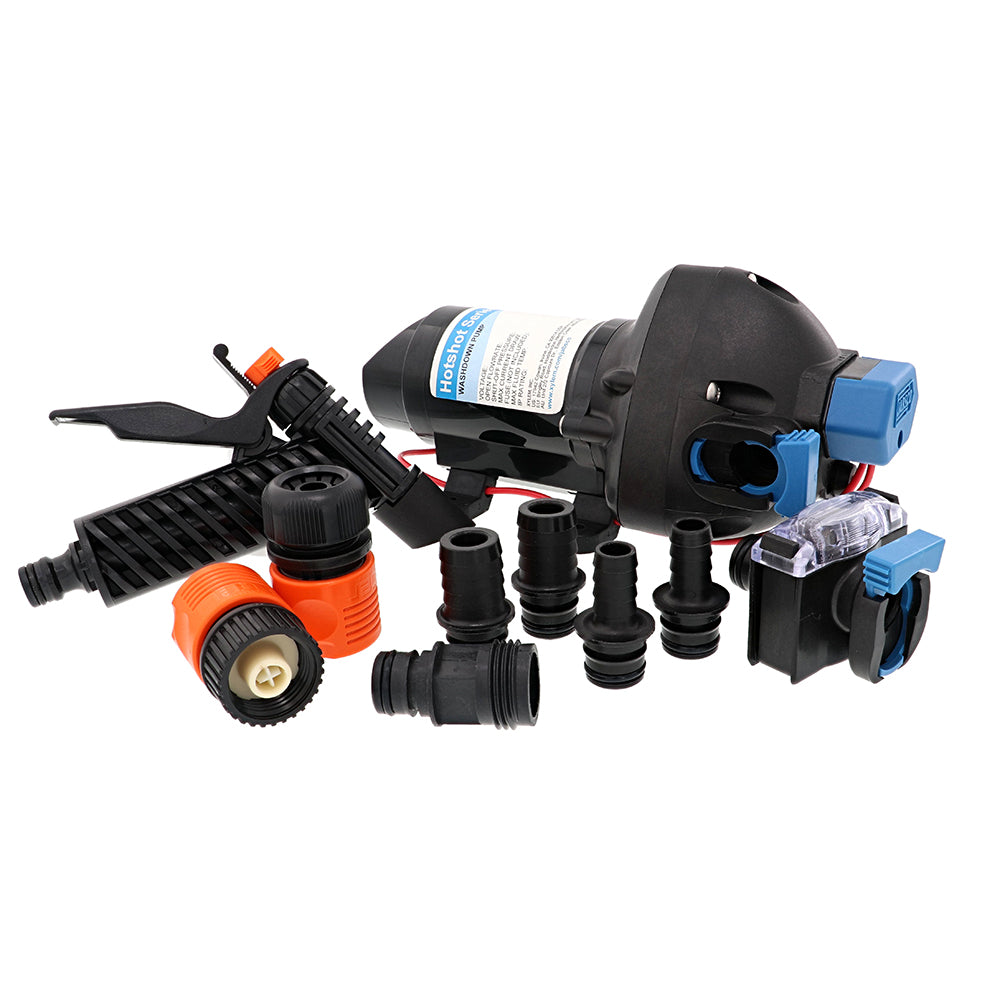

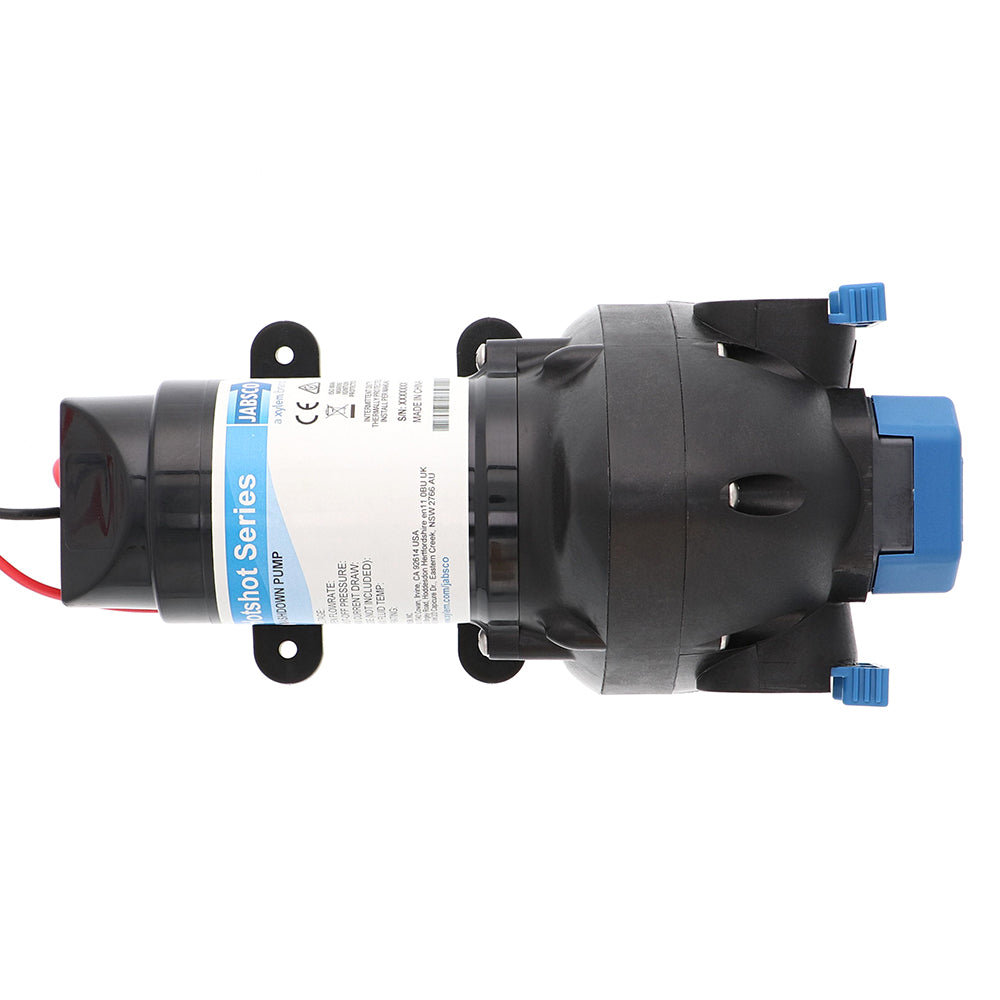

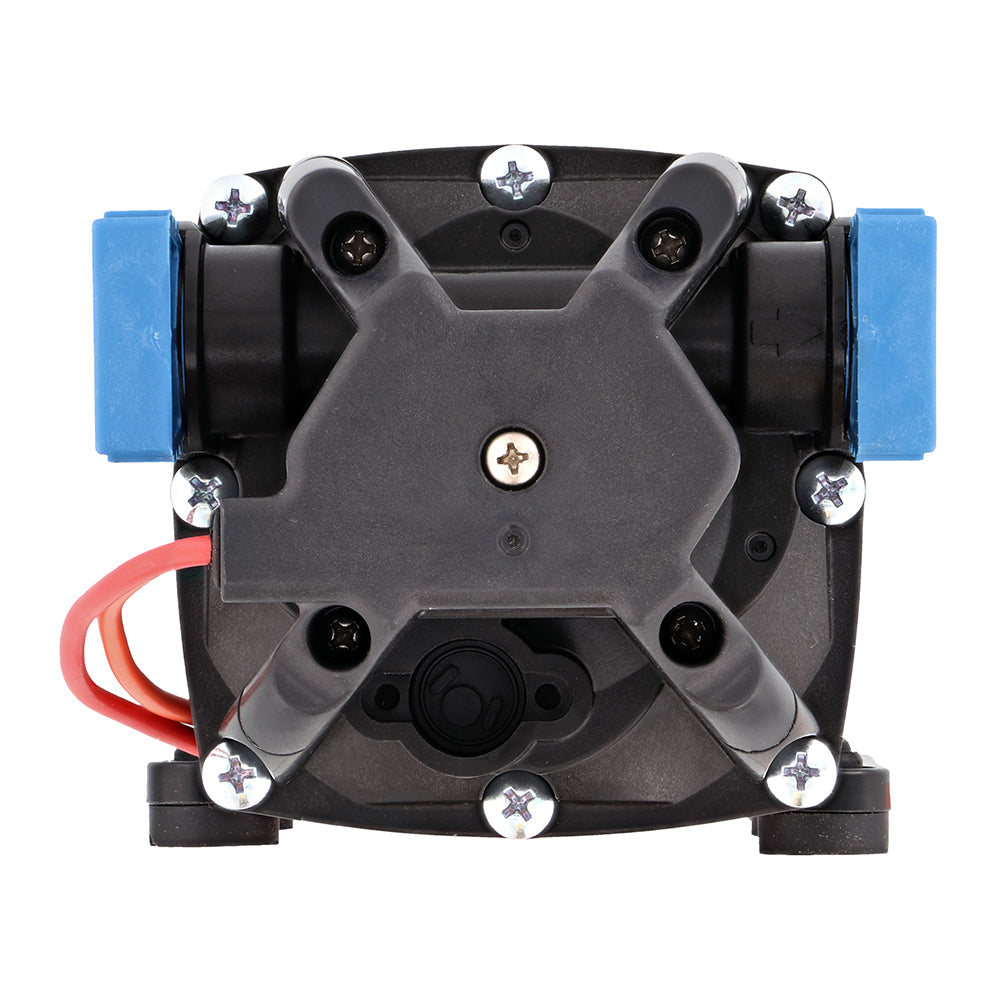

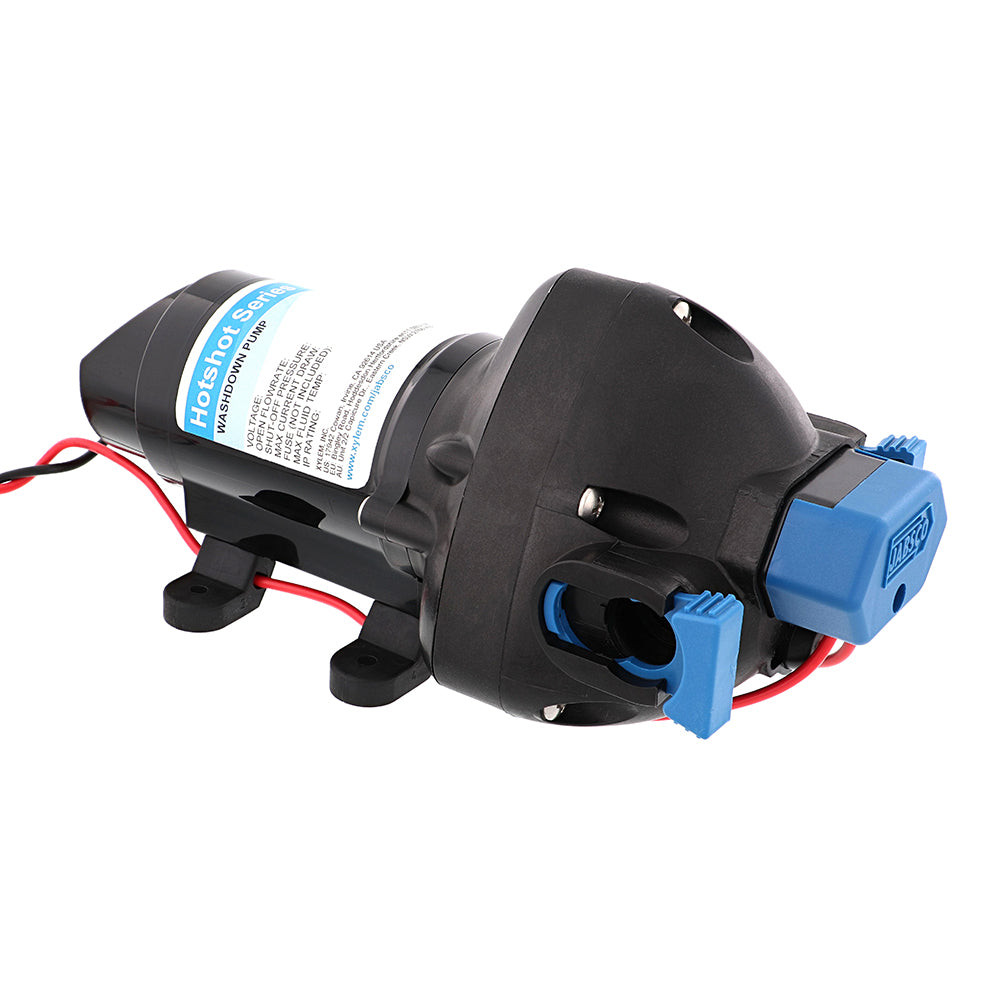

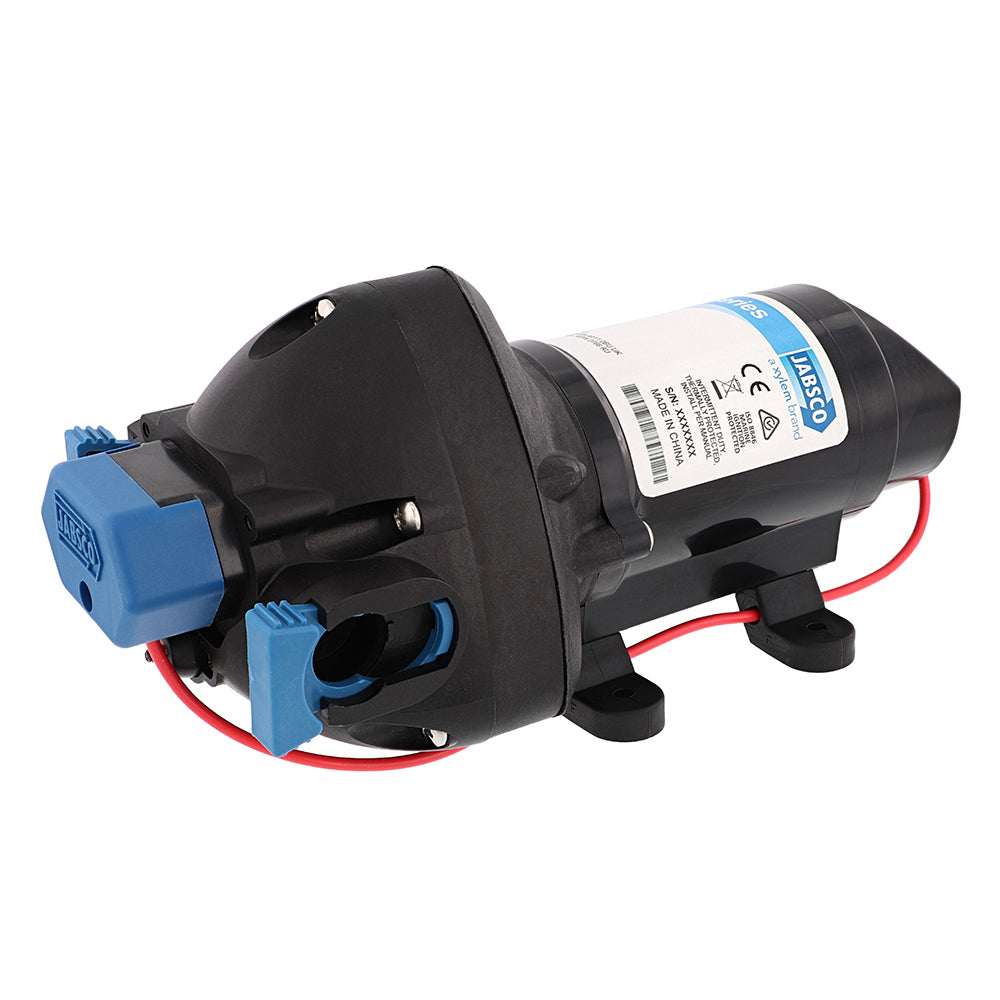

Jabsco HotShot 3 Washdown Pump 12V, 3 GPM, 50 PSI, Part 32305-5012-3A

HotShot 3 Washdown Pump - 12V - 3 GPM - 50 PSI

Years of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits.

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.

Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for long-life, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Full kit versions available which include 25' (7.6m) hose coil

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.1m min)
• Certifications: CE, ISO8846, RCM
• Ingress protection: IPX6

Fittings Accessories:

• Quick Connect straight hosebarb and GHT fittings. Size varies by model.
• Inline 40 mesh Quick Connect strainer
• Trigger nozzle Quick Connect hose adapters
• No kit versions with hose offered

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco HotShot 3 Washdown Pump delivers dependable water flow and pressure for marine washdown applications. Designed for boat owners and marine professionals, this 12-volt diaphragm pump provides up to 3 GPM and 50 PSI, with self-priming operation and on-demand pressure control for flexible installation and convenient use.

Built for reliable service, the HotShot 3 uses co-molded diaphragm technology, an integrated sealed pressure switch, and vibration-dampening mounting feet. Its efficient operation is designed to run quietly, while the pump can run dry without damage. Quick-connect ports simplify installation, servicing, and maintenance, making this Jabsco washdown pump a practical choice for cleaning decks and other marine surfaces.

Key Features:

• Self-priming operation: Supports installation flexibility with dry self-priming capability of at least 7 feet.
• On-demand pressure control: Integrated sealed pressure switch activates operation as needed.
• Durable diaphragm design: Co-molded TPV diaphragm technology supports long service life and durability.
• Dry-run capability: Can run dry without damage for added operating convenience.
• Easy maintenance: Quick-connect ports support straightforward installation, servicing, and maintenance.
• Efficient marine performance: Provides 3 GPM flow, 50 PSI pressure, and 12-volt electrical operation.

Product Details:

• Brand: Jabsco
• Product: HotShot 3 Washdown Pump
• Part number: 32305-5012-3A
• Voltage: 12V
• Flow rate: 3 GPM
• Maximum pressure: 50 PSI
• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Maximum inlet pressure: 30 PSI
• Fluid temperature range: 32°F to 140°F
• Certifications: CE, ISO8846, RCM
• Ingress protection: IPX6
• Fittings: Quick-connect straight hose barb and GHT fittings; fitting size varies by model

Choose the Jabsco HotShot 3 for dependable 12V marine washdown performance, convenient installation, and practical maintenance features.
