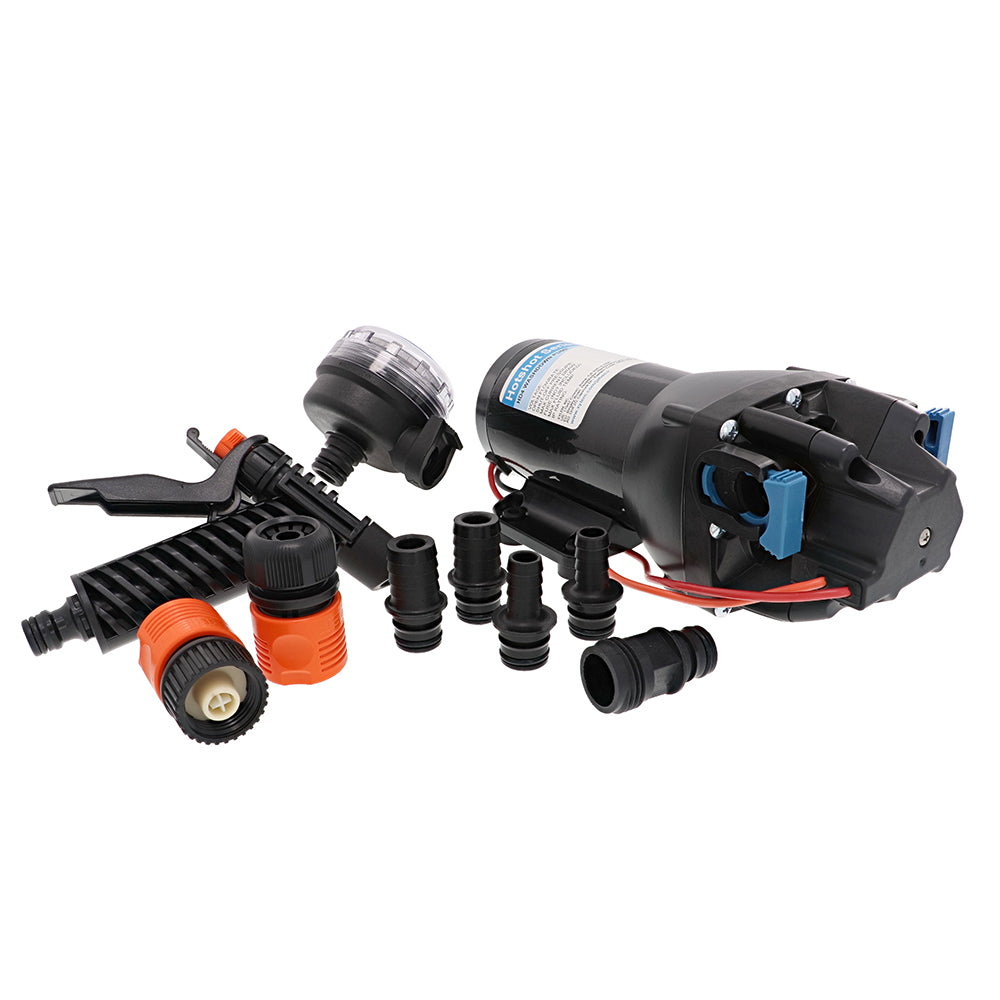

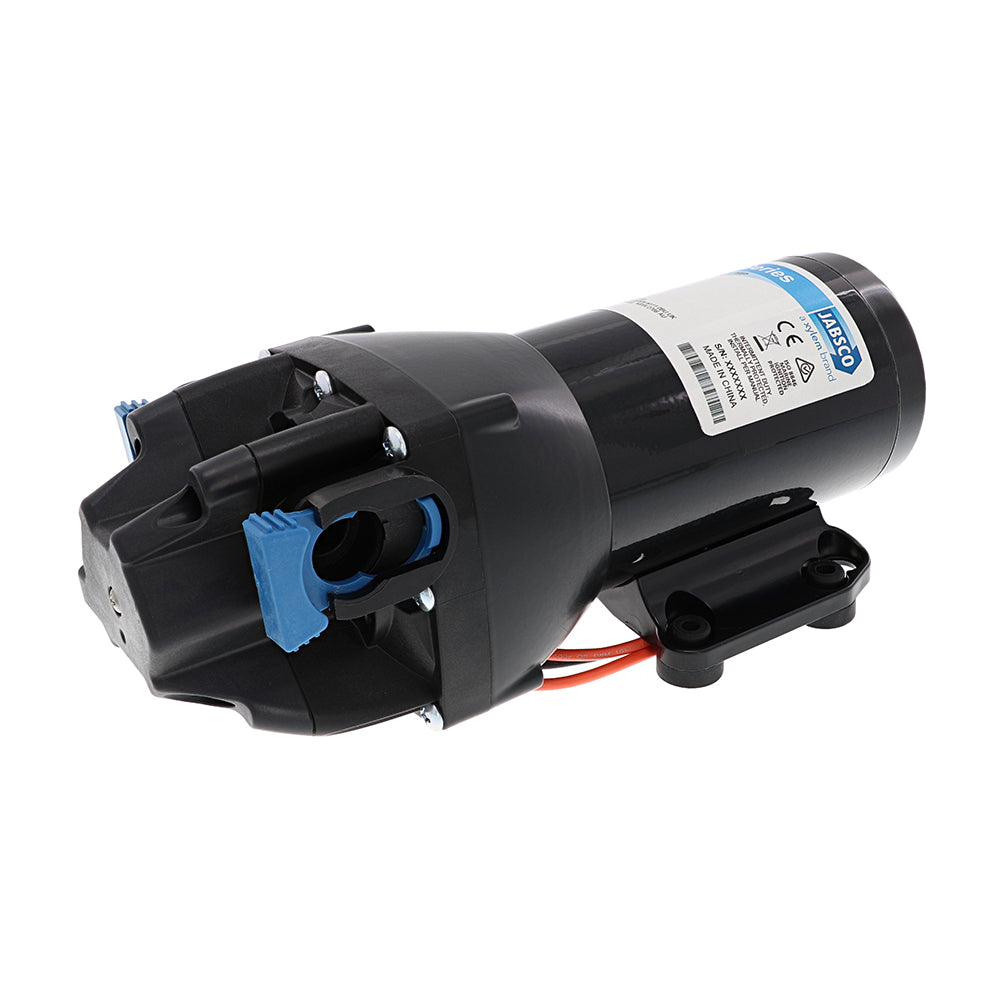

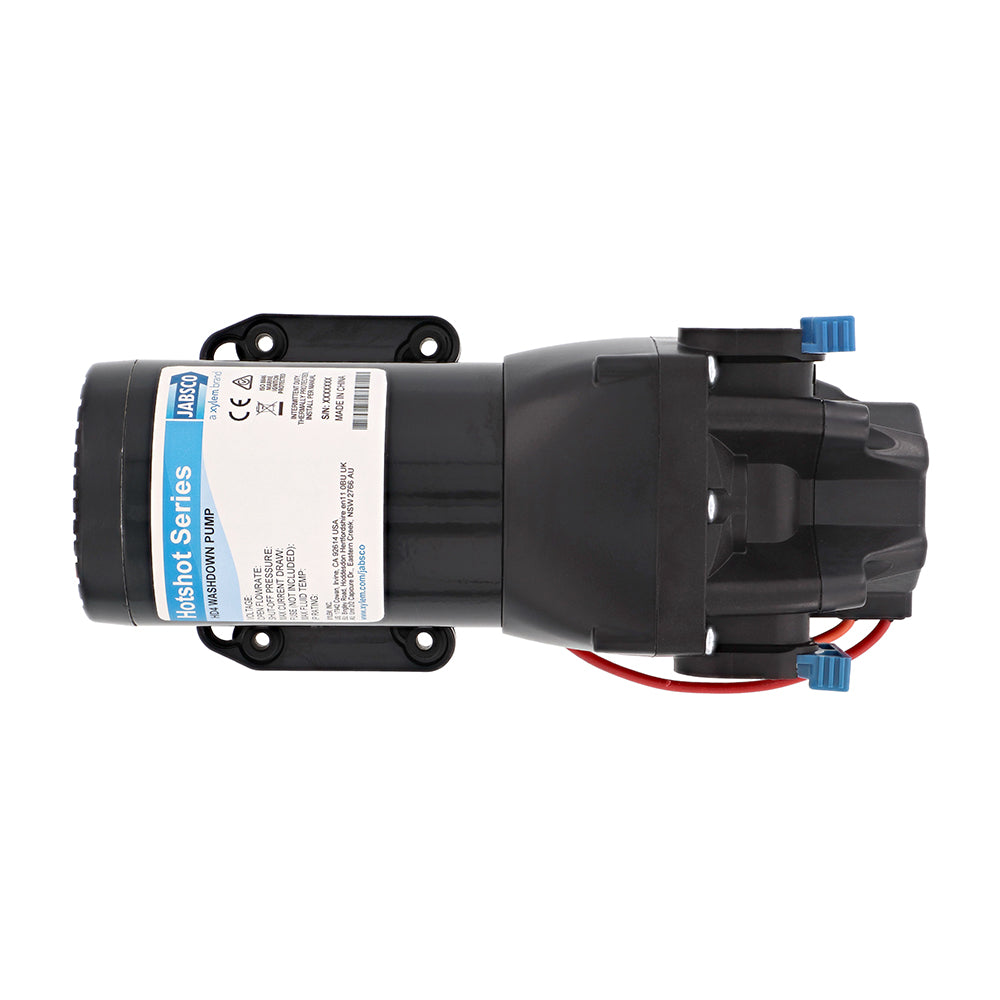

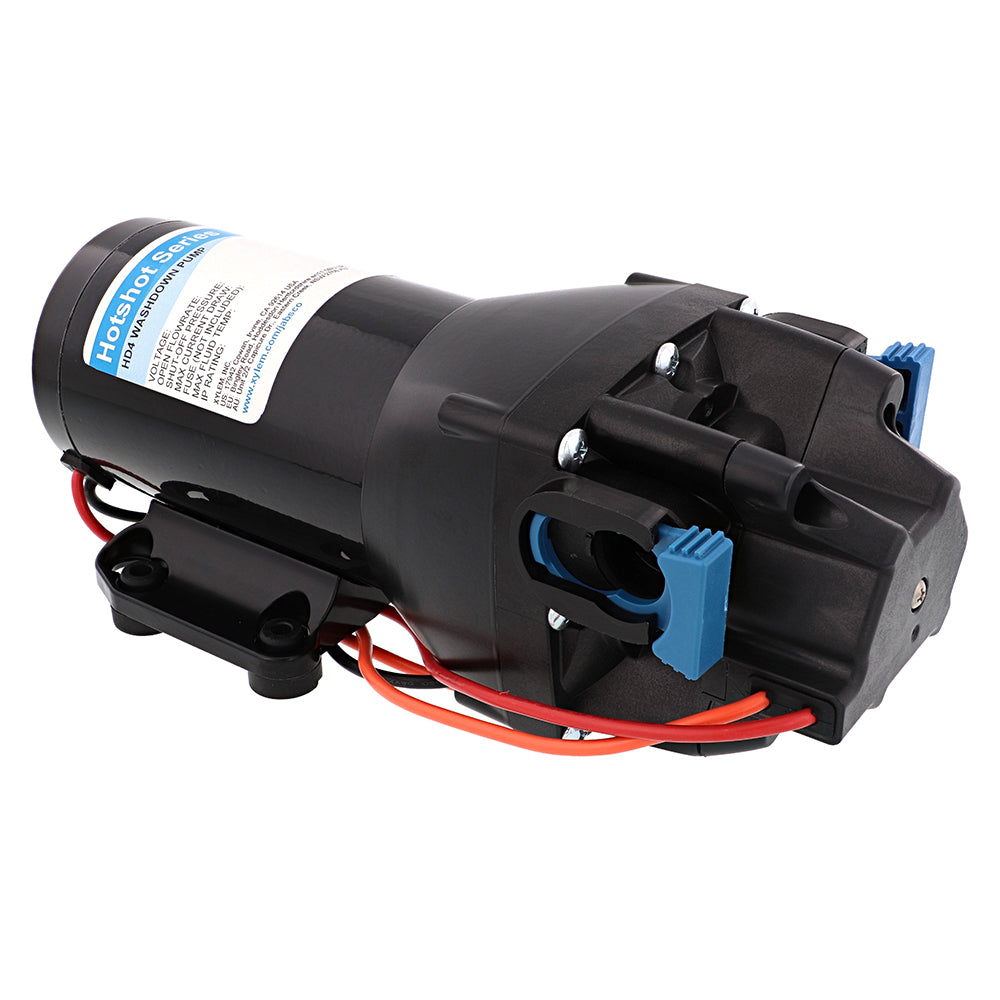

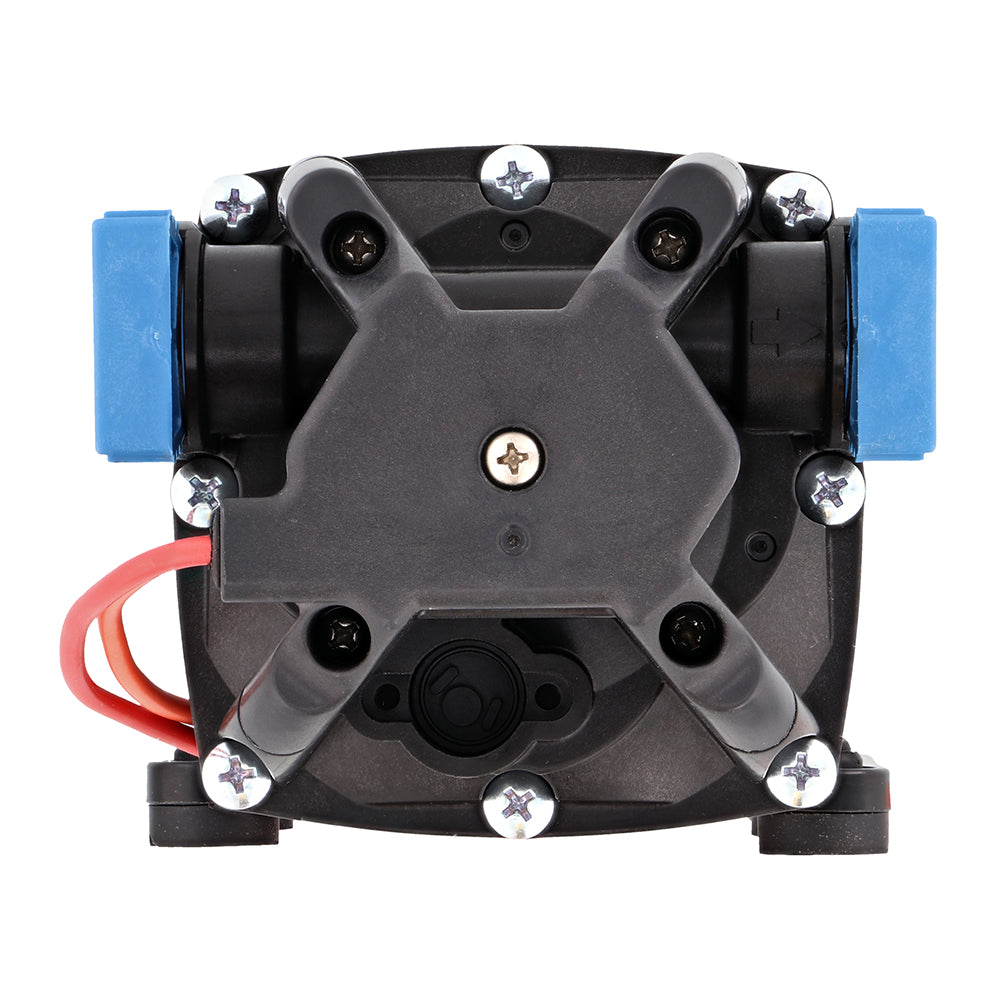

Jabsco HotShot HD4 12V Heavy Duty Washdown Pump — 4 GPM, 60 PSI for Reliable High-Flow Cleaning

HotShot HD4 Heavy Duty Washdown Pump - 12V - 4 GPM - 60 PSI

Years of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits.

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.

Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for long-life, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Full kit versions available which include 25' (7.6m) hose coil

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.1m min)
• Certifications: CE, ISO8846, RCM
• Ingress protection: IPX6

Fittings Accessories:

• Quick Connect straight hosebarb and GHT fittings. Size varies by model.
• 90 20 mesh Quick Connect straine
• Trigger nozzle Quick Connect hose adapters
• Kit version includes 25' HoseCoil

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco HotShot HD4 Heavy Duty Washdown Pump is engineered to deliver exceptional performance for demanding cleaning applications. Designed with durability and efficiency in mind, this 12-volt diaphragm pump provides a robust 4 gallons per minute flow rate at 60 PSI, making it an ideal choice for marine, industrial, and RV use. Its heavy-duty construction features a wider diameter motor with a powder-coated shell, cast aluminum endbells, and a lower housing to ensure long-lasting operation even under high-pressure conditions. The HD models incorporate cast aluminum components for superior pressure capability and extended lifespan, while standard models offer a lightweight, corrosion-resistant plastic housing for economical and reliable performance. This pump's co-molded diaphragm technology ensures durability and long service life, with the ability to operate dry without damage, providing versatility during installation and operation. The integrated, sealed pressure switch allows for on-demand activation, while the self-priming feature enables flexible installation options, even in tight or challenging environments. Vibration dampening mounting feet contribute to quiet operation, making this pump suitable for a variety of settings without excessive noise. Available as a full kit with a 25-foot hose coil, quick connect fittings, and accessories, the Jabsco HotShot HD4 simplifies installation and maintenance. Certified with CE, ISO8846, and RCM, and rated IPX6 for ingress protection, this pump is built to meet rigorous safety and quality standards. Whether for heavy-duty cleaning or washdown tasks, the Jabsco HotShot HD4 ensures reliable, efficient performance with minimal maintenance, backed by Jabsco’s legacy of excellence. Please note, this product contains chemicals known to cause cancer in California under Prop 65 regulations, and users should review safety warnings accordingly.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motor and cast aluminum lower housings for extended pressure capability and lifespan

• Efficient and quiet operation for comfortable use

• Integrated, sealed pressure switch for on-demand activation

• Self-priming design allows flexible installation options

• Can operate dry without damage, providing added versatility

• Quick connect ports for easy installation, servicing, and maintenance

• Vibration dampening mounting feet for reduced noise

• Full kit versions include 25-foot hose coil and accessories for comprehensive setup
