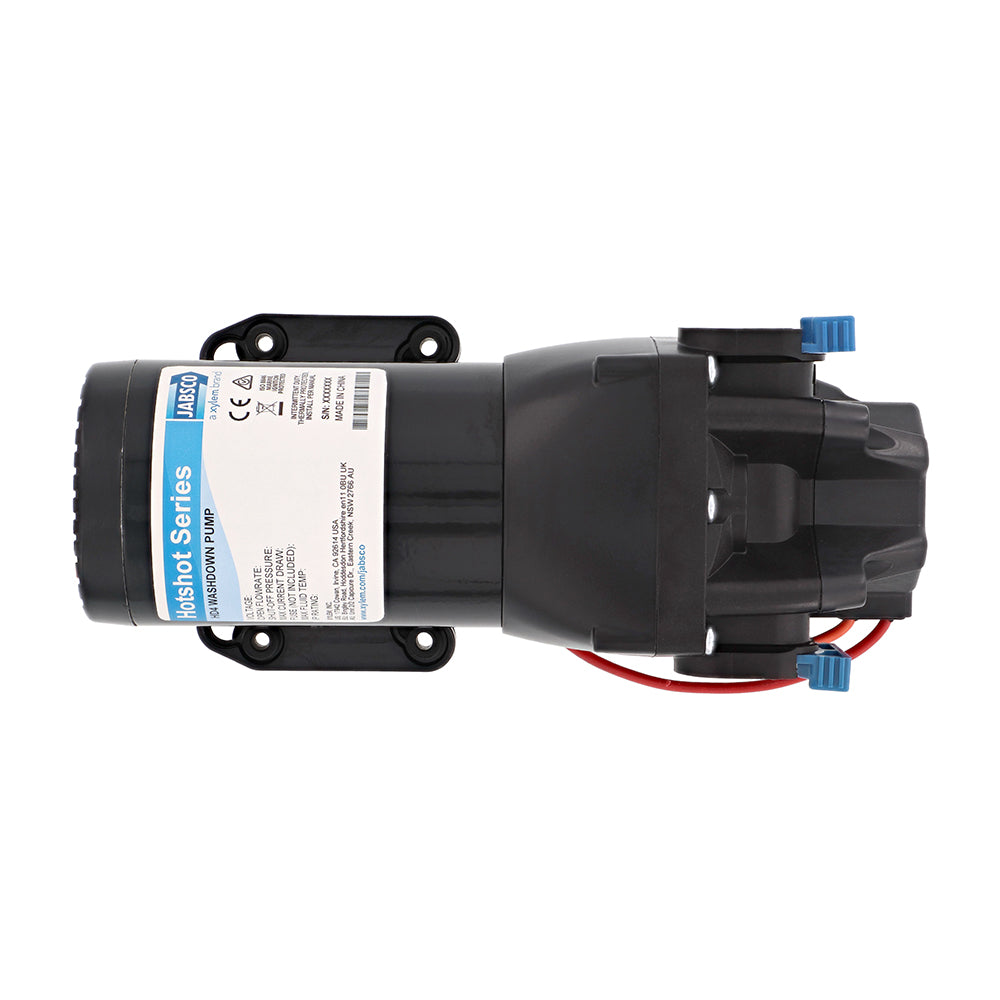

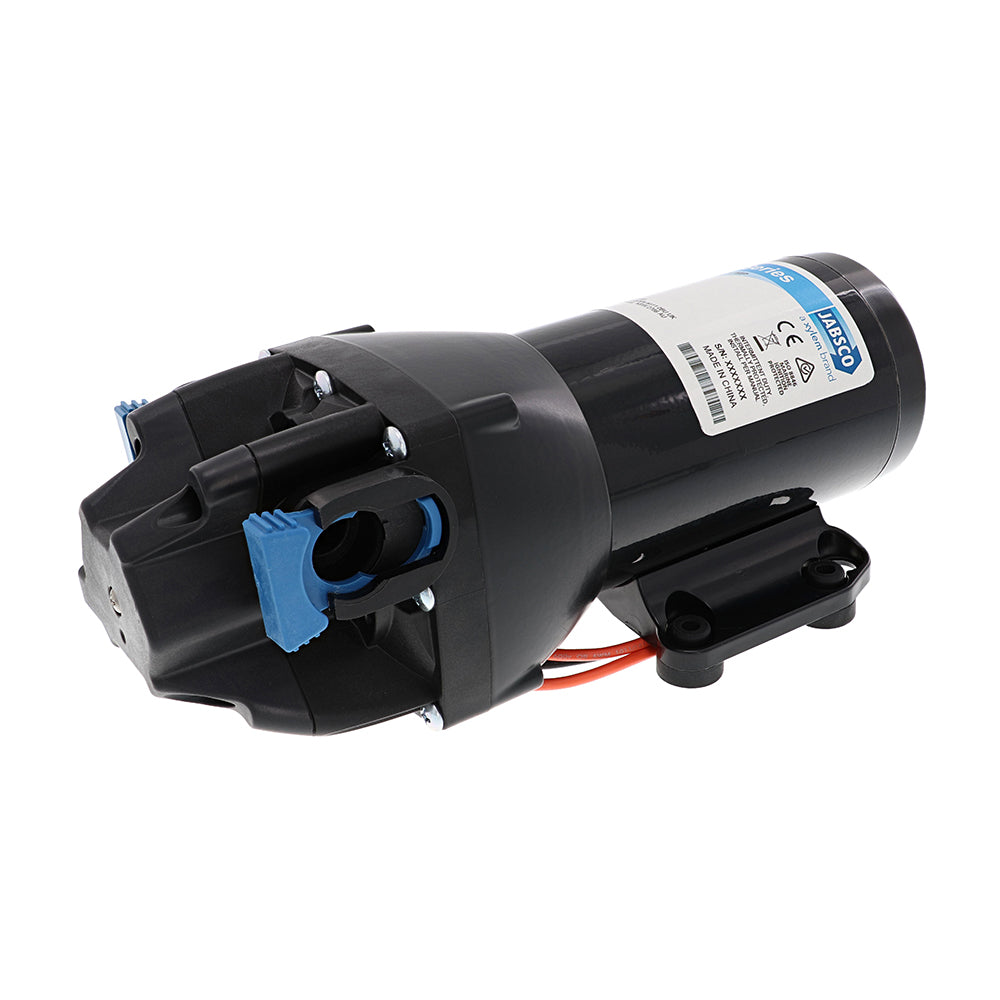

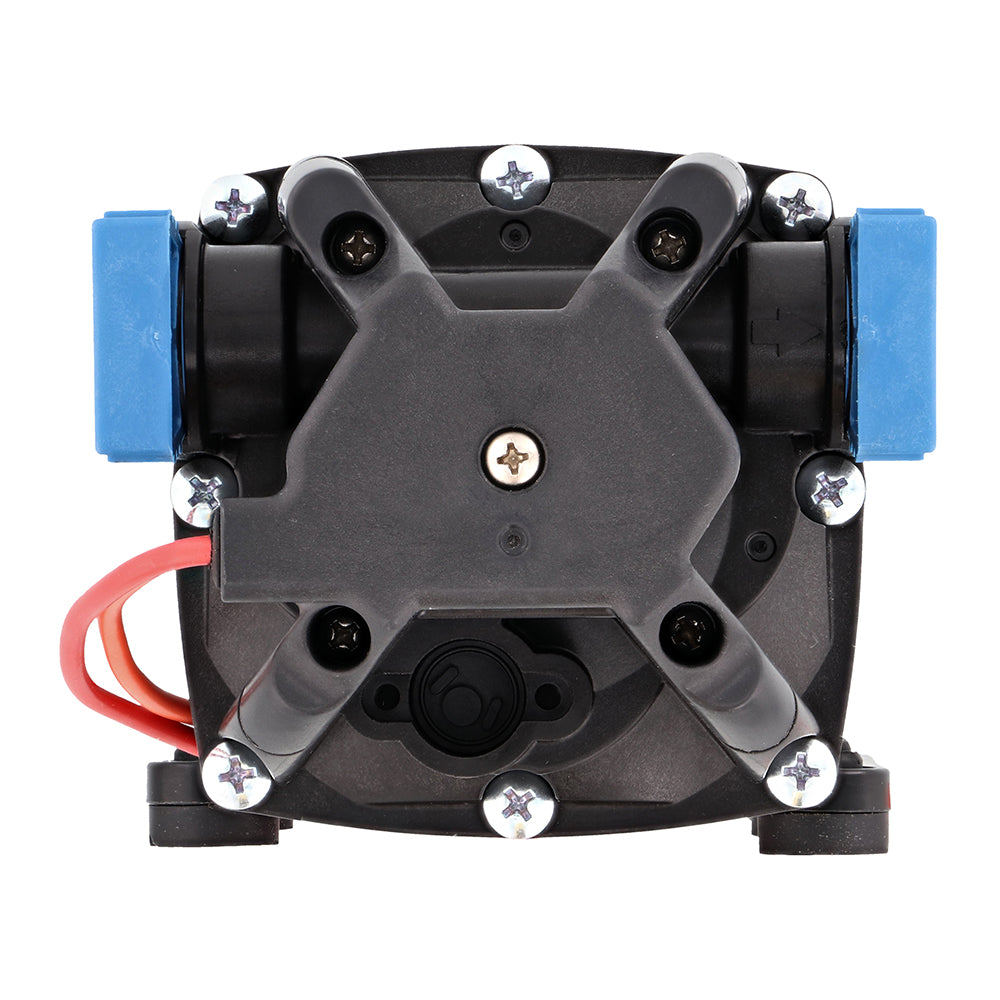

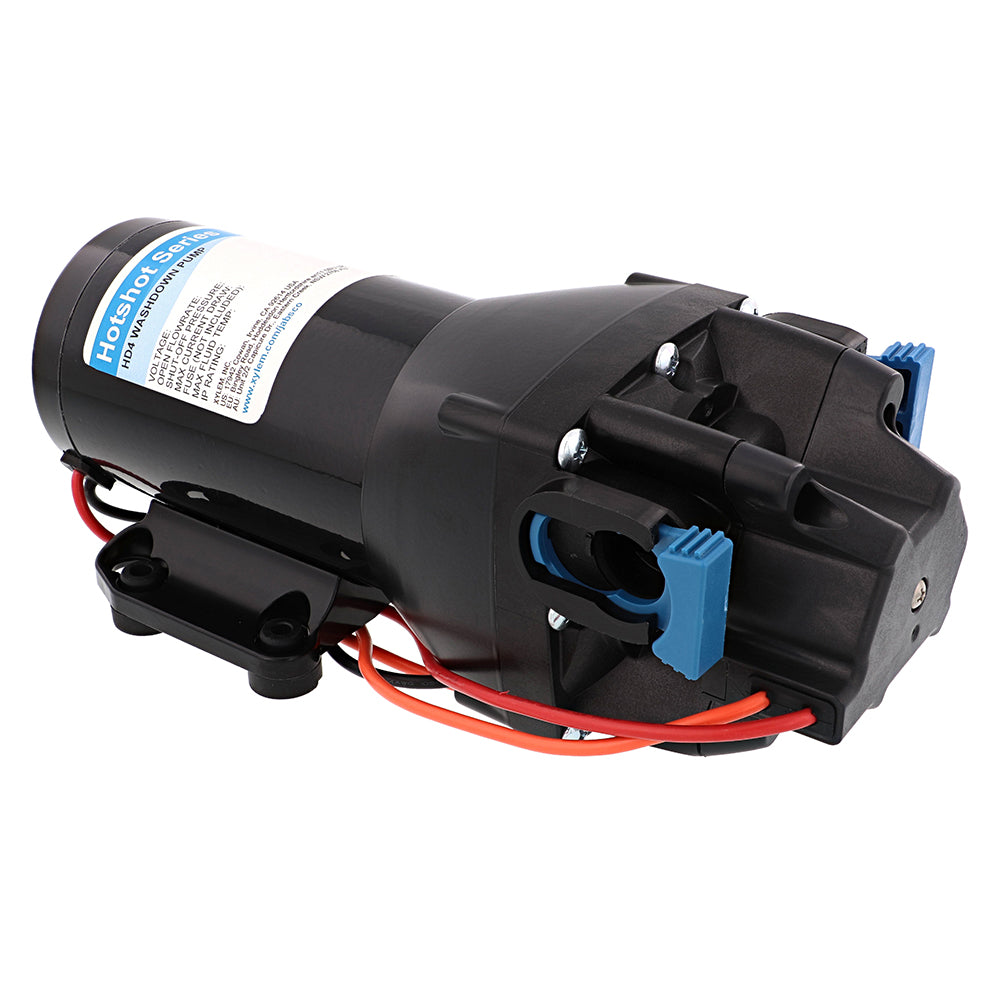

HotShot HD4 Heavy Duty Washdown Pump - 24V - 4 GPM - 60 PSI
Years of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits.
HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.
Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion.
Features:
- Co-molded diaphragm technology for long life and durability
- HD models feature heavy duty, motors and cast aluminum lower housings which allow for long-life, even at high pressures
- Efficient and quiet operation
- Integrated, sealed pressure switch for on-demand operation
- Self-priming allows for installation versatility
- Can run dry without damage
- Quick connect ports for ease of installation, servicing, and maintenance
- Vibration dampening mounting feet

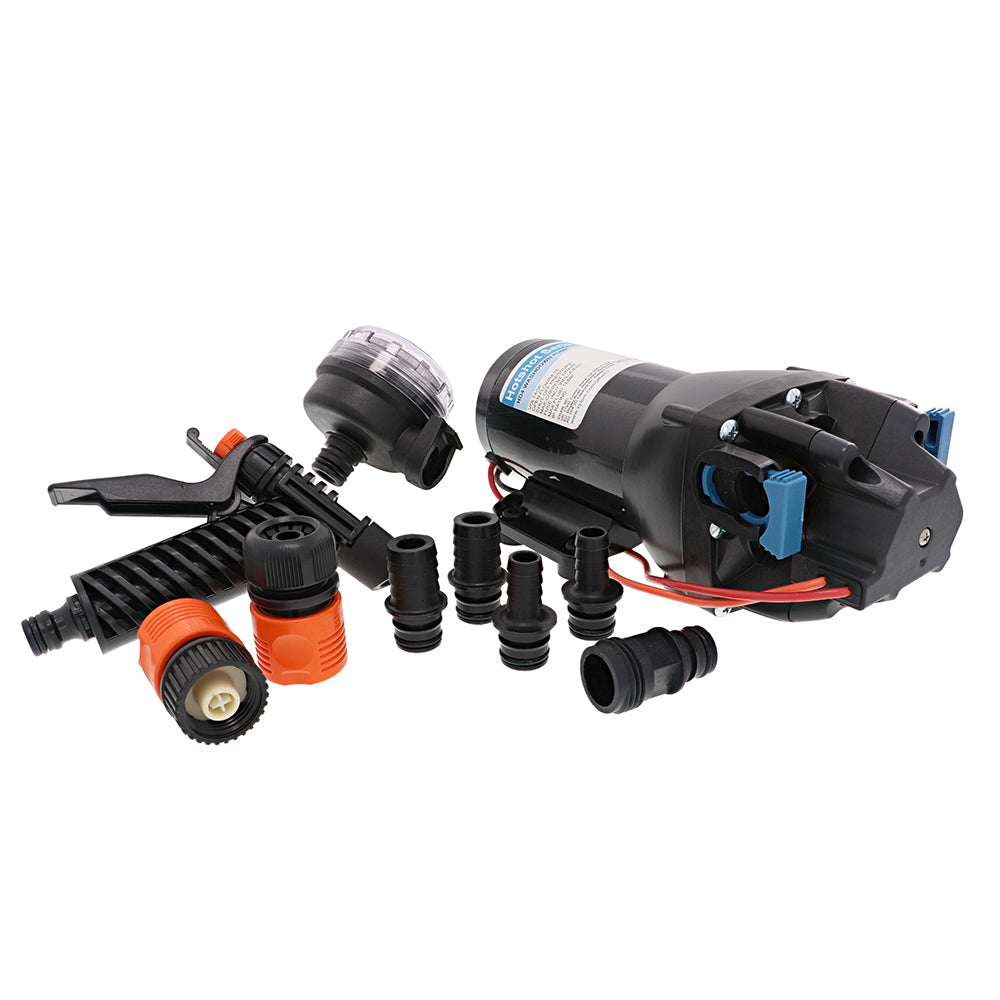

- Full kit versions available which include 25' (7.6m) hose coil
Specifications:
- Motor design: Brushed, permanent magnet TENV
- Pumphead upper housing material: Glass fiber reinforced polypropylene
- Diaphragm: Co-molded TPV
- Check valves: EPDM
- Max inlet pressure: 30 PSI (2.1 Bar)
- Fluid temperature range: 32F 140F (0C 60C)
- Dry self-priming capability: 7ft min (2.1m min)
- Certifications: CE, ISO8846, RCM
- Ingress protection: IPX6
Fittings Accessories:
- Quick Connect straight hosebarb and GHT fittings. Size varies by model.
- 90 20 mesh Quick Connect strainer
- Trigger nozzle Quick Connect hose adapters
- Kit version includes 25' HoseCoil
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Jabsco HotShot HD4 Heavy-Duty Washdown Pump delivers dependable high-flow, high-pressure performance for marine deck cleaning and washdown applications. Designed for boat owners and marine professionals, this 24-volt diaphragm pump provides 4 GPM at 60 PSI while combining durable construction, quiet operation, and installation flexibility.
The HD4 model features a wider-diameter motor with a powder-coated shell, cast aluminum endbells, and a cast aluminum lower housing to support extended service life during high-pressure operation. Co-molded diaphragm technology, an integrated sealed pressure switch, and dry-running capability make this Jabsco washdown pump practical for demanding marine environments. Its self-priming design offers installation versatility, while quick-connect ports simplify installation, servicing, and maintenance.
Built for on-demand washdown use, the HotShot HD4 is suitable for cleaning boat decks and other marine equipment where reliable water delivery is needed. Vibration-dampening mounting feet help support stable operation, and the IPX6 ingress protection rating provides a clearly defined level of enclosure protection. The pump is supplied with quick-connect straight hose barb and GHT fittings, with fitting size varying by model.
KEY FEATURES:
-
Heavy-duty construction: Wider-diameter motor, powder-coated shell, cast aluminum endbells, and lower housing support durability during high-pressure use.
-
Efficient washdown performance: Provides 4 GPM flow and up to 60 PSI for marine deck and equipment cleaning.
-
On-demand operation: Integrated, sealed pressure switch activates the pump as needed.
-
Flexible installation: Self-priming capability and quick-connect ports simplify setup and maintenance.
-
Dry-run capability: Designed to run dry without damage.
-
Quieter, steadier operation: Efficient motor design and vibration-dampening mounting feet support practical onboard use.
PRODUCT DETAILS:
-
Brand: Jabsco
-
Product: HotShot HD4 Heavy-Duty Washdown Pump
-
Part number: Q402J-118N-3A
-
Voltage: 24 volts
-
Flow rate: 4 GPM
-
Maximum pressure: 60 PSI
-
Motor: Brushed, permanent magnet TENV
-
Pumphead upper housing: Glass fiber-reinforced polypropylene
-
Diaphragm: Co-molded TPV
-
Check valves: EPDM
-
Maximum inlet pressure: 30 PSI
-
Fluid temperature range: 32°F to 140°F
-
Dry self-priming capability: 7 feet minimum
-
Ingress protection: IPX6
-
Certifications: CE, ISO8846, RCM
-
Included fittings: Quick-connect straight hose barb and GHT fittings; size varies by model
Choose the Jabsco HotShot HD4 when your marine washdown system needs heavy-duty construction, convenient installation features, and dependable 24-volt pump performance.
