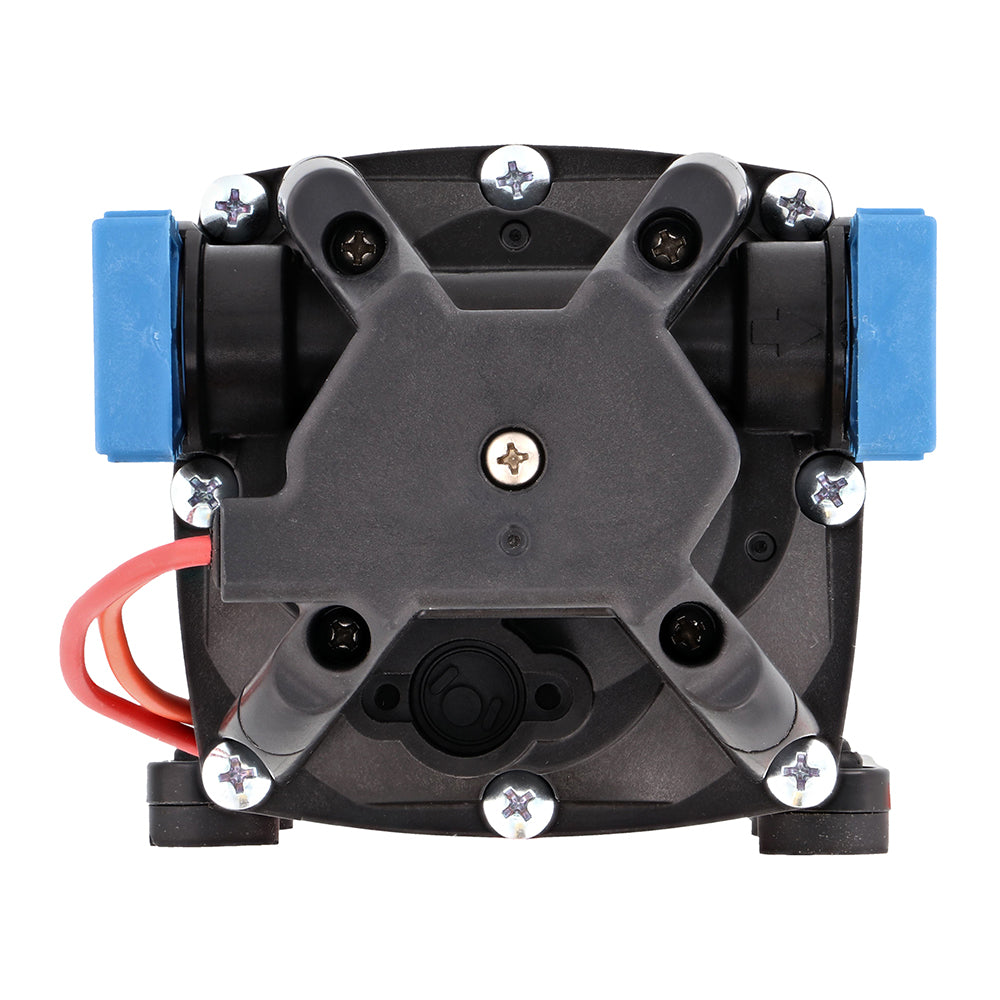

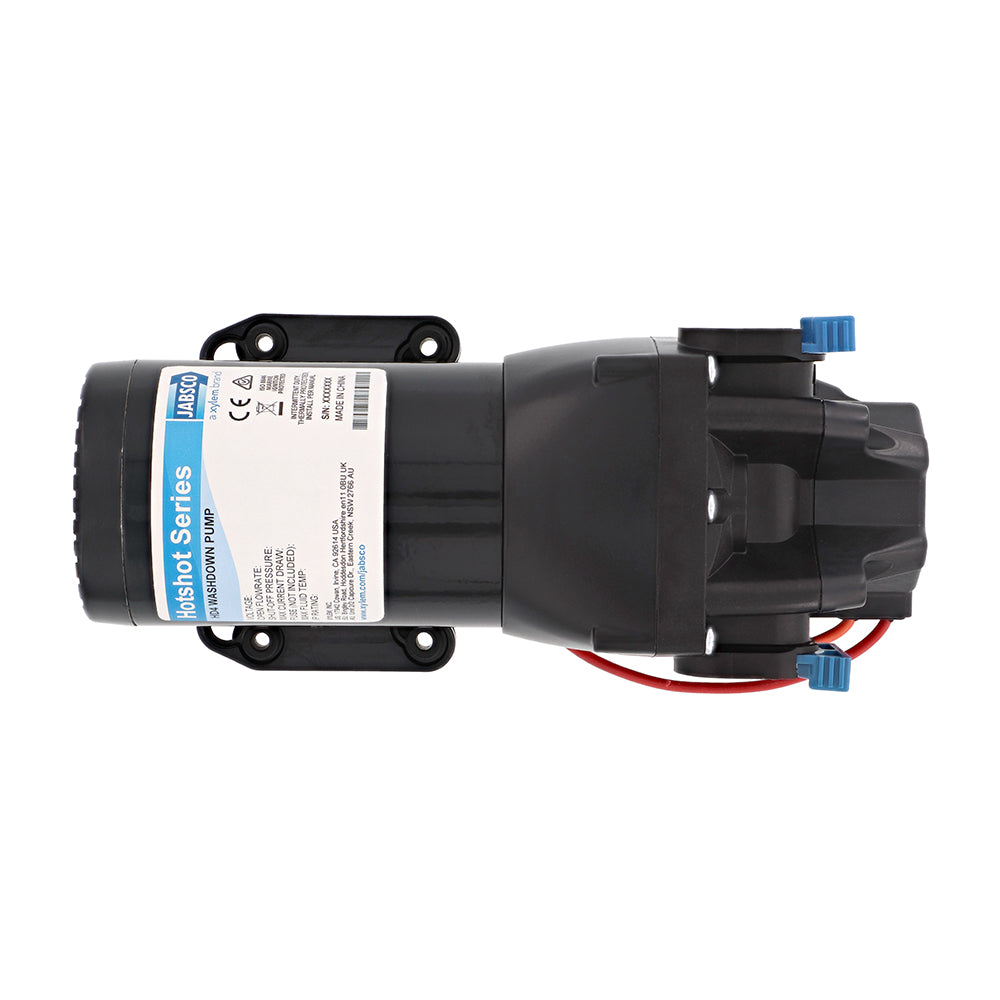

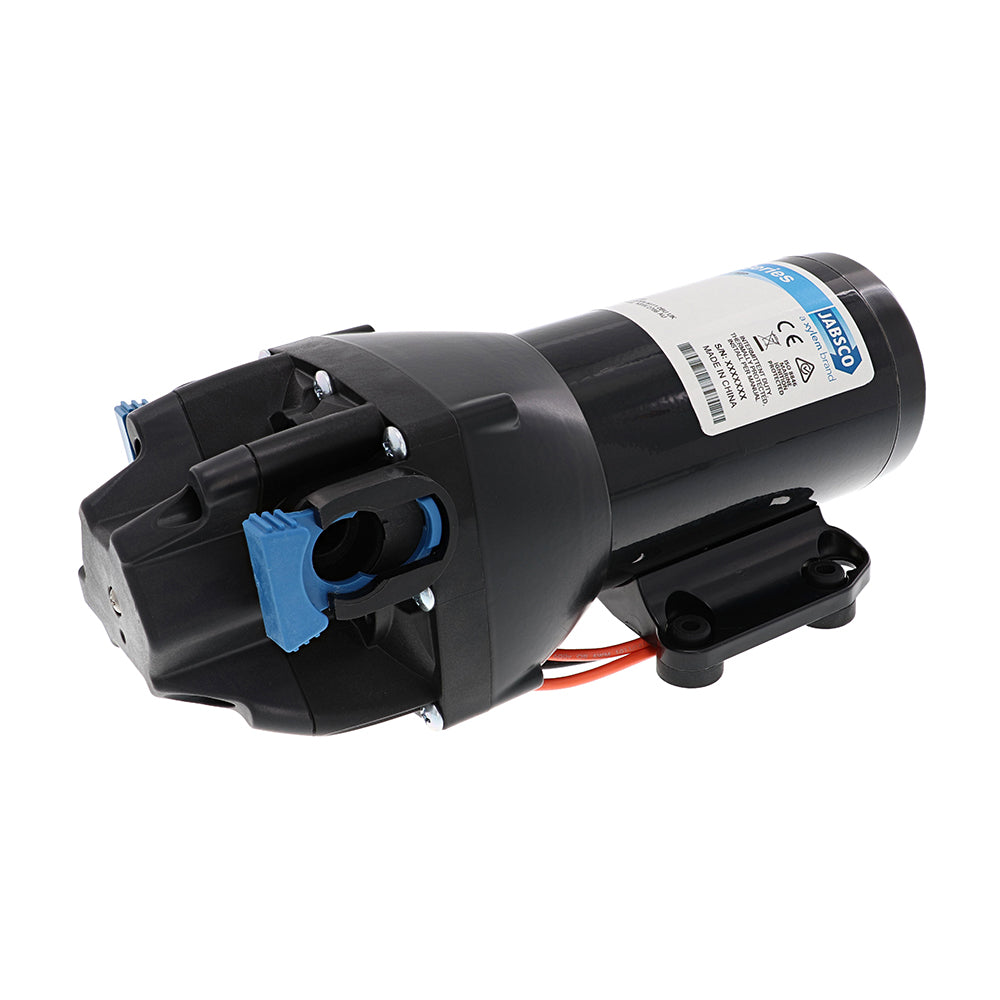

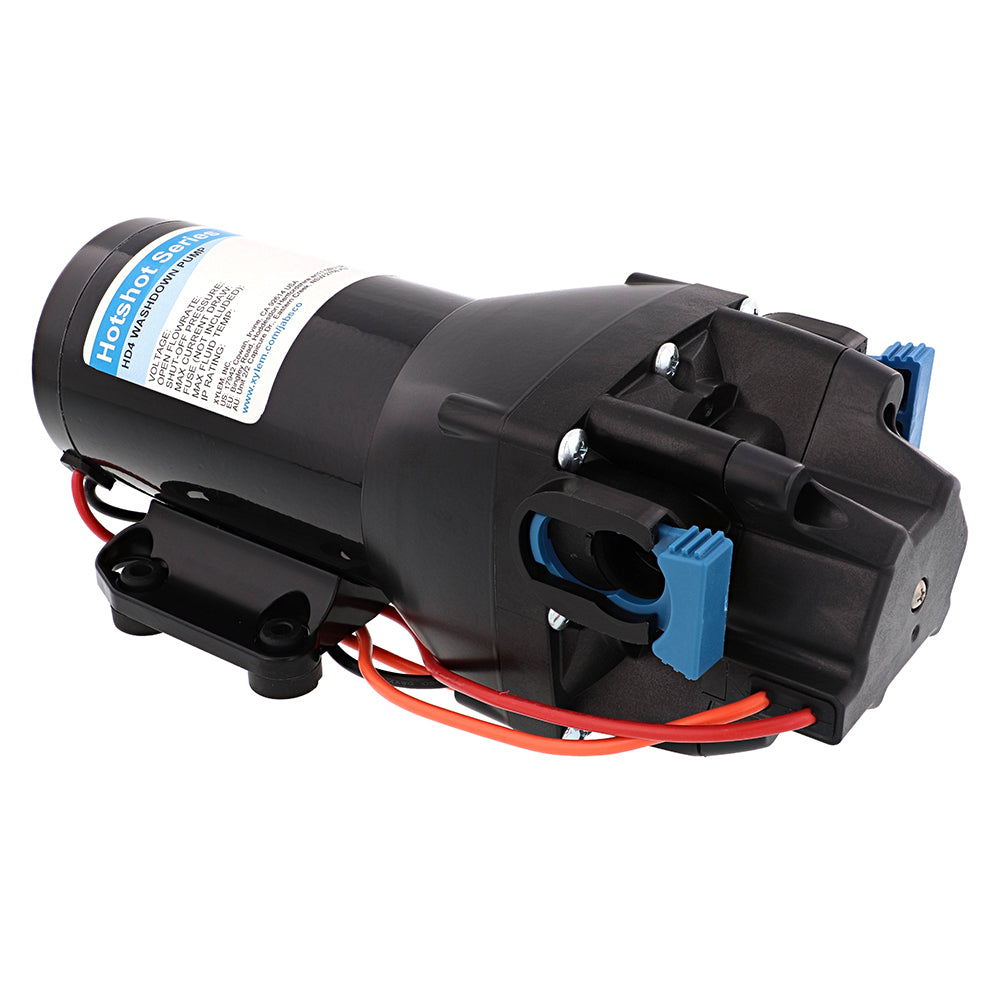

Jabsco HotShot HD4 Heavy Duty Washdown Pump with 25' HoseCoil - 12V, 4 GPM, 60 PSI

HotShot HD4 Heavy Duty Washdown Pump with 25' HoseCoil - 12V - 4 GPM - 60 PSI

Years of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits.

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.

Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for long-life, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Full kit versions available which include 25' (7.6m) hose coil

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.1m min)
• Certifications: CE, ISO8846, RCM
• Ingress protection: IPX6

Fittings Accessories:

• Quick Connect straight hosebarb and GHT fittings. Size varies by model.
• 90 20 mesh Quick Connect straine
• Trigger nozzle Quick Connect hose adapters

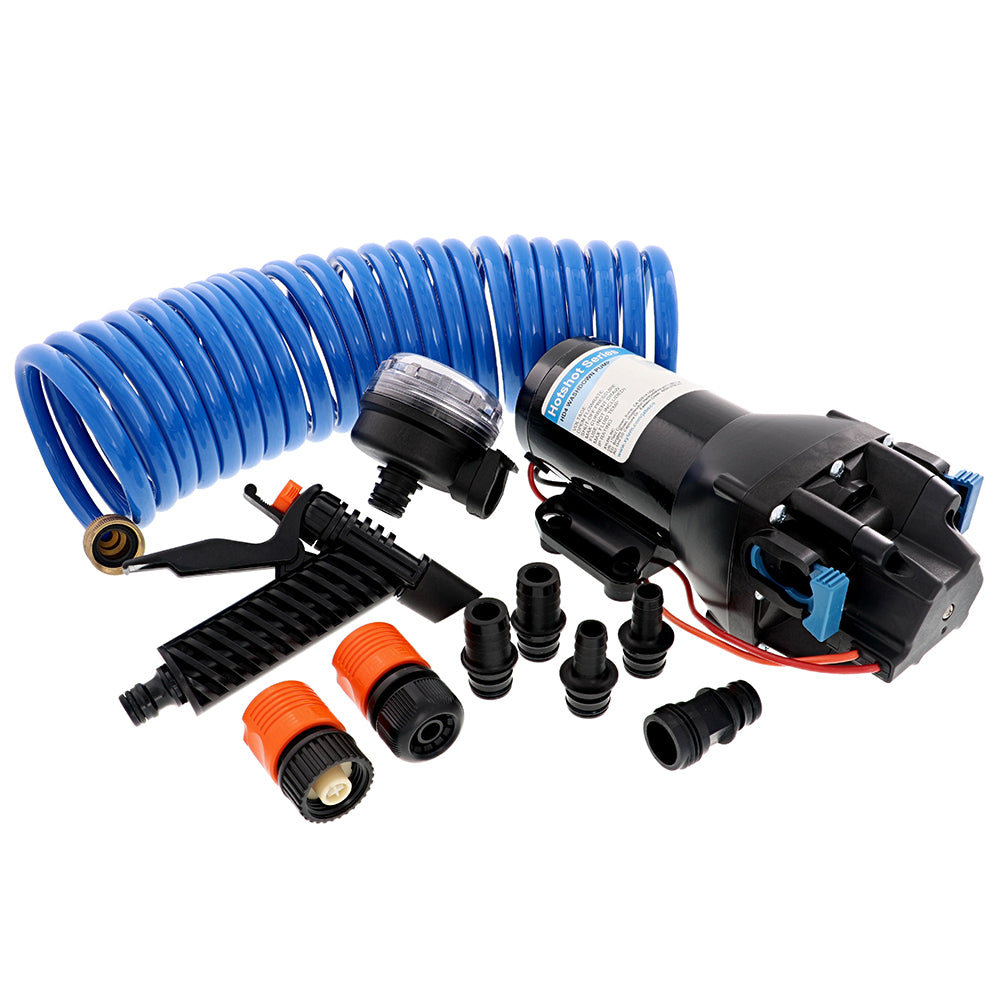

• Kit version includes 25' HoseCoil

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco HotShot HD4 Heavy Duty Washdown Pump is engineered for demanding cleaning tasks with high flow and pressure capabilities. Designed to deliver reliable performance in marine, RV, and industrial environments, this robust pump features a 12-volt motor and a powerful 4 gallons per minute (GPM) flow rate at 60 PSI, making quick work of deck rinsing, equipment cleaning, and more. Its durable construction, including a powder-coated motor shell and cast aluminum endbells, ensures long-lasting operation even under continuous use. The inclusion of a plastic housing offers added protection against corrosion, making it suitable for wet environments. The HD models are equipped with a wider diameter motor for enhanced pressure capability and extended lifespan, reflecting Jabsco’s reputation for high-quality, reliable pumps. This model is self-priming up to 7 feet and can run dry without damage, providing installation flexibility and ease of use. The integrated, sealed pressure switch allows for on-demand operation, and quick connect ports facilitate simple installation and maintenance. Vibration dampening mounting feet contribute to quieter operation, making it suitable for noise-sensitive applications. The kit version includes a 25-foot HoseCoil, enabling immediate use for cleaning tasks. Certified to CE, ISO8846, and RCM standards, and rated IPX6 for ingress protection, the Jabsco HD4 pump is a versatile, heavy-duty solution designed for tough environments. The pump utilizes co-molded TPV diaphragms, EPDM check valves, and features quick connect fittings for hoses and accessories, ensuring ease of setup. This product may expose users to chemicals including antimony oxide, known to cause cancer in California, in accordance with Prop 65 warnings. Whether for commercial or recreational use, the Jabsco HotShot HD4 offers unmatched durability, efficiency, and performance in high-pressure washdown applications.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy duty motors and cast aluminum lower housings for increased pressure and longevity

• Efficient and quiet operation for user comfort

• Integrated, sealed pressure switch for on-demand use

• Self-priming design allows versatile installation

• Can run dry without damage, reducing operational concerns

• Quick connect ports for easy installation and maintenance

• Vibration dampening mounting feet for quieter operation

• Includes 25-foot HoseCoil in kit version for immediate use
