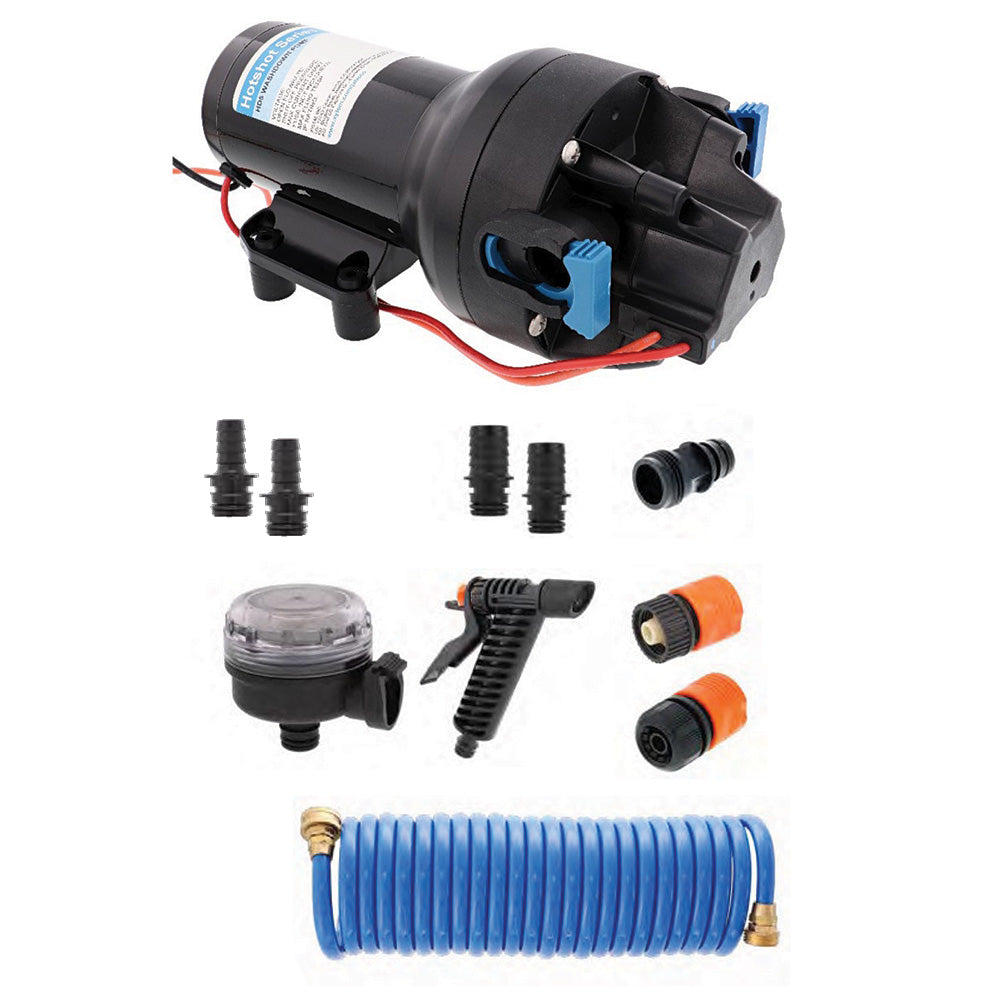

Jabsco HotShot HD5 Heavy-Duty Washdown Pump Kit with 25-Foot HoseCoil, 12V, 5 GPM, 70 PSI – P501J-119N-4A

HotShot HD5 Heavy Duty Washdown Pump Kit with 25 HoseCoil - 12V - 5GPM - 70PSI

Years of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits.

HD (heavy-duty) models include a wider diameter motor with a powder-coated shell, cast aluminum endbells, and lower housing to improve pressure capability and life.

Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy-duty, motors and cast aluminum lower housings which allow for long life, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Full kit versions are available which include a 25 (7.6m) HoseCoil

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.1m min)
• Certifications: CE, ISO8846, RCM
• Ingress protection: IPX6

Fittings Accessories:

• Quick Connect straight hose barb and GHT fittings
• 90 20 mesh Quick Connect strainer
• Trigger nozzle Quick Connect hose adapters

Jabsco HotShot HD5 Heavy-Duty Washdown Pump Kit delivers reliable, high-flow cleaning performance for marine washdown applications. This 12-volt diaphragm pump produces up to 5 gallons per minute at 70 PSI and includes a 25-foot HoseCoil for convenient reach around decks and other areas that require regular cleaning.

Built for demanding use, the HD5 features a wider-diameter motor with a powder-coated shell, cast aluminum endbells, and a lower housing designed to improve pressure capability and service life. Co-molded diaphragm technology, vibration-dampening mounting feet, and efficient, quiet operation support dependable day-to-day performance. The integrated sealed pressure switch enables on-demand operation, while self-priming capability provides installation flexibility.

The Jabsco HotShot HD5 can run dry without damage and includes quick-connect ports to simplify installation, servicing, and maintenance. The complete kit includes quick-connect hose fittings, a 20-mesh strainer, trigger nozzle, and hose adapters, giving boat owners and marine professionals the essential components for a practical washdown setup.

Key Features

• 5 GPM at 70 PSI: Provides high-flow, high-pressure performance for marine washdown tasks.
• Heavy-duty construction: Powder-coated motor shell, cast aluminum endbells, and lower housing support operation at high pressures.
• On-demand operation: Integrated sealed pressure switch activates the pump when needed.
• Installation flexibility: Self-priming capability and quick-connect ports simplify setup and maintenance.
• Complete washdown kit: Includes a 25-foot HoseCoil, strainer, trigger nozzle, and hose adapters.
• Durable pump design: Co-molded TPV diaphragm, EPDM check valves, vibration-dampening feet, and the ability to run dry without damage.

Product Details

• Brand: Jabsco
• Part number: P501J-119N-4A
• Product type: Heavy-duty washdown pump kit
• Voltage: 12V
• Maximum flow: 5 gallons per minute
• Maximum pressure: 70 PSI
• Hose: 25-foot HoseCoil
• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing: Glass-fiber-reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Maximum inlet pressure: 30 PSI
• Fluid temperature range: 32°F to 140°F
• Dry self-priming capability: Minimum 7 feet
• Ingress protection: IPX6
• Certifications: CE, ISO 8846, and RCM
• Included fittings and accessories: Quick-connect straight hose barb and garden hose thread fittings, 20-mesh quick-connect strainer, trigger nozzle, and quick-connect hose adapters

Choose the Jabsco HotShot HD5 Washdown Pump Kit for a capable, service-friendly solution that brings high-pressure marine cleaning performance and convenient hose coverage together in one complete package.
