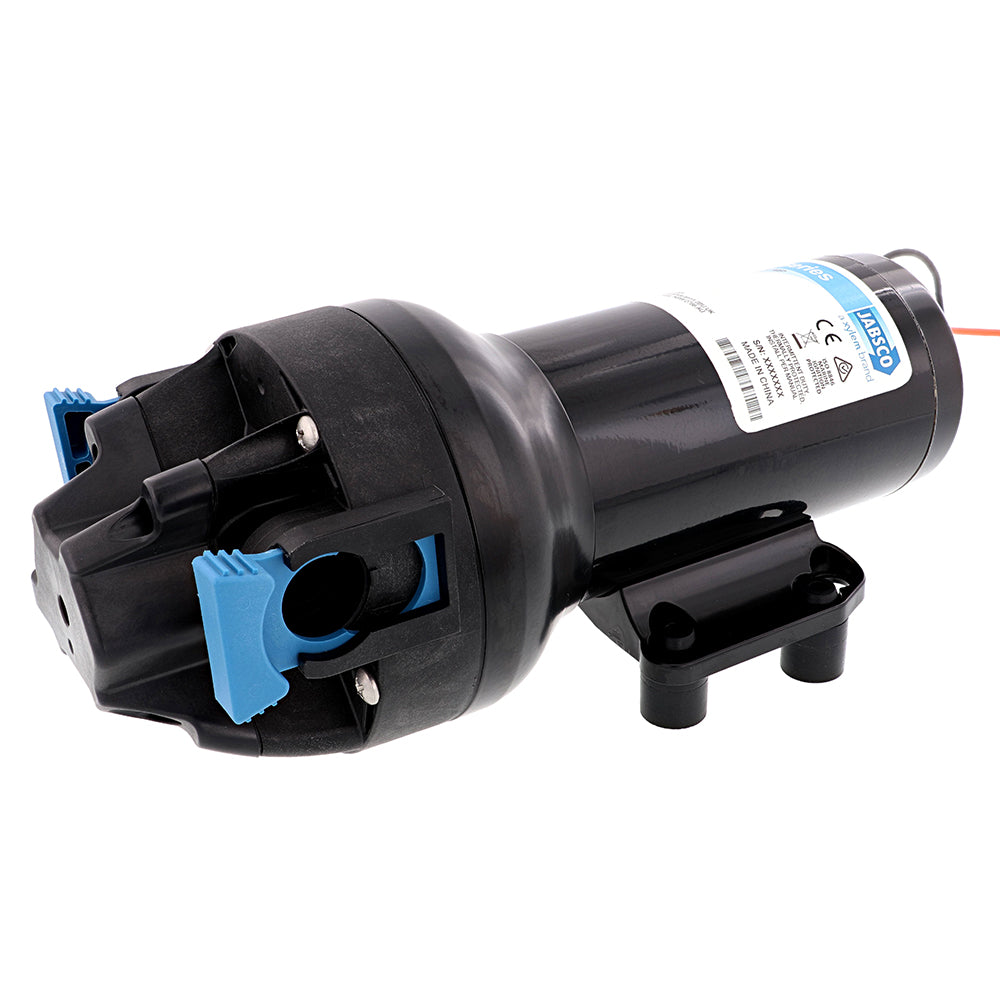

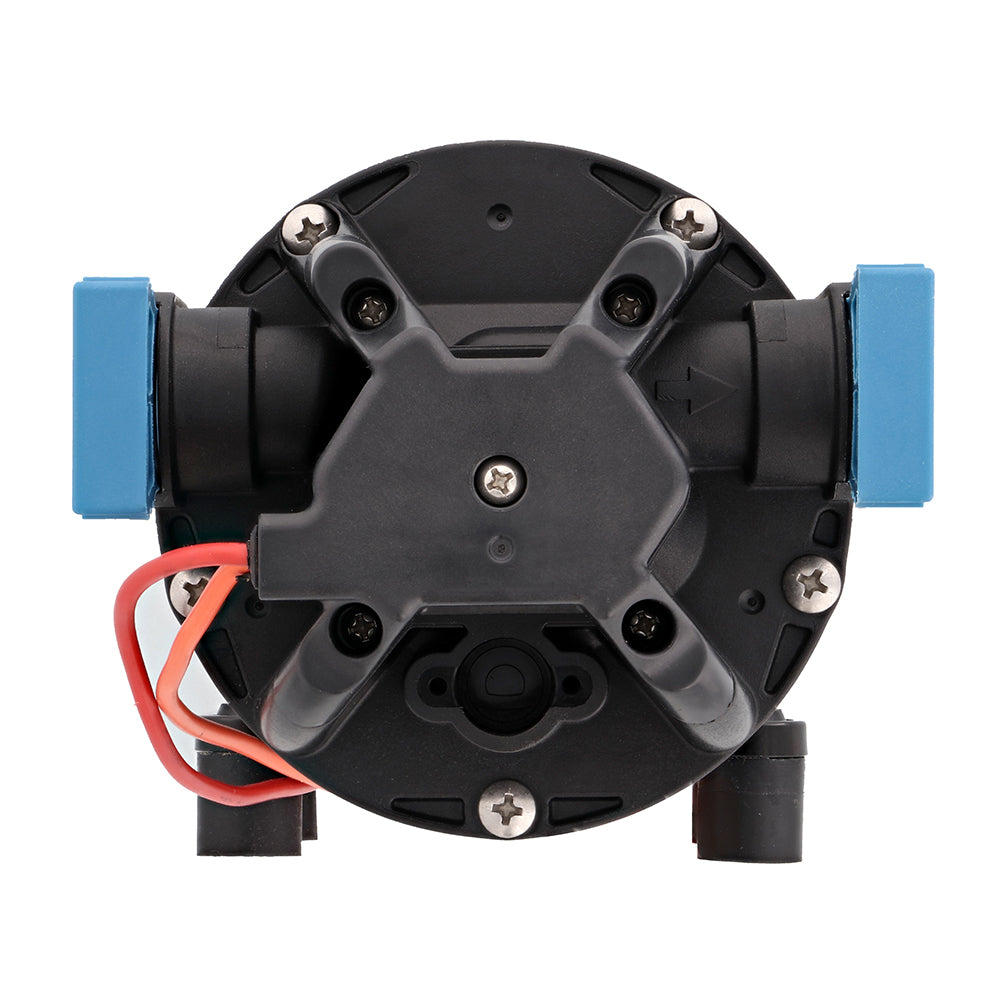

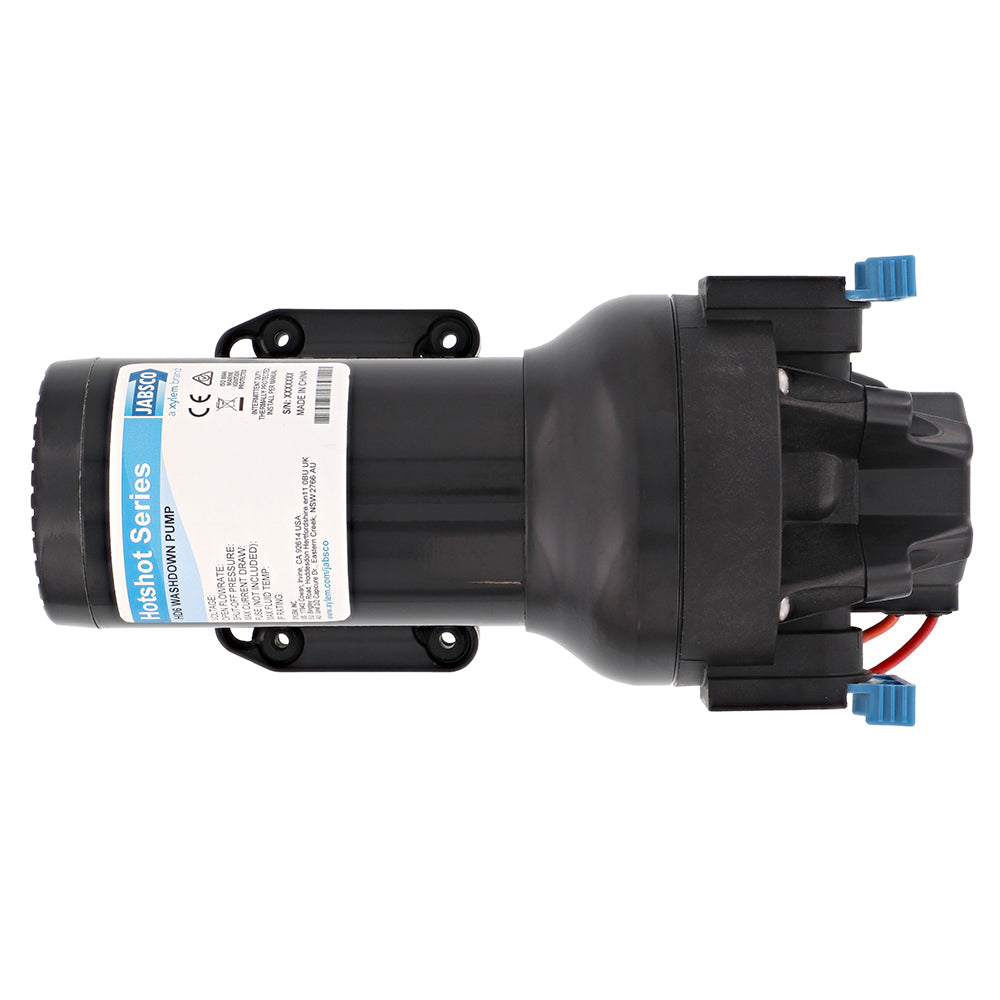

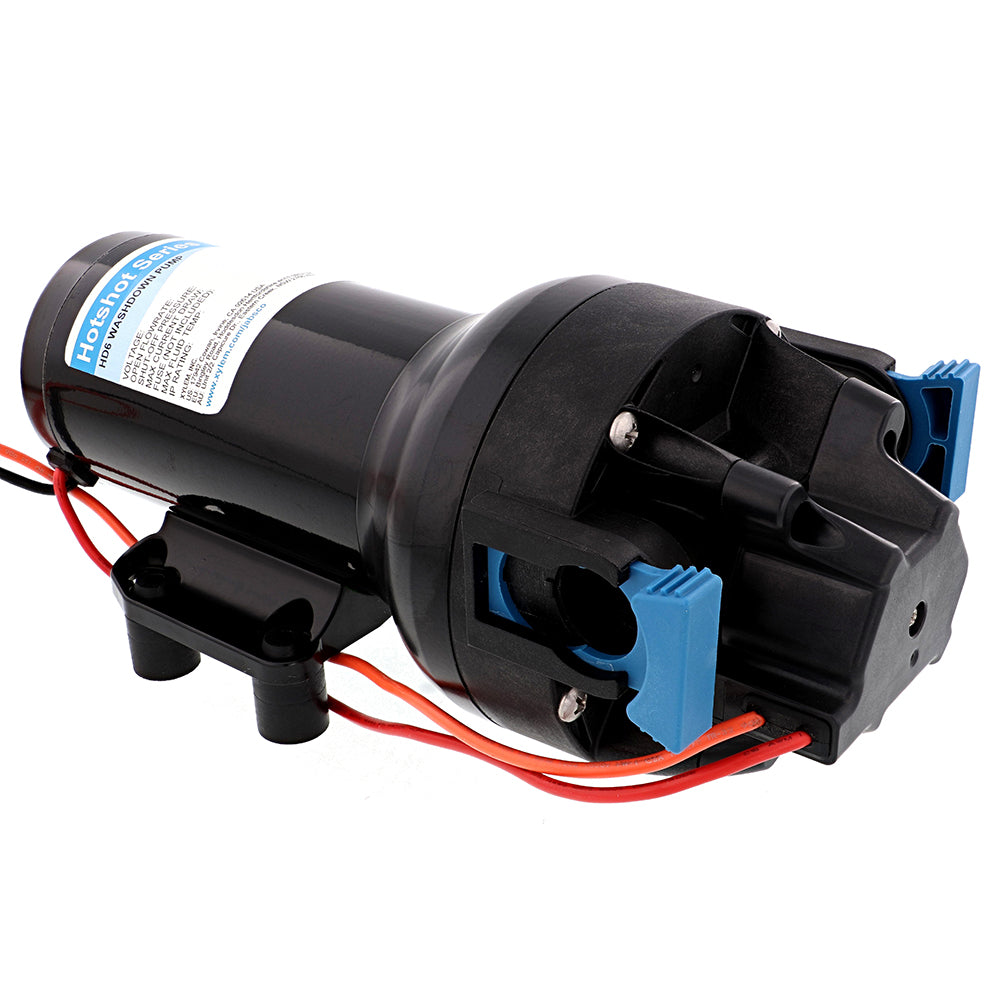

HotShot HD6 Heavy Duty Washdown Pump - 12V - 6 GPM - 70 PSI
Years of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits.
HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.
Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion.
Features:
- Co-molded diaphragm technology for long life and durability
- HD models feature heavy duty, motors and cast aluminum lower housings which allow for long-life, even at high pressures
- Efficient and quiet operation
- Integrated, sealed pressure switch for on-demand operation
- Self-priming allows for installation versatility
- Can run dry without damage
- Quick connect ports for ease of installation, servicing, and maintenance
- Vibration dampening mounting feet

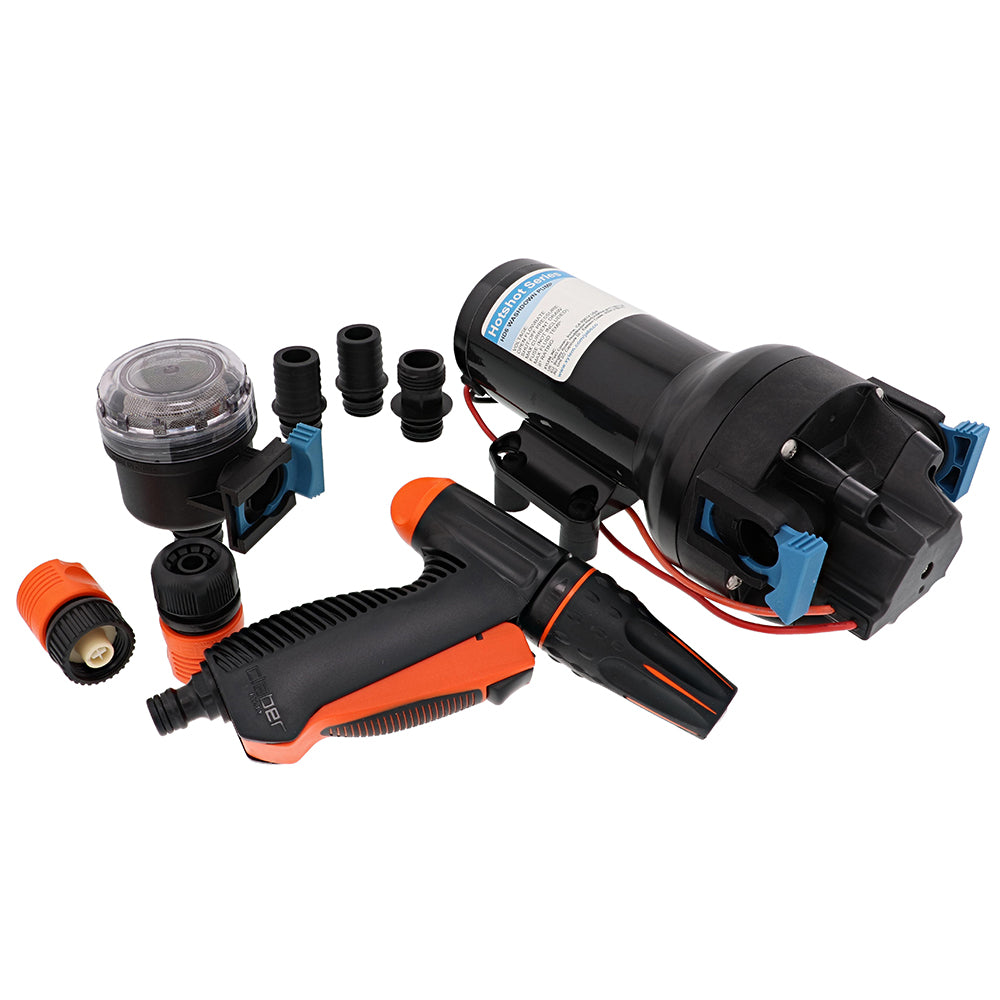

- Full kit versions available which include 25' (7.6m) hose coil
Specifications:
- Motor design: Brushed, permanent magnet TENV
- Pumphead upper housing material: Glass fiber reinforced polypropylene
- Diaphragm: Co-molded TPV
- Check valves: EPDM
- Max inlet pressure: 30 PSI (2.1 Bar)
- Fluid temperature range: 32F 140F (0C 60C)
- Dry self-priming capability: 7ft min (2.1m min)
- Certifications: CE, ISO8846, RCM
- Ingress protection: IPX6
Fittings Accessories:
- Quick Connect straight hosebarb and GHT fittings. Size varies by model.
- 90 20 mesh Quick Connect strainer
- Trigger nozzle Quick Connect hose adapters
- Kit version includes 25' deluxe HoseCoil
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Jabsco HotShot HD6 Heavy-Duty Washdown Pump delivers reliable high-flow, high-pressure water service for marine washdown applications. Designed for boat owners and marine professionals who need efficient deck cleaning and on-demand water delivery, this 12-volt diaphragm pump provides a flow rate of 6 GPM and pressure up to 70 PSI.
The HD6 model features a wider-diameter motor with a powder-coated shell, cast aluminum endbells, and a cast aluminum lower housing to support long service life during high-pressure operation. Co-molded diaphragm technology, self-priming capability, and dry-run protection provide installation flexibility and dependable operation. Quick-connect ports simplify installation, servicing, and maintenance, while vibration-dampening mounting feet help support quieter pump operation.
An integrated, sealed pressure switch enables on-demand operation, activating the pump when water is needed. The glass fiber reinforced polypropylene pumphead upper housing, co-molded TPV diaphragm, and EPDM check valves are selected for the pump’s washdown system design. The HotShot HD6 is suitable for marine washdown setups requiring a compact, durable 12V pump with high-pressure capability.
Key Features:
-
Heavy-duty construction: Powder-coated motor shell and cast aluminum components support durability in high-pressure washdown service.
-
6 GPM flow and 70 PSI pressure: Provides high-flow, high-pressure water delivery for marine deck and equipment cleaning.
-
Self-priming operation: Supports flexible installation with dry self-priming capability of at least 7 feet.
-
Dry-run protection: The pump can run dry without damage.
-
On-demand pressure switch: Integrated sealed switch activates the pump when water is required.
-
Service-friendly design: Quick-connect ports and vibration-dampening mounting feet simplify installation and maintenance.
Product Details:
-
Brand: Jabsco
-
Model/Part Number: P601J-219N-3A
-
Product type: Heavy-duty marine washdown diaphragm pump
-
Power: 12V
-
Maximum flow: 6 GPM
-
Maximum pressure: 70 PSI
-
Motor: Brushed, permanent magnet TENV
-
Pumphead upper housing: Glass fiber reinforced polypropylene
-
Diaphragm: Co-molded TPV
-
Check valves: EPDM
-
Maximum inlet pressure: 30 PSI
-
Fluid temperature range: 32°F to 140°F
-
Ingress protection: IPX6
-
Certifications: CE, ISO8846, and RCM
-
Fittings: Quick-connect straight hose barb and GHT fittings; size varies by model
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Choose the Jabsco HotShot HD6 for dependable 12V, high-pressure marine washdown performance and practical serviceability.
