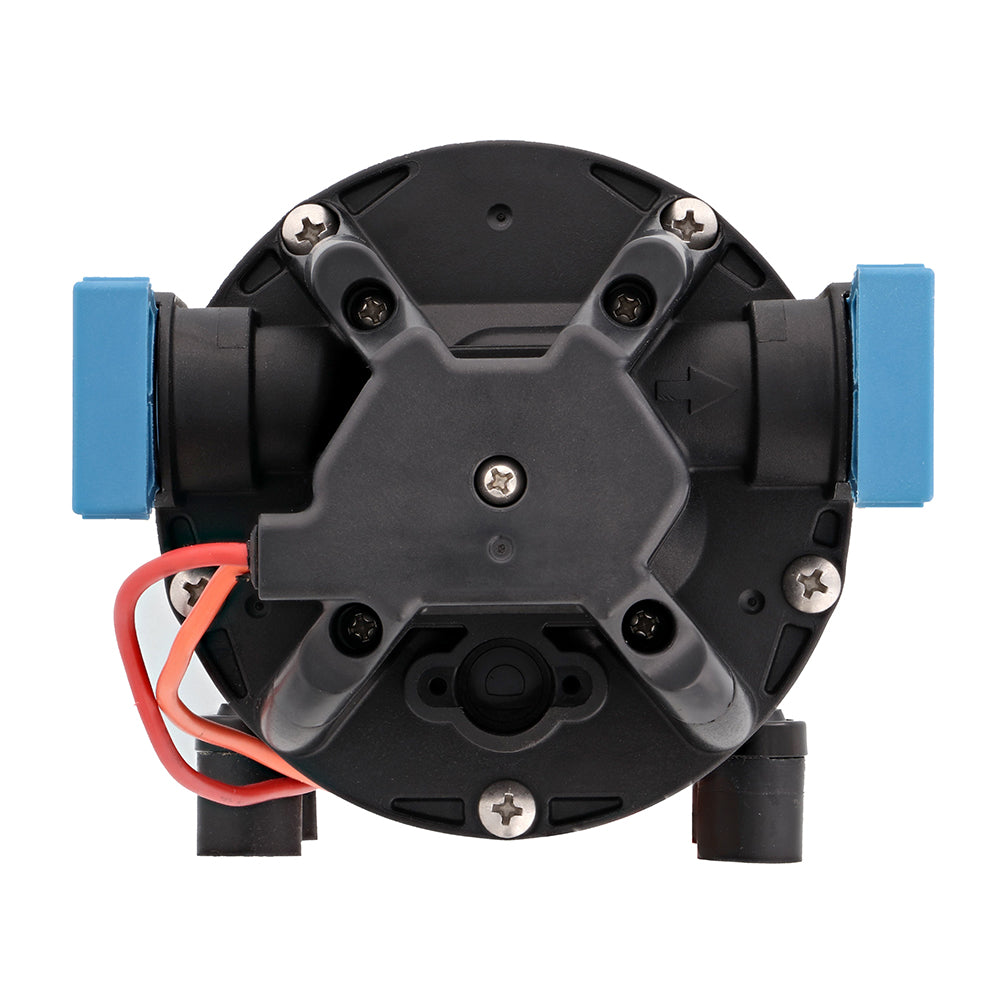

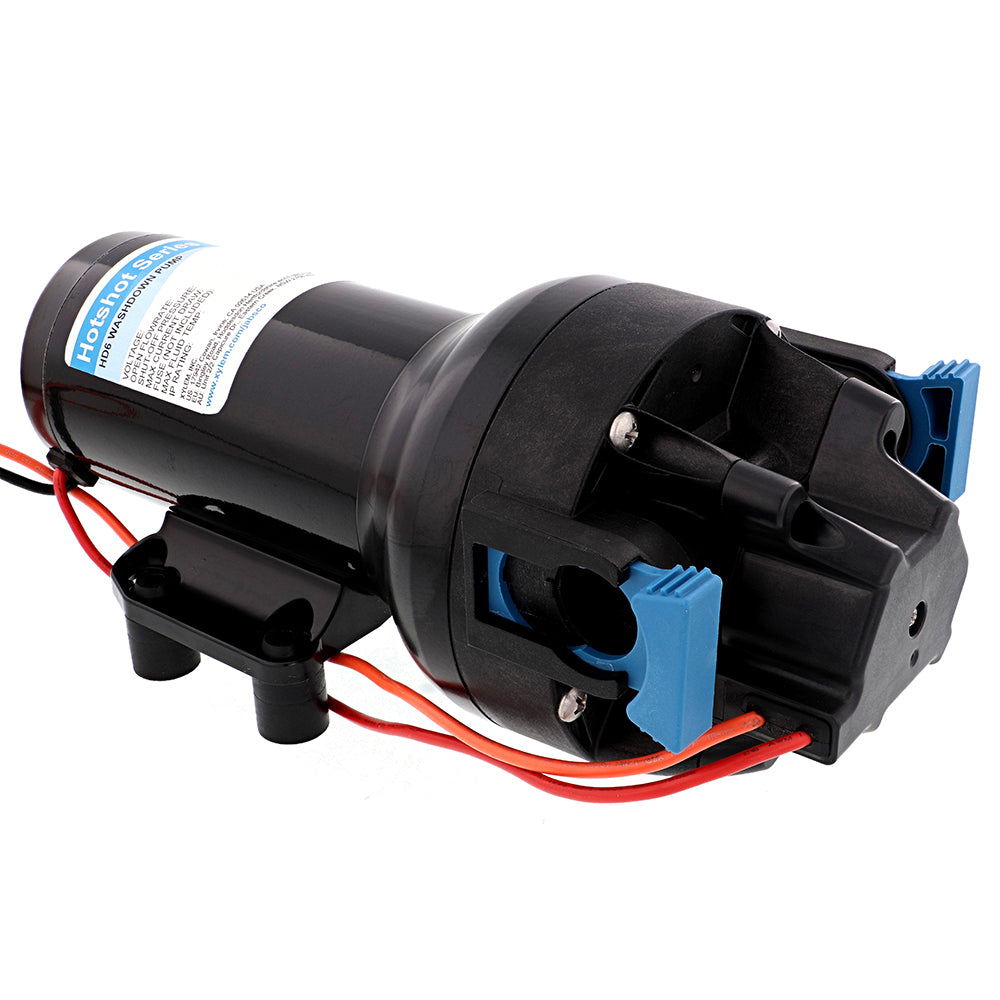

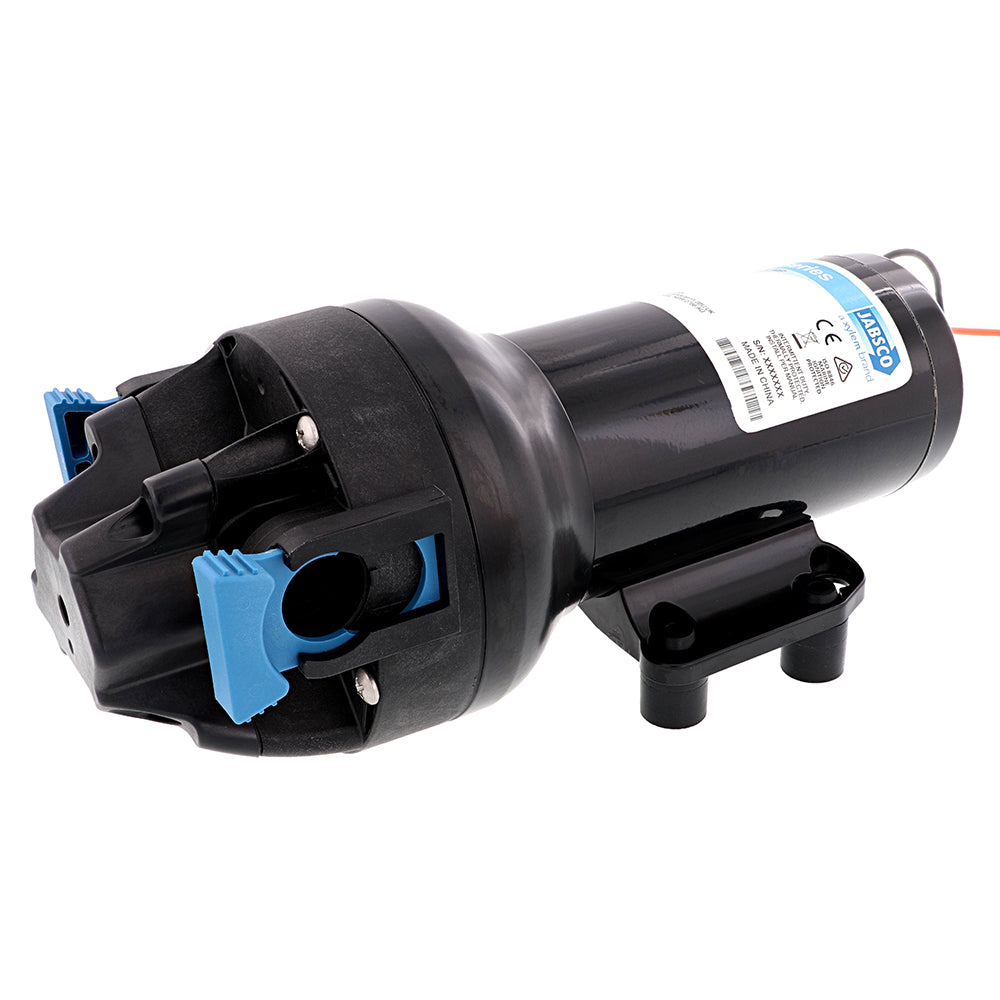

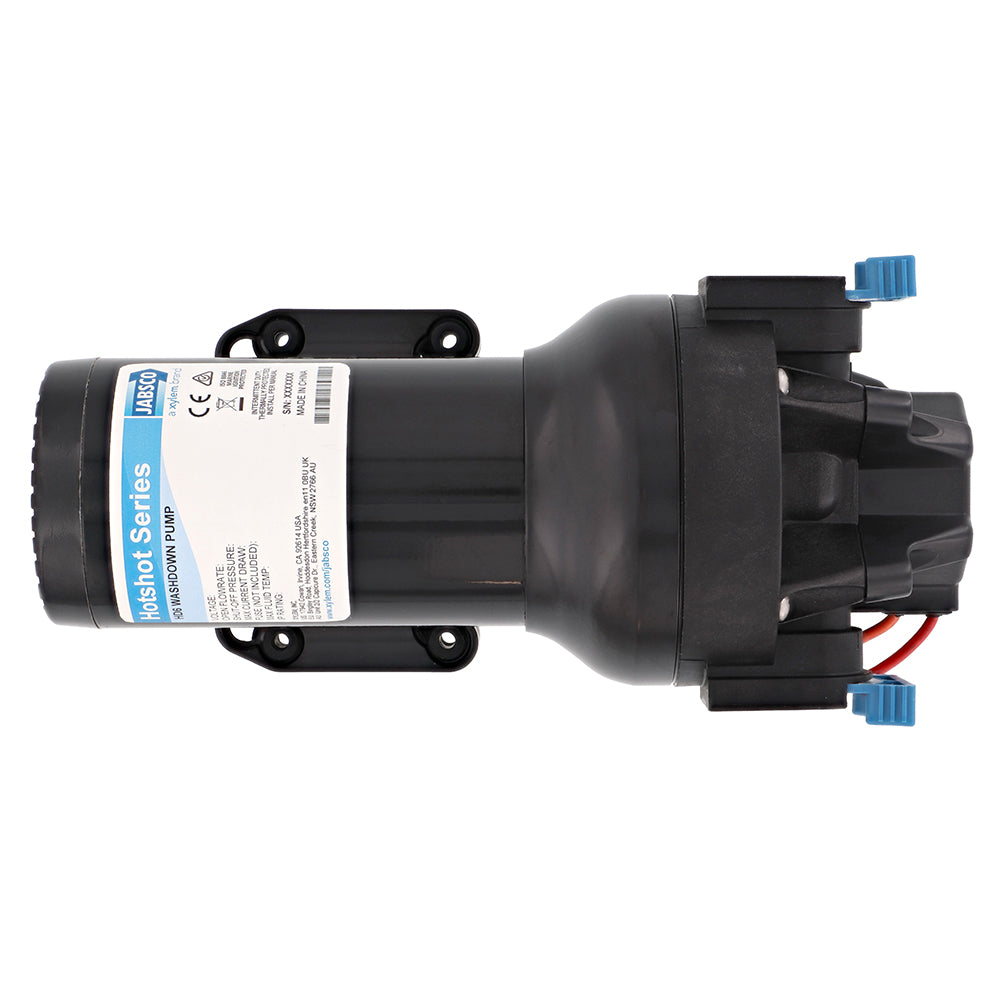

HotShot HD6 Heavy Duty Washdown Pump - 24V - 6 GPM - 70 PSI
Years of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits.
HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.
Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion.
Features:
- Co-molded diaphragm technology for long life and durability
- HD models feature heavy duty, motors and cast aluminum lower housings which allow for long-life, even at high pressures
- Efficient and quiet operation
- Integrated, sealed pressure switch for on-demand operation
- Self-priming allows for installation versatility
- Can run dry without damage
- Quick connect ports for ease of installation, servicing, and maintenance
- Vibration dampening mounting feet

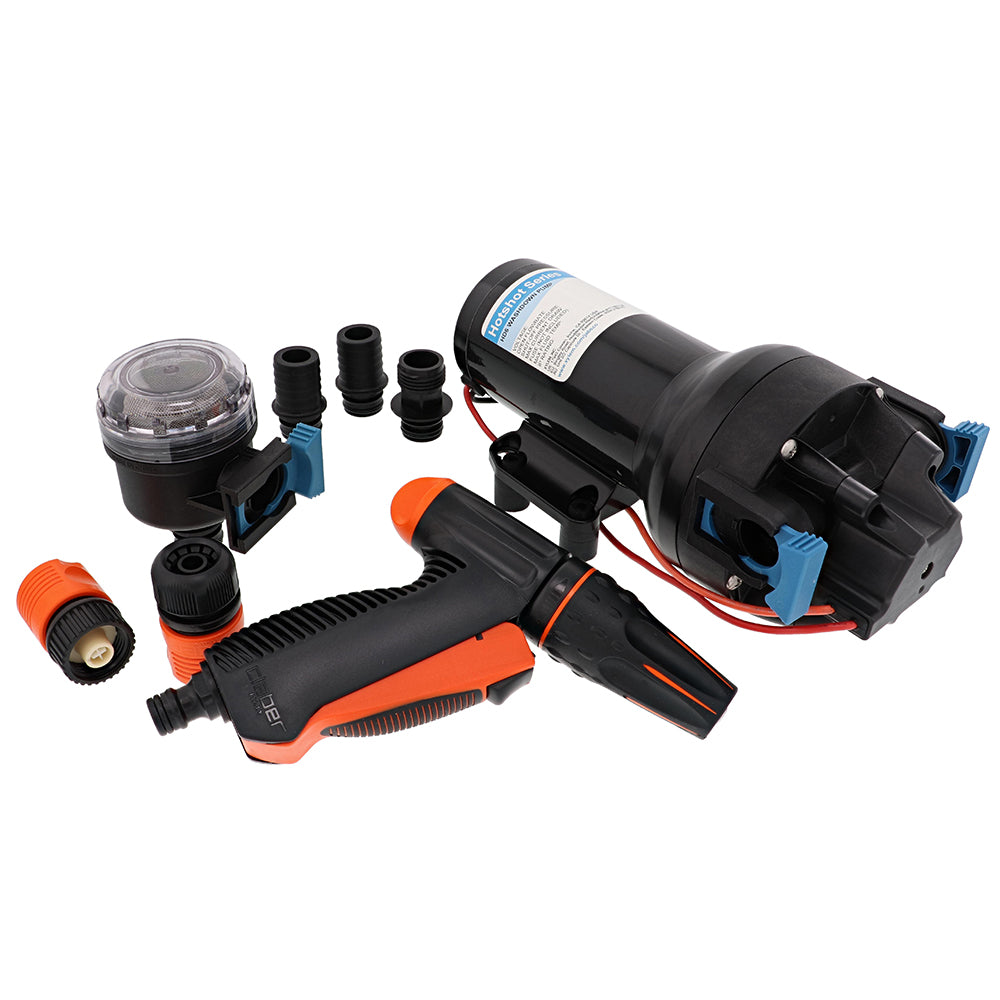

- Full kit versions available which include 25' (7.6m) hose coil
Specifications:
- Motor design: Brushed, permanent magnet TENV
- Pumphead upper housing material: Glass fiber reinforced polypropylene
- Diaphragm: Co-molded TPV
- Check valves: EPDM
- Max inlet pressure: 30 PSI (2.1 Bar)
- Fluid temperature range: 32F 140F (0C 60C)
- Dry self-priming capability: 7ft min (2.1m min)
- Certifications: CE, ISO8846, RCM
- Ingress protection: IPX6
Fittings Accessories:
- Quick Connect straight hosebarb and GHT fittings. Size varies by model.
- 90 20 mesh Quick Connect strainer
- Trigger nozzle Quick Connect hose adapters
- Kit version includes 25' deluxe HoseCoil
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
The Jabsco HotShot HD6 Heavy-Duty Washdown Pump is a reliable marine washdown solution for boat owners, service professionals, and anyone who needs dependable high-flow, high-pressure water delivery. Operating at 24 volts with a flow rate of 6 gallons per minute and pressure up to 70 PSI, this diaphragm pump is designed for cleaning decks and other washdown applications where consistent performance matters.
The HD6 features a heavy-duty motor, powder-coated shell, cast aluminum endbells, and a cast aluminum lower housing to support long service life during high-pressure operation. Co-molded diaphragm technology, vibration-dampening mounting feet, and quiet, efficient operation contribute to practical everyday use. Its integrated sealed pressure switch enables on-demand operation, while self-priming capability and the ability to run dry without damage provide installation flexibility. Quick-connect ports simplify installation, servicing, and maintenance.
Built for demanding marine environments, the pump includes a glass fiber reinforced polypropylene upper pumphead housing, a co-molded TPV diaphragm, and EPDM check valves. The pump supports a maximum inlet pressure of 30 PSI and fluid temperatures from 32°F to 140°F. With IPX6 ingress protection and CE, ISO8846, and RCM certifications, the Jabsco HotShot HD6 provides a clearly specified option for marine washdown systems requiring 24-volt power, 6 GPM flow, and 70 PSI pressure.
Key Features:
-
Heavy-duty construction: Powder-coated motor shell, cast aluminum endbells, and lower housing support operation at high pressures.
-
High-flow washdown performance: Delivers up to 6 GPM and 70 PSI for marine deck cleaning and washdown applications.
-
On-demand operation: Integrated, sealed pressure switch activates the pump as needed.
-
Installation flexibility: Self-priming capability and dry-run protection help simplify system installation and use.
-
Service-friendly design: Quick-connect ports support easier installation, servicing, and maintenance.
-
Quiet, efficient operation: Vibration-dampening mounting feet help support smooth operation.
Product Details:
-
Brand: Jabsco
-
Model: HotShot HD6
-
Part number: P602J-219N-3A
-
Voltage: 24V
-
Flow rate: 6 GPM
-
Maximum pressure: 70 PSI
-
Motor design: Brushed, permanent magnet TENV
-
Upper pumphead housing: Glass fiber reinforced polypropylene
-
Diaphragm: Co-molded TPV
-
Check valves: EPDM
-
Maximum inlet pressure: 30 PSI
-
Fluid temperature range: 32°F to 140°F
-
Dry self-priming capability: 7 feet minimum
-
Ingress protection: IPX6
-
Certifications: CE, ISO8846, RCM
Choose the Jabsco HotShot HD6 Heavy-Duty Washdown Pump for a robust, serviceable 24-volt solution built around dependable marine washdown performance.
