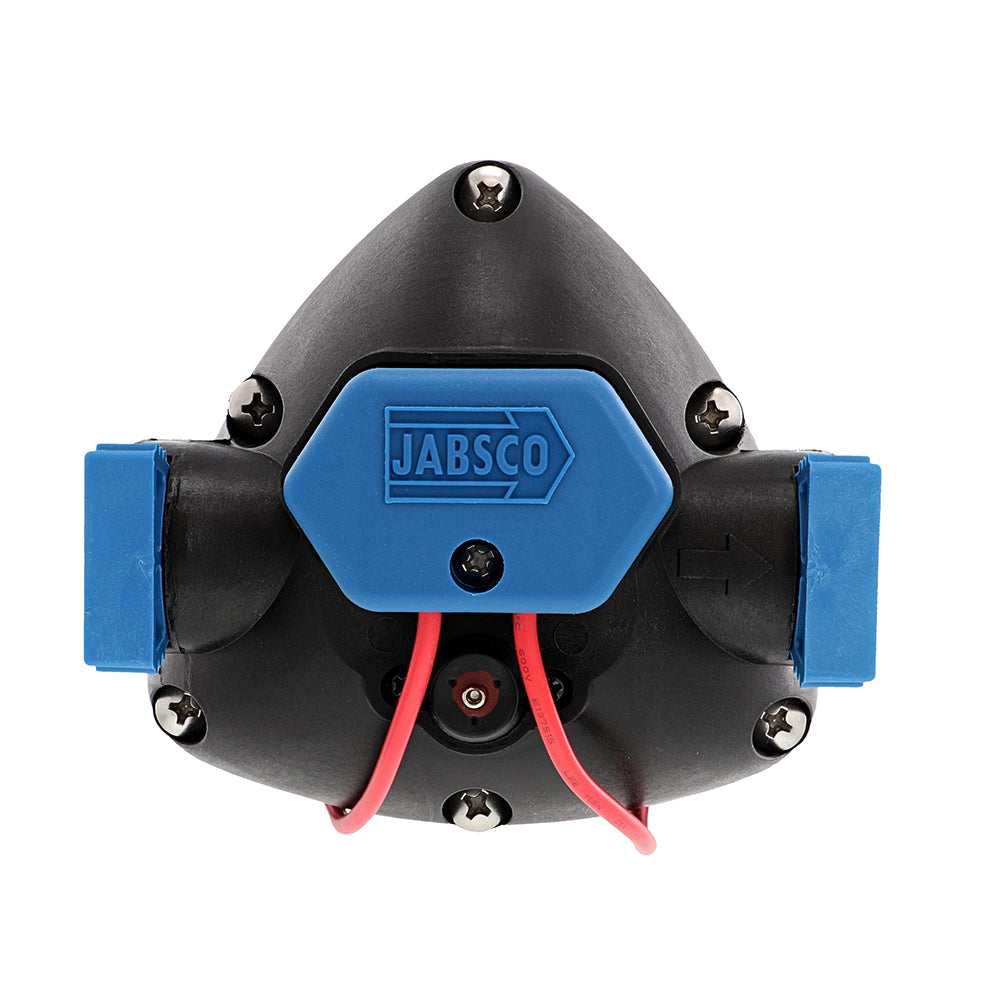

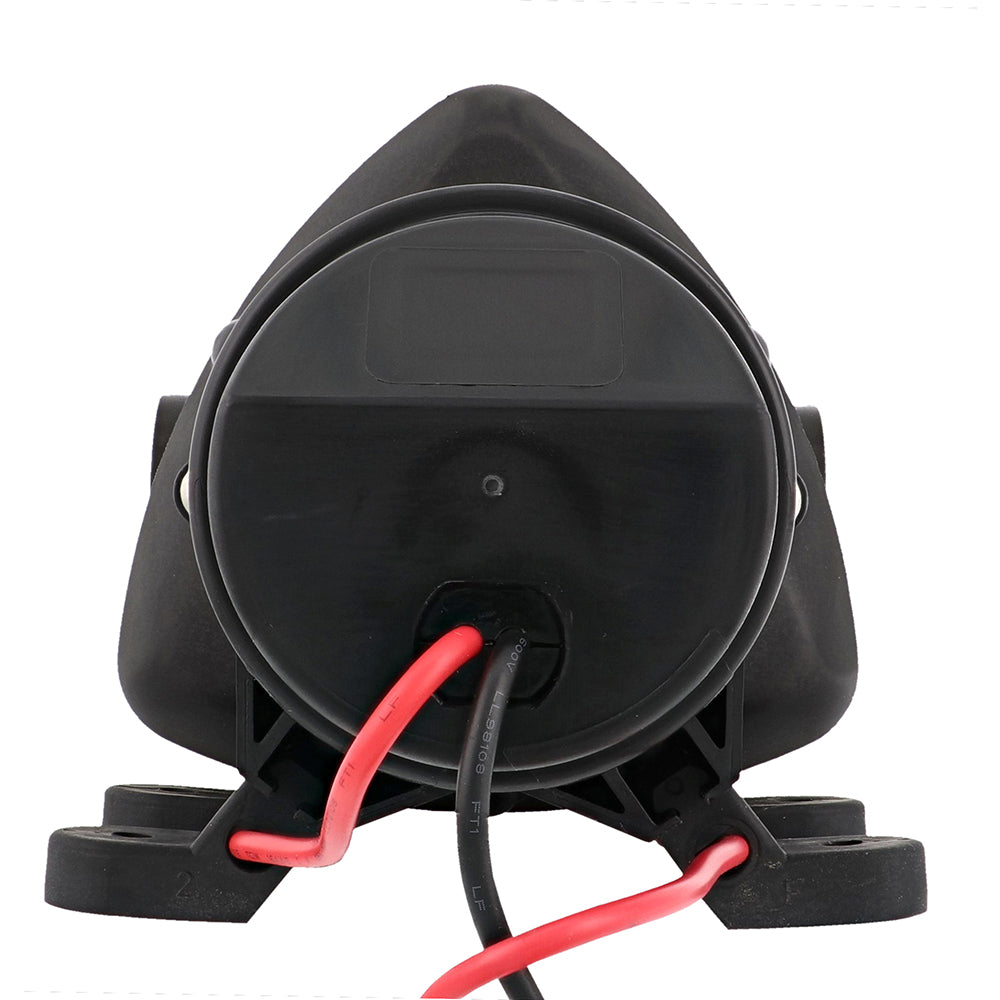

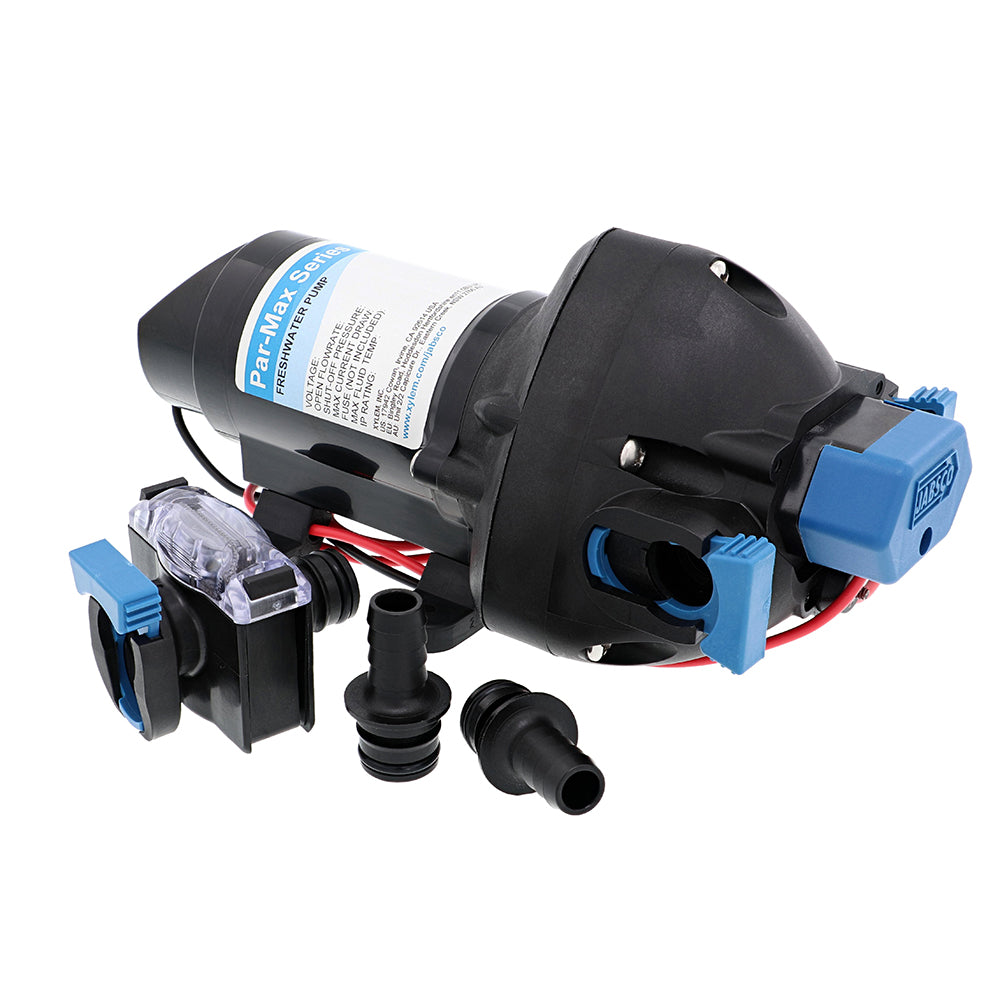

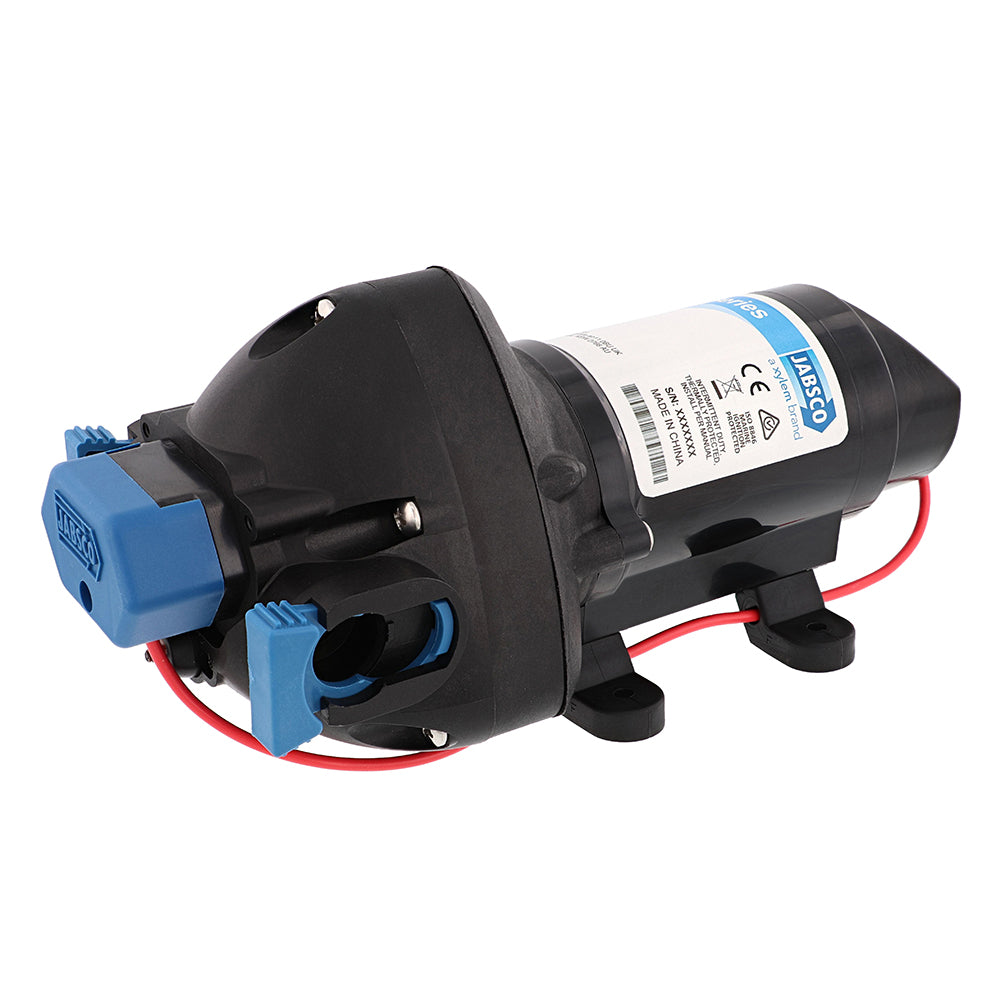

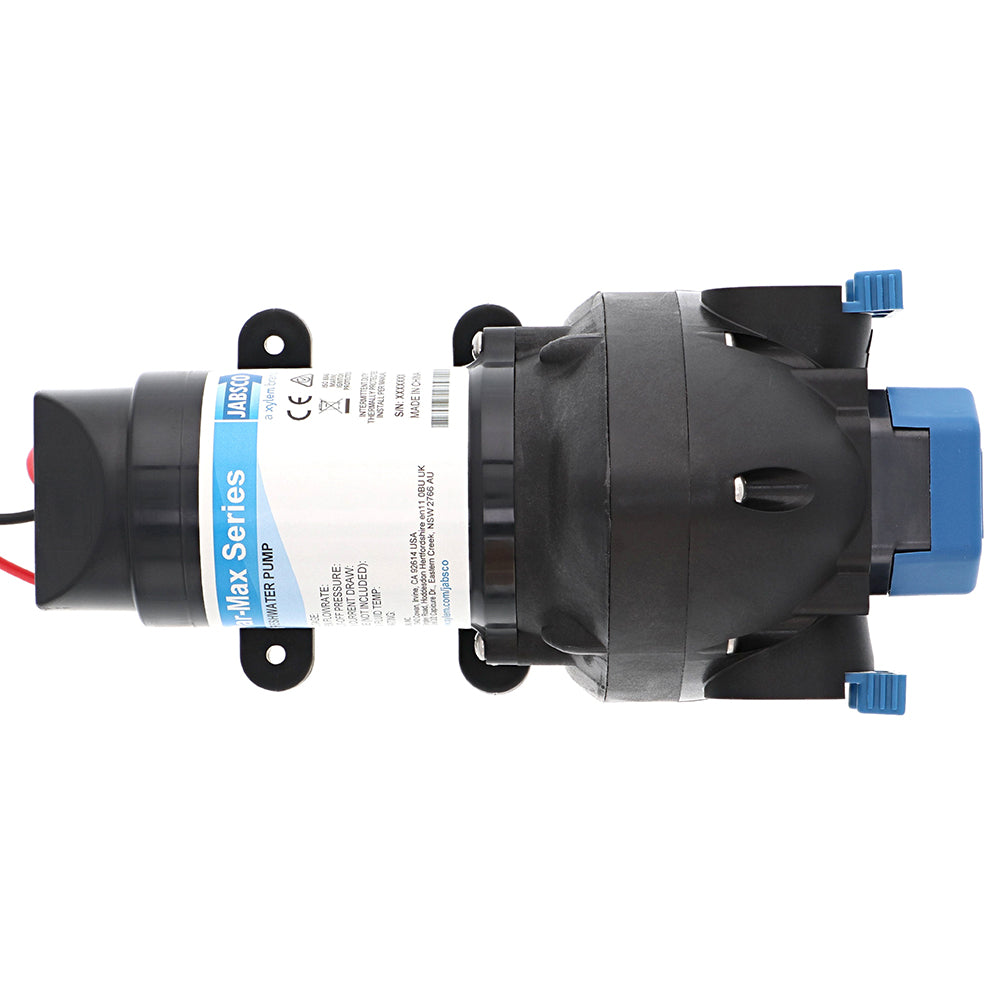

Jabsco Par-Max 2 Water Pressure Pump 12V, 2 GPM, 35 PSI – Part Number 31295-3512-3A

Par-Max 2 Water Pressure Pump - 12V - 2 GPM - 35 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max 2 Water Pressure Pump delivers dependable on-demand water pressure for marine vessels and other applications requiring a compact 12-volt pump. With a 2 GPM flow rate and 35 PSI pressure rating, this pump is suited for systems with 1 to 3 outlets. Its self-priming design supports flexible installation, while the pump can run dry without damage for added operational convenience.

Designed for efficient, quiet operation, the Jabsco Par-Max 2 uses co-molded diaphragm technology for durability and long service life. An integrated, sealed pressure switch enables automatic on-demand operation, and the built-in bypass module helps reduce cycling for smoother water flow. Quick-connect ports simplify installation, servicing, and maintenance, while vibration-dampening mounting feet help support a more stable installation.

Key Features:

• 2 GPM flow and 35 PSI pressure: Provides water pressure for marine systems with 1 to 3 outlets.
• 12-volt brushed motor: Uses a permanent-magnet TENV motor design for efficient pump operation.
• Co-molded diaphragm: TPV diaphragm construction supports durability and long service life.
• On-demand operation: Integrated, sealed pressure switch automatically activates the pump when needed.
• Installation flexibility: Self-priming capability, quick-connect ports, and vibration-dampening mounting feet simplify setup and maintenance.
• Integrated bypass module: Helps reduce cycling and provide smoother flow.

Product Details:

• Brand: Jabsco
• Product: Par-Max 2 water pressure pump
• Part number: 31295-3512-3A
• Voltage: 12V
• Flow rate: 2 GPM
• Pressure rating: 35 PSI
• Pumphead upper housing: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Maximum inlet pressure: 30 PSI
• Fluid temperature range: 32°F to 140°F
• Dry self-priming capability: 7 feet minimum
• Ingress protection: IPX6
• Certifications: CE, ISO8846, RCM

Choose the Jabsco Par-Max 2 for compact, reliable on-demand water pressure in compatible 12-volt systems.
