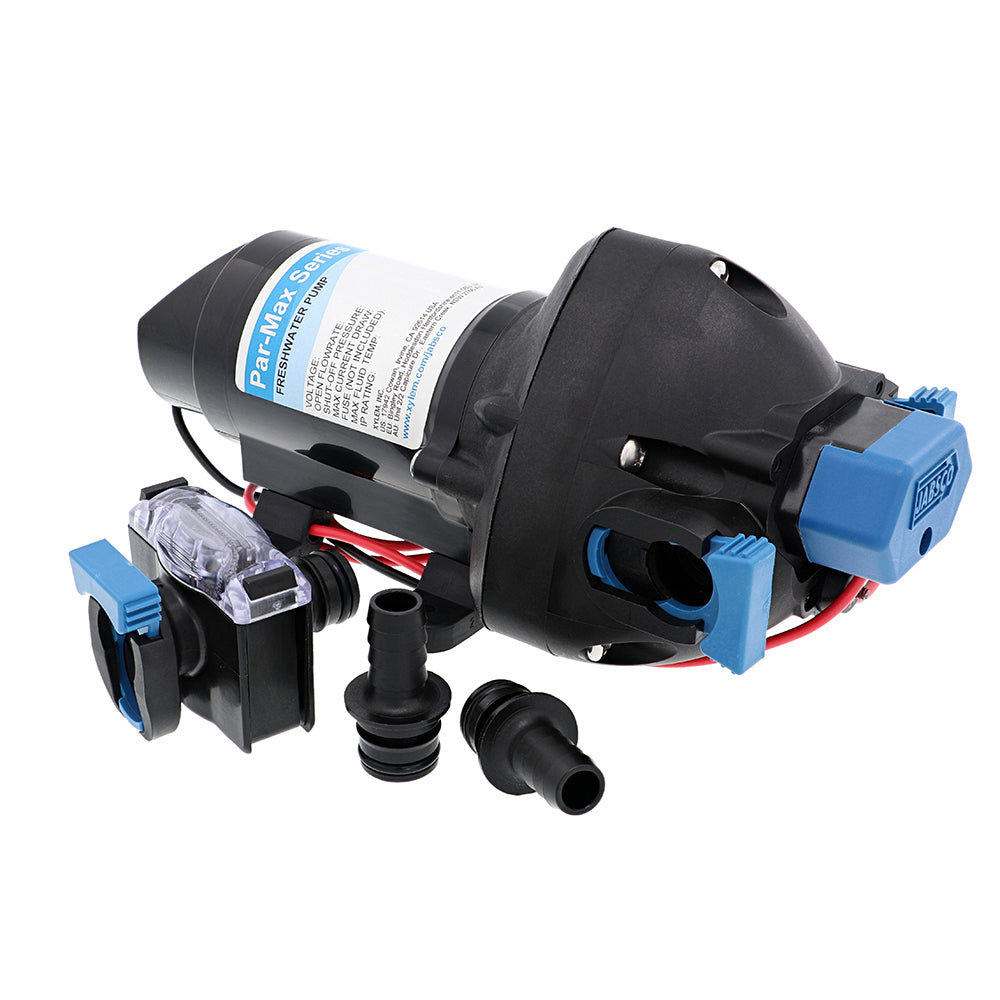

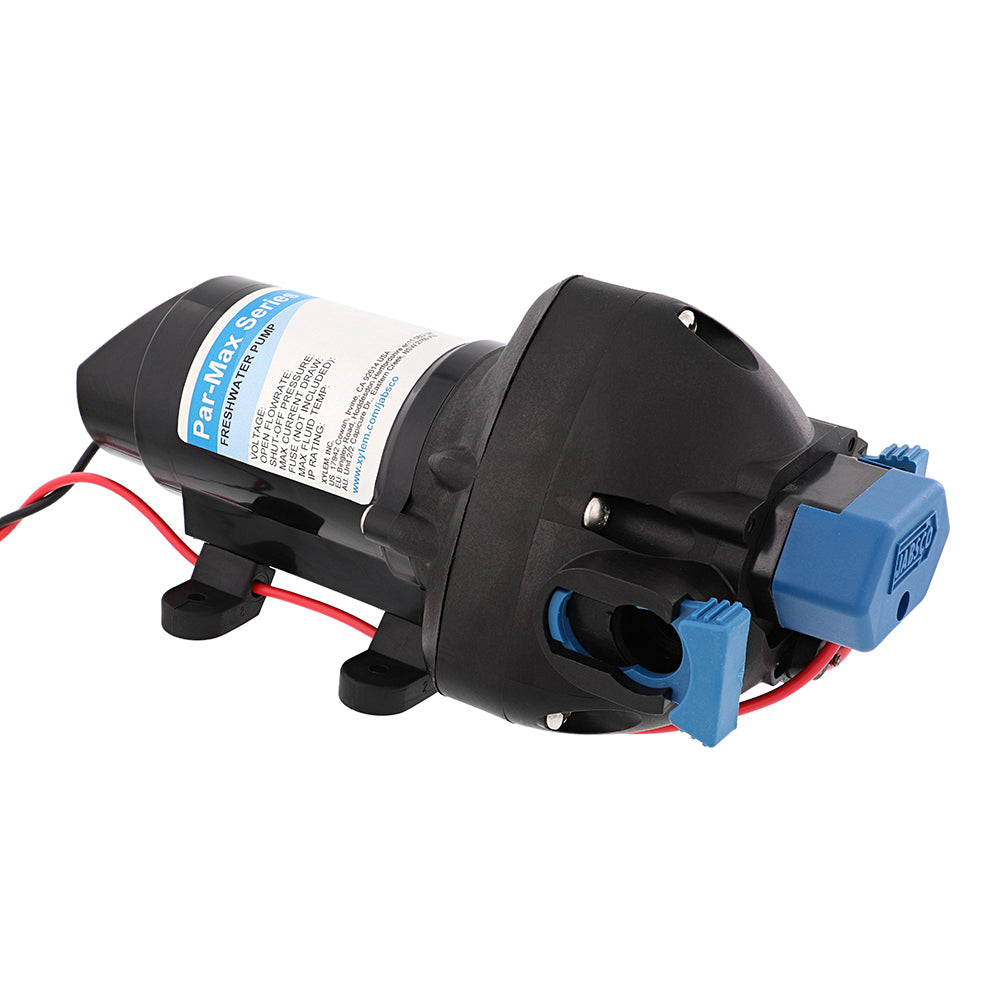

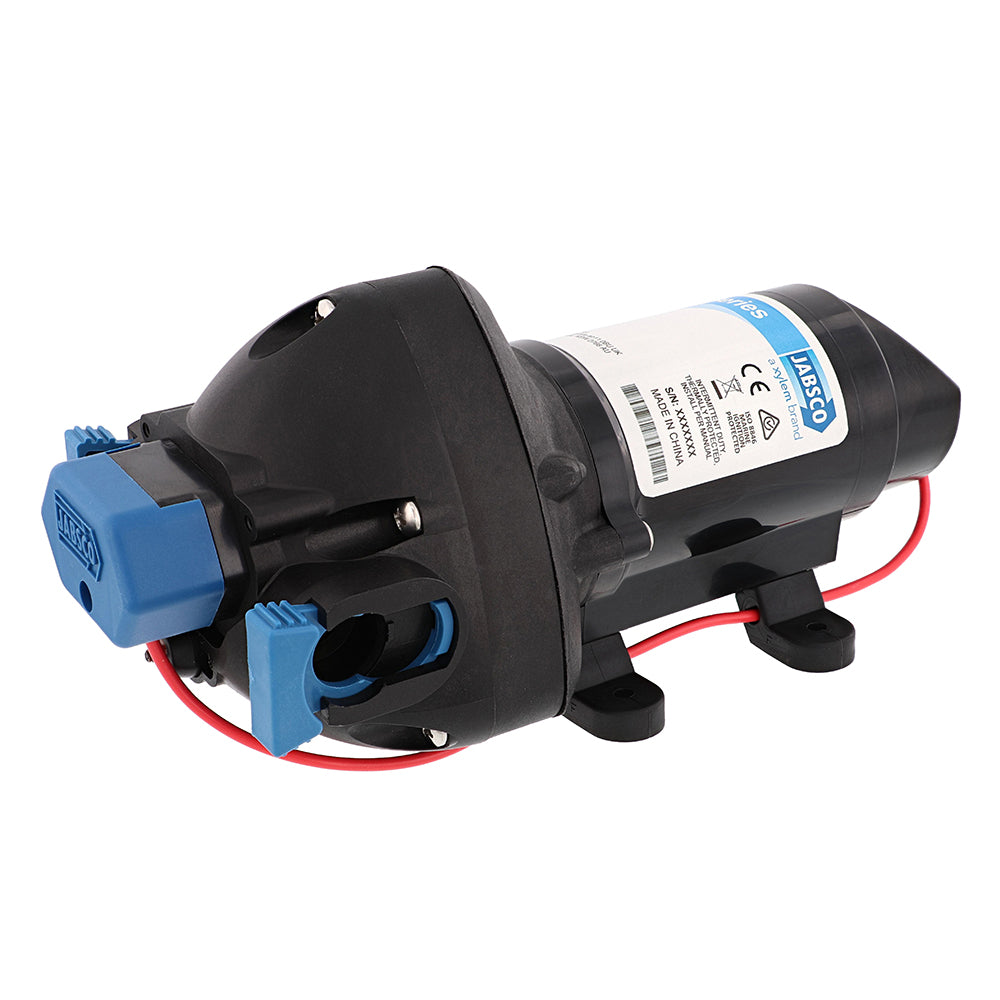

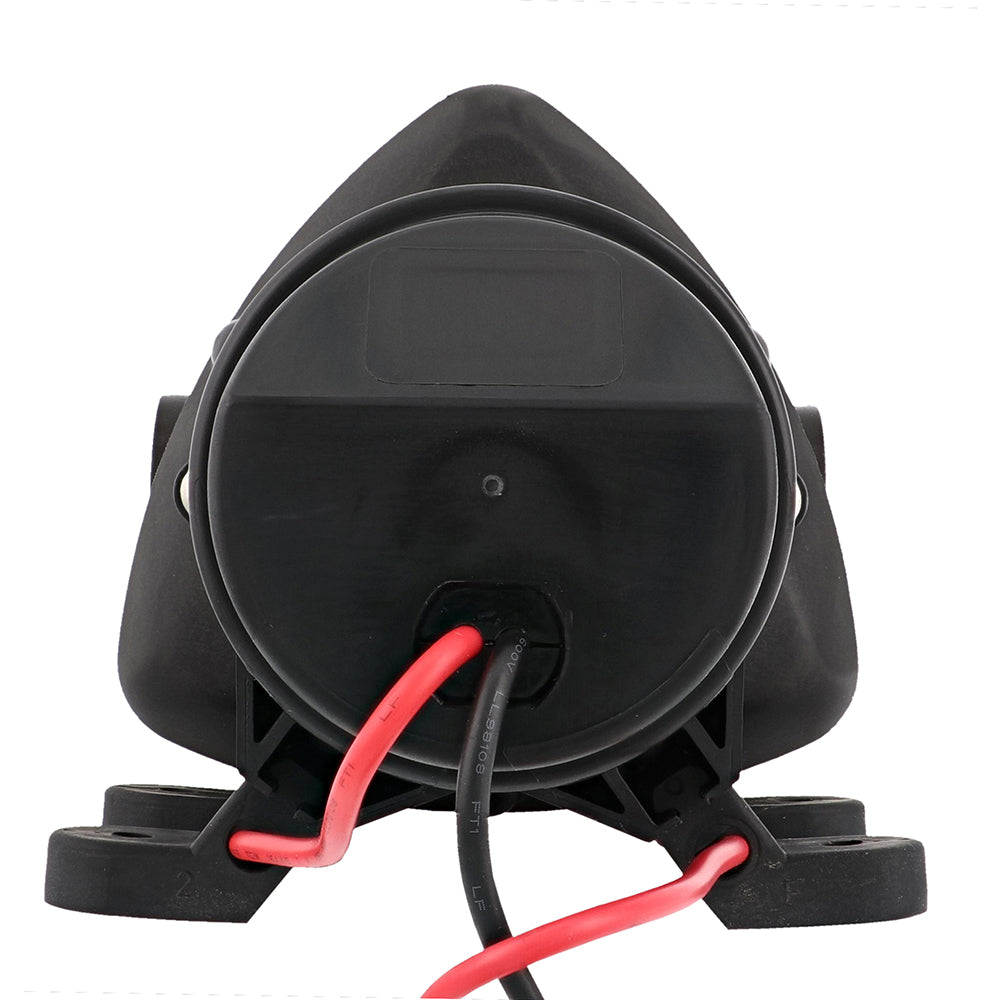

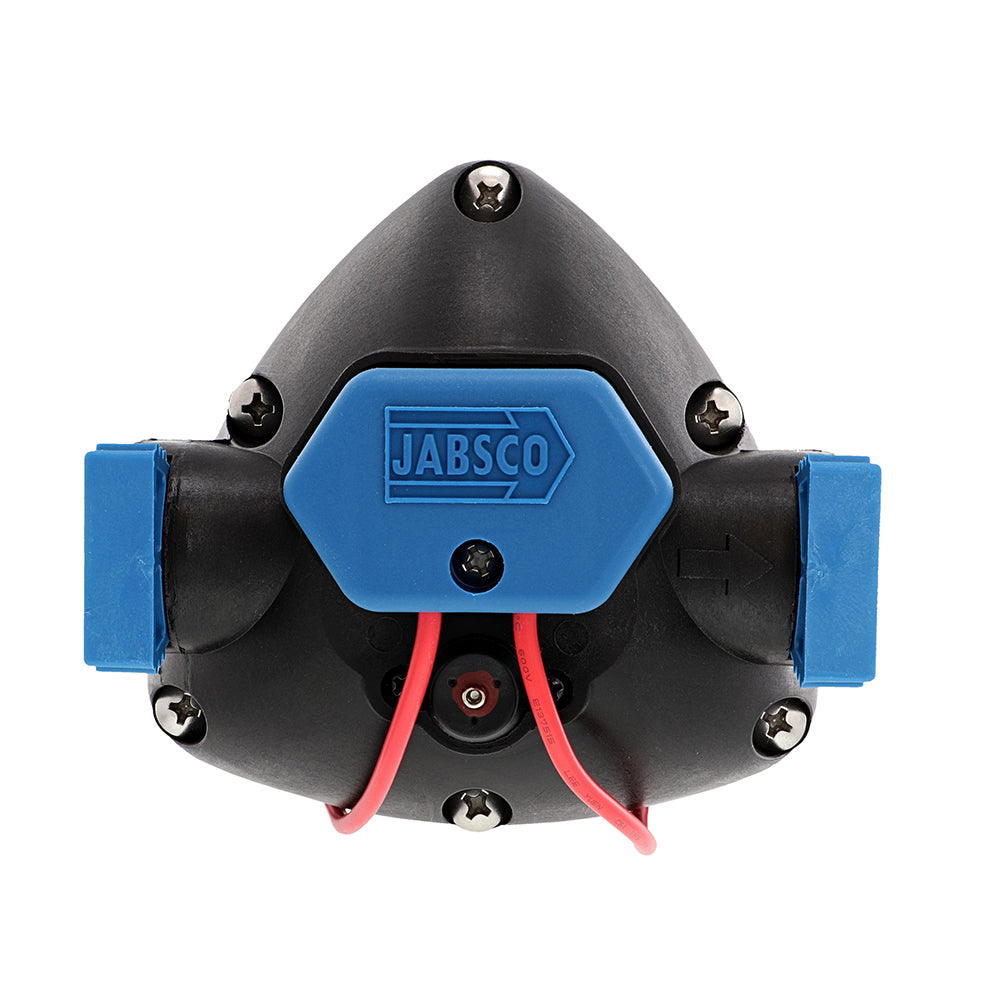

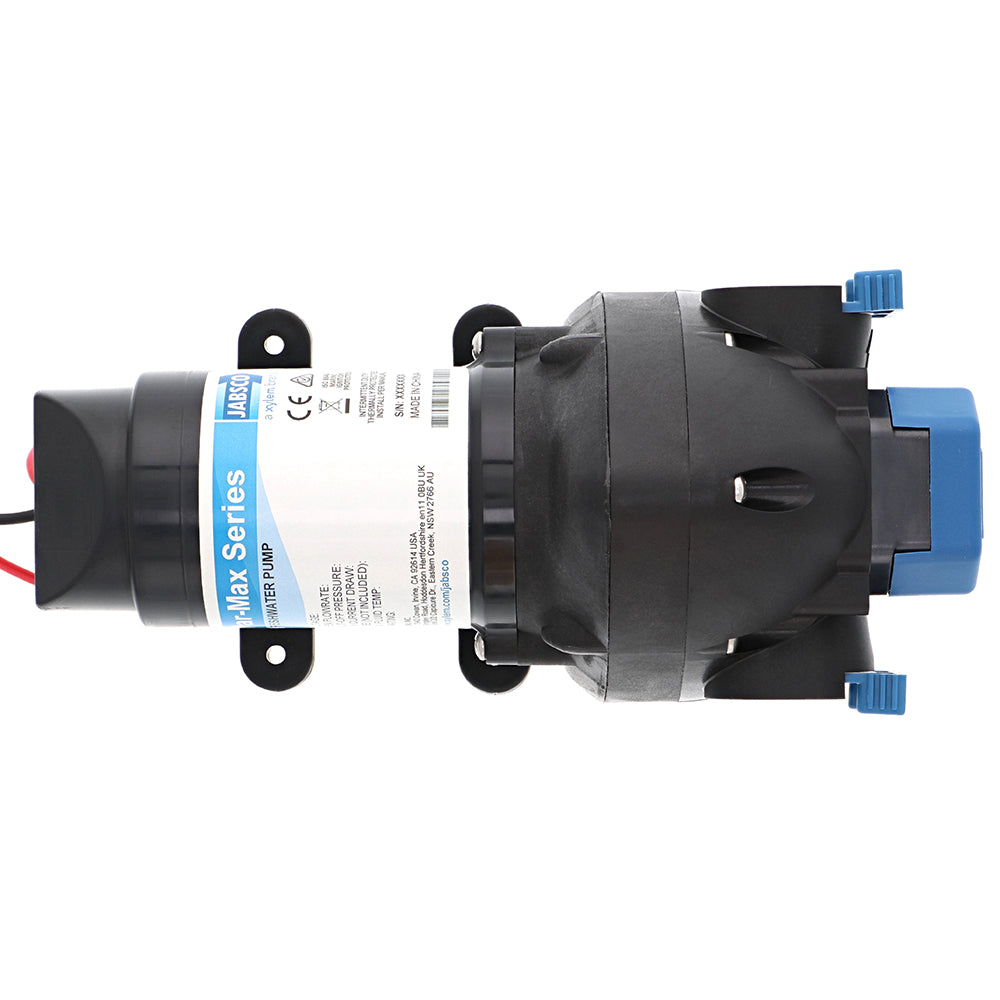

Jabsco Par-Max 2 Water Pressure Pump 24V, 2 GPM, 35 PSI – Part Number 31295-3524-3A

Par-Max 2 Water Pressure Pump - 24V - 2 GPM - 35 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max 2 Water Pressure Pump delivers dependable on-demand water pressure for vessels and other appropriate water systems requiring a 24-volt, 2 GPM pump. With a 35 PSI pressure rating, self-priming capability, quiet operation, and durable diaphragm construction, this pump supports convenient installation and reliable everyday water delivery.

Designed for practical serviceability, the Par-Max 2 features quick-connect ports, vibration-dampening mounting feet, and an integrated sealed pressure switch for automatic on-demand operation. Its integrated bypass module helps reduce cycling and provide smoother flow, while the pump can run dry without damage. The self-priming design adds installation flexibility, and the corrosion-resistant glass fiber reinforced polypropylene upper housing helps protect the pumphead in marine and other suitable applications.

Key Features:

• On-demand water pressure: Integrated sealed pressure switch activates the pump as needed for convenient water delivery.
• Durable diaphragm design: Co-molded TPV diaphragm technology supports long service life and durability.
• Installation flexibility: Self-priming operation and quick-connect ports simplify installation, servicing, and maintenance.
• Smoother flow: Integrated bypass module helps reduce cycling and provide more consistent pump operation.
• Quiet, efficient performance: Designed for efficient operation with vibration-dampening mounting feet.
• Dry-run capability: The pump can run dry without damage.

Product Details:

• Brand: Jabsco
• Product: Par-Max 2 Water Pressure Pump
• Part Number: 31295-3524-3A
• Voltage: 24V
• Flow rate: 2 GPM
• Pressure rating: 35 PSI
• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Maximum inlet pressure: 30 PSI
• Fluid temperature range: 32°F to 140°F
• Dry self-priming capability: 7 feet minimum
• Ingress protection: IPX6
• Certifications: CE, ISO8846, RCM

Choose the Jabsco Par-Max 2 for dependable 24V water pressure, straightforward installation, and practical serviceability in compatible water systems.

California Proposition 65 Warning: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
