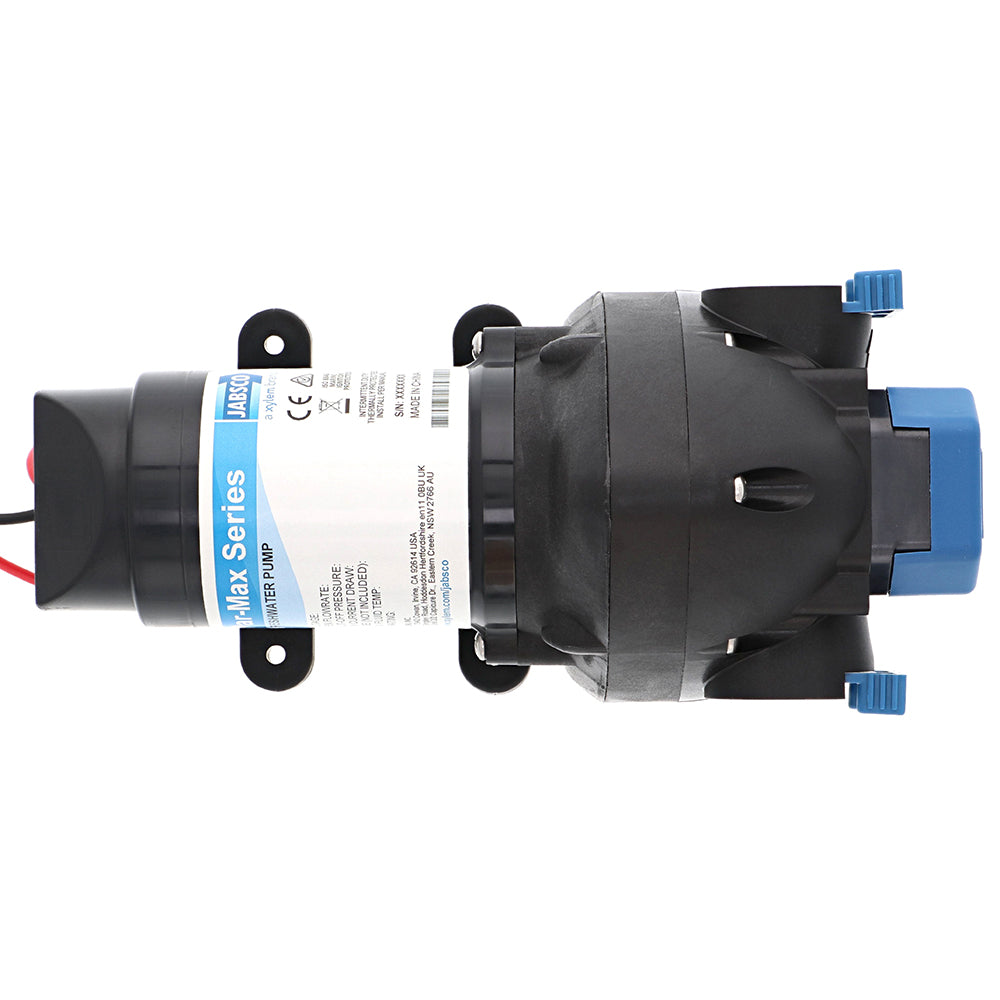

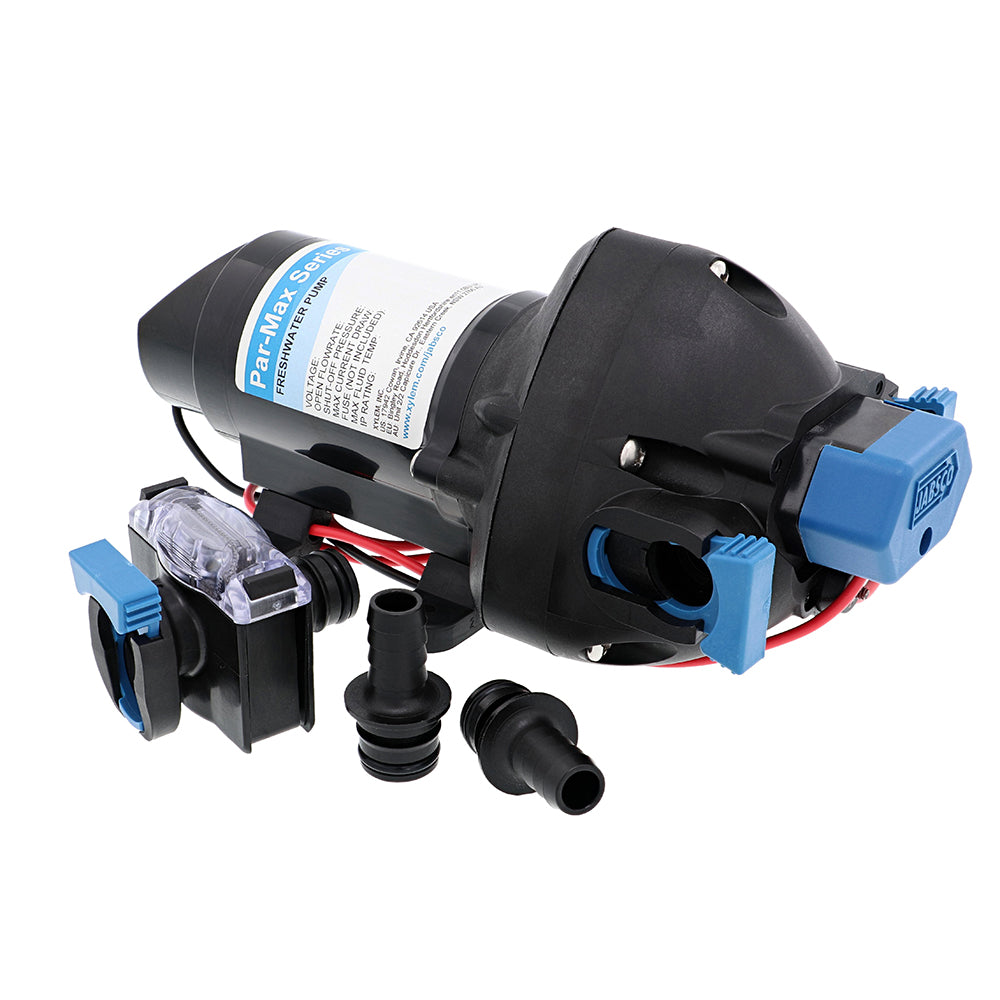

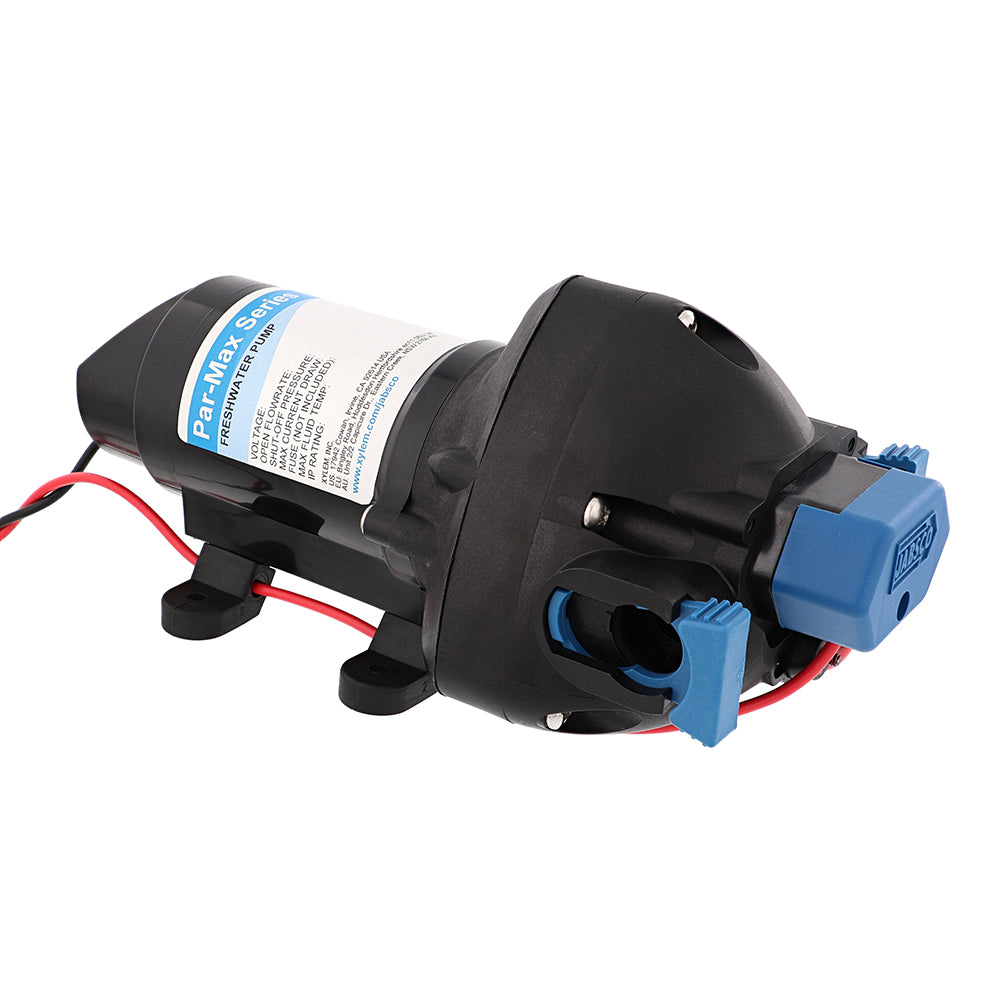

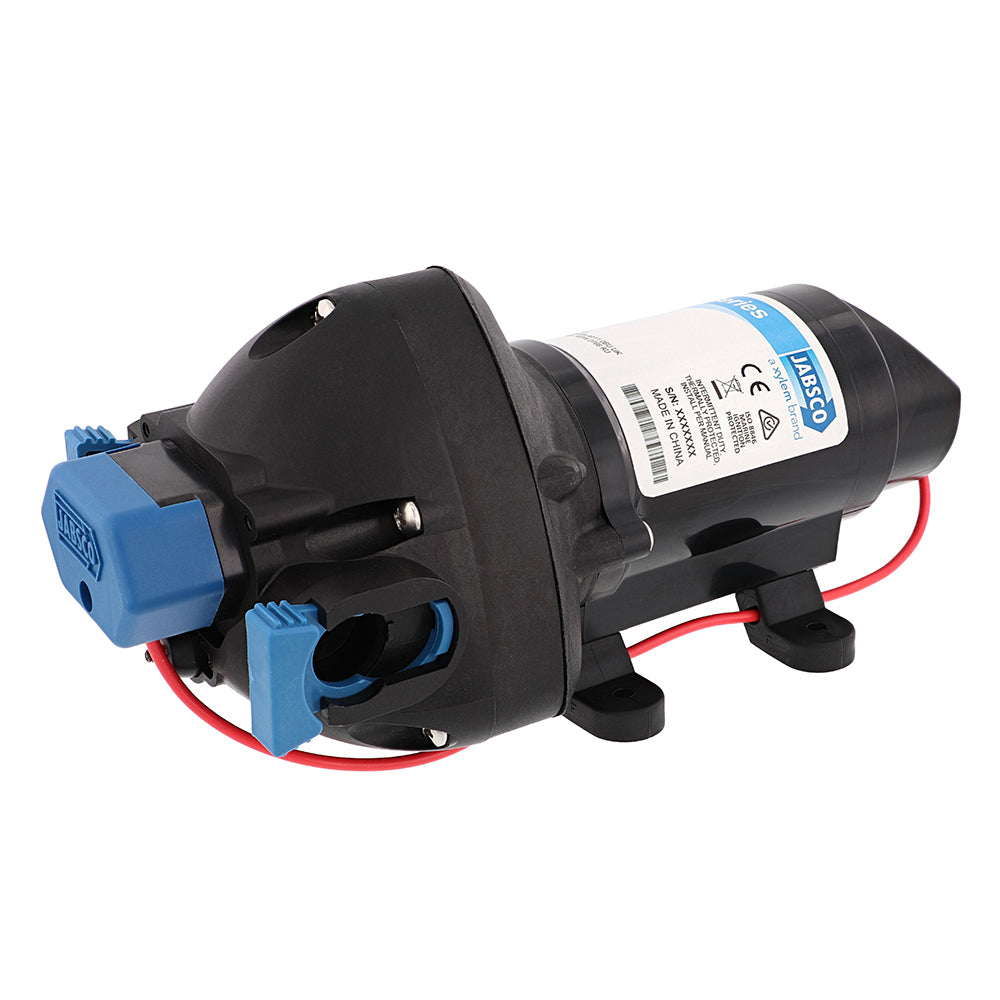

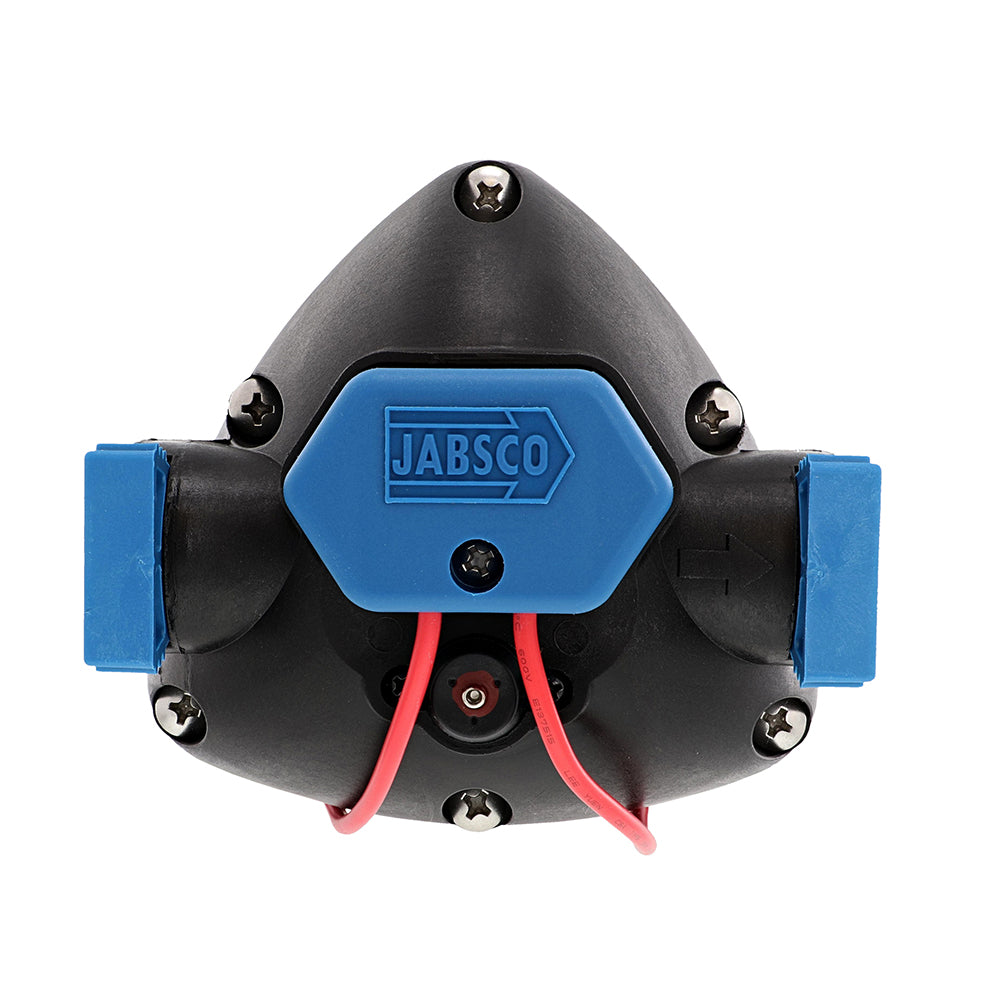

Jabsco Par-Max 3 Water Pressure Pump – 12V, 3 GPM, 25 PSI for Marine and RV Applications

Par-Max 3 Water Pressure Pump - 12V - 3 GPM - 25 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max 3 Water Pressure Pump is engineered for reliable performance in marine, RV, and other mobile water systems. With a compact design and efficient operation, this 12V pump delivers a flow rate of 3 gallons per minute at a steady 25 PSI, ensuring consistent water supply for multiple outlets. Its robust construction includes a co-molded diaphragm for enhanced durability and a corrosion-resistant plastic housing that protects internal components, making it ideal for demanding environments. The integrated, sealed pressure switch enables on-demand operation, contributing to energy efficiency and quiet functionality. The self-priming feature allows flexible installation options, while the quick-connect ports facilitate easy servicing and maintenance. Vibration dampening mounting feet help minimize noise and vibrations, ensuring smooth operation even in rugged conditions. The inclusion of an integrated bypass module reduces cycling, providing a steady flow and extending the pump’s lifespan. Designed with heavy-duty motors and cast aluminum endbells and lower housings, the HD models enhance pressure capabilities and durability for intensive use. Suitable for various fluid temperatures, this pump can operate efficiently within a range of 32°F to 140°F and withstand inlet pressures up to 30 PSI. Certified by CE, ISO8846, and RCM, and rated IPX6 for ingress protection, the Jabsco Par-Max 3 meets rigorous safety and quality standards. Please note that this product contains chemicals known to cause cancer in California, as per Prop 65 warnings. Whether upgrading your water system or installing a new setup, the Par-Max 3 offers dependable, long-lasting performance with the convenience and features needed for modern applications.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty models feature cast aluminum endbells and lower housings for increased pressure and longevity

• Efficient and quiet operation for comfortable use

• Integrated, sealed pressure switch for on-demand water flow

• Self-priming design allows flexible installation options

• Can operate dry without damage, reducing maintenance concerns

• Quick connect ports facilitate easy installation and servicing

• Vibration dampening mounting feet for quieter operation

• Built-in bypass module to reduce cycling and ensure smooth flow
