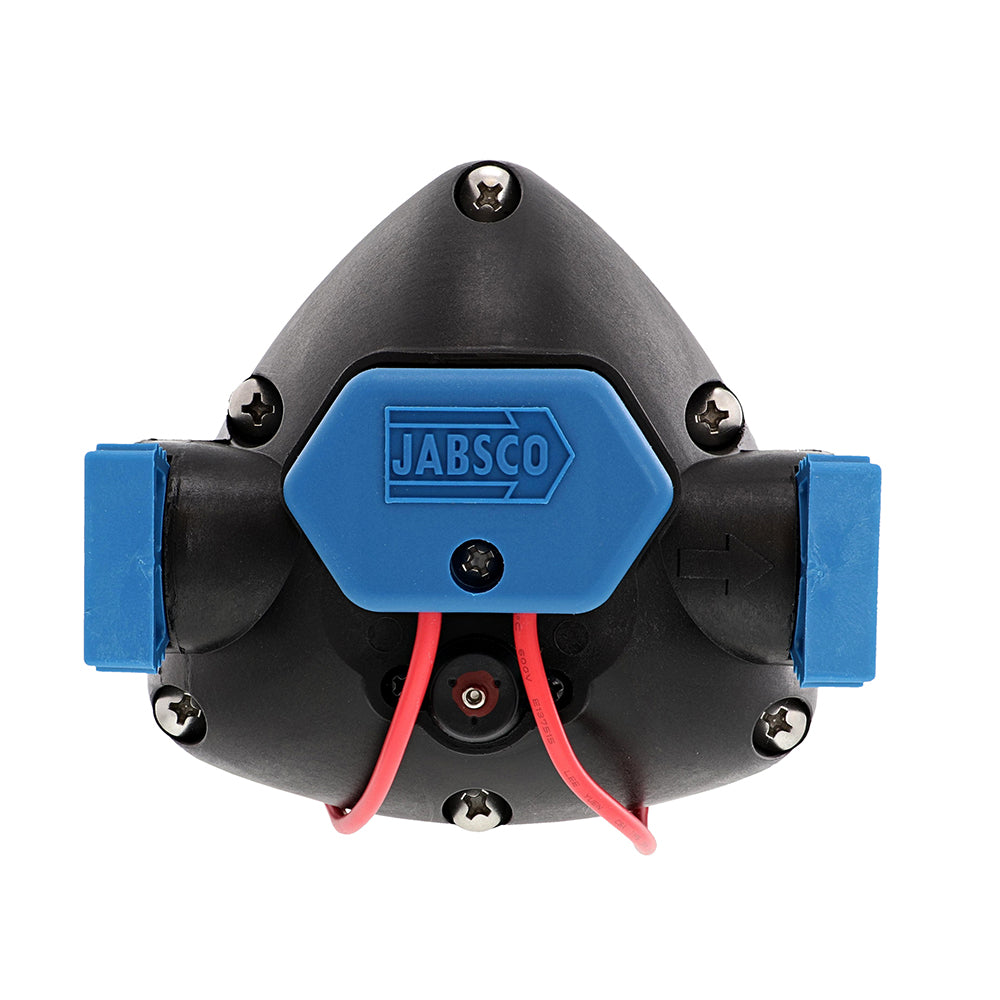

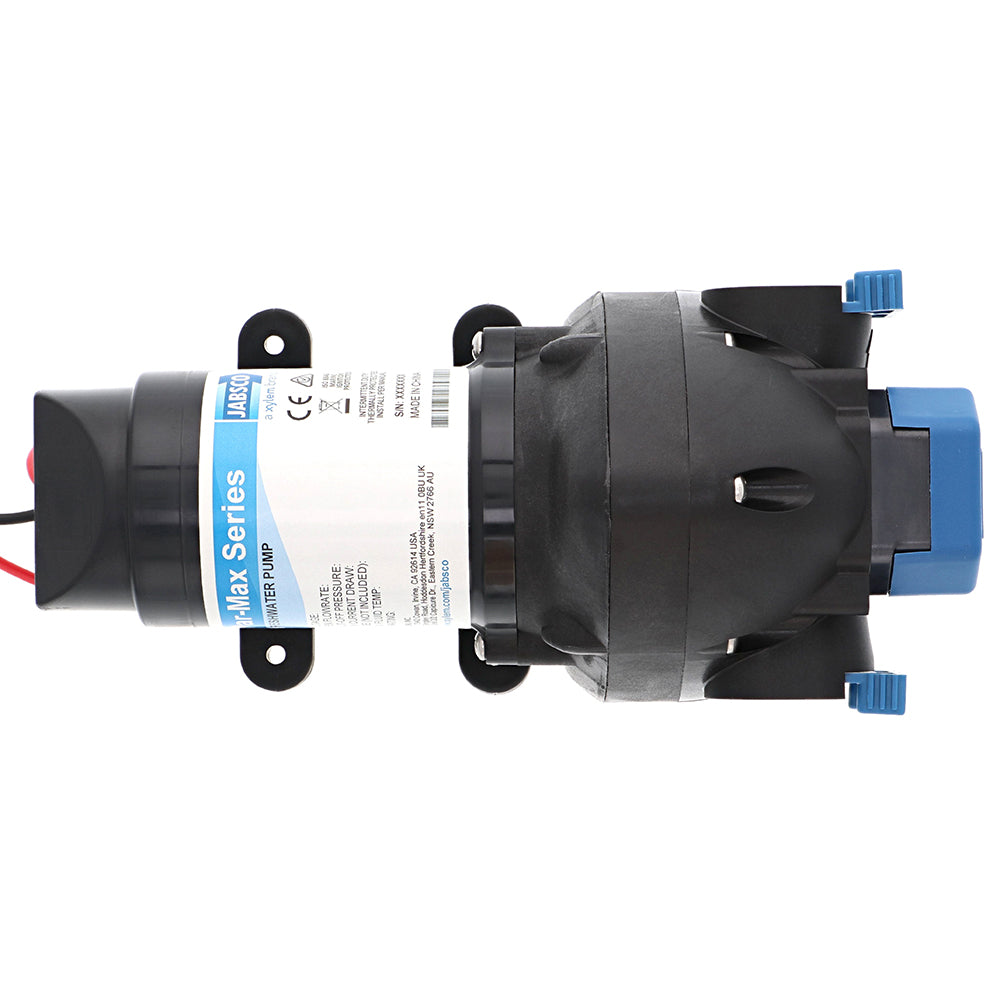

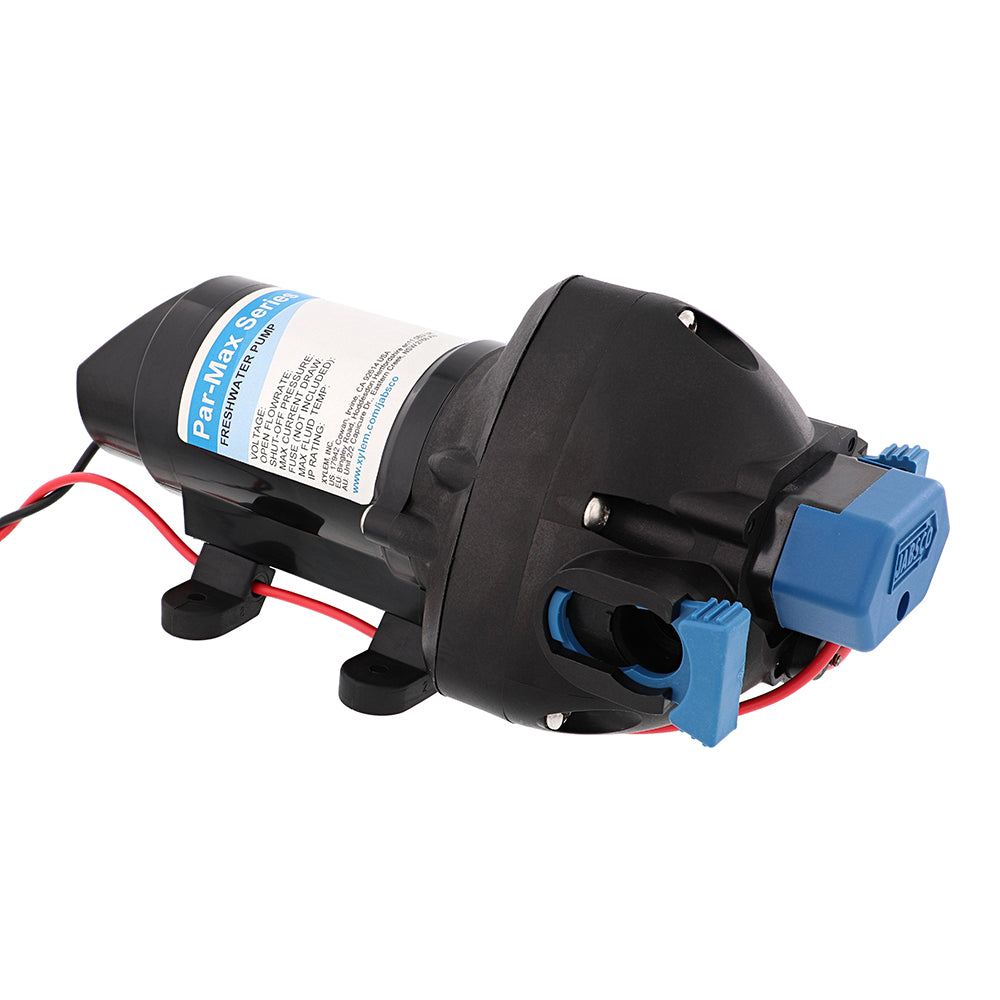

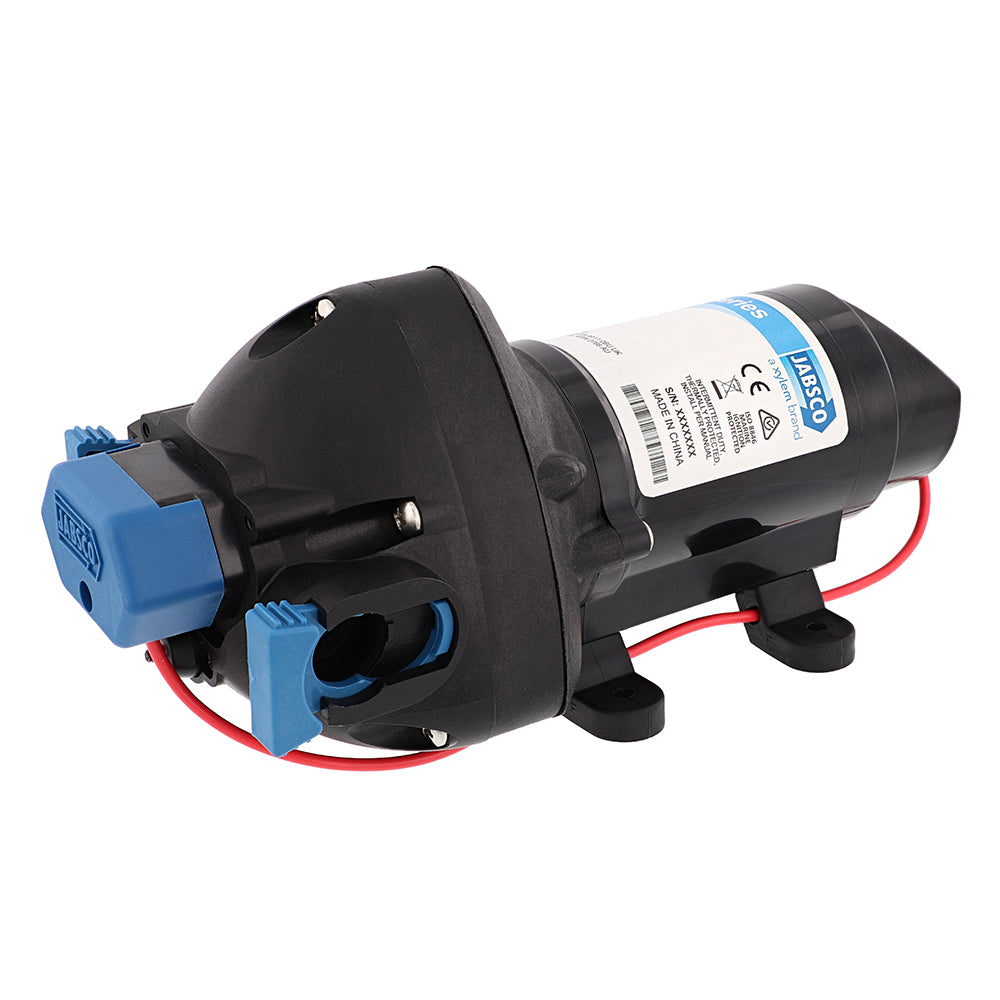

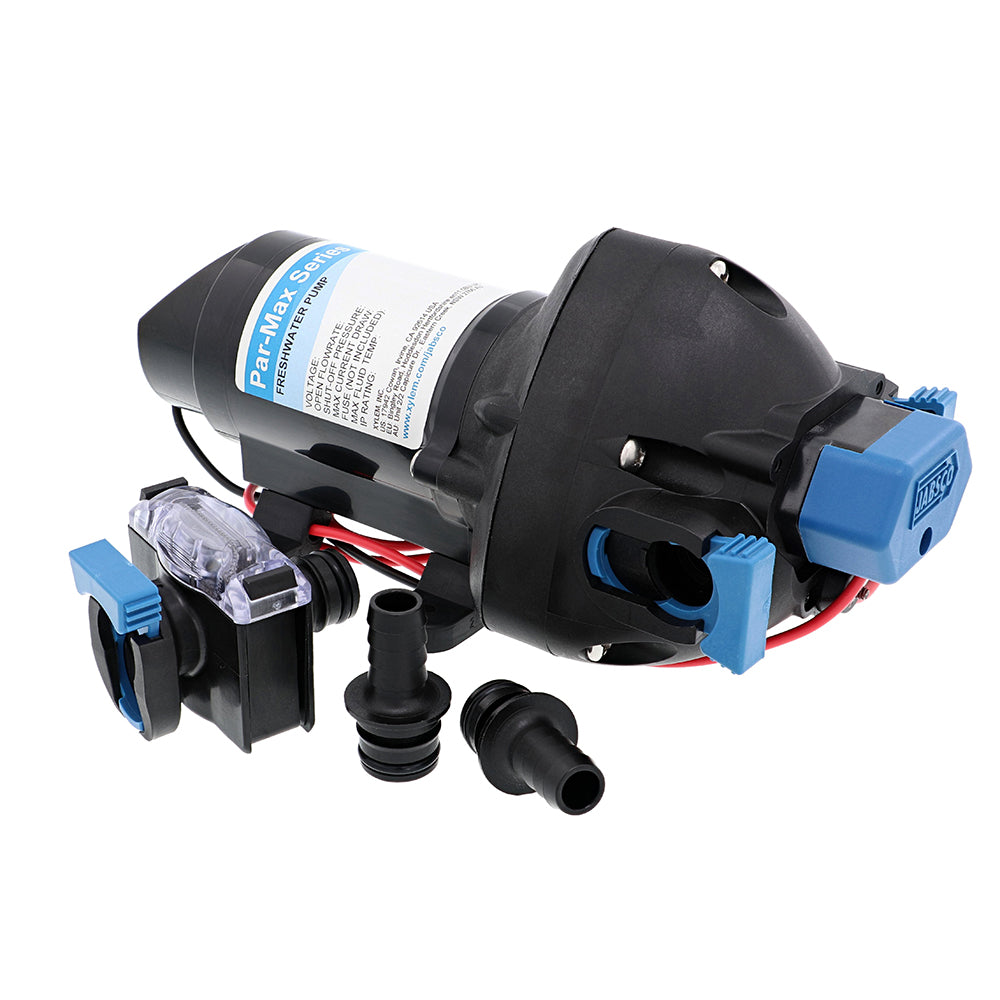

Jabsco Par-Max 3 Water Pressure Pump 31395-2524-3A, 24V, 3 GPM, 25 PSI

Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 25 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max 3 Water Pressure Pump 31395-2524-3A provides dependable on-demand water pressure for marine vessels and other applications requiring a compact, self-priming pump. Operating at 24 volts with a 3 GPM flow rate and 25 PSI pressure rating, it supports systems with 1 to 3 outlets while offering efficient, quiet operation.

Its co-molded diaphragm technology is designed for durability, while the integrated sealed pressure switch enables automatic on-demand operation. The pump is self-priming for flexible installation, can run dry without damage, and includes quick-connect ports to simplify installation, servicing, and maintenance. An integrated bypass module helps reduce cycling and provide smoother water flow, while vibration-dampening mounting feet help support a quieter installation.

Key Features:

• On-demand water pressure: Integrated sealed pressure switch activates the pump as water is needed.
• Durable diaphragm design: Co-molded TPV diaphragm technology supports long service life.
• Flexible installation: Self-priming operation and quick-connect ports simplify setup and maintenance.
• Dry-run capability: Can run dry without damage.
• Smoother flow: Integrated bypass module helps reduce cycling.
• Quiet mounting: Vibration-dampening mounting feet help reduce transmitted vibration.

Product Details:

• Brand: Jabsco
• Model: Par-Max 3
• Part number: 31395-2524-3A
• Voltage: 24V
• Flow rate: 3 GPM
• Pressure: 25 PSI
• Motor: Brushed, permanent magnet TENV
• Pumphead upper housing: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Maximum inlet pressure: 30 PSI
• Fluid temperature range: 32°F to 140°F
• Dry self-priming capability: 7 feet minimum
• Ingress protection: IPX6
• Certifications: CE, ISO8846, RCM

Select the Jabsco Par-Max 3 for compact, efficient, and serviceable 24V water pressure performance in systems with 1 to 3 outlets.
