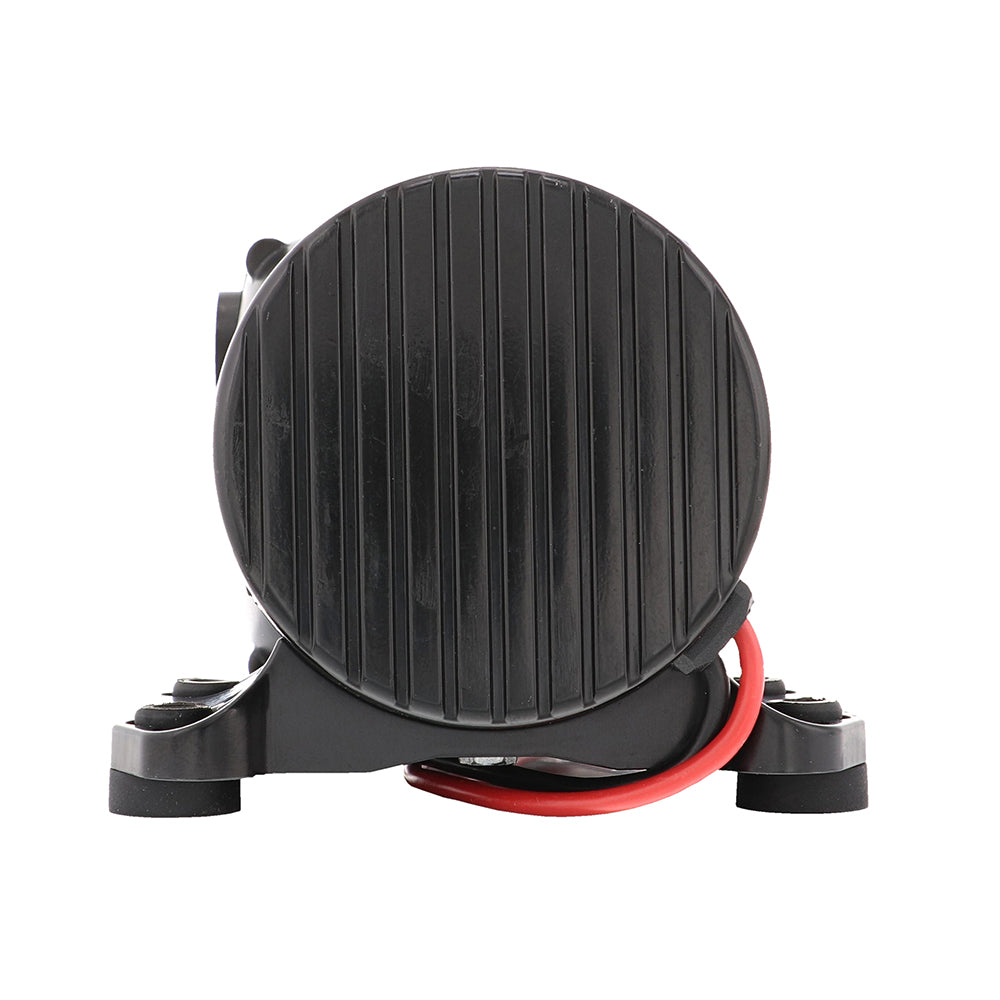

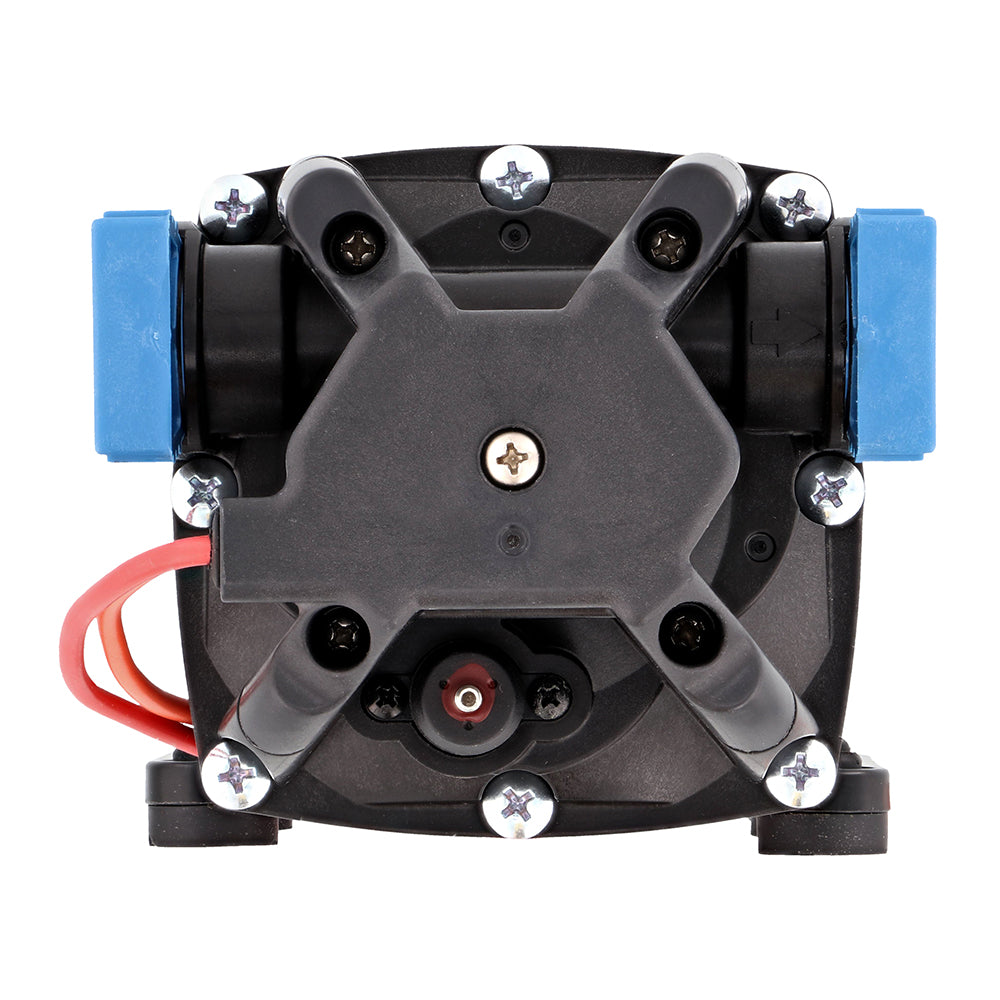

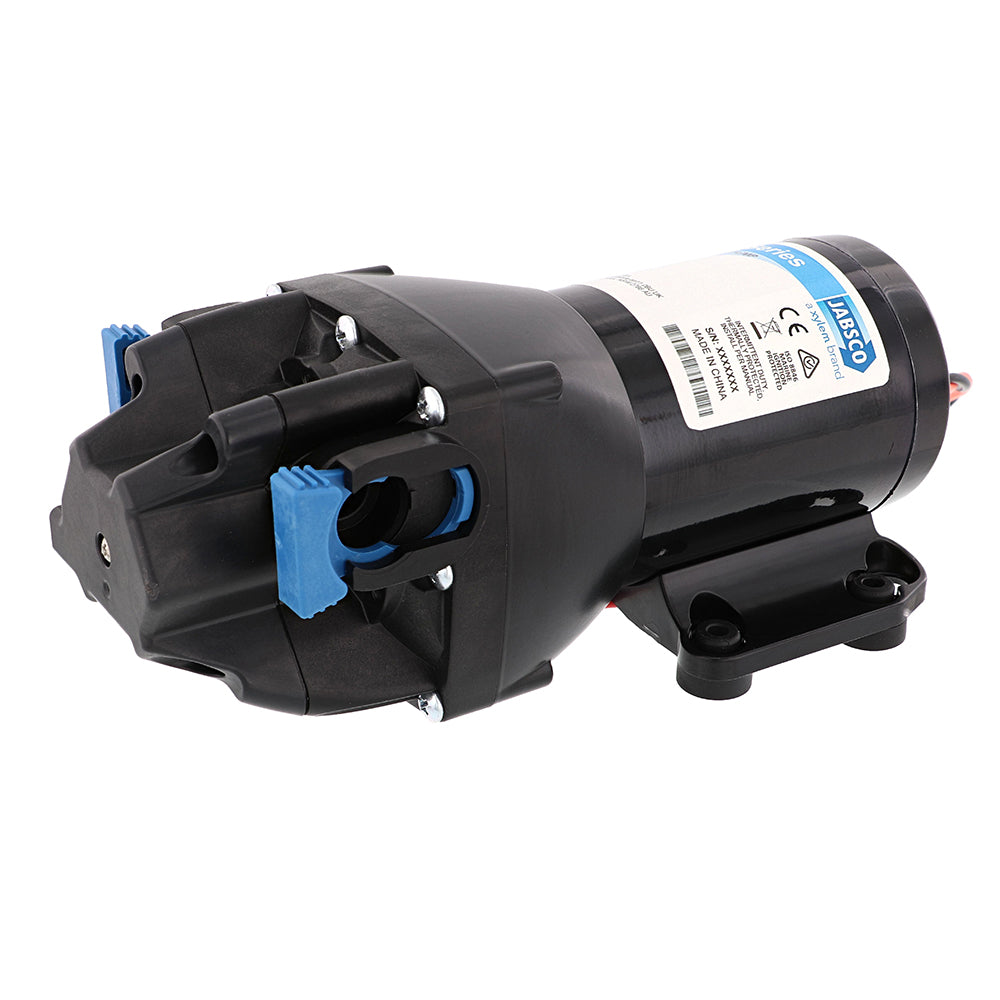

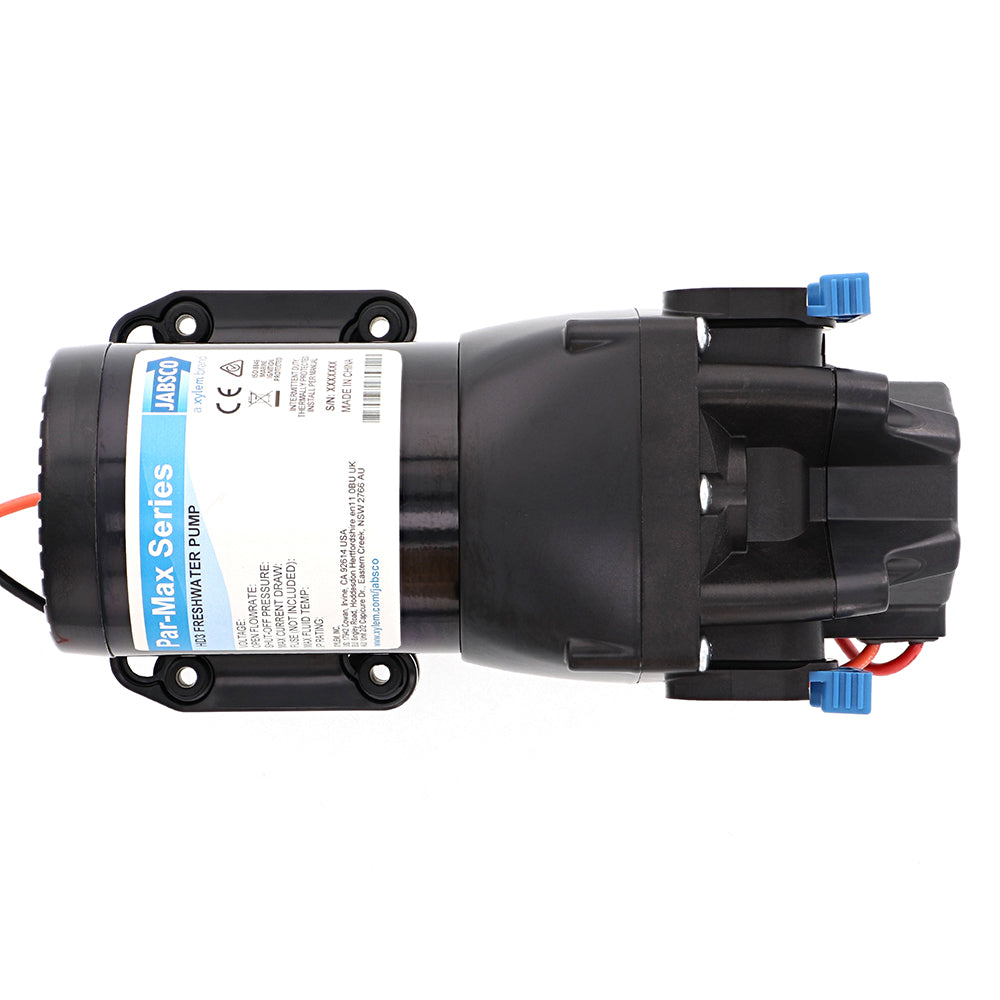

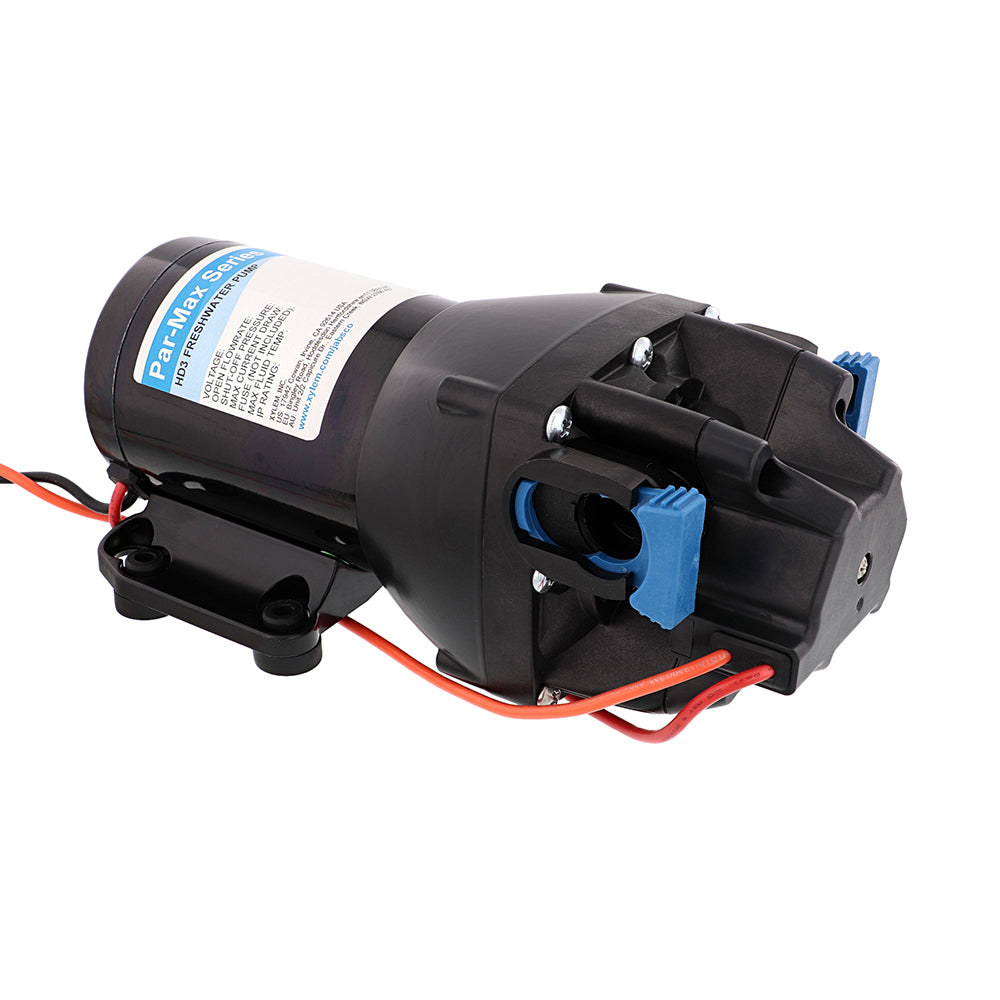

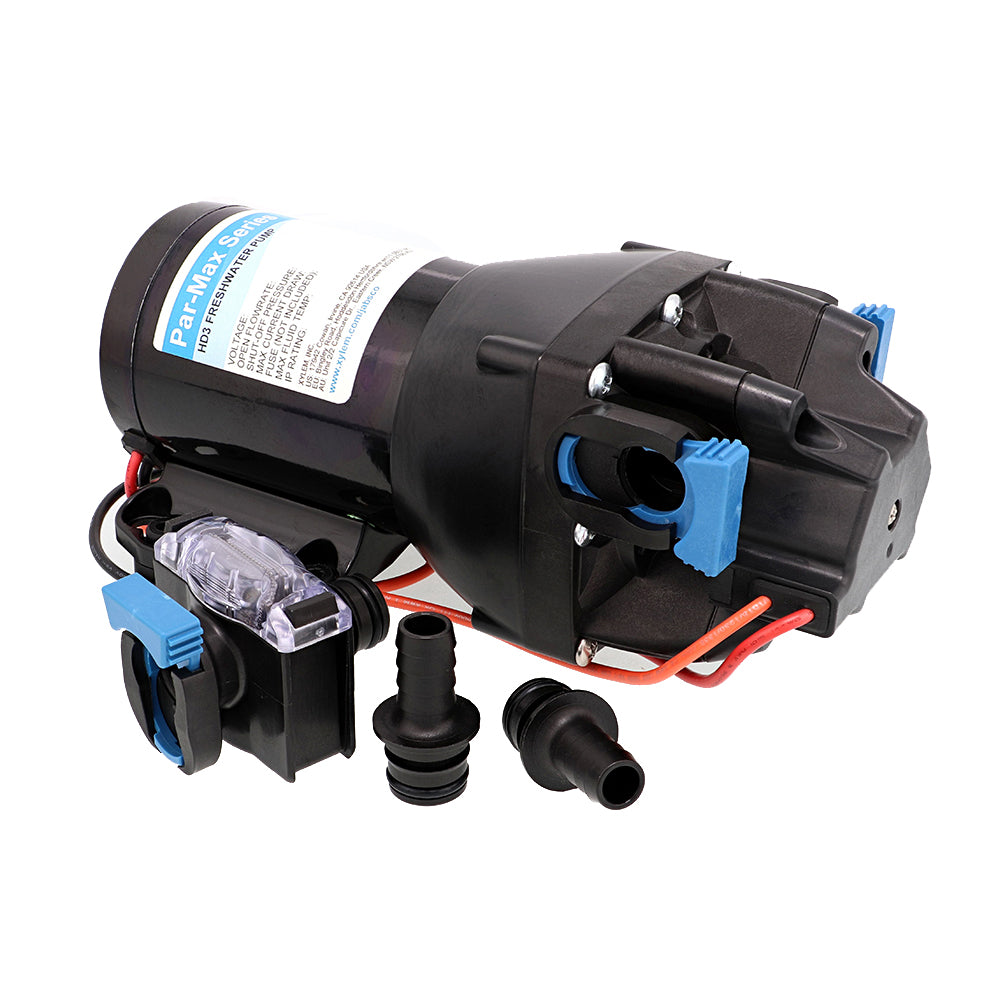

Jabsco Par-Max HD3 Heavy Duty 12V Water Pressure Pump – 3 GPM, 60 PSI for Marine & RV Applications

Par-Max HD3 Heavy Duty Water Pressure Pump - 12V - 3 GPM - 60 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max HD3 Heavy Duty Water Pressure Pump offers reliable performance for demanding water transfer needs in marine, RV, and industrial environments. Featuring a robust design with a wider diameter motor, cast aluminum endbells, and a powder-coated shell, this pump is engineered for durability and long service life even under high-pressure conditions. Its advanced construction allows it to deliver up to 3 gallons per minute at 60 PSI, making it ideal for vessels and mobile setups requiring consistent water flow.

Equipped with co-molded diaphragm technology, the HD3 model ensures exceptional longevity and resistance to wear. The integrated, sealed pressure switch enables on-demand operation, conserving energy and reducing wear, while the self-priming feature allows flexible installation options. The pump can run dry without damage, offering additional reliability, and quick connect ports simplify installation, servicing, and maintenance. Vibration dampening mounting feet help minimize noise and vibration, contributing to a quieter operation.

Constructed with a glass fiber reinforced polypropylene pump head, EPDM check valves, and a co-molded TPV diaphragm, the Jabsco Par-Max HD3 is designed to withstand harsh conditions and fluctuating inlet pressures. It features an ingress protection rating of IPX6, CE, ISO8846, and RCM certifications, ensuring compliance with international standards for safety and performance. This versatile pump is perfect for applications requiring consistent water flow and durability in tough environments. Please note, this product contains chemicals such as antimony oxide, which is recognized as a carcinogen in California, as detailed in Prop 65 warnings. For more information, visit P65Warnings.ca.gov.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy duty motor and cast aluminum lower housing for high-pressure performance and longevity

• Efficient and quiet operation for comfortable use

• Integrated sealed pressure switch for on-demand, automatic operation

• Self-priming design allows versatile installation options

• Can run dry without damage, increasing reliability

• Quick connect ports for easy installation, maintenance, and servicing

• Vibration dampening mounting feet for reduced noise and vibration

• Integrated bypass module to reduce cycling and ensure smooth flow
