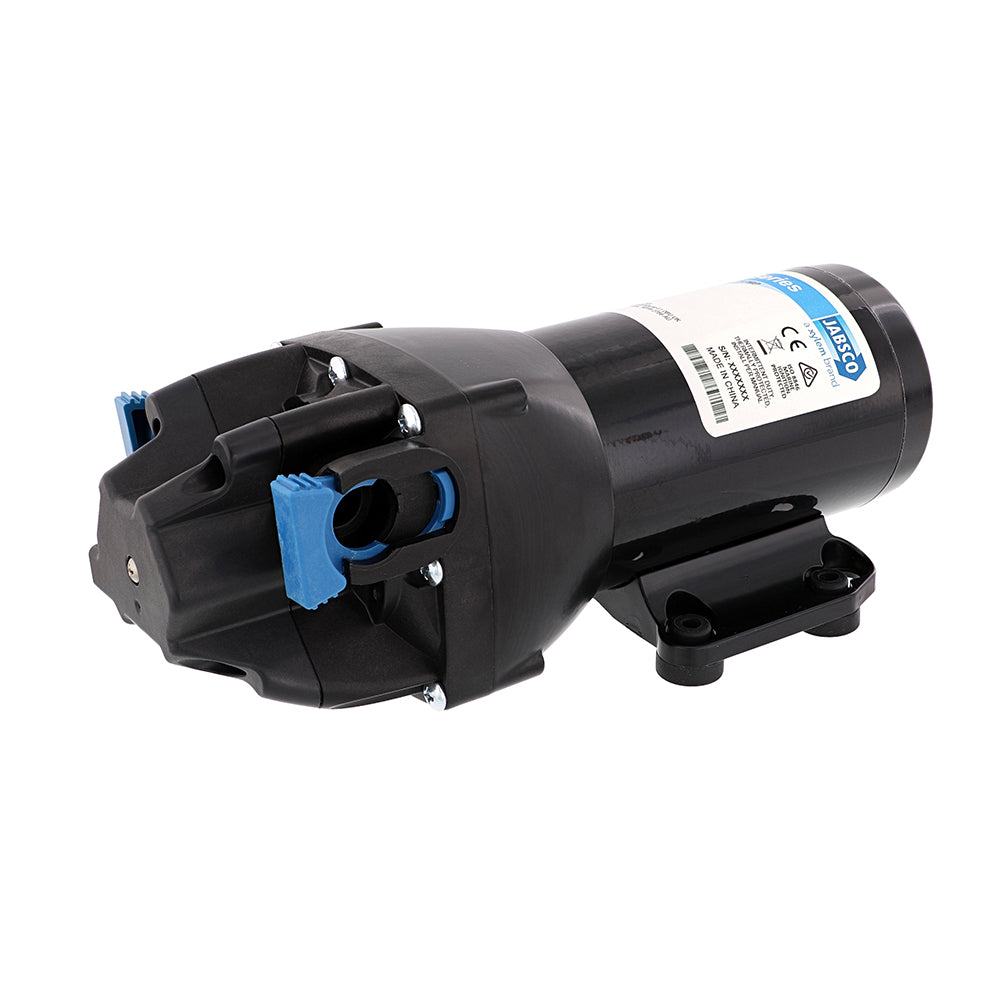

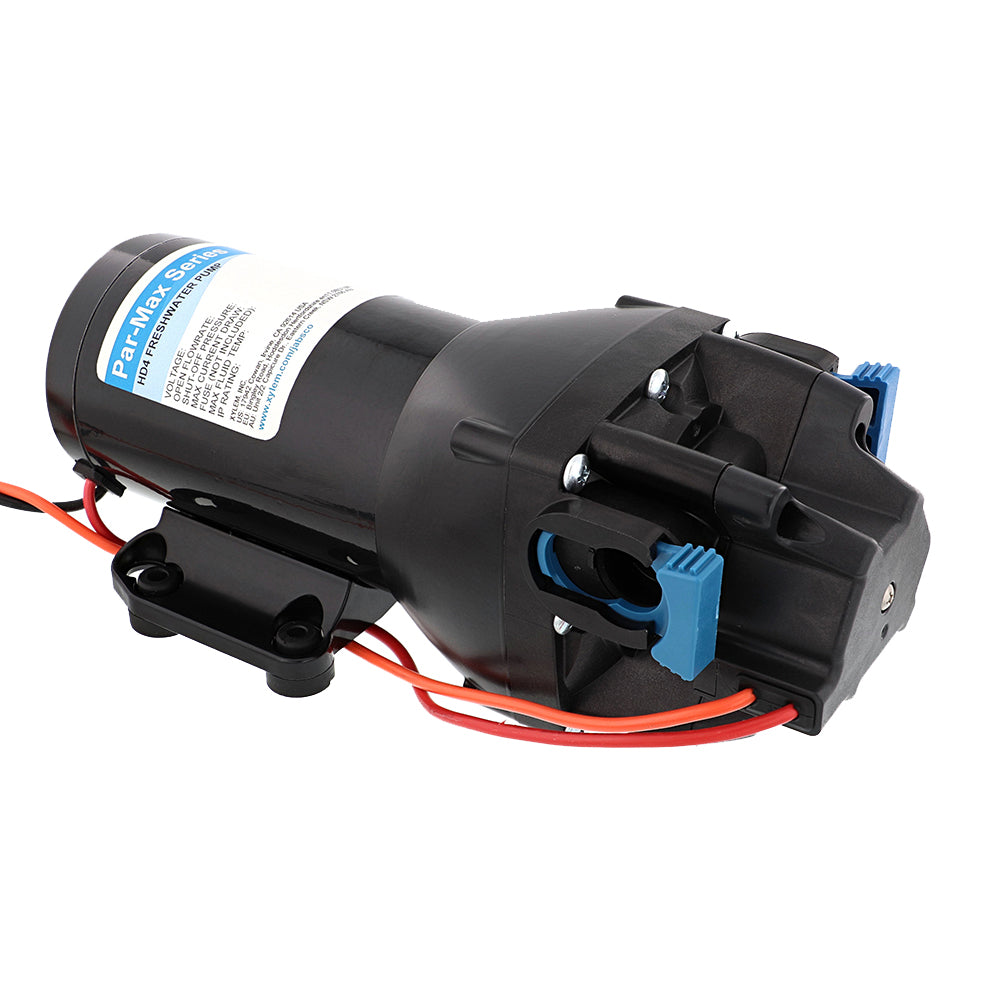

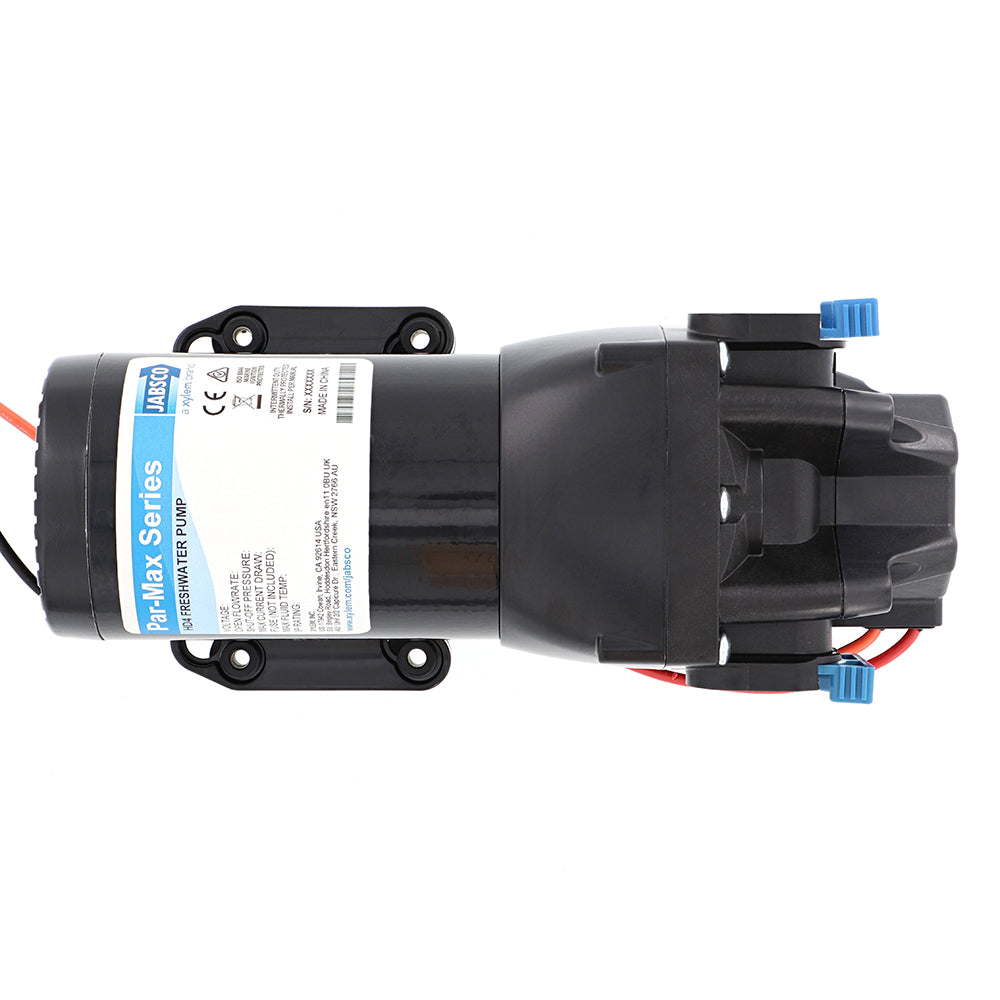

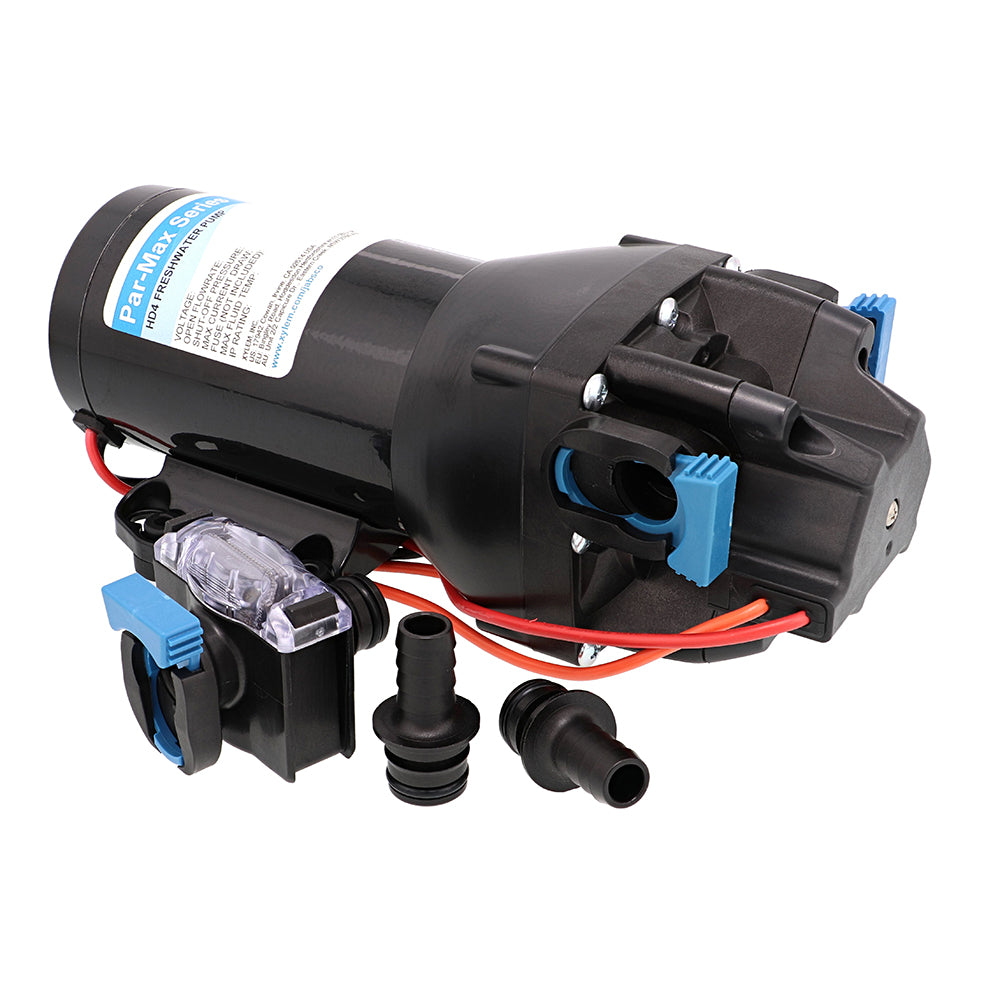

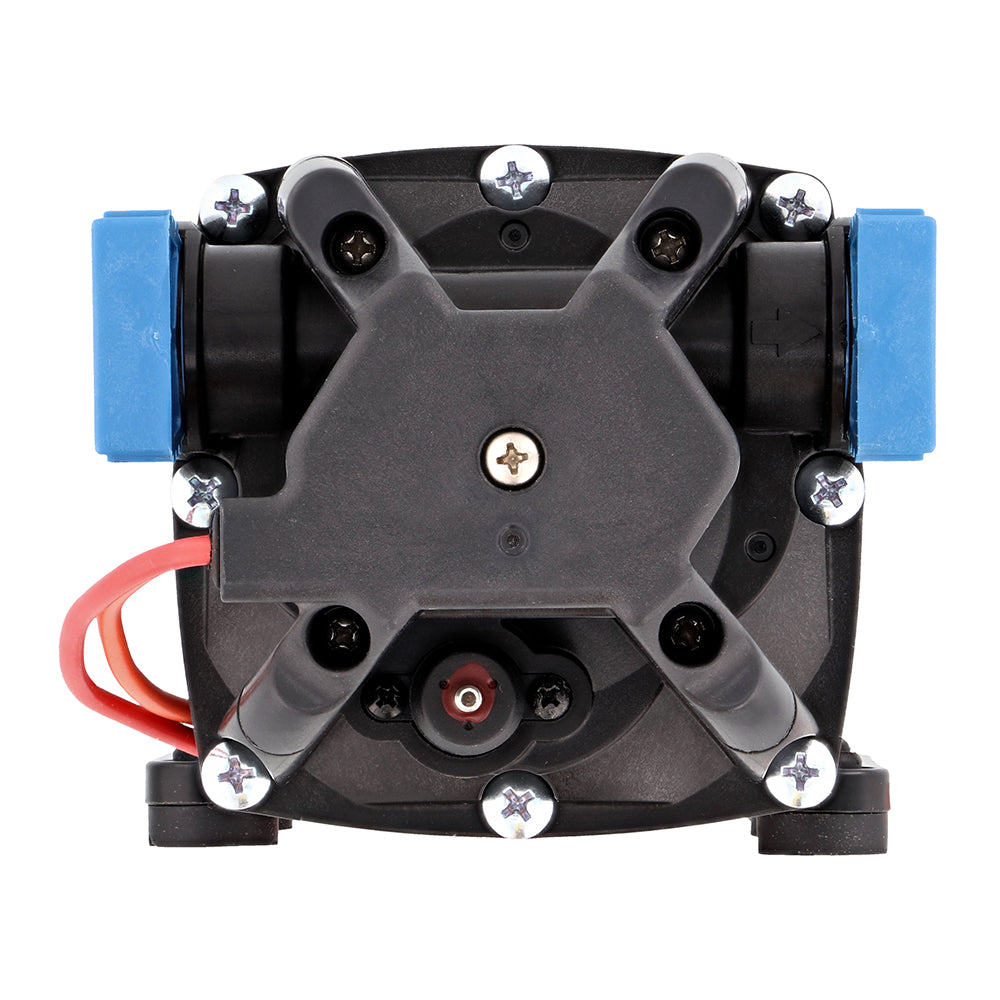

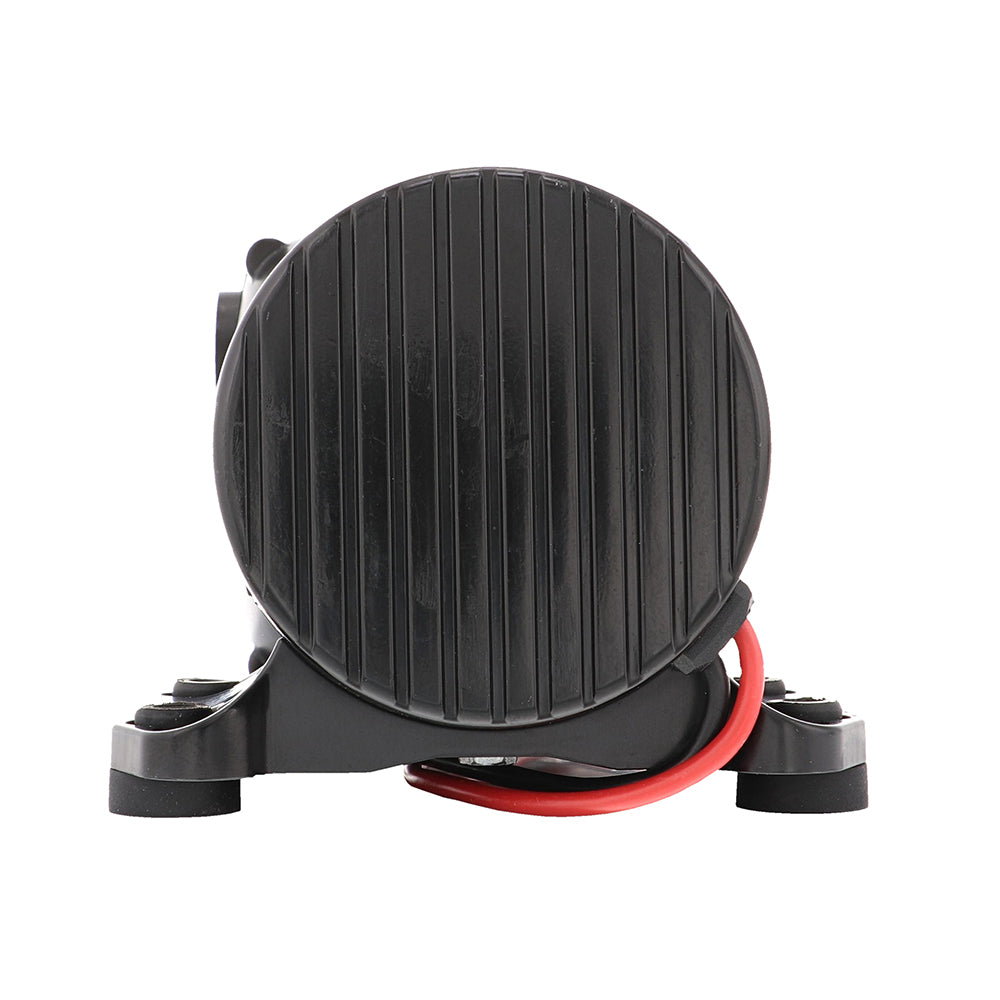

Par-Max HD4 Heavy Duty Water Pressure Pump - 24V - 4 GPM - 40 PSI
HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.
Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.
Features:
- Co-molded diaphragm technology for long life and durability
- HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
- Efficient and quiet operation
- Integrated, sealed pressure switch for on-demand operation
- Self-priming allows for installation versatility
- Can run dry without damage
- Quick connect ports for ease of installation, servicing, and maintenance
- Vibration dampening mounting feet
- Equipped with integrated bypass module to reduce cycling and provide smoother flow
Specifications:
- Motor design: Brushed, permanent magnet TENV
- Pumphead upper housing material: Glass fiber reinforced polypropylene
- Diaphragm: Co-molded TPV
- Check valves: EPDM
- Max inlet pressure: 30 PSI (2.1 Bar)
- Fluid temperature range: 32F 140F (0C 60C)
- Dry self-priming capability: 7ft min (2.13m/min)
- Certifications: CE, ISO8846, RCM
- Ingress Protection: IPX6
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump delivers reliable on-demand water pressure for marine vessels and other water-system applications requiring a 24-volt, 4 GPM pump with a 40 PSI setting. Designed for demanding service, the HD4 combines a heavy-duty motor, cast aluminum housing components, and durable diaphragm technology to support long service life and consistent operation.
The pump features an integrated sealed pressure switch for automatic on-demand operation, along with an integrated bypass module that helps reduce cycling and provide smoother flow. Self-priming capability supports flexible installation, while the pump can run dry without damage. Quick-connect ports simplify installation, servicing, and maintenance, and vibration-dampening mounting feet help support quieter operation.
The Jabsco Par-Max HD4 uses a brushed permanent-magnet TENV motor and a glass fiber-reinforced polypropylene upper pumphead housing. Its co-molded TPV diaphragm and EPDM check valves provide durable fluid-handling components. With an IPX6 ingress protection rating and CE, ISO8846, and RCM certifications, the Q402J-115S-3A is built for water pressure systems where dependable performance and practical serviceability matter.
Key Features:
-
Heavy-duty construction: Powder-coated motor shell, cast aluminum endbells, and lower housing support pressure capability and long-term use.
-
On-demand operation: Integrated sealed pressure switch automatically operates the pump as water pressure changes.
-
Smooth water delivery: Integrated bypass module helps reduce cycling and provide smoother flow.
-
Installation flexibility: Self-priming design and quick-connect ports simplify installation and maintenance.
-
Durable operation: Co-molded diaphragm technology, vibration-dampening feet, and dry-run capability support dependable service.
Product Details:
-
Brand: Jabsco
-
Product: Par-Max HD4 heavy-duty water pressure pump
-
Part number: Q402J-115S-3A
-
Voltage: 24V
-
Flow rate: 4 GPM
-
Pressure: 40 PSI
-
Motor: Brushed, permanent magnet TENV
-
Upper pumphead housing: Glass fiber-reinforced polypropylene
-
Diaphragm: Co-molded TPV
-
Check valves: EPDM
-
Maximum inlet pressure: 30 PSI
-
Fluid temperature range: 32°F to 140°F
-
Dry self-priming capability: 7 feet minimum
-
Ingress protection: IPX6
-
Certifications: CE, ISO8846, RCM
Choose the Jabsco Par-Max HD4 Q402J-115S-3A for a robust 24-volt water pressure pump designed for dependable on-demand service.
