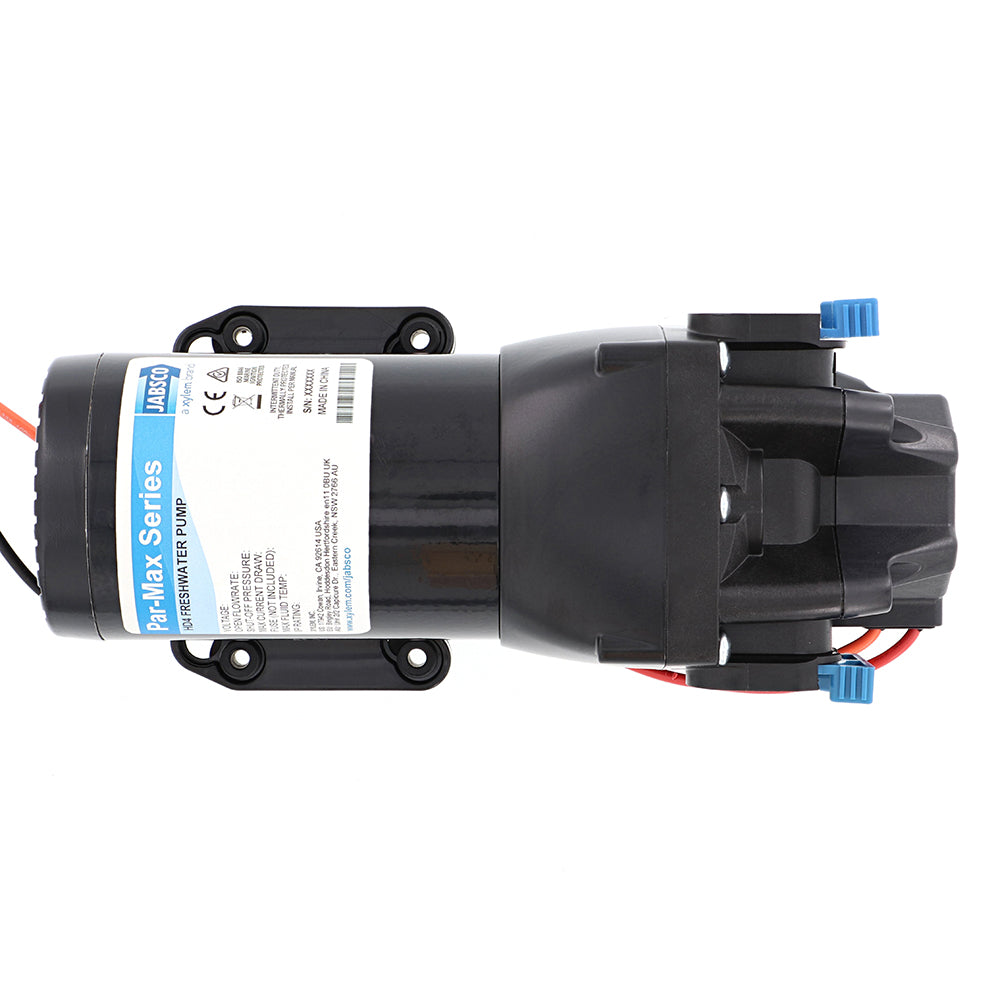

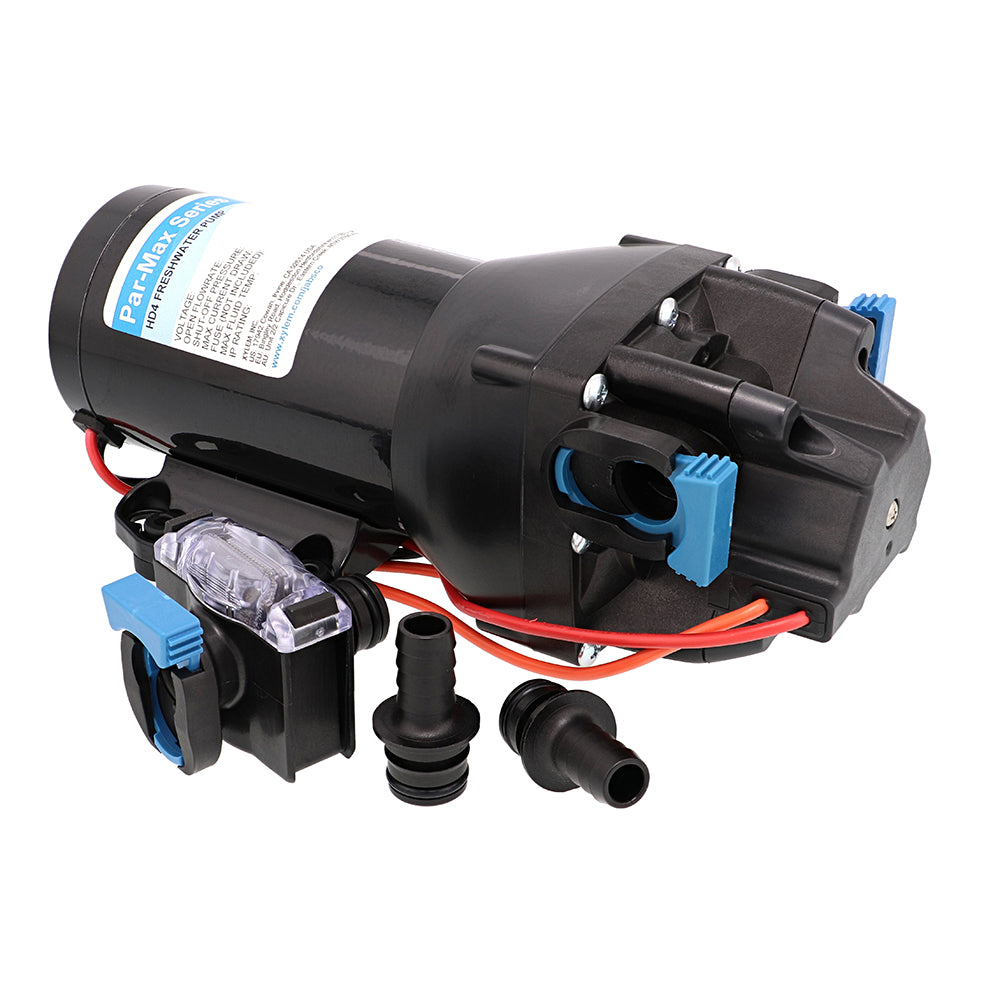

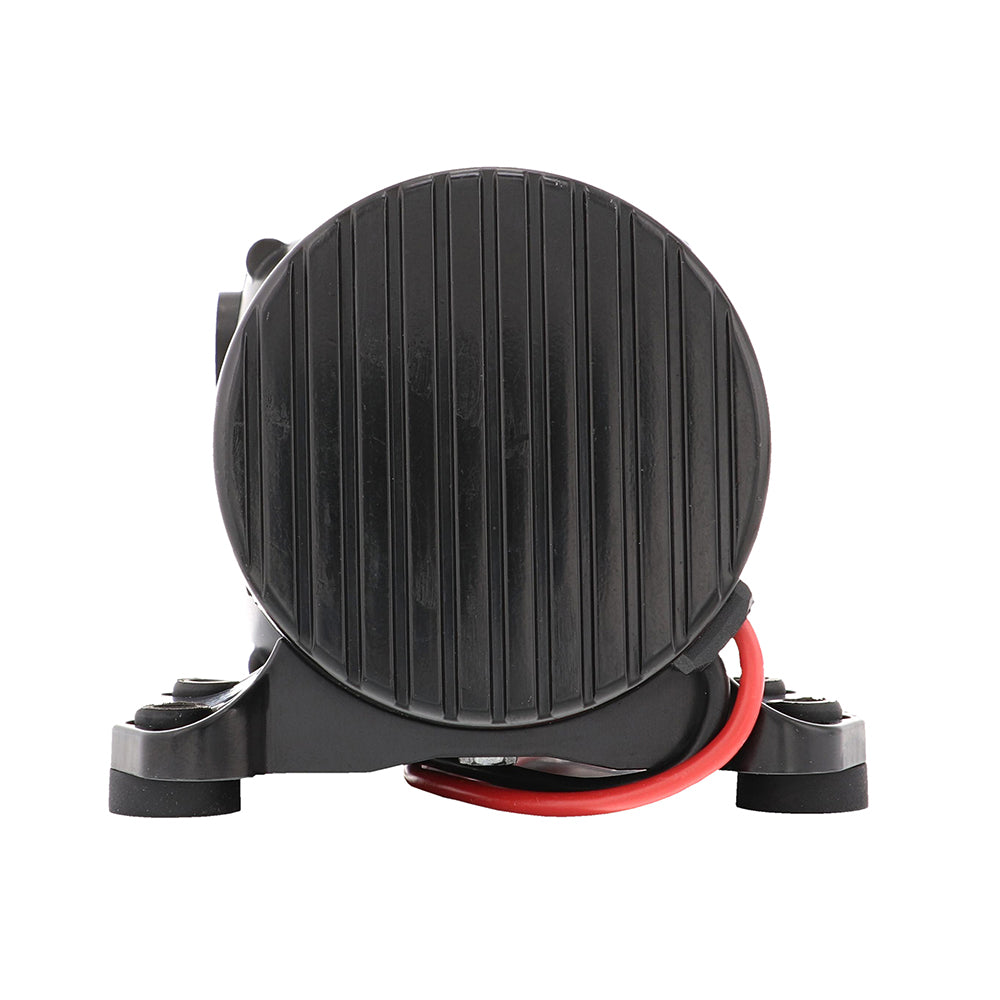

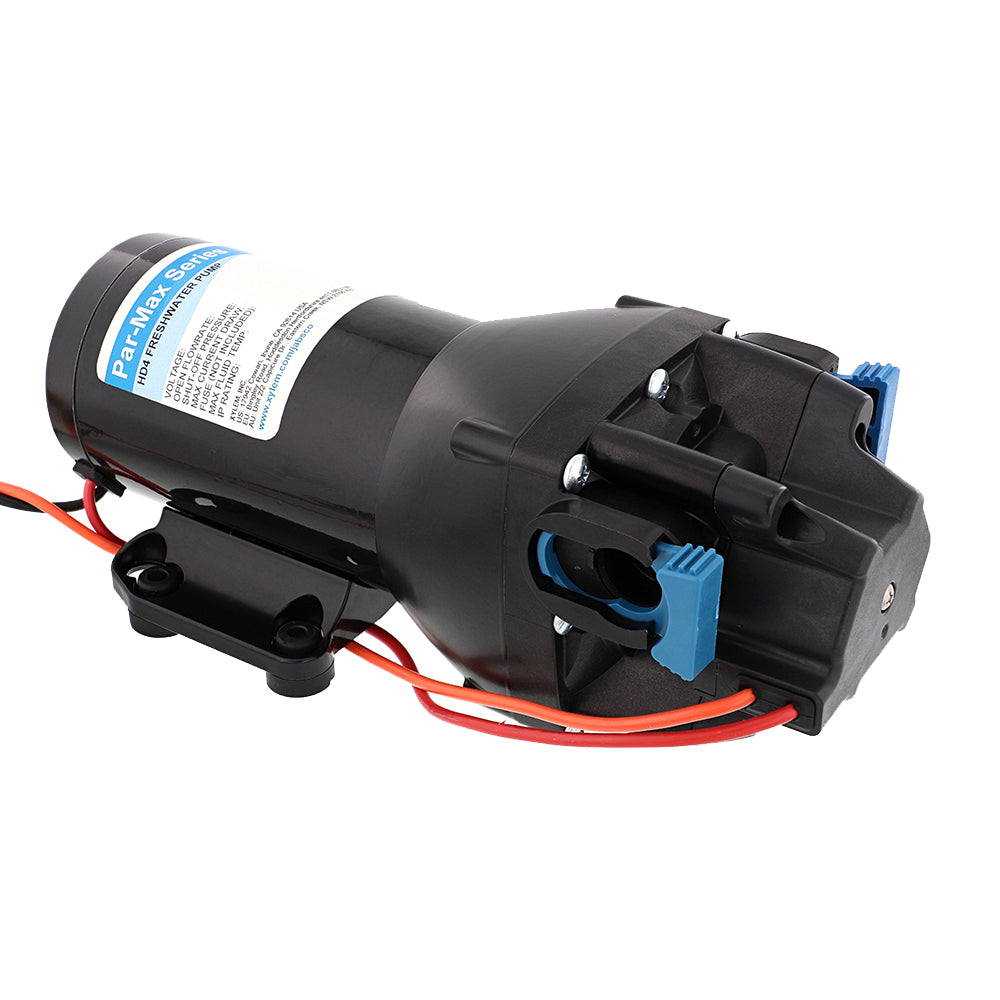

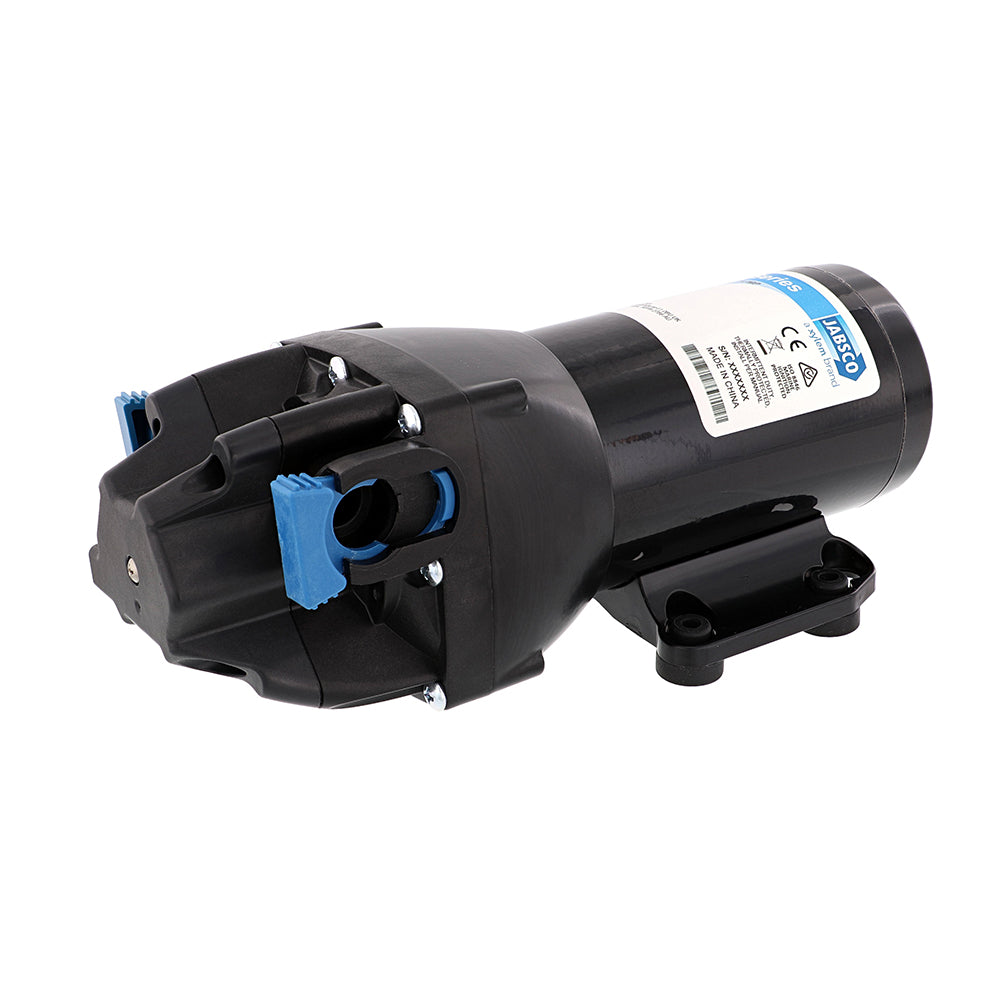

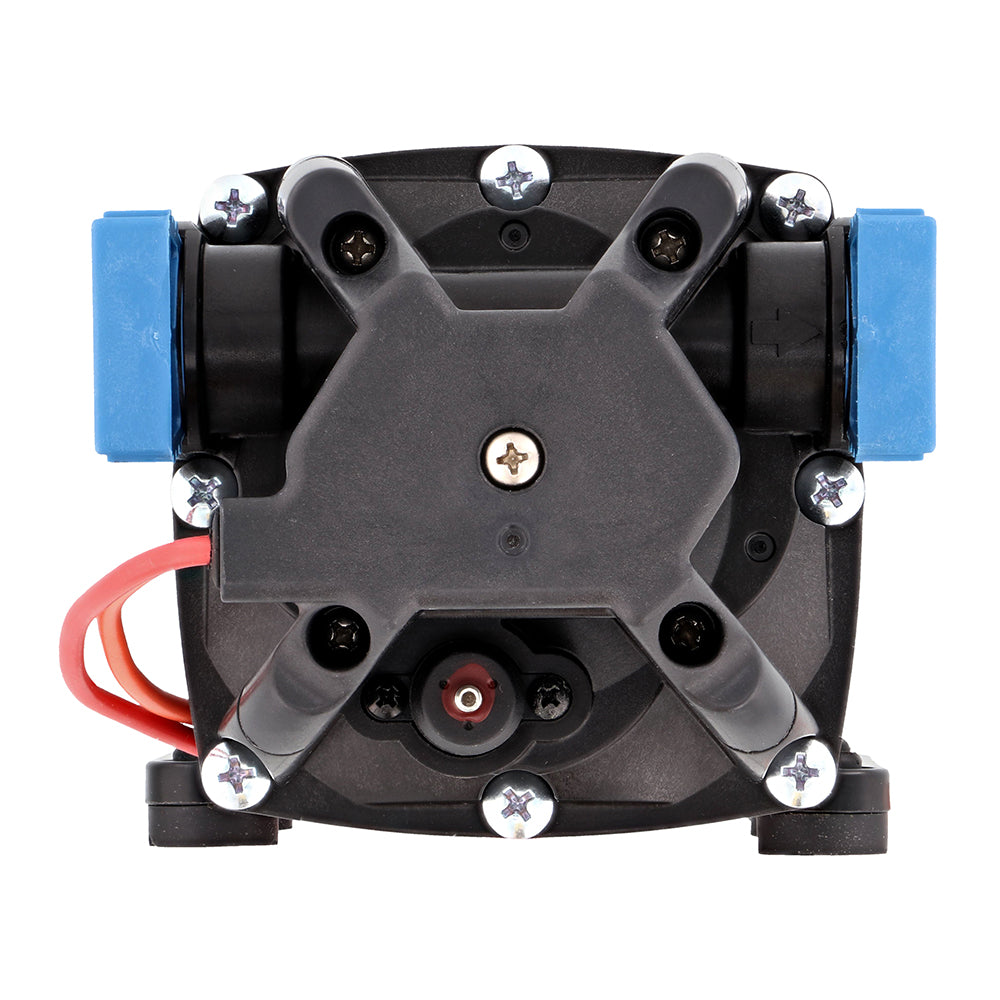

Par-Max HD4 Heavy Duty Water Pressure Pump - 24V - 4 GPM - 60 PSI
HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.
Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.
Features:
- Co-molded diaphragm technology for long life and durability
- HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
- Efficient and quiet operation
- Integrated, sealed pressure switch for on-demand operation
- Self-priming allows for installation versatility
- Can run dry without damage
- Quick connect ports for ease of installation, servicing, and maintenance
- Vibration dampening mounting feet
- Equipped with integrated bypass module to reduce cycling and provide smoother flow
Specifications:
- Motor design: Brushed, permanent magnet TENV
- Pumphead upper housing material: Glass fiber reinforced polypropylene
- Diaphragm: Co-molded TPV
- Check valves: EPDM
- Max inlet pressure: 30 PSI (2.1 Bar)
- Fluid temperature range: 32F 140F (0C 60C)
- Dry self-priming capability: 7ft min (2.13m/min)
- Certifications: CE, ISO8846, RCM
- Ingress Protection: IPX6
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Jabsco Par-Max HD4 Heavy-Duty Water Pressure Pump delivers reliable on-demand water pressure for marine vessels and other water systems requiring durable, efficient performance. This 24V pump provides up to 4 GPM at 60 PSI and is designed for demanding applications with multiple outlets.
The HD4 features a wider-diameter motor with a powder-coated shell, cast aluminum endbells, and a cast aluminum lower housing to support long-term operation at higher pressures. Co-molded diaphragm technology, an integrated bypass module, and vibration-dampening mounting feet help promote smooth, quiet operation. The integrated sealed pressure switch enables automatic on-demand operation, while self-priming capability and quick-connect ports simplify installation, servicing, and maintenance.
Designed for practical installation flexibility, the Jabsco Par-Max HD4 can run dry without damage and supports dry self-priming from at least 7 feet. Its glass fiber reinforced polypropylene pumphead upper housing, co-molded TPV diaphragm, and EPDM check valves are selected for dependable water system operation. The pump is also rated IPX6 and carries CE, ISO8846, and RCM certifications.
Key Features:
-
Heavy-duty construction: Powder-coated motor shell, cast aluminum endbells, and cast aluminum lower housing support operation at higher pressures.
-
On-demand water pressure: Integrated sealed pressure switch activates the pump as needed.
-
Smooth, efficient operation: Integrated bypass module helps reduce cycling and provide steadier flow.
-
Flexible installation: Self-priming capability and quick-connect ports simplify installation and maintenance.
-
Durable diaphragm design: Co-molded diaphragm technology supports long service life and durability.
-
Installation protection: Vibration-dampening mounting feet and the ability to run dry without damage support convenient system setup.
Product Details:
-
Brand: Jabsco
-
Product: Par-Max HD4 heavy-duty water pressure pump
-
Part number: Q402J-118S-3A
-
Voltage: 24V
-
Flow rate: 4 GPM
-
Maximum pressure: 60 PSI
-
Motor design: Brushed, permanent magnet TENV
-
Pumphead upper housing: Glass fiber reinforced polypropylene
-
Diaphragm: Co-molded TPV
-
Check valves: EPDM
-
Maximum inlet pressure: 30 PSI
-
Fluid temperature range: 32°F to 140°F
-
Dry self-priming capability: 7 feet minimum
-
Ingress protection: IPX6
-
Certifications: CE, ISO8846, RCM
Choose the Jabsco Par-Max HD4 Q402J-118S-3A for dependable, high-pressure water delivery in demanding marine and water system applications.
