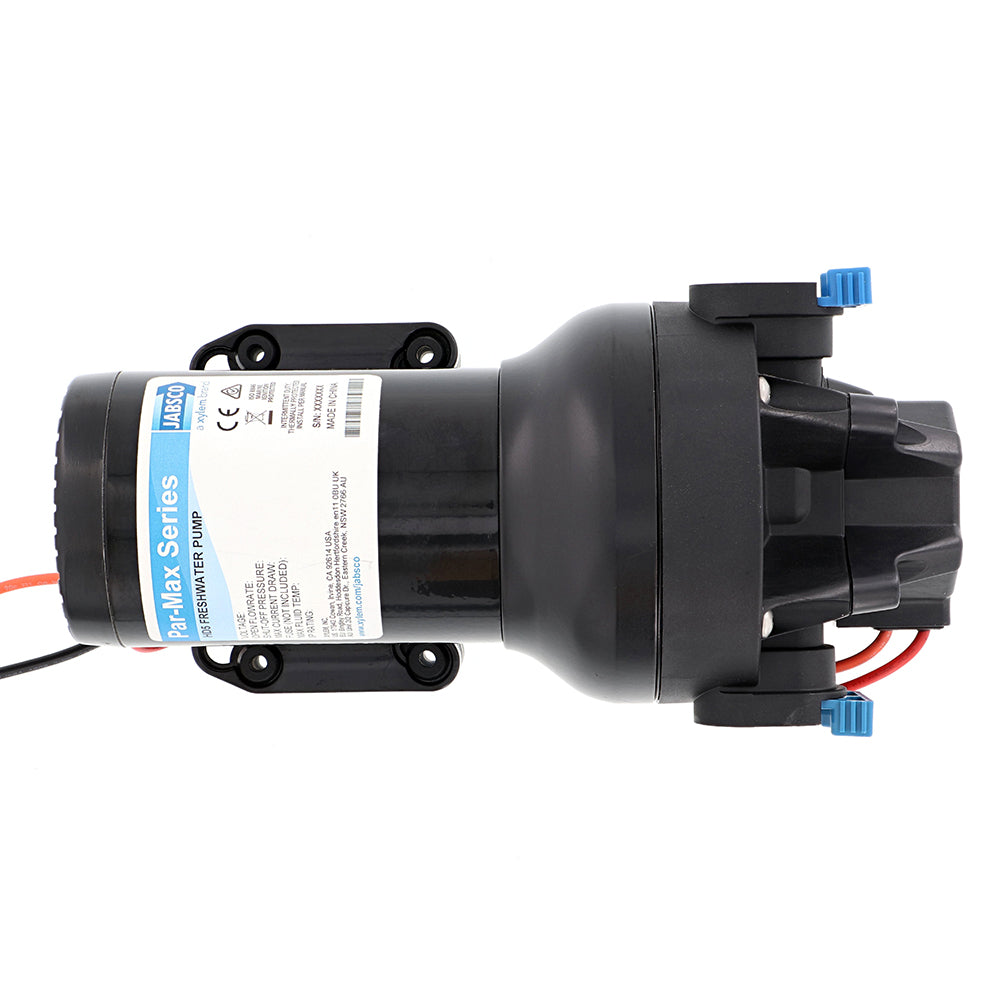

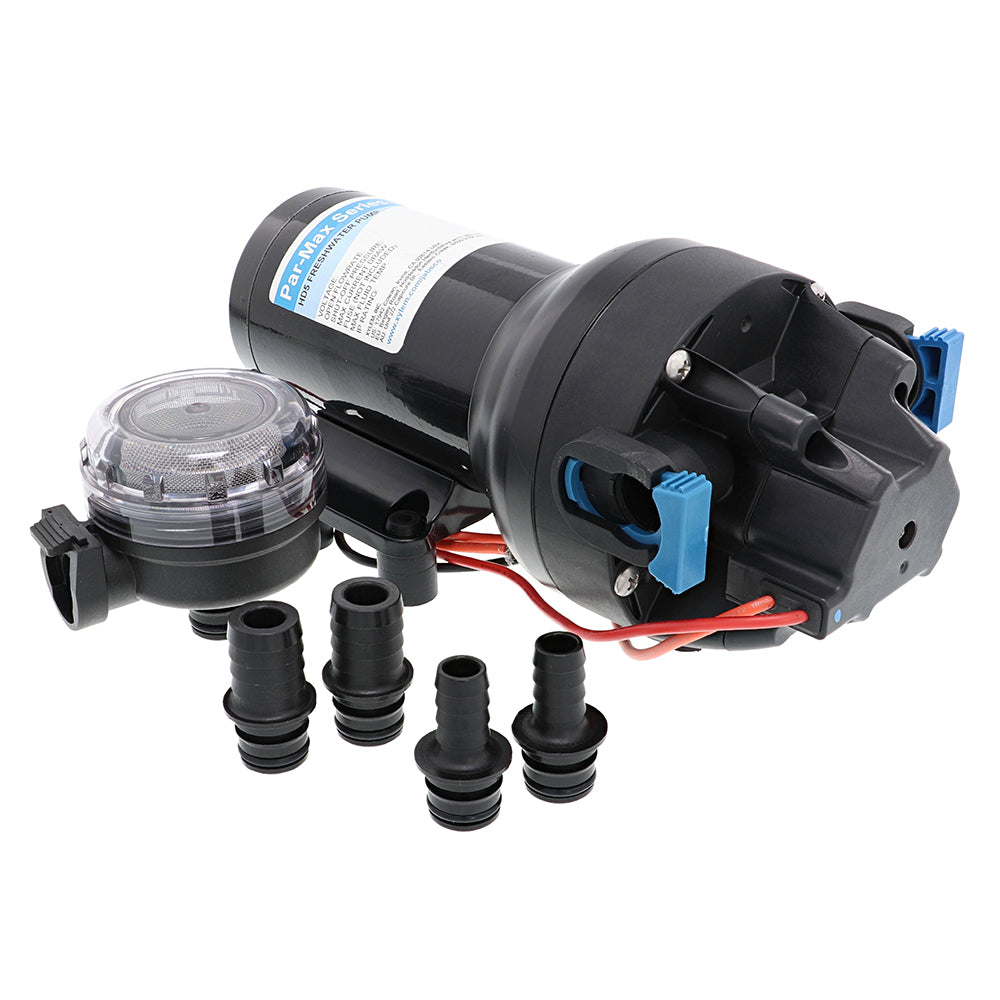

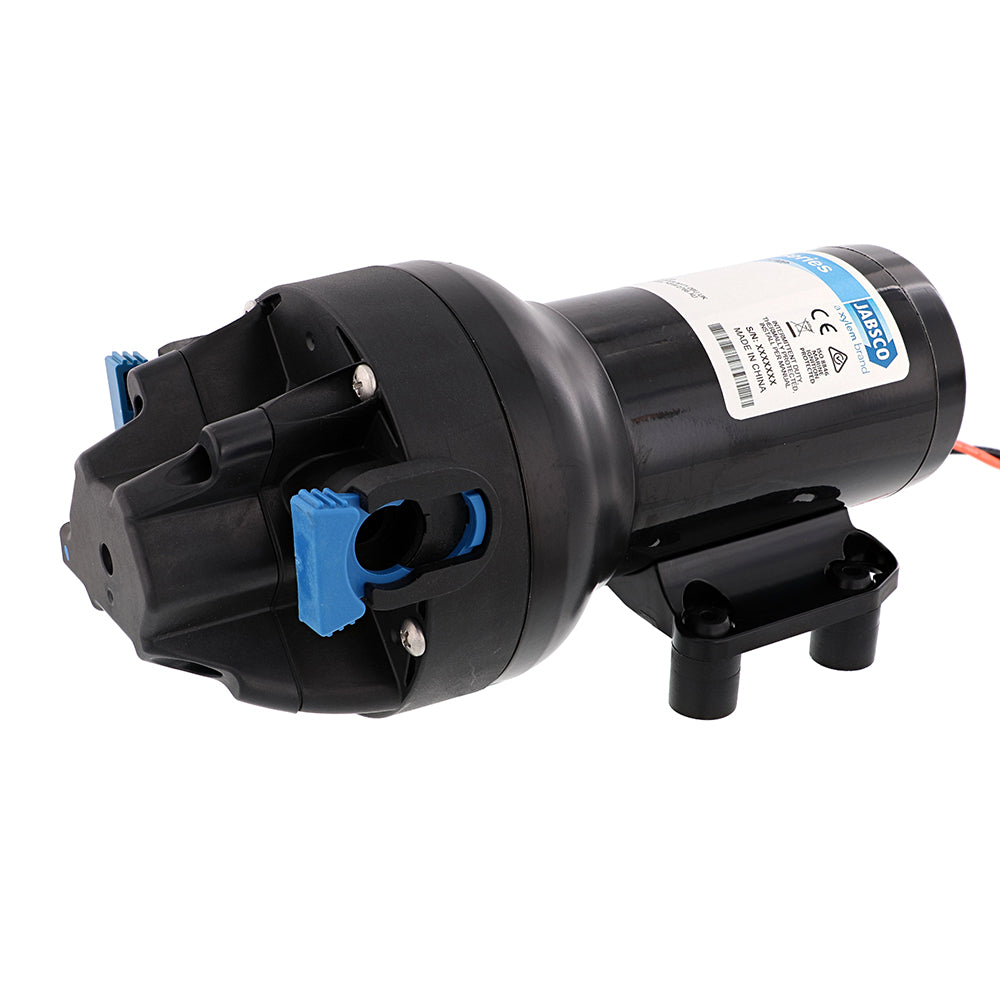

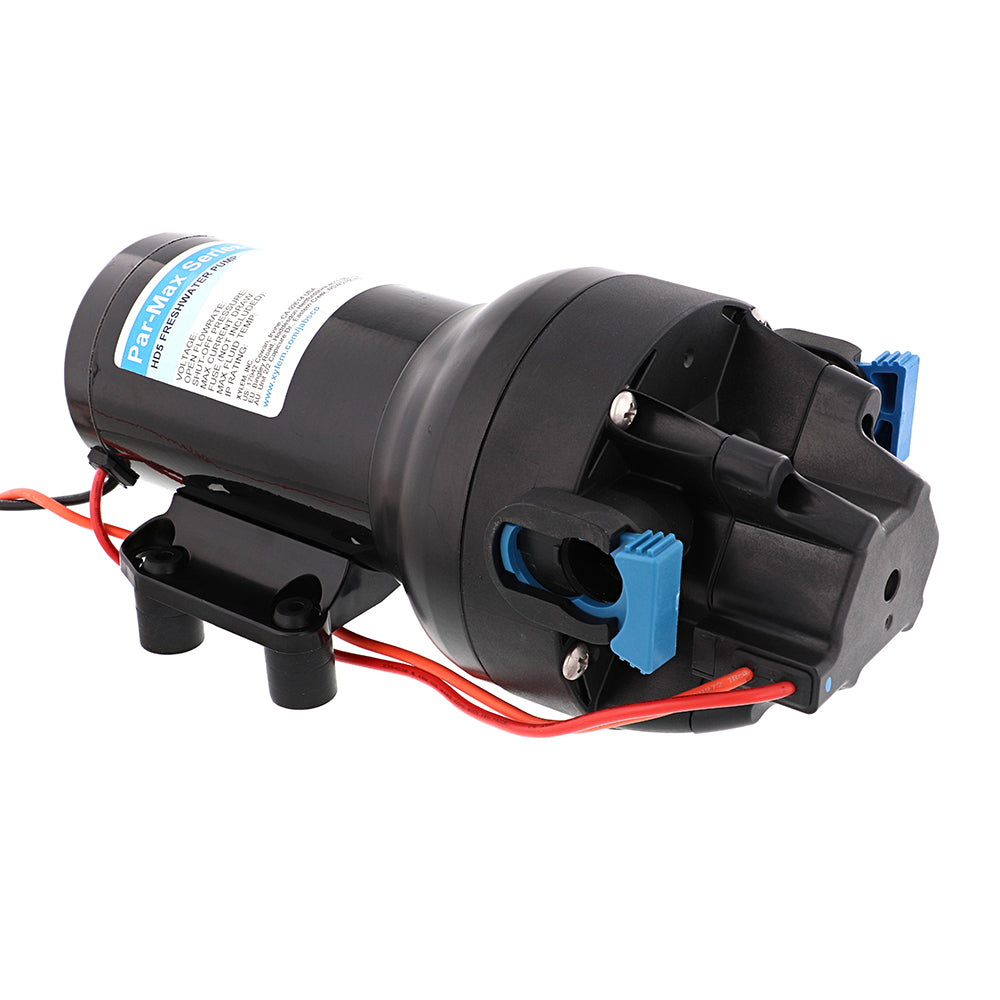

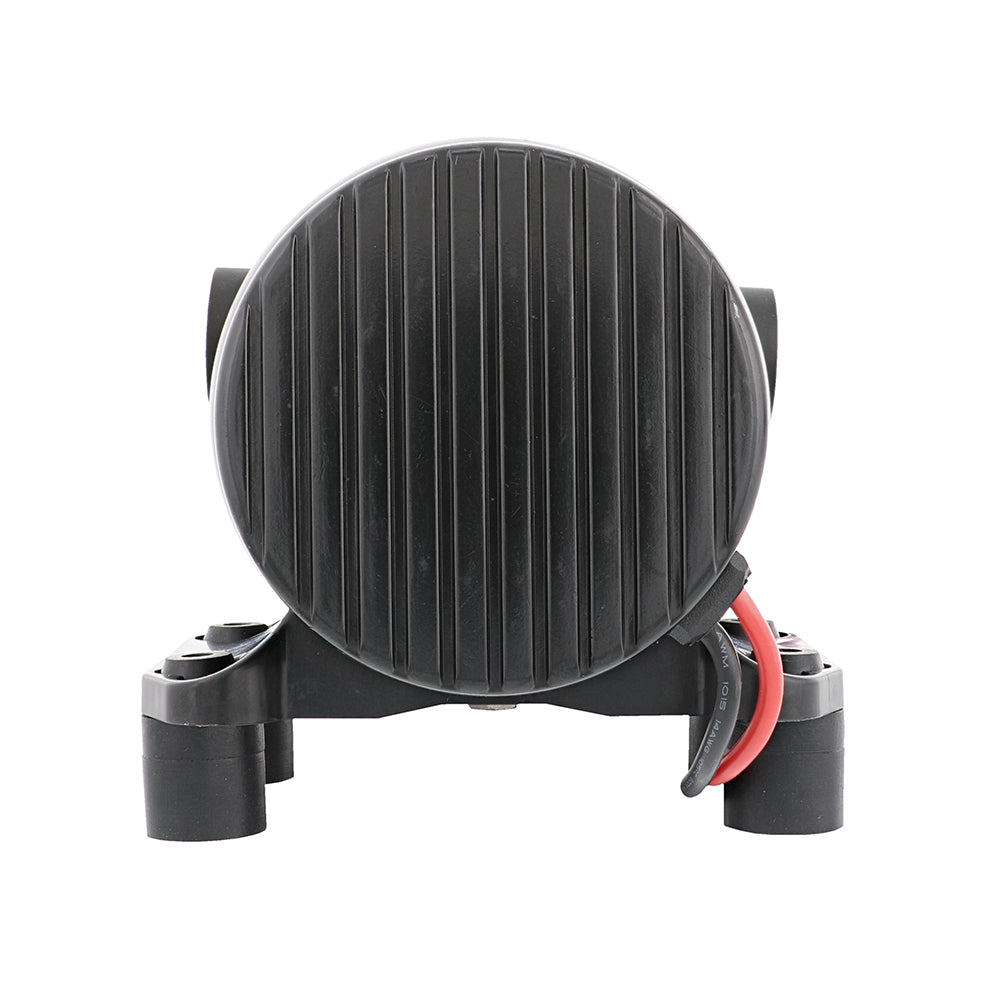

Jabsco Par-Max HD5 Heavy Duty 12V Water Pressure Pump – 5 GPM, 60 PSI for Marine & RV Applications

Par-Max HD5 Heavy Duty Water Pressure Pump - 12V - 5 GPM - 60 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max HD5 Heavy Duty Water Pressure Pump is engineered for demanding marine, RV, and industrial applications, delivering reliable high-pressure water flow with exceptional durability. Featuring a robust design, this 12V pump provides up to 5 gallons per minute (GPM) at 60 PSI, making it ideal for vessels and mobile units that require consistent water pressure and flow. Built with a wider diameter motor, cast aluminum endbells, and a powder-coated shell, the HD models are optimized for longevity and high-pressure performance. The durable construction ensures the pump withstands tough environments, while its efficient operation minimizes noise and power consumption, providing a smooth and quiet water supply experience.

Features:

• Co-molded diaphragm technology for long-lasting durability

• Heavy duty motor with cast aluminum lower housing for increased lifespan under high pressure

• Efficient and quiet operation for a comfortable user experience

• Integrated, sealed pressure switch for on-demand water flow

• Self-priming design allows flexible installation options

• Capable of running dry without damage, reducing risk during startup or low water conditions

• Quick connect ports facilitate easy installation, servicing, and maintenance

• Vibration dampening mounting feet for stable operation

• Built-in bypass module to reduce cycling and ensure smoother flow
