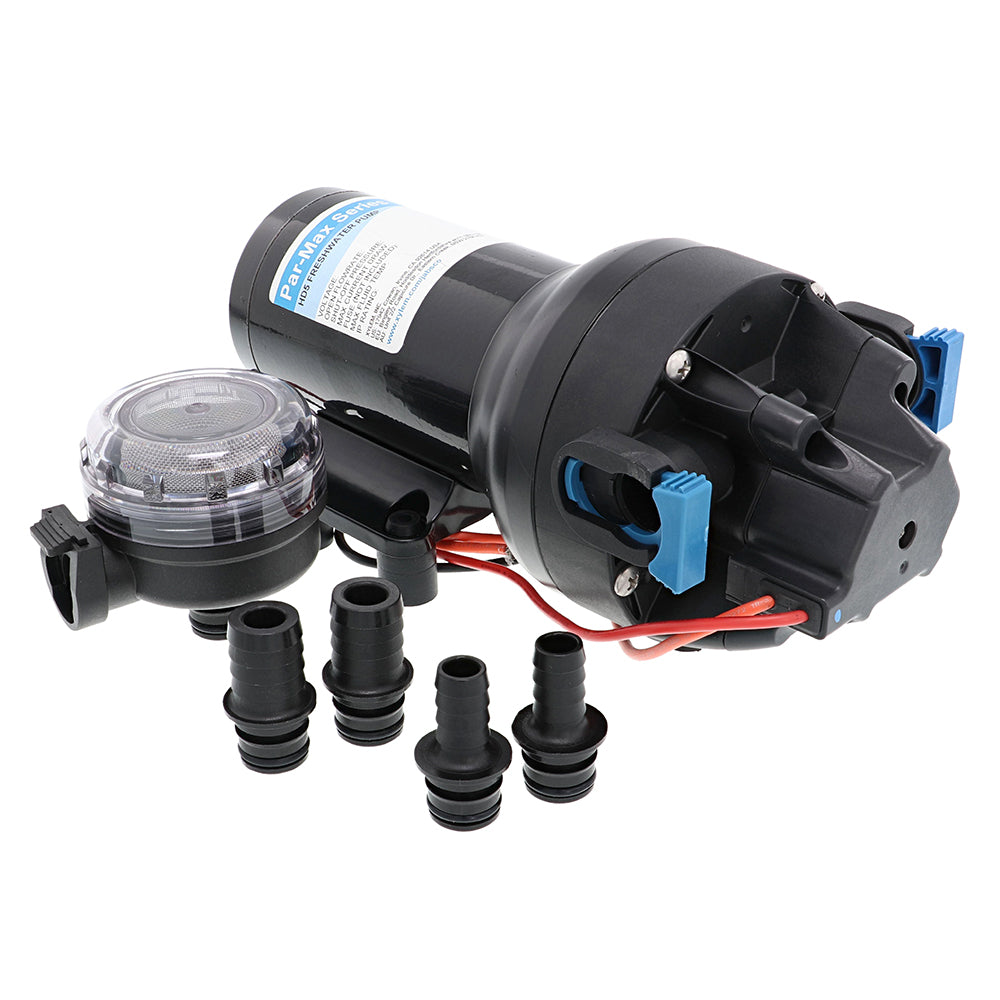

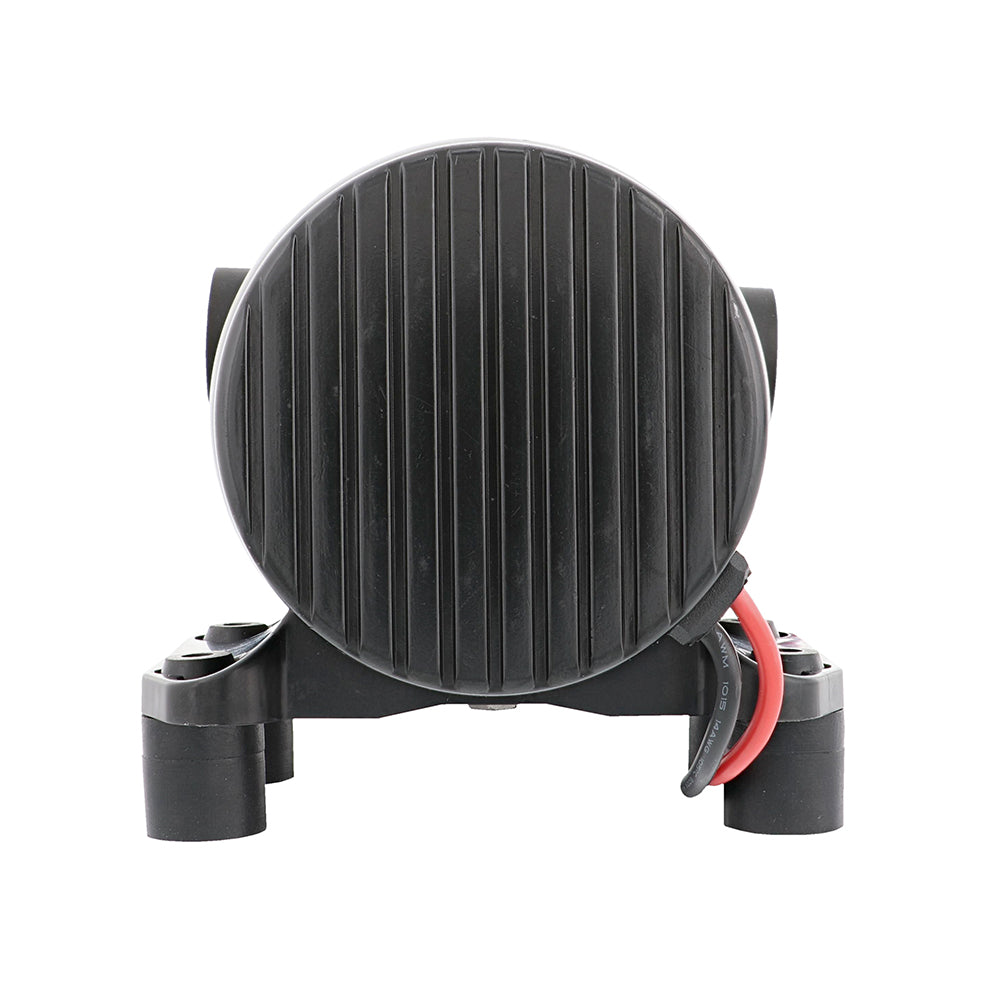

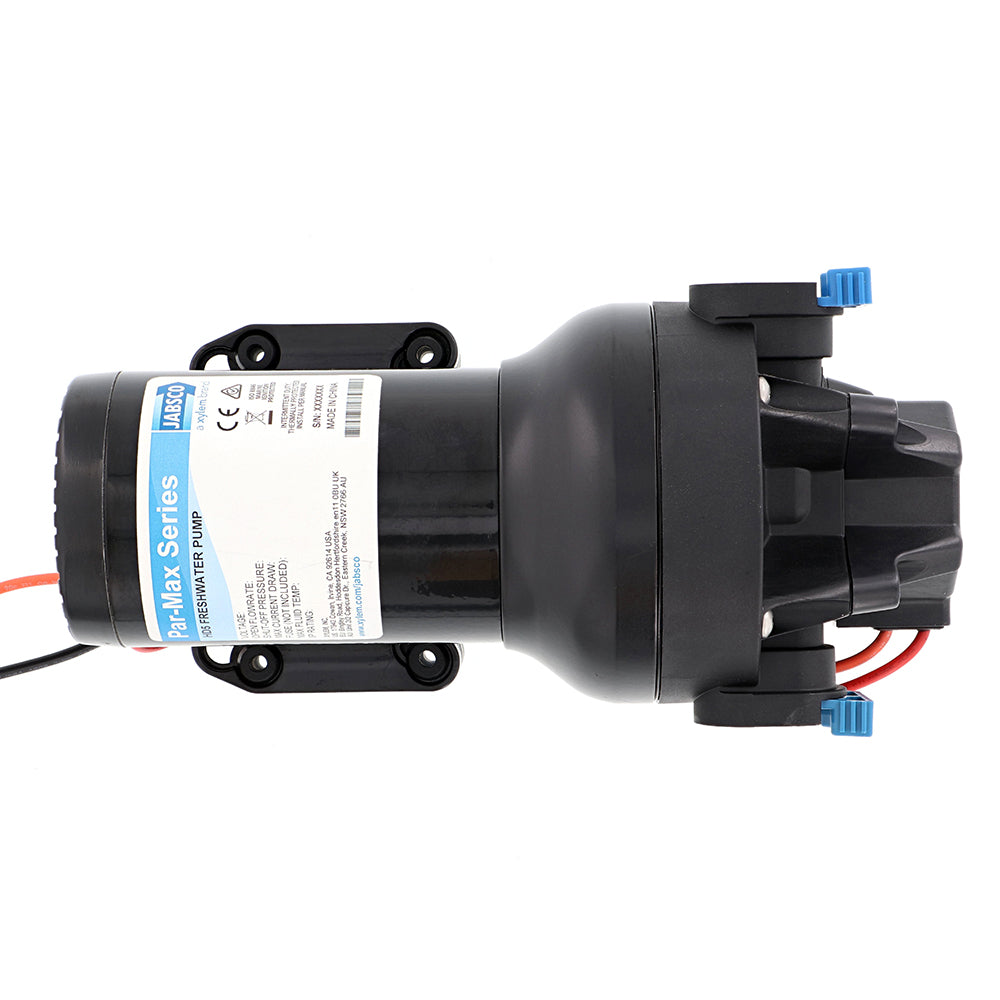

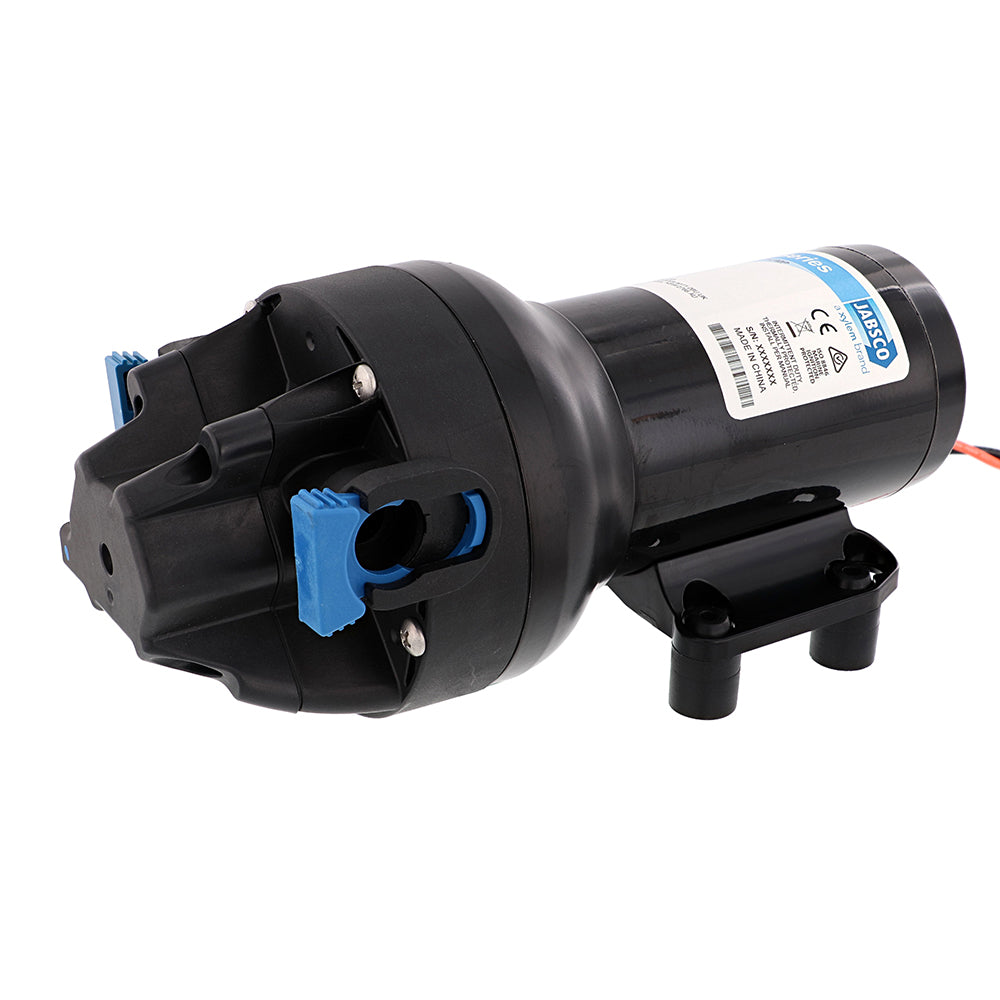

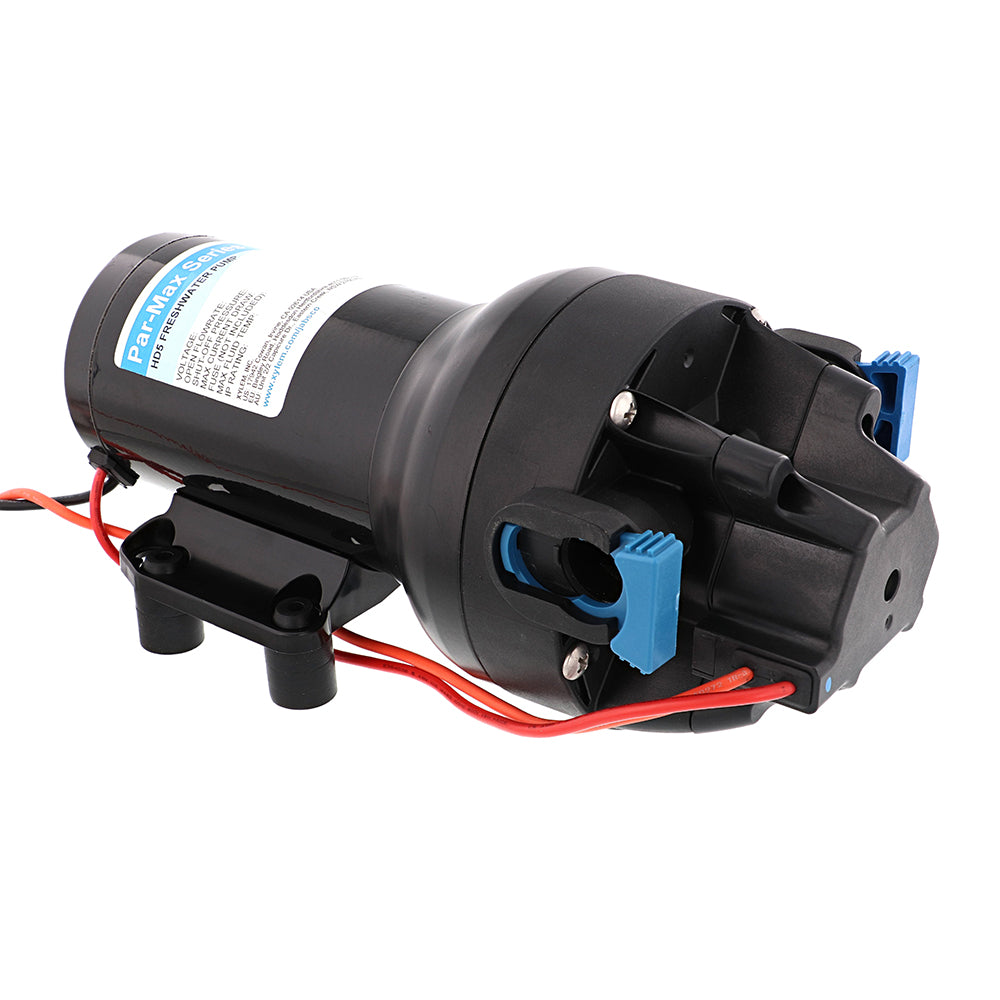

Jabsco Par-Max HD5 Heavy Duty 12V Water Pressure Pump – 5 GPM at 40 PSI for Marine and RV Applications

Par-Max HD5 Heavy Duty Water Pressure Pump - 12V - 5 GPM - 40 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max HD5 Heavy Duty Water Pressure Pump delivers reliable, high-performance water flow ideal for marine, RV, and mobile applications. Built with a wider diameter motor, cast aluminum endbells, and a durable powder-coated shell, the HD5 model offers increased pressure capability and extended service life. Its robust construction ensures consistent operation even under demanding conditions, making it suitable for vessels with multiple outlets or installations requiring steady water pressure. Designed for versatility, this self-priming pump can run dry without damage and features quick connect ports for straightforward installation and maintenance. The integrated sealed pressure switch activates on demand, conserving power and reducing wear, while vibration dampening mounting feet provide quiet, stable operation. The pump's efficient design incorporates co-molded diaphragm technology and an integrated bypass module that minimizes cycling and ensures smoother water flow, enhancing overall performance and longevity. The pump's construction includes a glass fiber-reinforced polypropylene pump head and EPDM check valves, with a maximum inlet pressure of 30 PSI, capable of handling water temperatures from 32°F to 140°F. Certified by CE, ISO8846, and RCM, and rated IPX6 for ingress protection, the Jabsco Par-Max HD5 is engineered for durability and dependable service in challenging environments. Please note that this product contains chemicals such as antimony oxide, which the State of California recognizes as carcinogenic, as detailed in Prop 65 warnings. Overall, the Jabsco Par-Max HD5 provides a high-quality solution for demanding water pressure needs, combining efficiency, durability, and ease of use in a compact form factor that ensures optimal performance across a range of applications.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motor and cast aluminum lower housing for enhanced pressure and lifespan

• Efficient and quiet operation for comfortable use

• Integrated, sealed pressure switch for on-demand activation

• Self-priming design allows for versatile installation

• Can operate dry without damage, reducing maintenance concerns

• Quick connect ports facilitate easy installation, servicing, and maintenance

• Vibration dampening mounting feet for stable operation

• Built-in bypass module for reduced cycling and smoother flow
