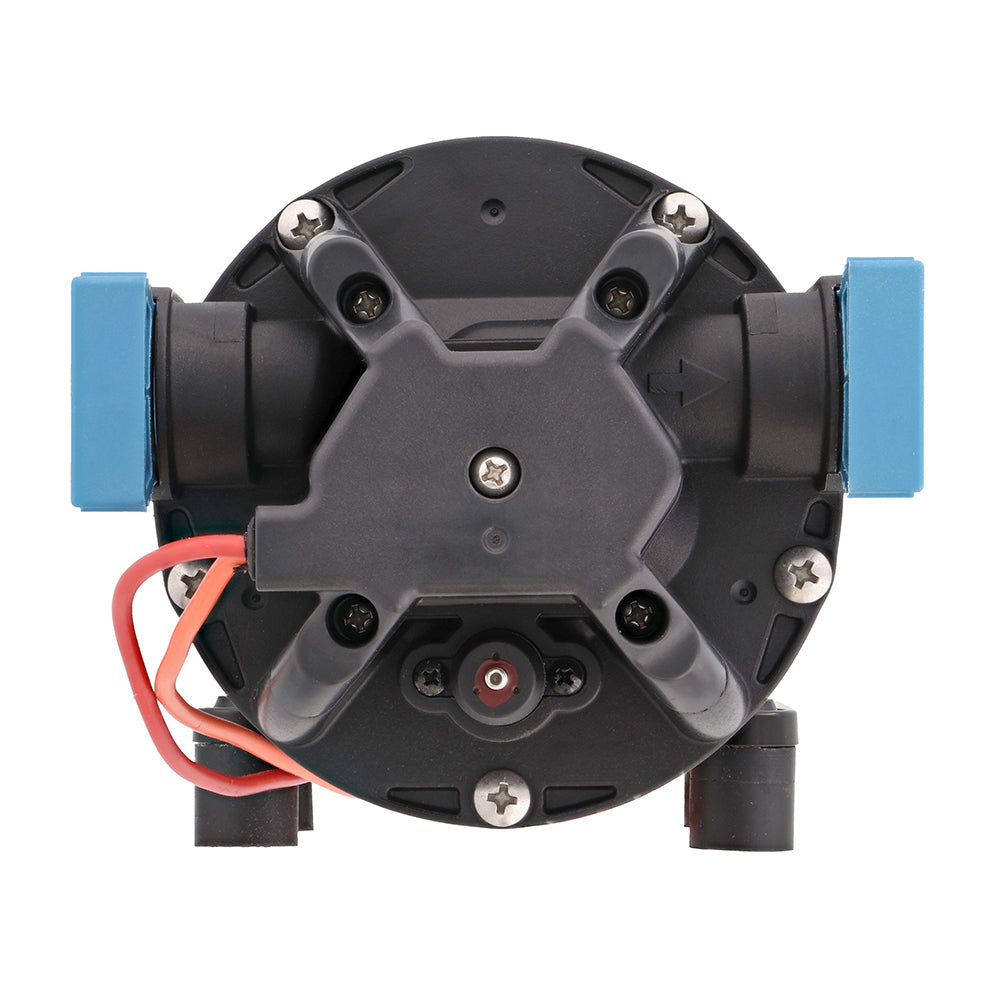

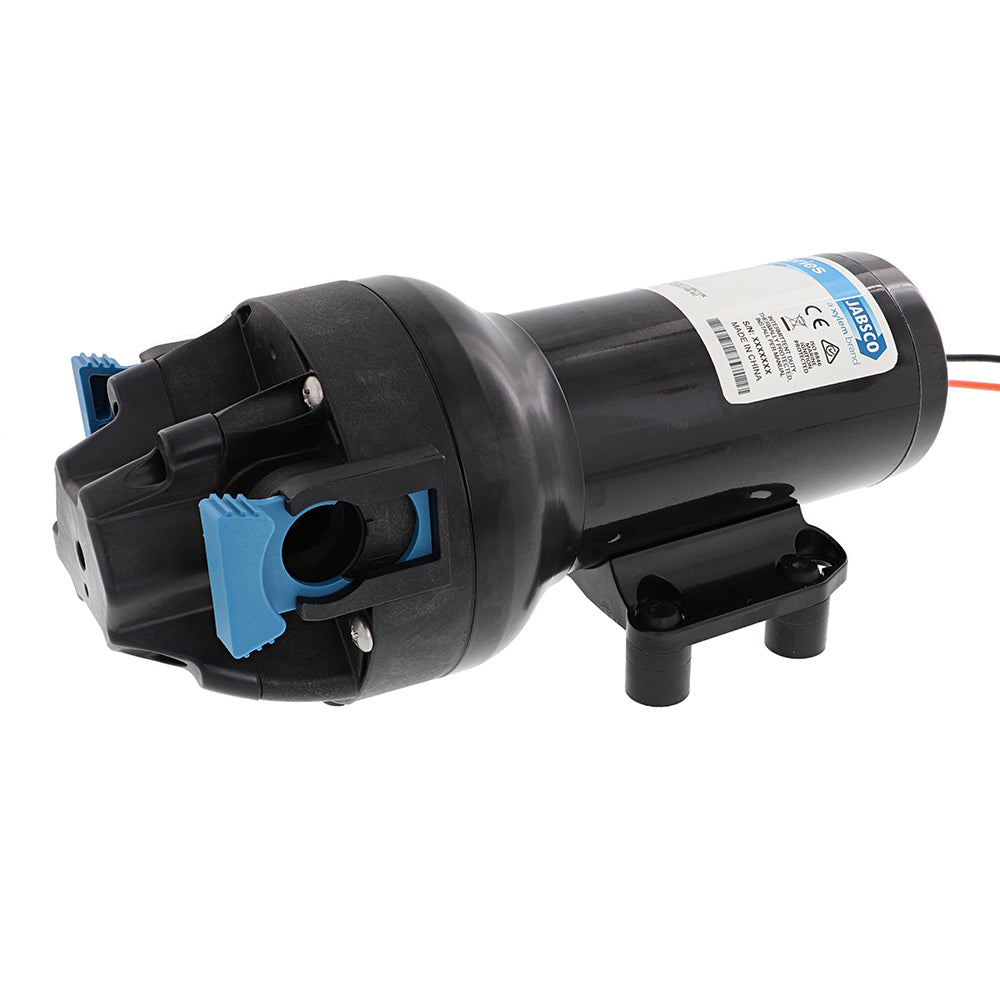

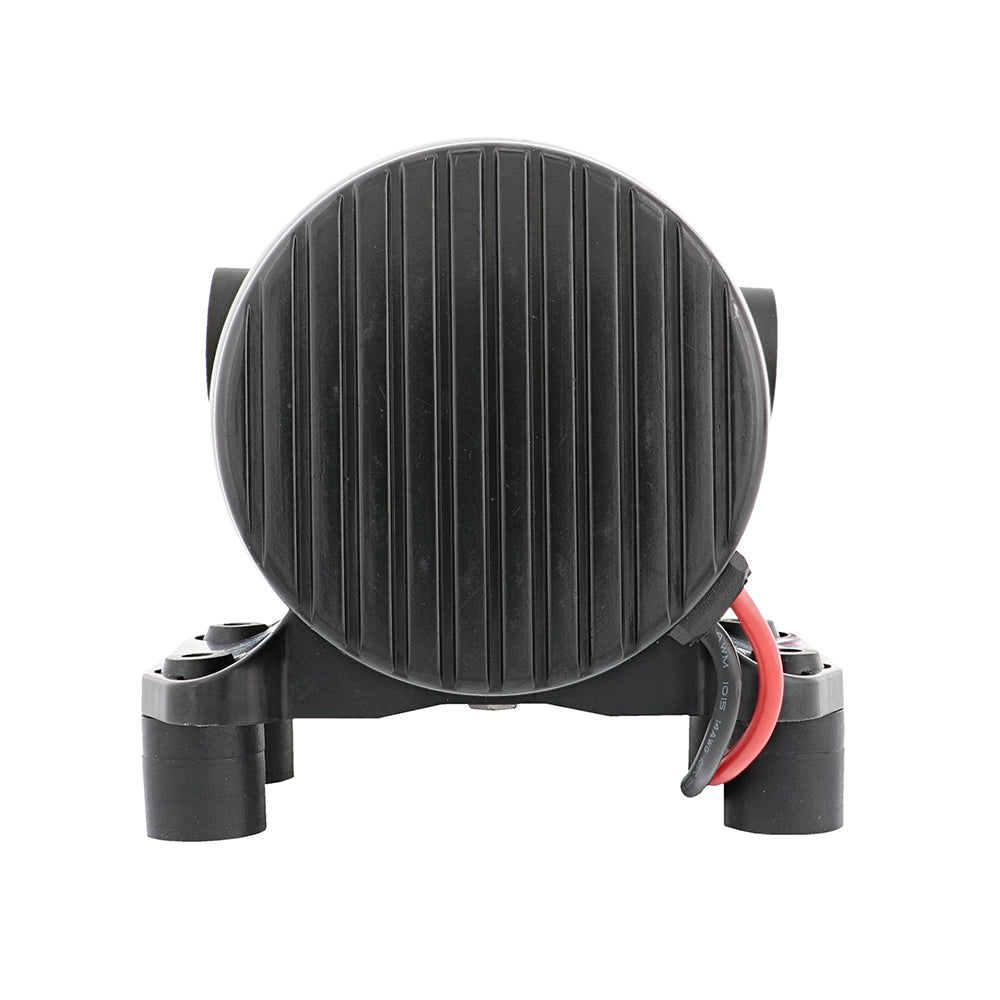

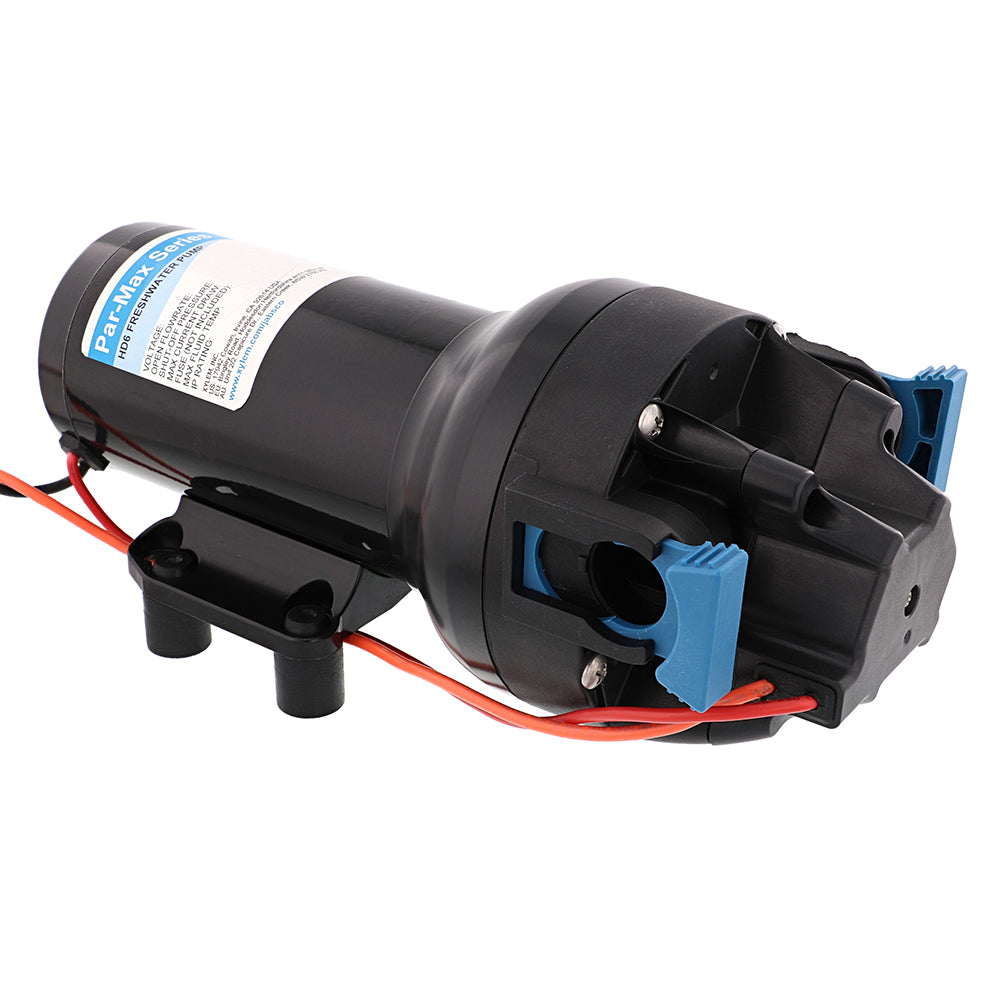

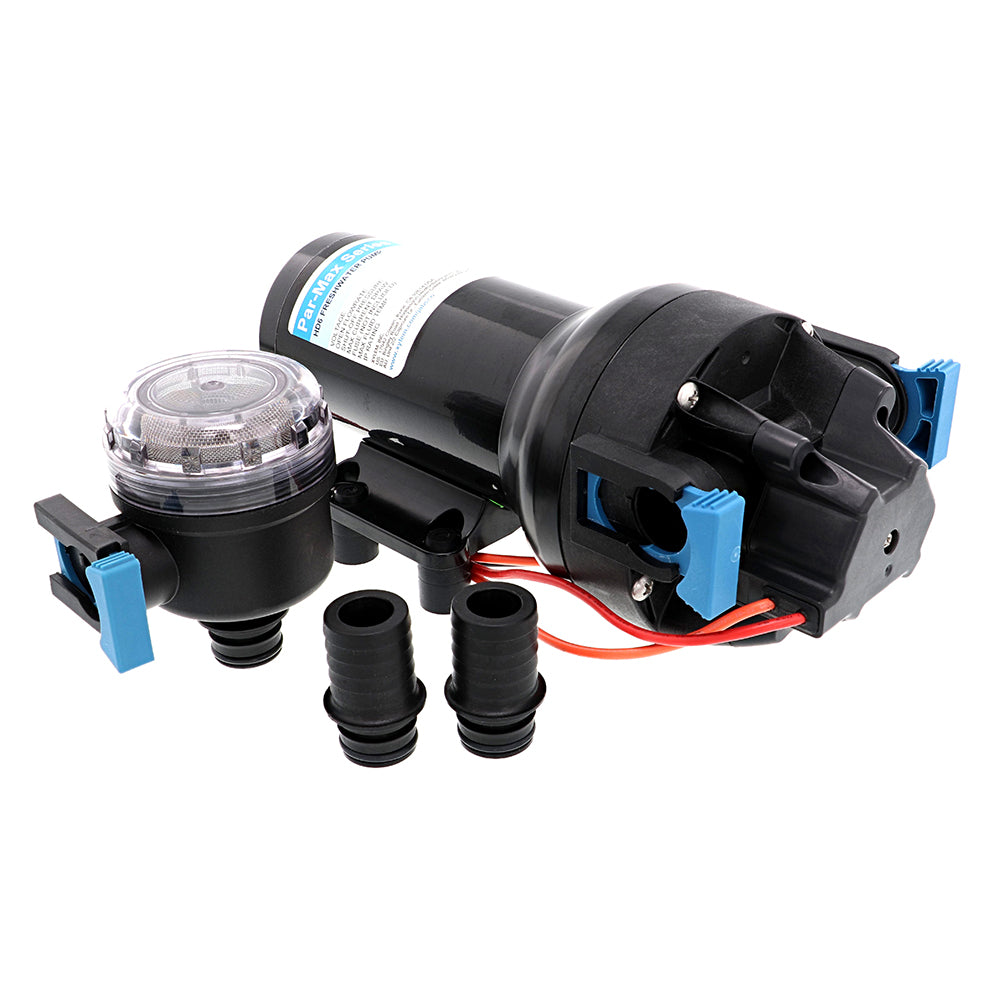

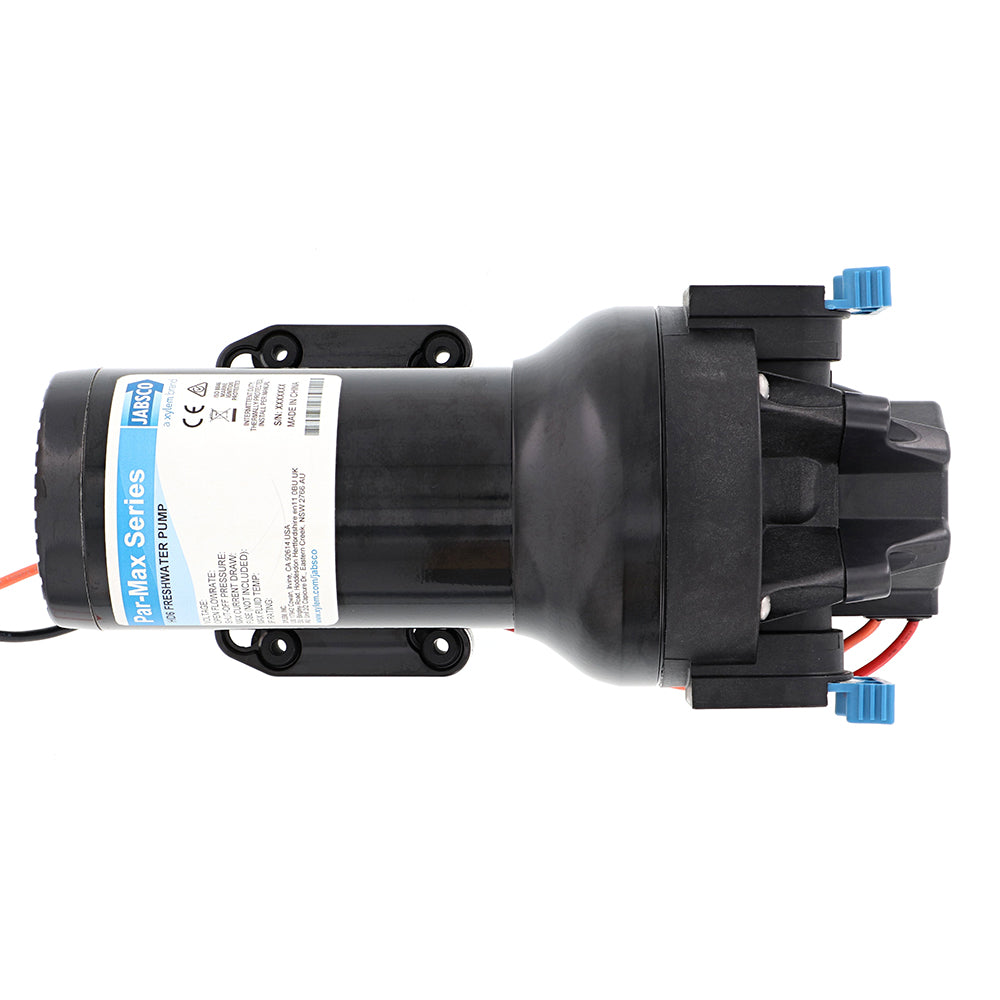

Jabsco Par-Max HD6 Heavy Duty 12V Water Pressure Pump – 6 GPM at 40 PSI for Marine & RV Applications

Par-Max HD6 Heavy Duty Water Pressure Pump - 12V - 6 GPM - 40 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump is engineered to provide reliable, high-performance water flow for demanding marine, RV, and mobile applications. Featuring a robust design with a wider diameter motor, cast aluminum endbells, and a powder-coated shell, this pump offers enhanced pressure capabilities and extended durability even under continuous use. Ideal for vessels with multiple outlets, the HD6 model delivers up to 6 gallons per minute at 40 PSI, ensuring a steady water supply for all your needs. Its efficient, quiet operation combined with self-priming capability makes installation flexible and maintenance straightforward. The integrated sealed pressure switch activates the pump on demand, conserving energy and reducing wear, while the bypass module smooths flow and minimizes cycling. Designed with corrosion-resistant components, including a plastic housing and EPDM check valves, the HD6 is built for longevity in harsh environments. Suitable for fluid temperatures from 32°F to 140°F, this pump is certified by CE, ISO8846, and RCM, and rated IPX6 for ingress protection, ensuring dependable performance in challenging conditions. Whether upgrading your existing system or installing a new one, the Jabsco Par-Max HD6 offers a durable, efficient solution for consistent water pressure, backed by Jabsco’s reputation for quality and innovation. Please note, this product contains chemicals known to the State of California to cause cancer, as per Prop 65 regulations.

Features:

• Co-molded diaphragm technology for long-lasting durability

• Heavy-duty motor with cast aluminum housing for high-pressure performance

• Efficient and quiet operation for minimal noise disruption

• Integrated sealed pressure switch for automatic, on-demand operation

• Self-priming design allows versatile installation options

• Can run dry without damage, reducing maintenance concerns

• Quick connect ports for easy installation and servicing

• Vibration dampening mounting feet for stable operation

• Built-in bypass module reduces cycling and ensures smooth flow
