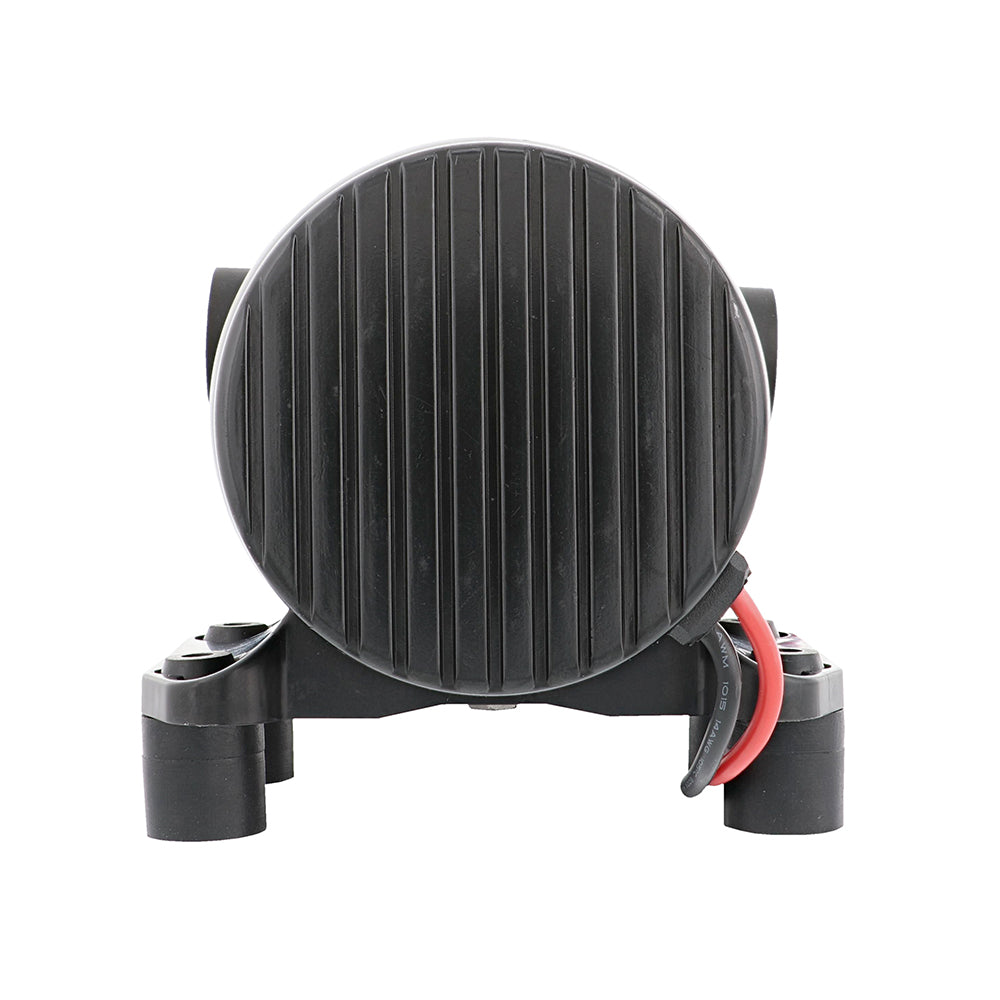

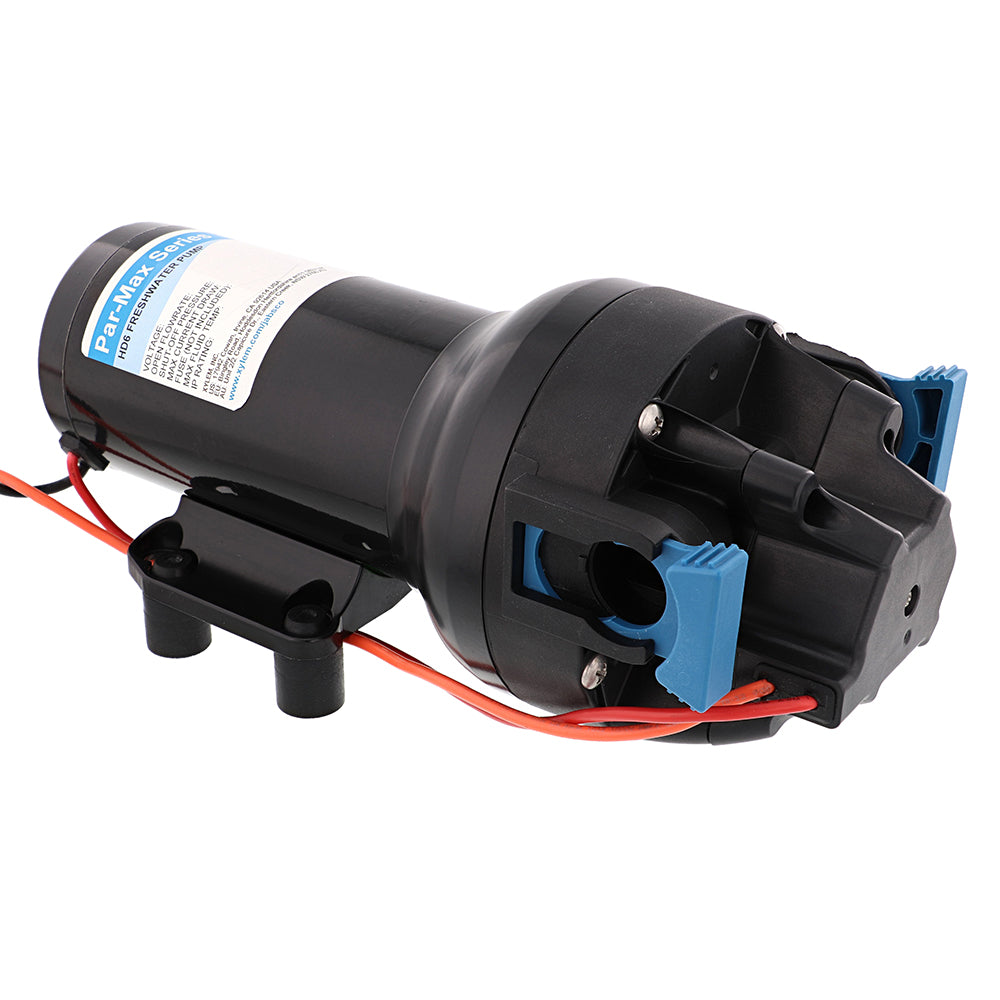

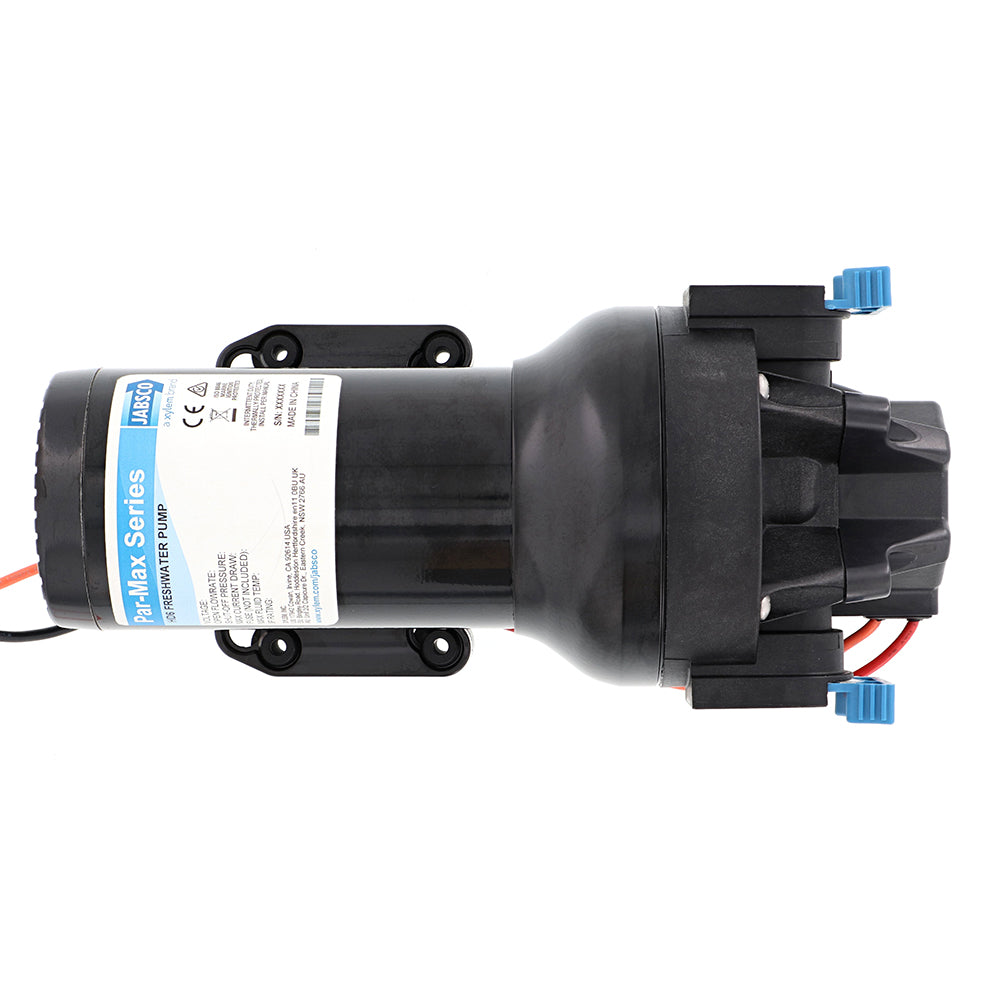

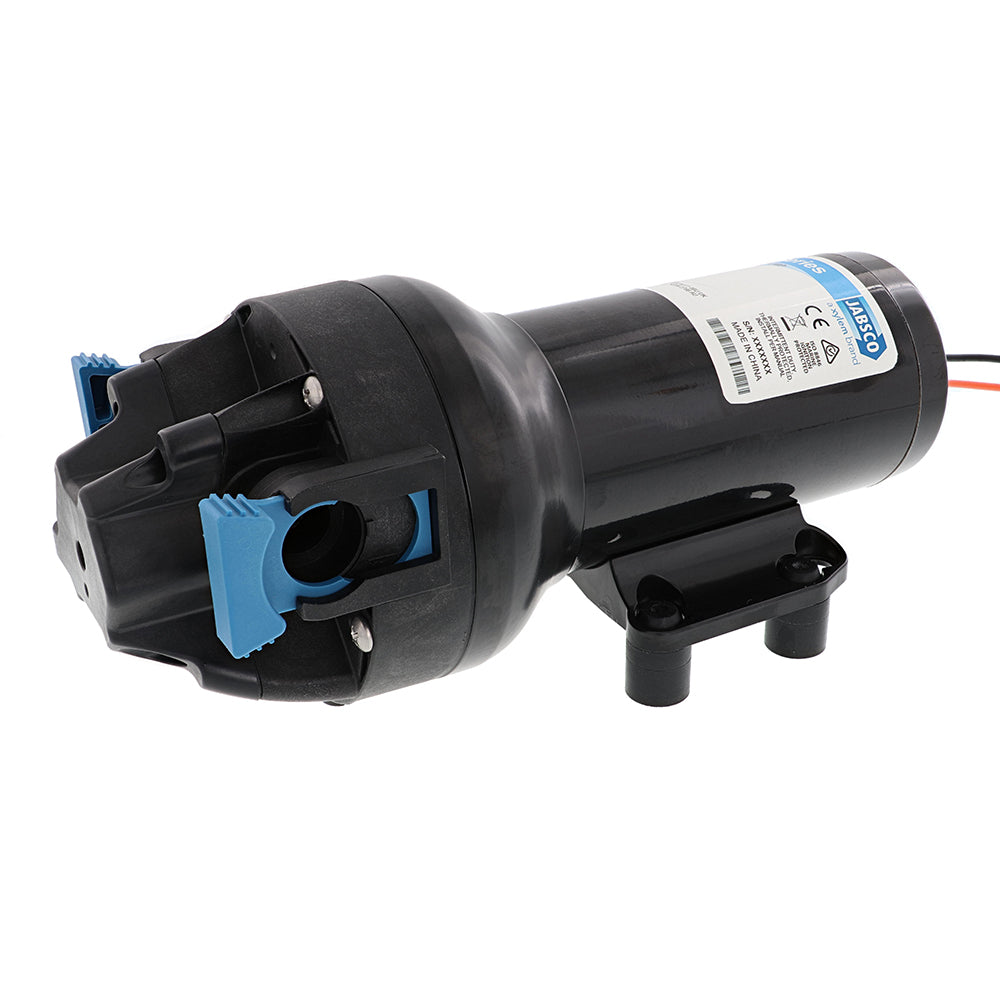

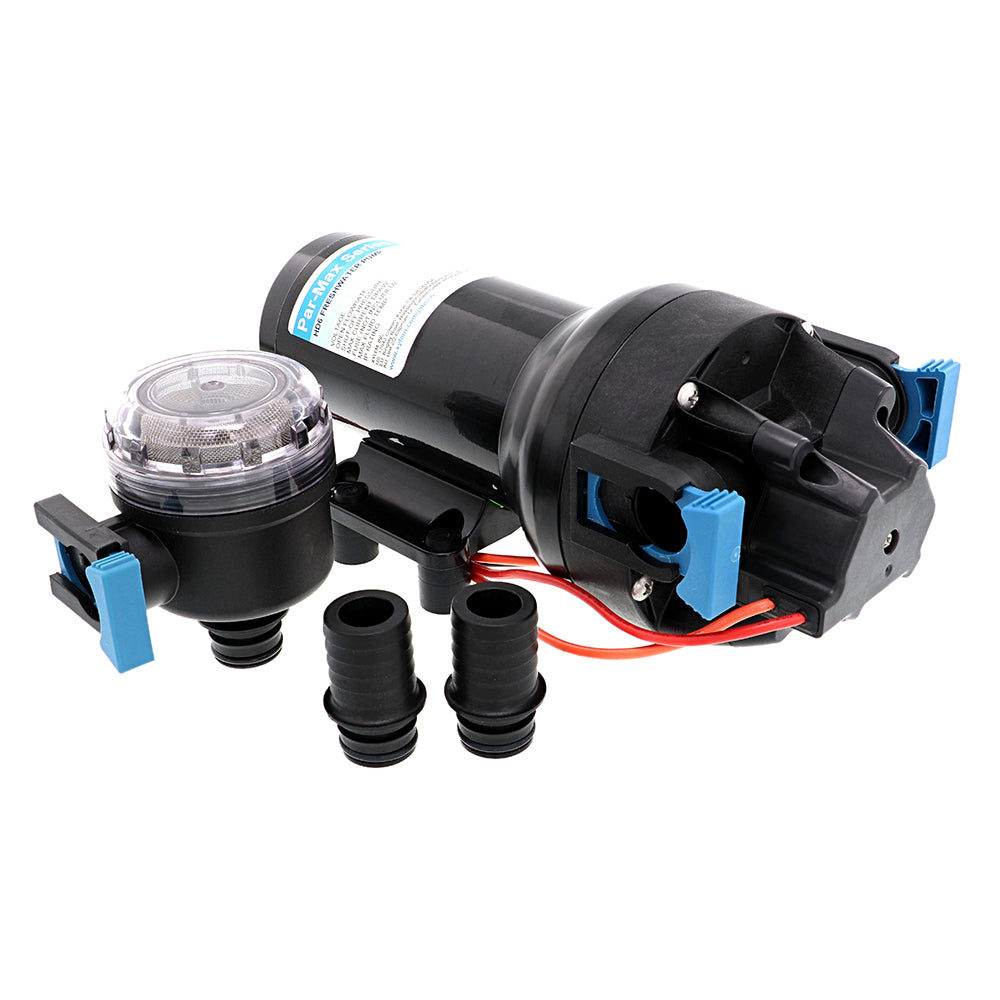

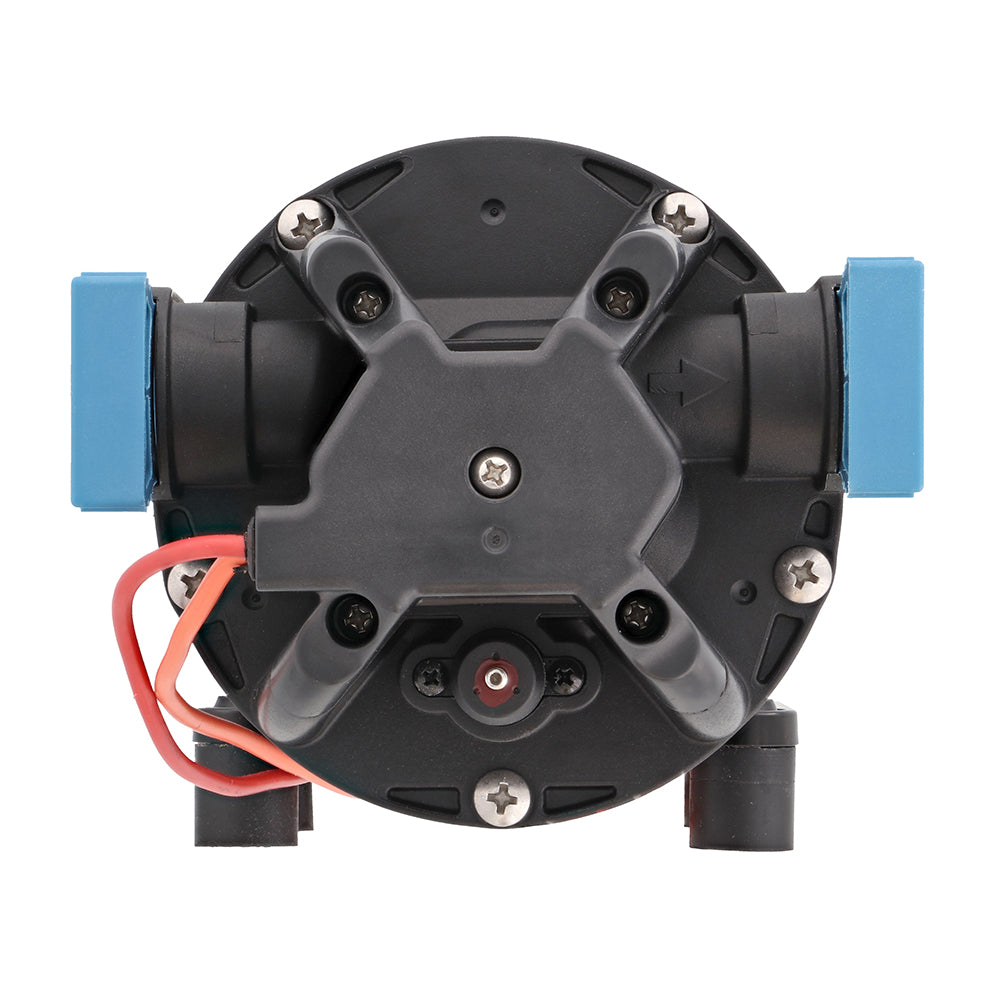

Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump P601J-218S-3A, 12V, 6 GPM, 60 PSI

Par-Max HD6 Heavy Duty Water Pressure Pump - 12V - 6 GPM - 60 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump is designed for marine freshwater systems that require dependable on-demand water delivery. With 12V operation, a flow rate of up to 6 GPM, and pressure capability up to 60 PSI, this pump is suited for vessels with higher water-flow demands and multiple outlets.

The HD6 combines a heavy-duty motor with a powder-coated shell, cast aluminum endbells, and a cast aluminum lower housing to support operation at higher pressures. Co-molded diaphragm technology, an integrated bypass module, and vibration-dampening mounting feet help provide durable, smoother, and quieter operation. Self-priming capability and quick-connect ports simplify installation, servicing, and maintenance, while the pump can run dry without damage.

Key Features:

• Heavy-duty 12V water pressure pump: Provides up to 6 GPM and 60 PSI for marine freshwater systems with greater flow requirements.
• Durable construction: Powder-coated motor shell, cast aluminum endbells, and lower housing support long-term use at higher pressures.
• On-demand operation: Integrated, sealed pressure switch activates the pump as water is needed.
• Installation versatility: Self-priming operation and quick-connect ports help simplify installation and maintenance.
• Smooth, quiet performance: Integrated bypass module helps reduce cycling, while vibration-dampening mounting feet help minimize operating vibration.
• Dry-run capability: The pump can run dry without damage.

Product Details:

• Brand: Jabsco
• Product: Par-Max HD6 Heavy Duty Water Pressure Pump
• Part number: P601J-218S-3A
• Voltage: 12V
• Maximum flow: 6 GPM
• Maximum pressure: 60 PSI
• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Maximum inlet pressure: 30 PSI
• Fluid temperature range: 32°F to 140°F
• Dry self-priming capability: 7 feet minimum
• Ingress protection: IPX6
• Certifications: CE, ISO8846, RCM

California Proposition 65 Warning: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Choose the Jabsco Par-Max HD6 for robust, on-demand freshwater pressure in demanding marine applications.
