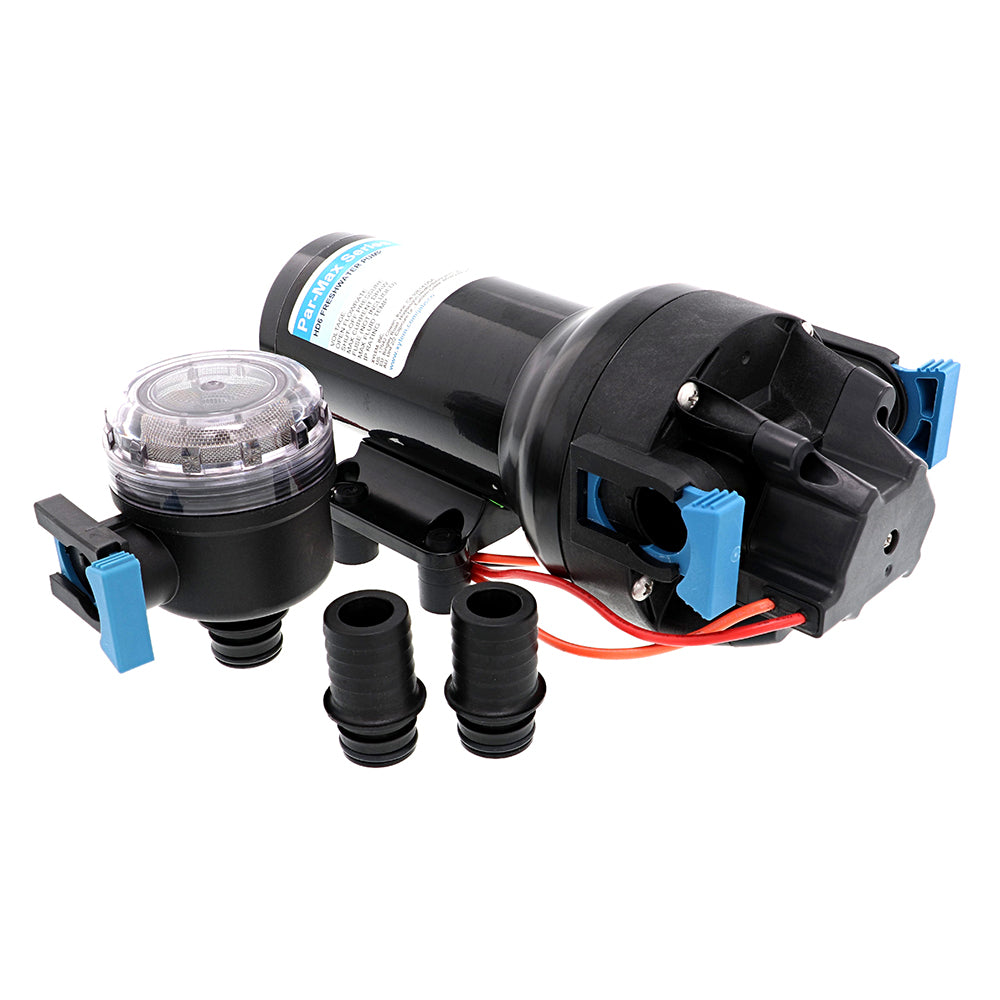

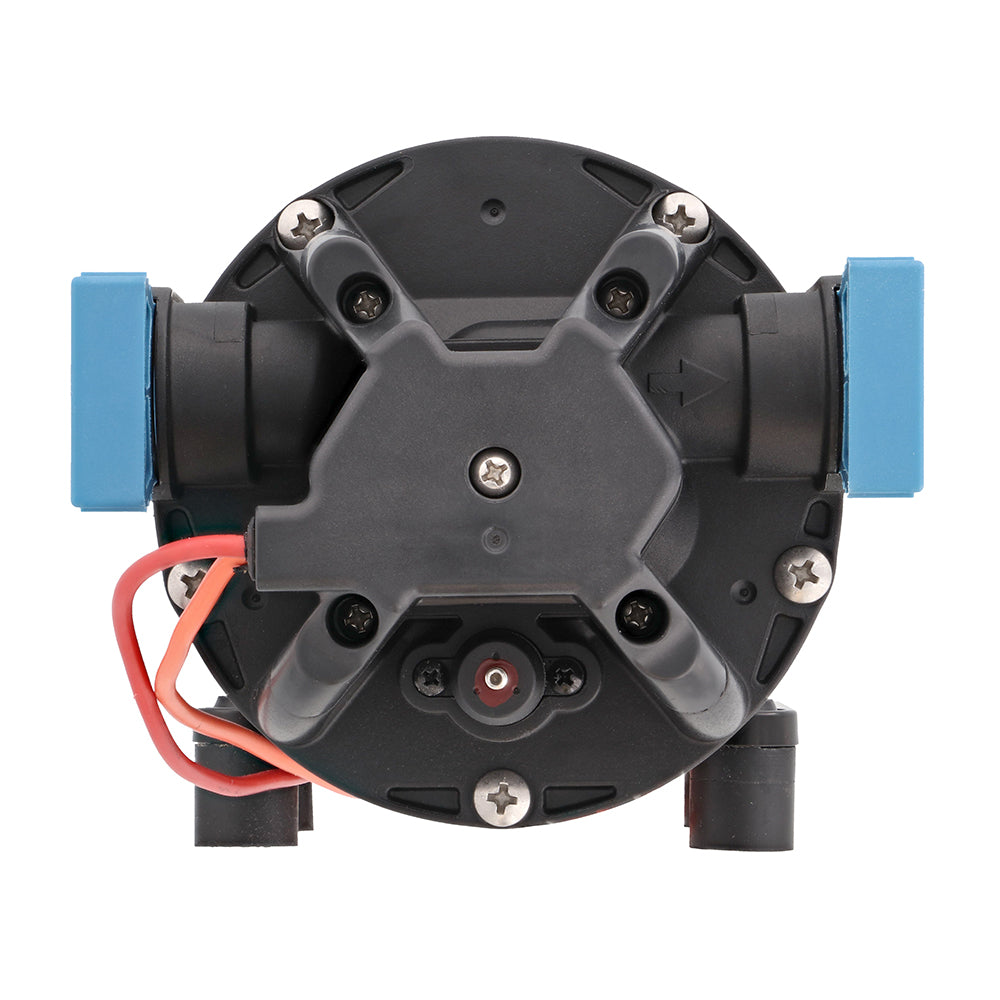

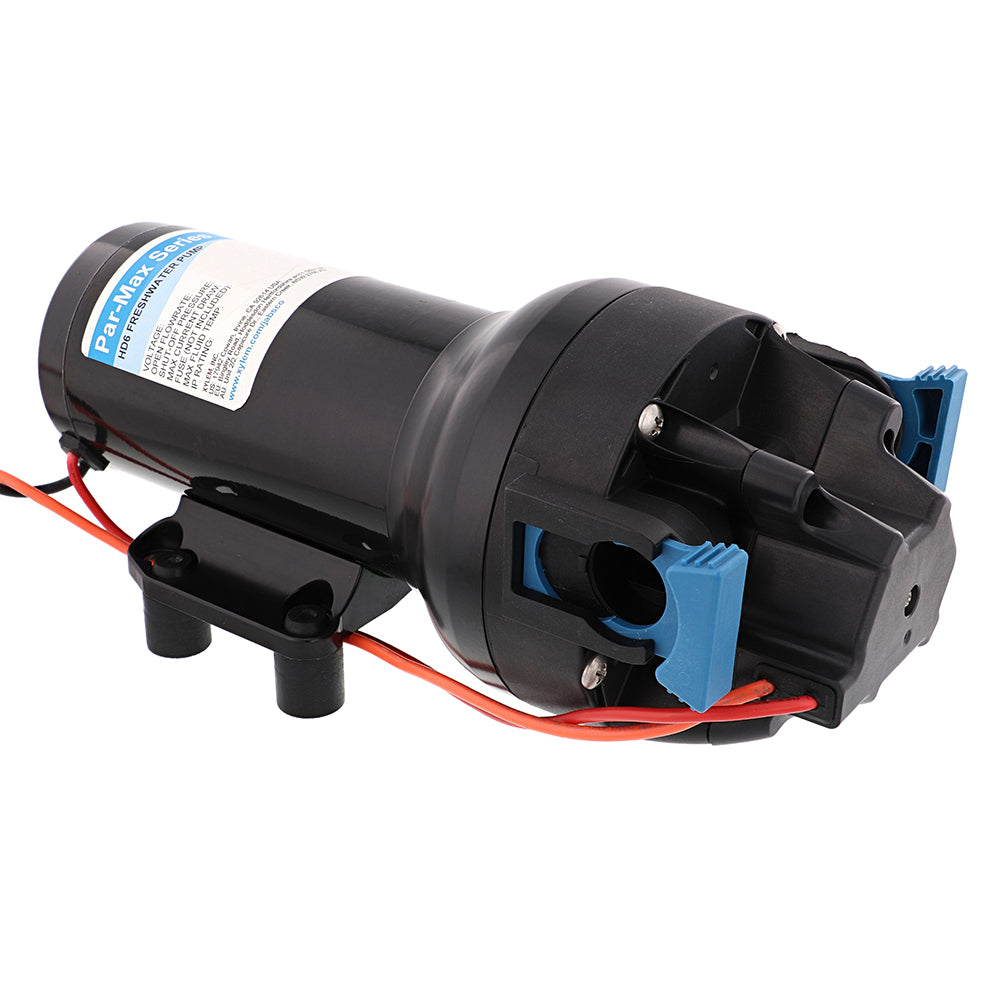

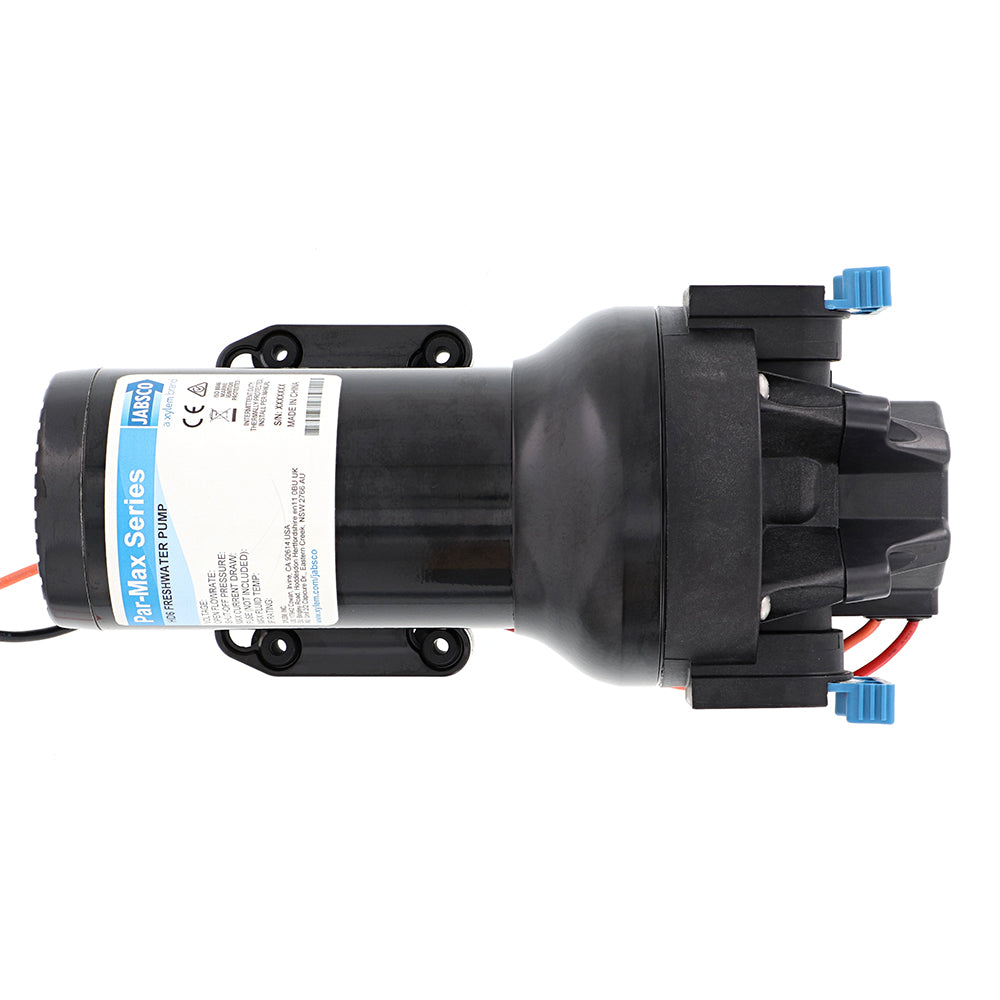

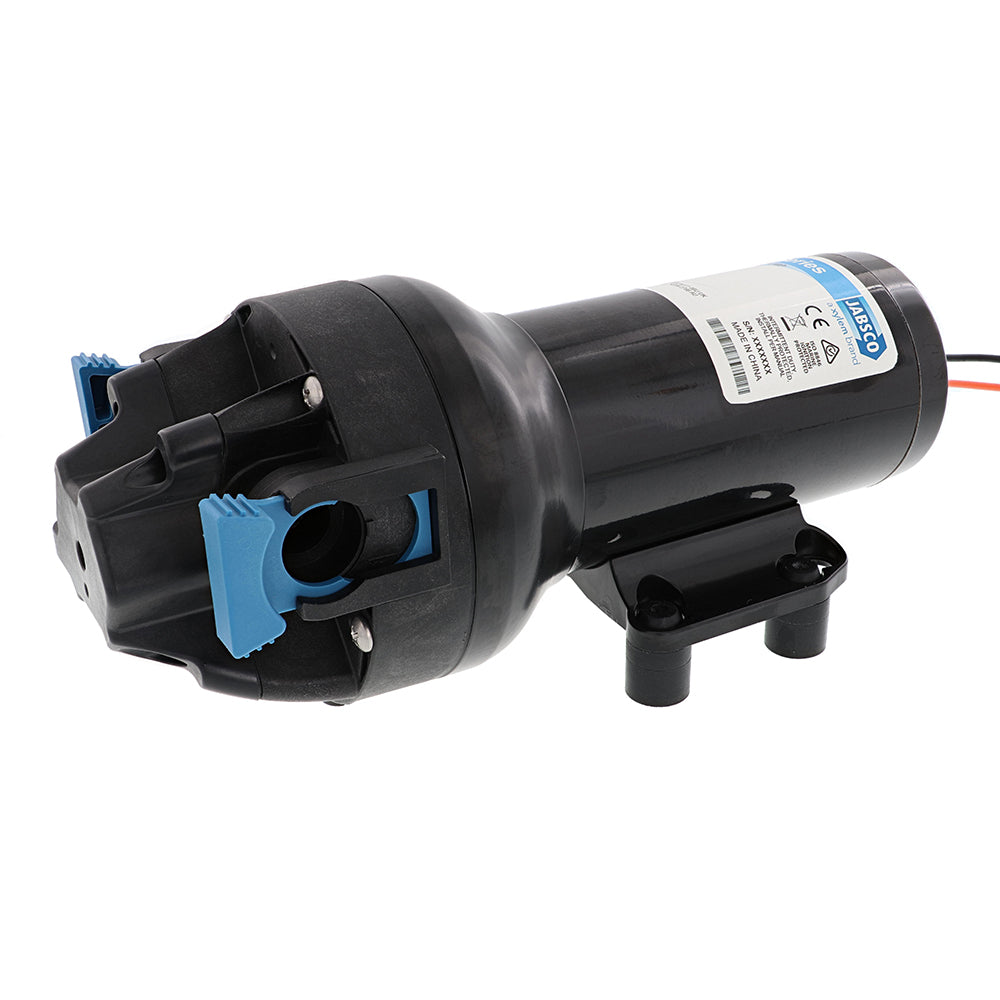

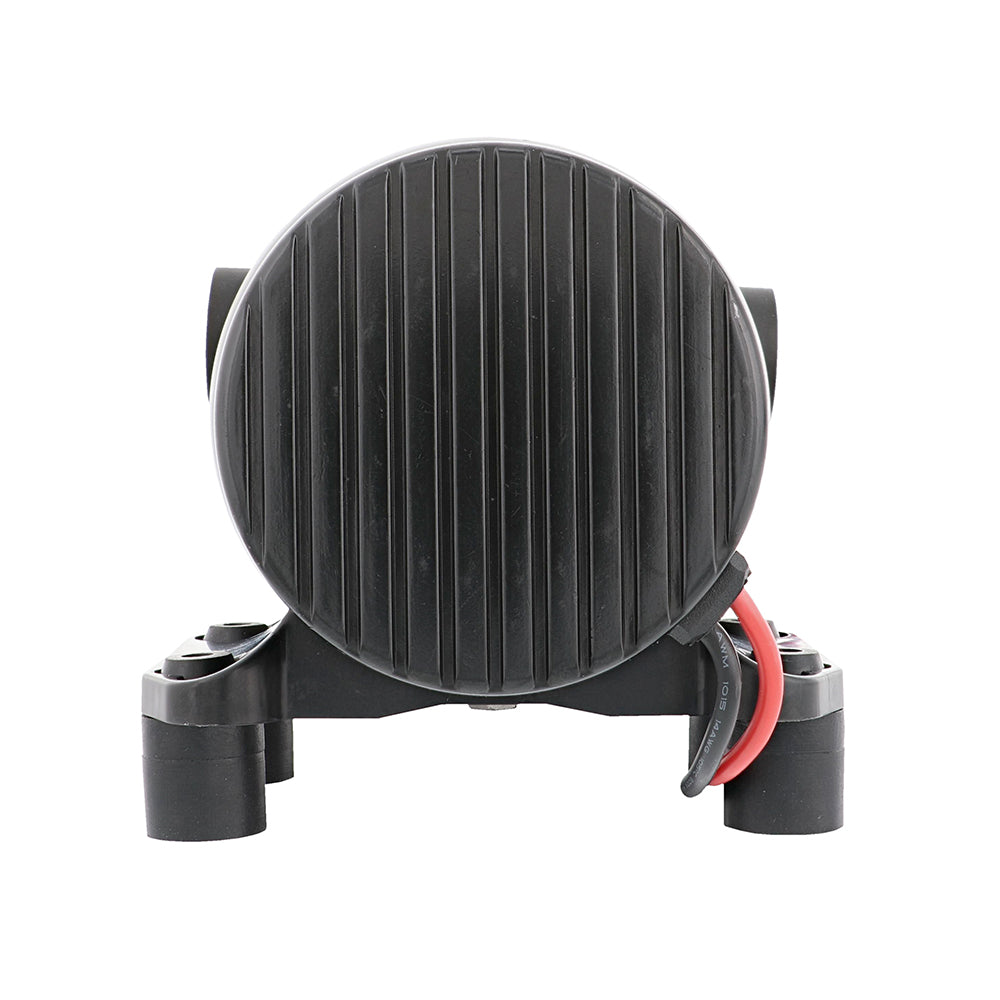

Par-Max HD6 Heavy Duty Water Pressure Pump - 24V - 6 GPM - 40 PSI
HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.
Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.
Features:
- Co-molded diaphragm technology for long life and durability
- HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
- Efficient and quiet operation
- Integrated, sealed pressure switch for on-demand operation
- Self-priming allows for installation versatility
- Can run dry without damage
- Quick connect ports for ease of installation, servicing, and maintenance
- Vibration dampening mounting feet
- Equipped with integrated bypass module to reduce cycling and provide smoother flow
Specifications:
- Motor design: Brushed, permanent magnet TENV
- Pumphead upper housing material: Glass fiber reinforced polypropylene
- Diaphragm: Co-molded TPV
- Check valves: EPDM
- Max inlet pressure: 30 PSI (2.1 Bar)
- Fluid temperature range: 32F 140F (0C 60C)
- Dry self-priming capability: 7ft min (2.13m/min)
- Certifications: CE, ISO8846, RCM
- Ingress Protection: IPX6
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Jabsco Par-Max HD6 Heavy-Duty Water Pressure Pump delivers reliable on-demand water pressure for marine and vessel water systems requiring up to 6 GPM at 40 PSI. Designed for demanding applications, this 24-volt pump combines a heavy-duty motor, cast aluminum housing components, and durable diaphragm technology to support long service life and consistent operation.
The Par-Max HD6 uses an integrated sealed pressure switch for automatic on-demand operation and an integrated bypass module to help reduce cycling and provide smoother water flow. Its self-priming design supports flexible installation, while the pump can run dry without damage. Quick-connect ports simplify installation, servicing, and maintenance, and vibration-dampening mounting feet help support a quieter installation.
Built for marine water pressure applications, the pump features a brushed permanent-magnet TENV motor, glass fiber reinforced polypropylene pumphead upper housing, co-molded TPV diaphragm, and EPDM check valves. The IPX6 ingress protection rating, along with CE, ISO8846, and RCM certifications, provides clearly defined product specifications for qualifying installation requirements.
Key Features:
-
Heavy-duty construction: Wider-diameter motor, powder-coated shell, cast aluminum endbells, and lower housing support pressure capability and service life.
-
On-demand water pressure: Integrated sealed pressure switch automatically operates the pump as needed.
-
Smooth operation: Integrated bypass module helps reduce cycling and provide steadier flow.
-
Installation flexibility: Self-priming design and quick-connect ports simplify installation and maintenance.
-
Durable pumping system: Co-molded diaphragm technology supports long life, while the pump can run dry without damage.
-
Reduced vibration: Vibration-dampening mounting feet support quieter operation.
Product Details:
-
Brand: Jabsco
-
Product: Par-Max HD6 heavy-duty water pressure pump
-
Part number: P602J-215S-3A
-
Voltage: 24V
-
Flow rate: 6 GPM
-
Pressure: 40 PSI
-
Motor design: Brushed, permanent magnet TENV
-
Pumphead upper housing: Glass fiber reinforced polypropylene
-
Diaphragm: Co-molded TPV
-
Check valves: EPDM
-
Maximum inlet pressure: 30 PSI
-
Fluid temperature range: 32°F to 140°F
-
Dry self-priming capability: 7 feet minimum
-
Ingress protection: IPX6
-
Certifications: CE, ISO8846, RCM
Choose the Jabsco Par-Max HD6 P602J-215S-3A for heavy-duty, on-demand water pressure performance in compatible marine and vessel water systems.
