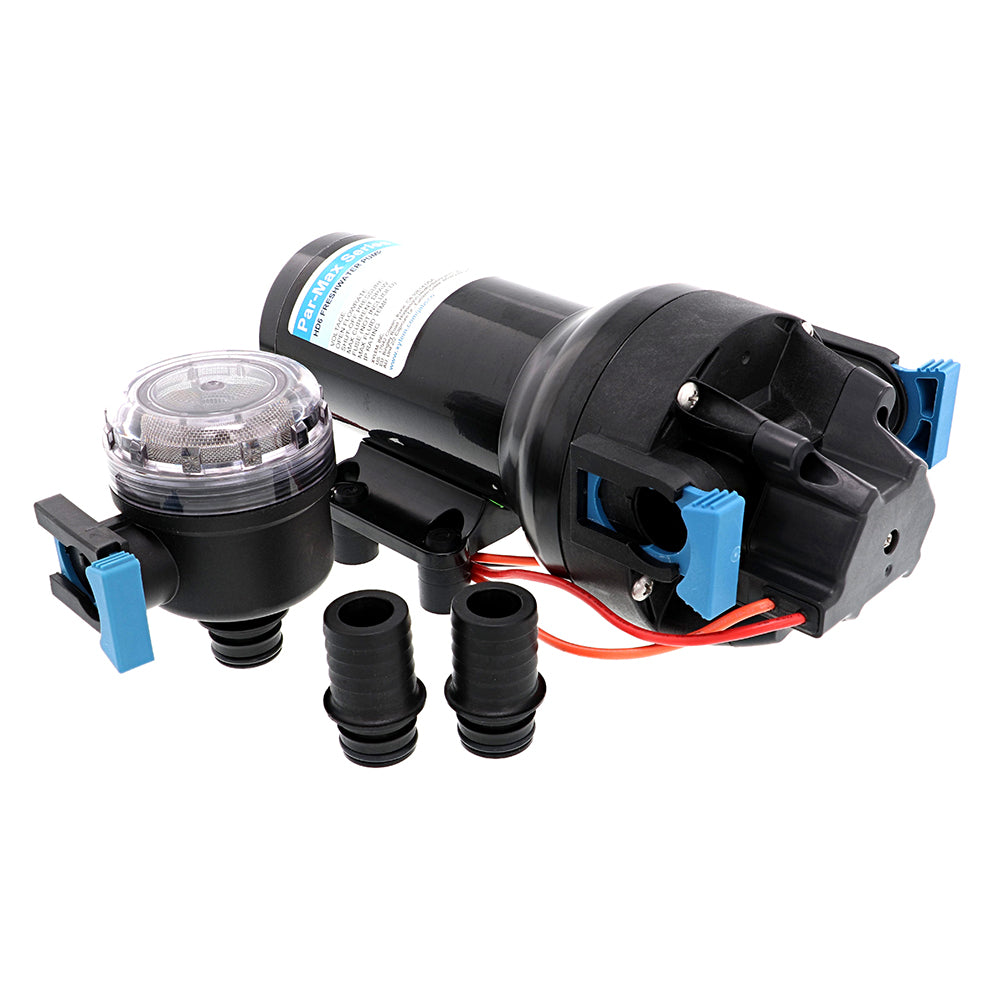

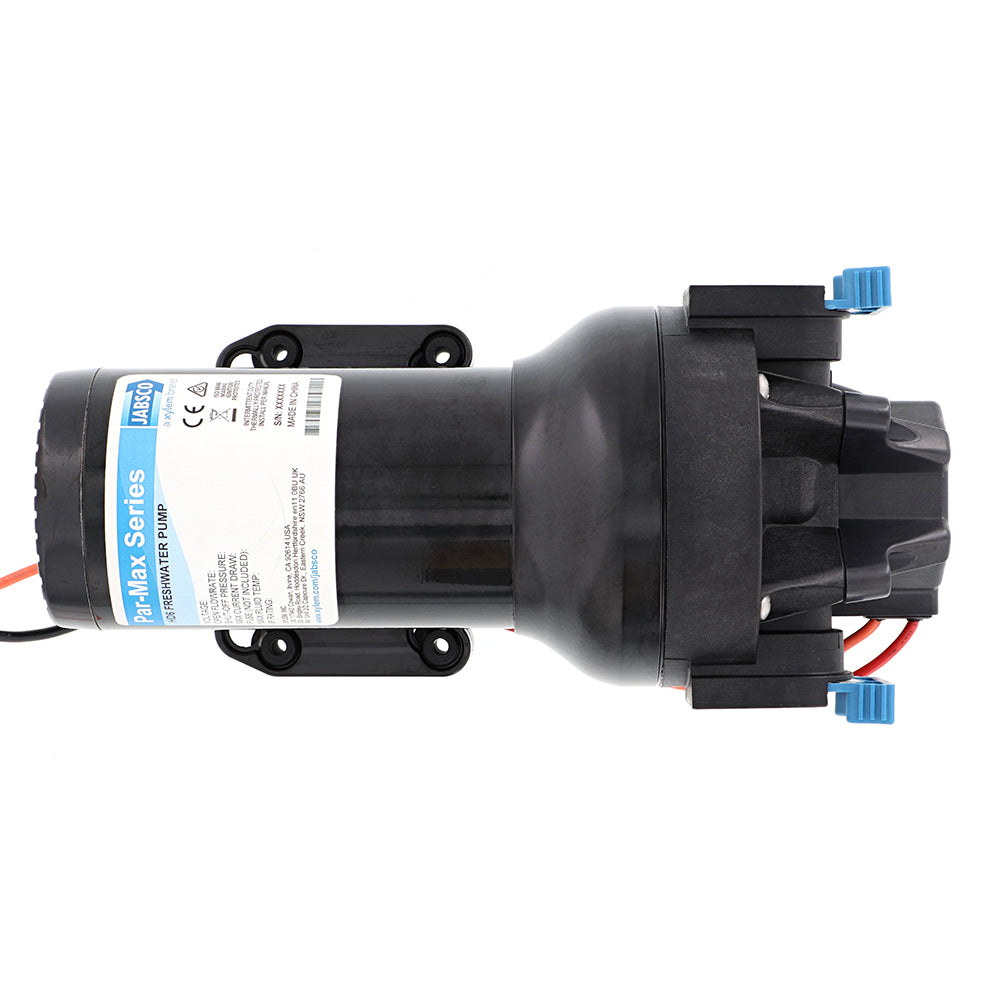

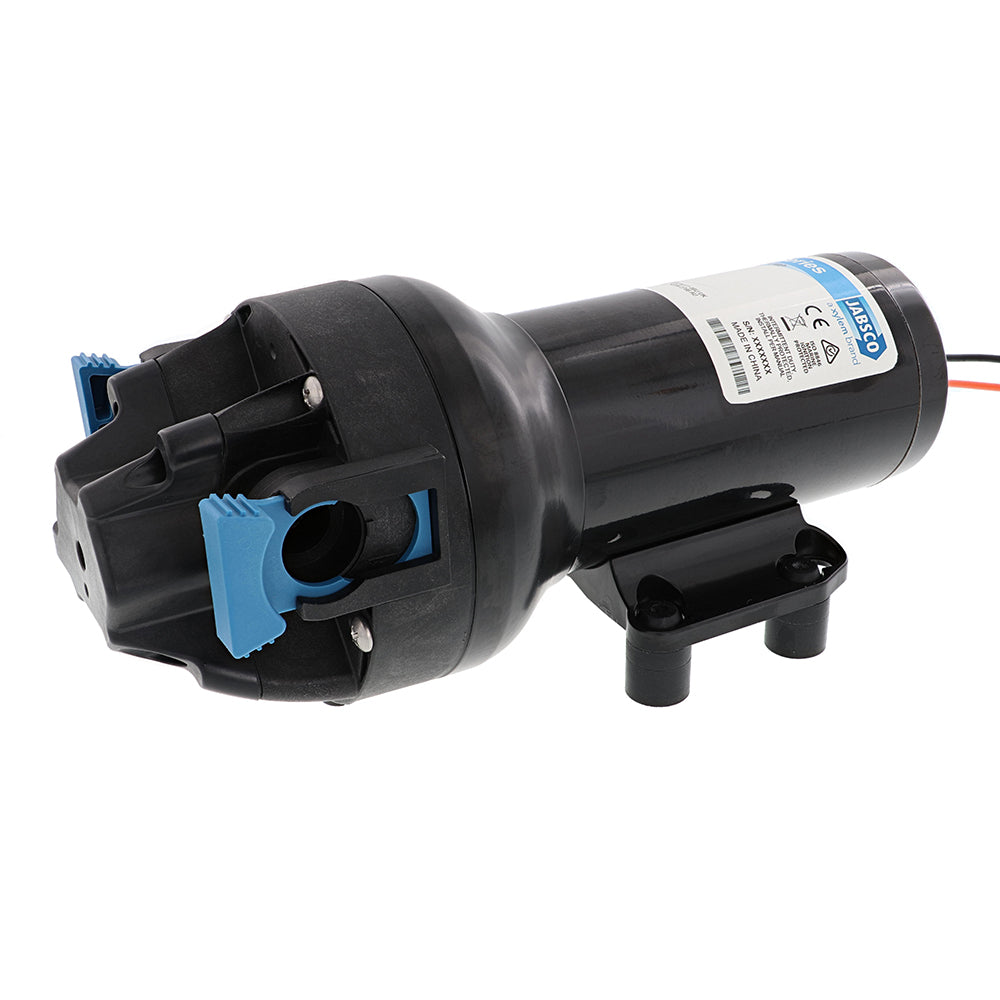

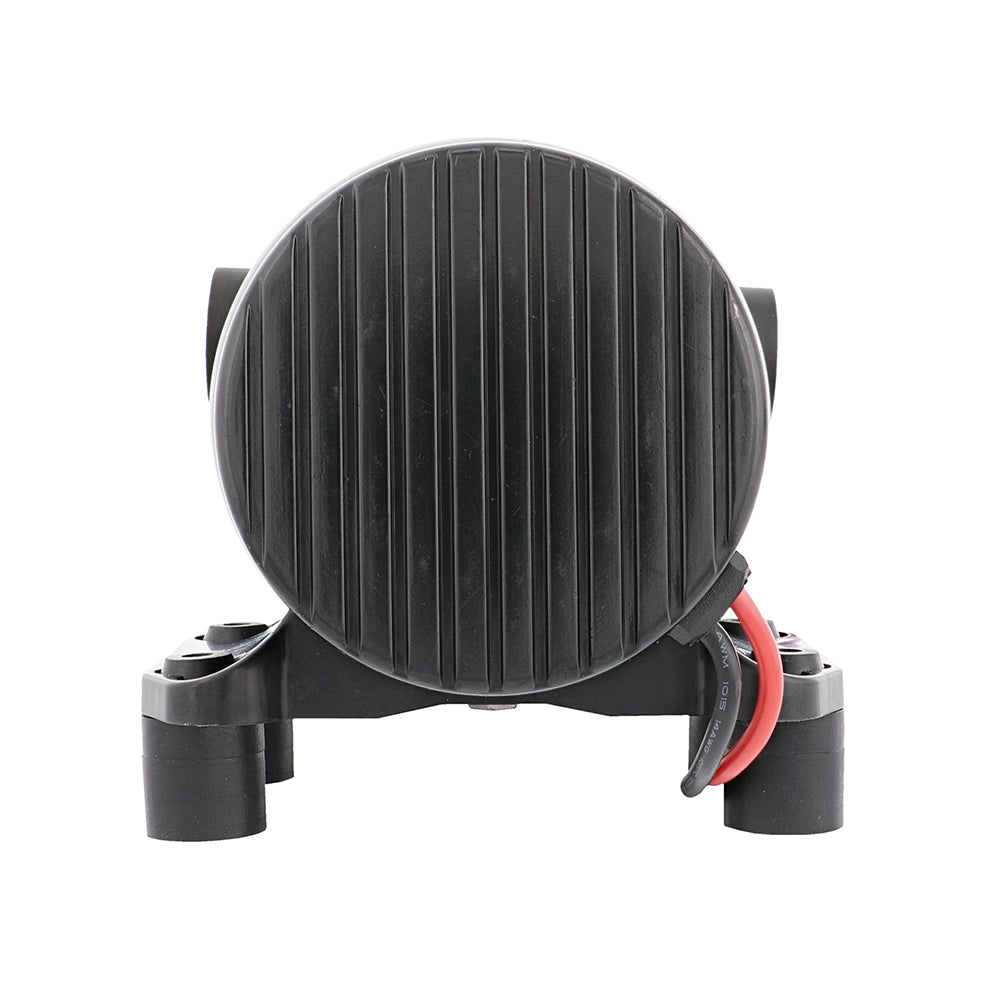

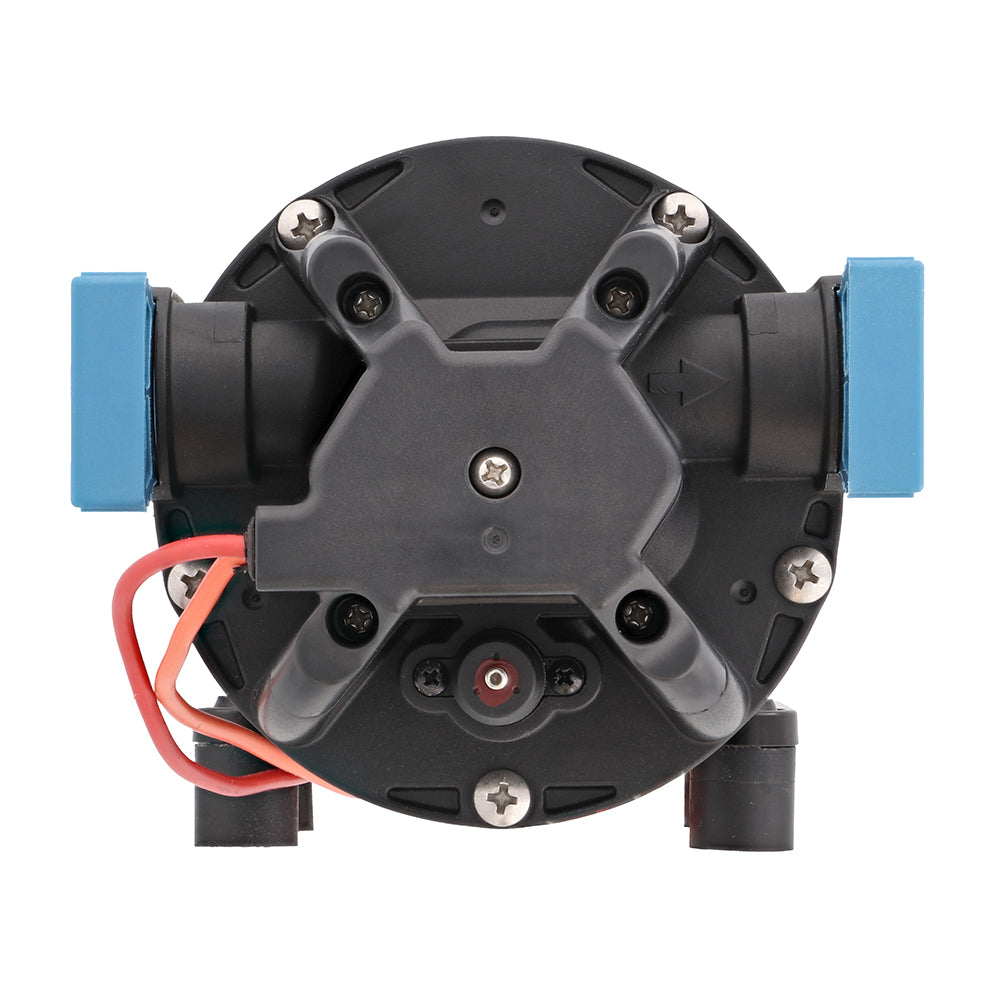

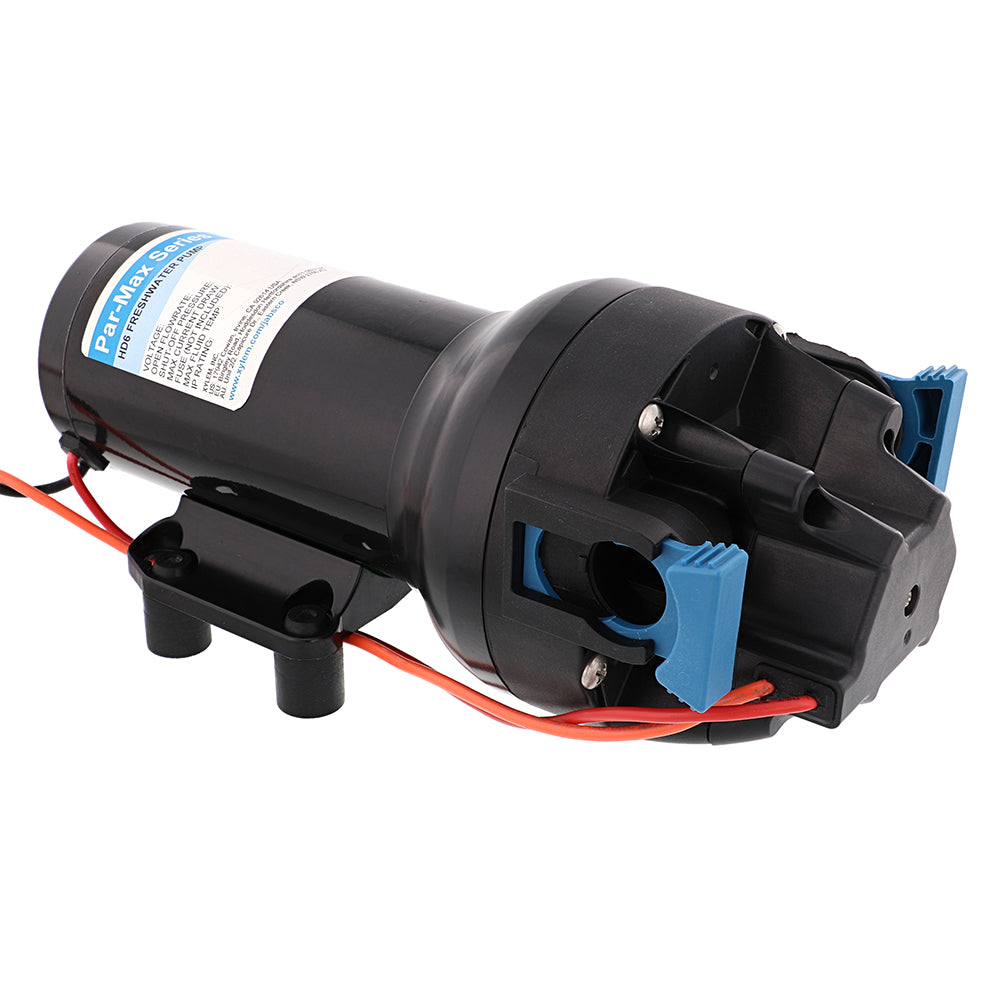

Par-Max HD6 Heavy Duty Water Pressure Pump - 24V - 6 GPM - 60 PSI
HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.
Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.
Features:
- Co-molded diaphragm technology for long life and durability
- HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
- Efficient and quiet operation
- Integrated, sealed pressure switch for on-demand operation
- Self-priming allows for installation versatility
- Can run dry without damage
- Quick connect ports for ease of installation, servicing, and maintenance
- Vibration dampening mounting feet
- Equipped with integrated bypass module to reduce cycling and provide smoother flow
Specifications:
- Motor design: Brushed, permanent magnet TENV
- Pumphead upper housing material: Glass fiber reinforced polypropylene
- Diaphragm: Co-molded TPV
- Check valves: EPDM
- Max inlet pressure: 30 PSI (2.1 Bar)
- Fluid temperature range: 32F 140F (0C 60C)
- Dry self-priming capability: 7ft min (2.13m/min)
- Certifications: CE, ISO8846, RCM
- Ingress Protection: IPX6
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump delivers dependable on-demand water pressure for marine vessels and other water systems requiring up to 6 GPM and 60 PSI. Model P602J-218S-3A operates on 24V power and is designed for demanding applications where efficient, quiet operation and installation flexibility are important.
The HD6 features a wider-diameter motor with a powder-coated shell, cast aluminum endbells, and a cast aluminum lower housing to support pressure capability and extended service life. Its co-molded diaphragm technology, integrated bypass module, and sealed pressure switch help provide smoother flow and on-demand operation. Self-priming capability and the ability to run dry without damage give installers additional flexibility when configuring the water system.
Quick-connect ports simplify installation, servicing, and maintenance, while vibration-dampening mounting feet help reduce vibration during operation. The pump is suitable for water pressure applications with multiple outlets and includes an IPX6 ingress protection rating along with CE, ISO8846, and RCM certifications.
Key Features
-
Feature: 24V heavy-duty water pressure pump designed to deliver up to 6 GPM at 60 PSI.
-
Feature: Co-molded diaphragm technology supports durability and long service life.
-
Feature: Integrated sealed pressure switch provides on-demand operation.
-
Feature: Self-priming design and dry-run capability support installation versatility.
-
Feature: Quick-connect ports and vibration-dampening feet simplify installation and servicing.
-
Feature: Integrated bypass module helps reduce cycling and provide smoother flow.
Product Details
-
Brand: Jabsco
-
Product: Par-Max HD6 Heavy Duty Water Pressure Pump
-
Part Number: P602J-218S-3A
-
Voltage: 24V
-
Maximum flow: 6 GPM
-
Maximum pressure: 60 PSI
-
Motor design: Brushed, permanent magnet TENV
-
Pumphead upper housing: Glass fiber reinforced polypropylene
-
Diaphragm: Co-molded TPV
-
Check valves: EPDM
-
Maximum inlet pressure: 30 PSI
-
Fluid temperature range: 32°F to 140°F
-
Dry self-priming capability: 7 feet minimum
-
Ingress protection: IPX6
-
Certifications: CE, ISO8846, RCM
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Choose the Jabsco Par-Max HD6 for robust, flexible water pressure performance in demanding 24V applications.
SEO Meta Description: Jabsco Par-Max HD6 24V water pressure pump delivers up to 6 GPM at 60 PSI with self-priming, quiet operation, and durable HD construction.
|
| Truck Freight: No |
| Oversized: No |
